Closed loop circuit water system cooling tower price
Closed cooling tower also named Evaporative air cooler. It is the type of cooling tower placed the heat exchange tube inner the tower to the then ensure the cooling effect by circulation of air, spray water and circulating water. Spray water wraped around the heat exchange tube, the heat of the water inner tube is transfered to the spary water throught the wall of Heat exchange tube and Forming steam, the steam is discharged by fans. Almost Steam is recycling by drift eliminator , Re-condense into water and flow into the water channel. The filling cooling the spary water twice time , impoved the cooling effect and reduce the Scaling in outer wall of heat exchange tube.It can ensure the water can't be pulluted because of the close circulation and protect well the main equipment 's efficient operation and improve the service life. If the low temperature outside, can stop spray water system to save water

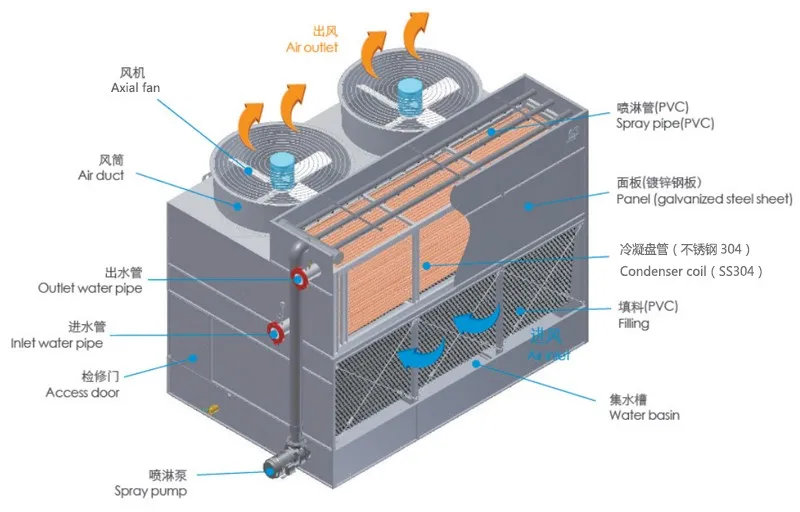

Operation Pinciple
TECHNICAL DATA
Factory Supply Industrial closed loop circuit water system cooling tower price
Model
Heat rejection under operating condition
Water flow
Axial fan
Water circulating pump
Operating weight
GWB-50T
291KW
50m³/h
1x5.5kw
1.5kw
5790kg
GWB-60T
348KW
60m³/h
1x5.5kw
2.2kw
6600kg
GWB-75T
430KW
75m³/h
2x7.5kw
2.2kw
8110kg
GWB-90T
531kw
90m³/h
2x4.0kw
3.0kw
10890kg

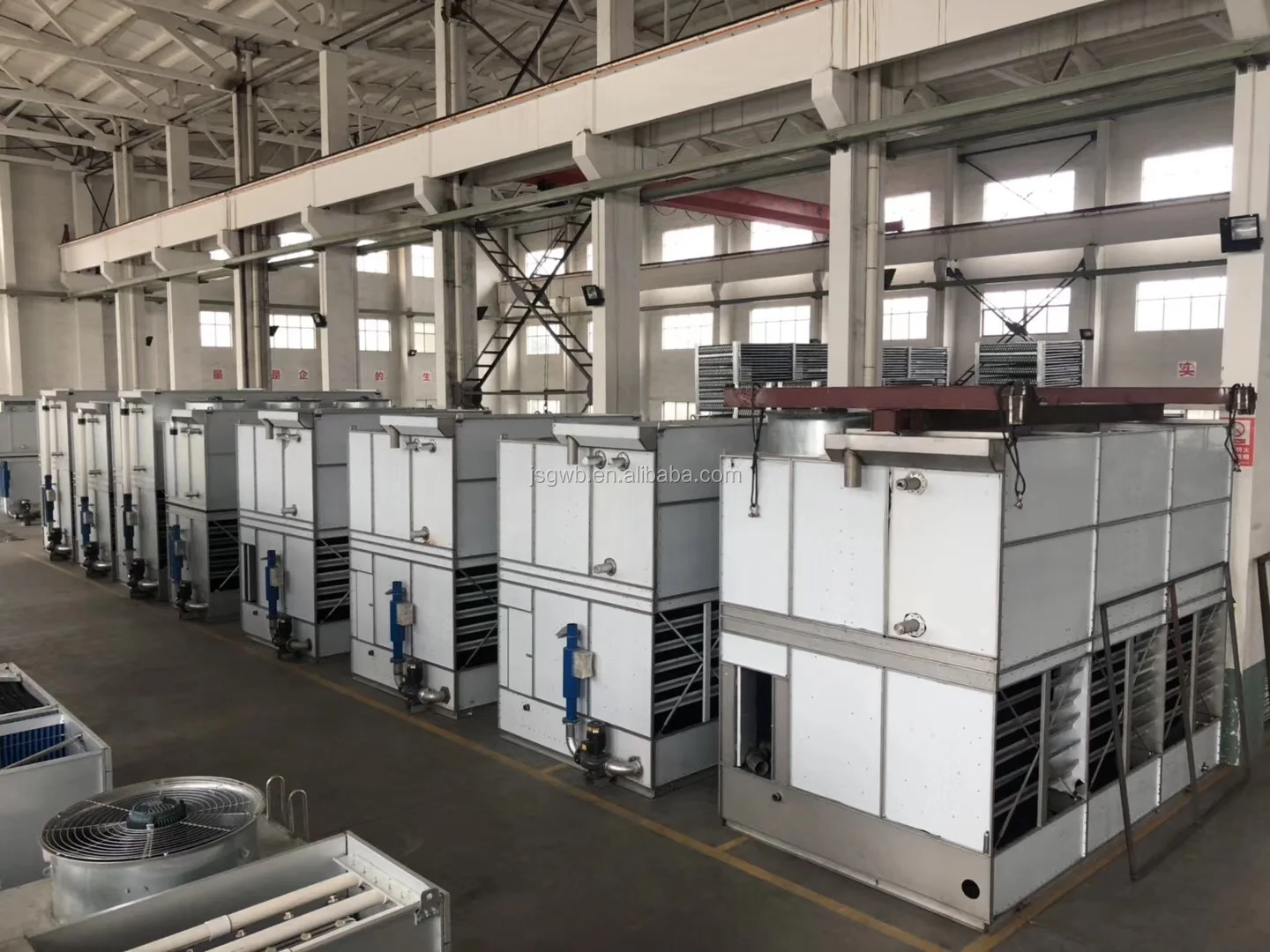

products details
Access door
SS304 condenser coil
Spray header
Axial Fan
PVC fill
Water pump
Main Feature( Factory Supply Industrial closed loop circuit water system cooling tower pricel)
(1) Power-saving; Water-saving; Space-saving (2) High Heat Exchange Ability (3) Easy to install (4) Low maintenance cost (5) Long life service
Product progress
Packing & Delivery

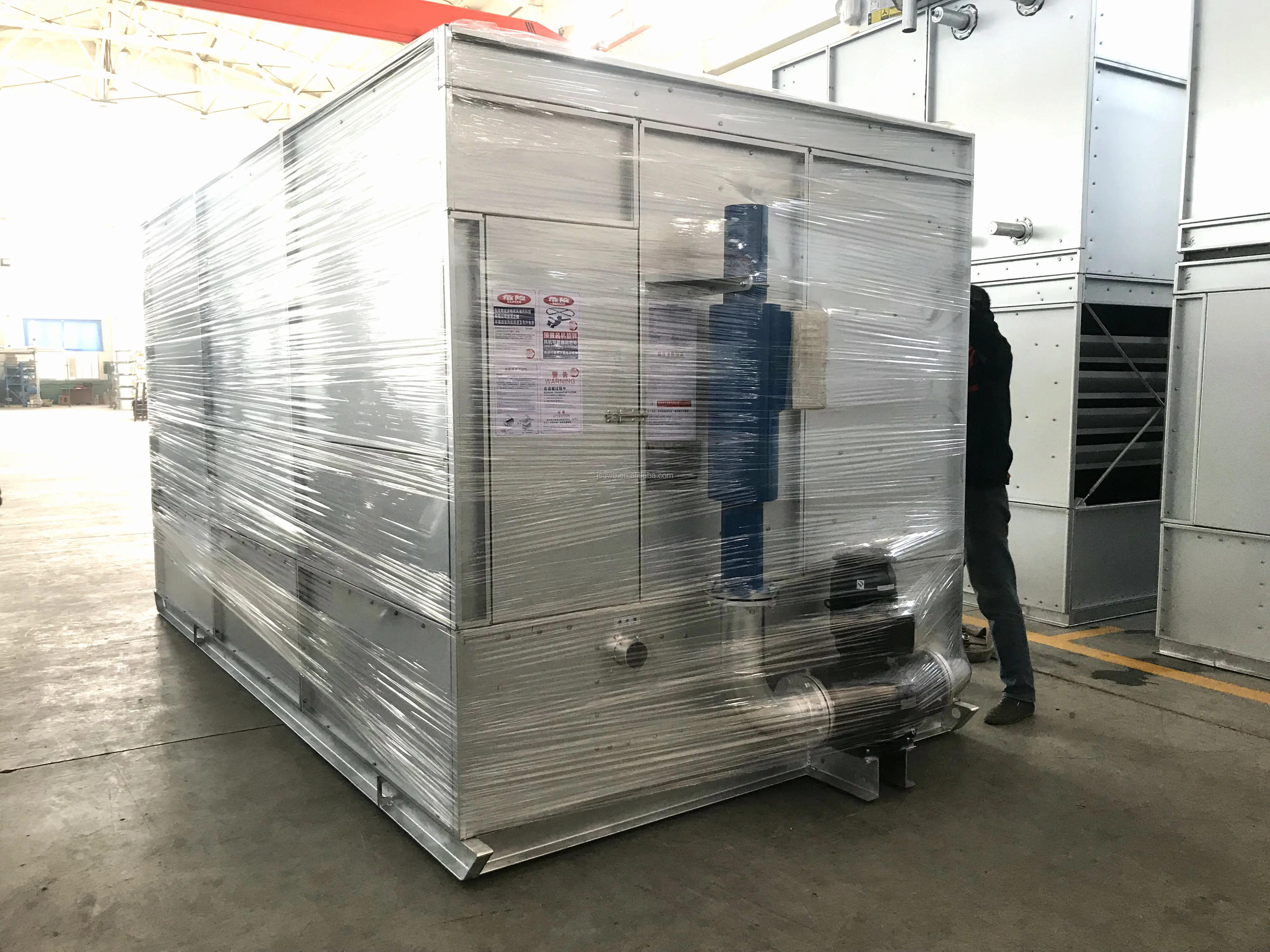

Packing

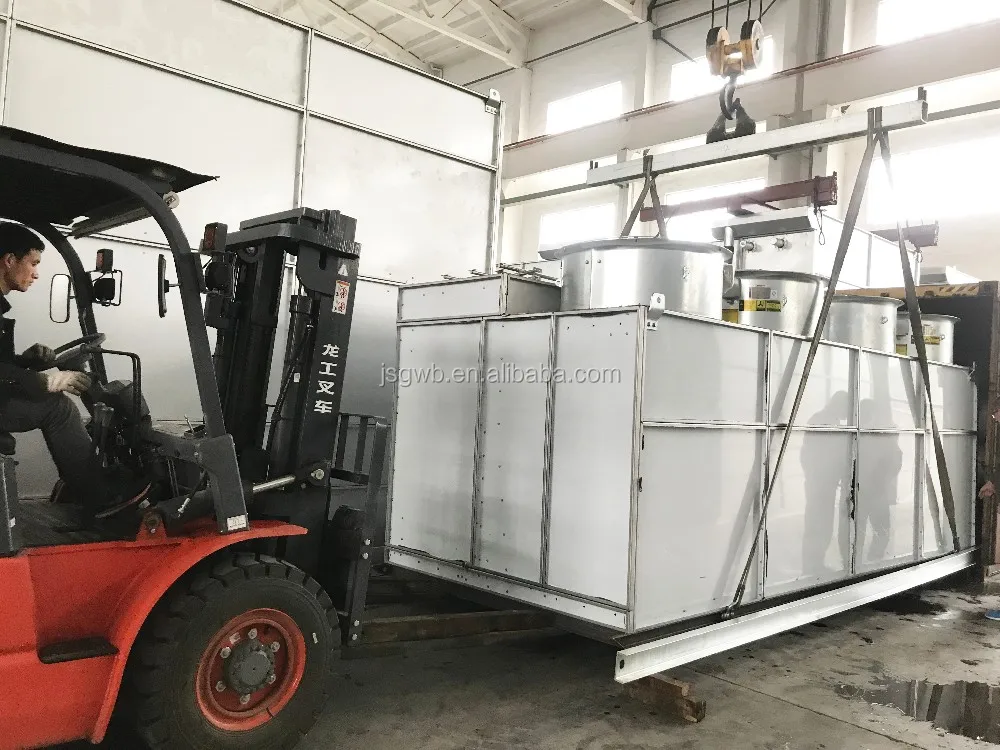

1) Generally, two body parts: upper and bottom boxes; 2) Shipped by one 20/40 container,upper and bottom body parts shipped are assembed separately;
3) Packing with plastic film to to protect evaporative condensers from swearing in the long distance transportation.
Delivery time: 30days after payment
Conpany Profile
WHY SHOULD YOU CHOOSE US ?
1, we have rich experience in evaporative condenser and closed cooling tower, we can give you customized service for your special requirement .
2,We supply OEM service !
3, Our equipments are easy to install, you can save more time and cost . But if you don''t know how to use, we can teach or provide oversea service , just tell us what you want !
