5 axis CNC plasma bevel cutting machine with XPR300
- Category: >>>
- Supplier: Shanghai TAYOR Welding Machine Co. Ltd.
Share on (62549877658):
Product Overview
Description
Product Description
5 axis CNC plasma bevel cutting machine for metal from TAYOR
heavy duty, bevel plasma cutting machine
Product Detail
| Model | CNCBSG4000 |
| Type | gantry type |
| Product name | Plasma Cutting Machine Cnc |
| Cutting mode | Plasma Cutting+ Flame Cutting |
| Plasma cutting thickness | 1-50mm (pierce Carbon Steel) |
| flame cutting thickness | 1-200mm |
| Cutting speed | 0-5000mm/min |
| Working area | customized |
| Material | Carbon Steel .stainless Steel, aluminium |
| Drive motor | Panasonnic Servo Motor |
| Product Keywords | plasma cutting machine for metal,plasma cutting machine cutter,plasma cutting machine compressor |

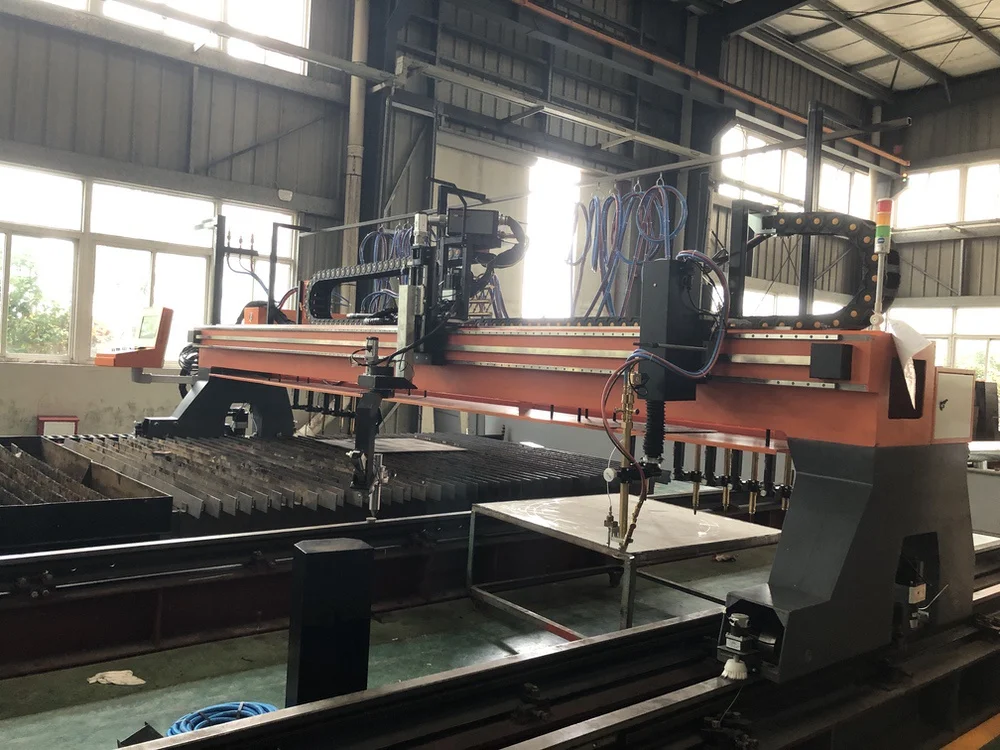

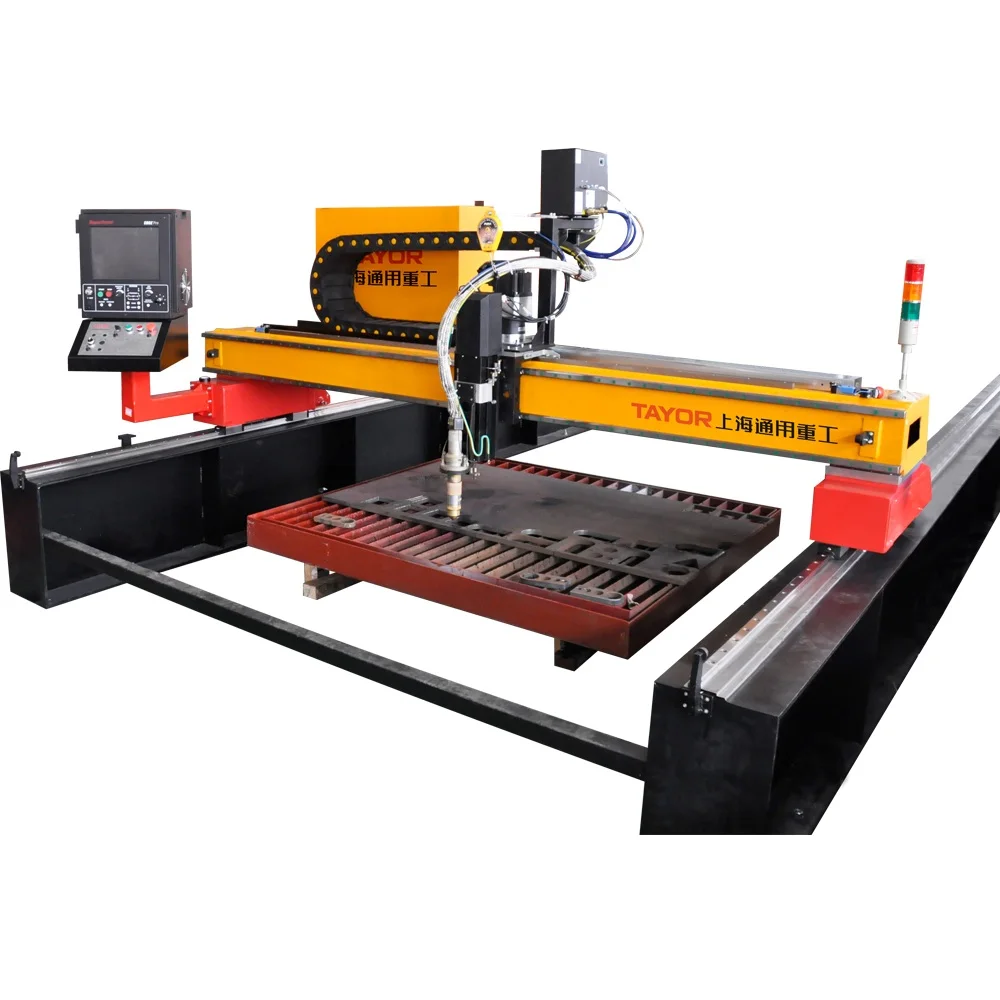

CNCBSG series plasma bevel cutting machine
Gantry Type Series CNCSG is heavy duty, precision machine, specially designed for cutting accurate bevel profiles on any angle from +45° to -45°, and it is controlled by CNC system automatically. be capable of cutting line or curve V, Y groove on metal sheet.
Optional items:
Powder marking device
Straight line stripe cutting torch
Straight line triple beveling torch
Rotary triple flame curve beveling torch
Blow and draft dust and fume collection system
Water surface and underwater cutting table
Technical Specification
Effective Cutting Width (mm):4000mm
Effective Cutting Length (mm):12000mm
Flame Cutting Thickness(mm) :5-120mm(Max 300mm)
Plasma:1-80mm(according to plasma model)
Max bevel angle 45 degree
Machine Details
1. Gantry and box type welded structure, annealed, long service life, steady and durable under heavy load and high duty cycle condition.
2. Gapless gearing transmit, stable and smooth running in high speed, so that we can achieve excellent cutting quality.
3. Integrated auto-ignition with automatic height controller, keep the proper height between cutting torch and work piece, so that we can achieve the best cutting quality.

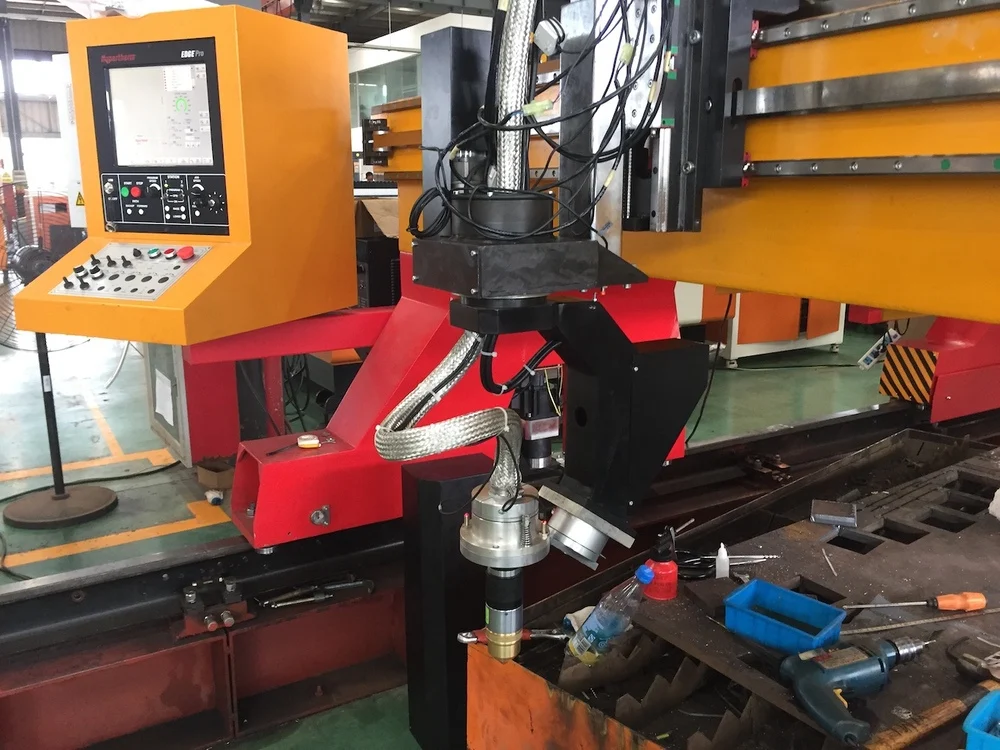

4. Flexible Bevel Rotator: Unique design bevel rotator.

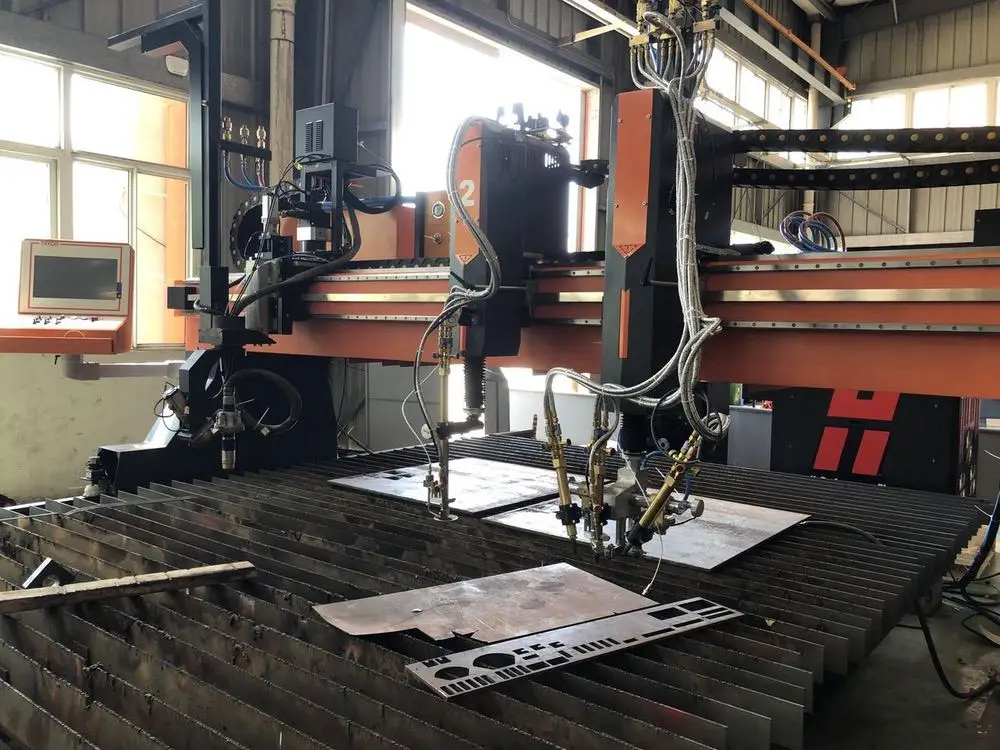

5. Able to cut work piece with several torches at the same time, can improve cutting efficiency
6. Low use and maintenance cost, dispensing special maintenance, friendly operator interface, easy to learn
7. Reliable, safe cnc system, automatic programming, optimization nesting and piercing path, so that we can save steel effectively
Main Application
CNC Plasma bevel cutting machines are widely used for the industry of metal fabrication, shipping building, automation, Aerospace Military, Heavy Equipment, Pressure Vessels, Rail Transportation, Bridge Construction, Hardware Machinery, Energy Industry Etc.
Plasma cutting samples
Users site
Packing & Shipping
Product Category
Company Information
1. SHANGHAI TAYOR HEAVY INDUSTRY GROUP CO., LTD was established in the year of 1951, a group of integrating the manufacture of welding machine, auto - welding cutting equipment, welding consumables, welding technology R&D and training school. Tayor welding industry park is the biggest welding equipment manufacture bases in China.
2. Tayor concentrates on welding equipment , cutting equipment and welding consumables as core industry . We have brands of TAYOR, like SWEC, DONGFENG, YAZI and GOLDEN SHIP which indicate products of welders, cutters, welding robots, and welding consumables.
3. By means of global marketing network, the group supplies welding & cutting equipment, welding consumables and technical service for steel structure, heavy equipment, ship manufacturing, aerospace military industry, pipes and pressure vessels, bridge construction machinery processing, vehicles and rail transit, etc.. Our products are exported to more than 1 0 0 countries and regions.
