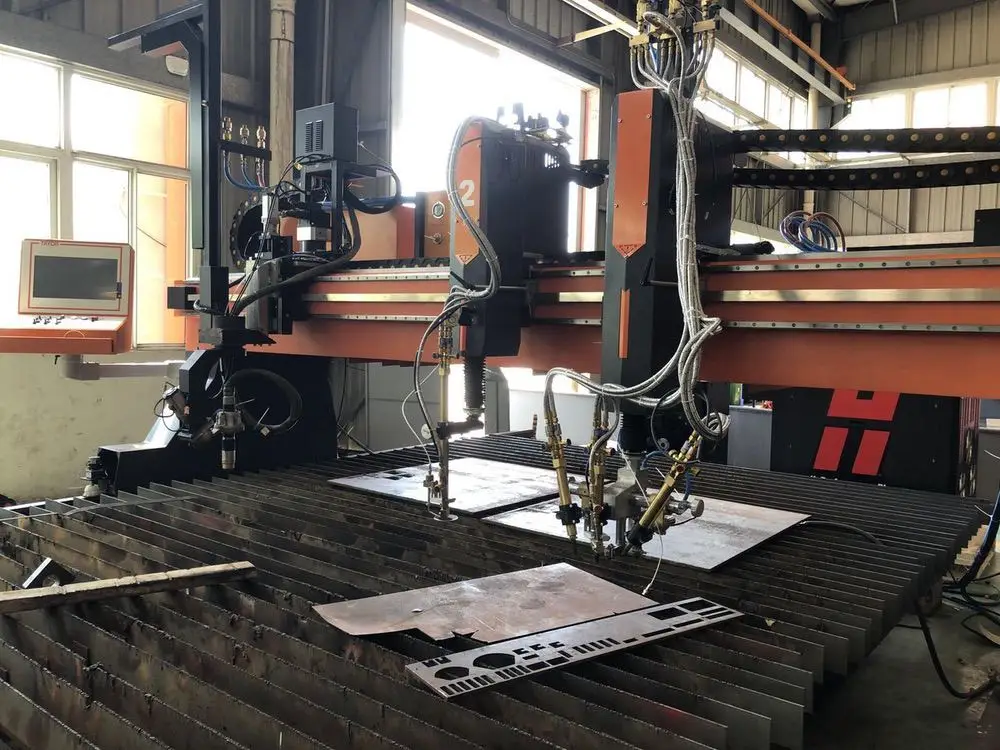

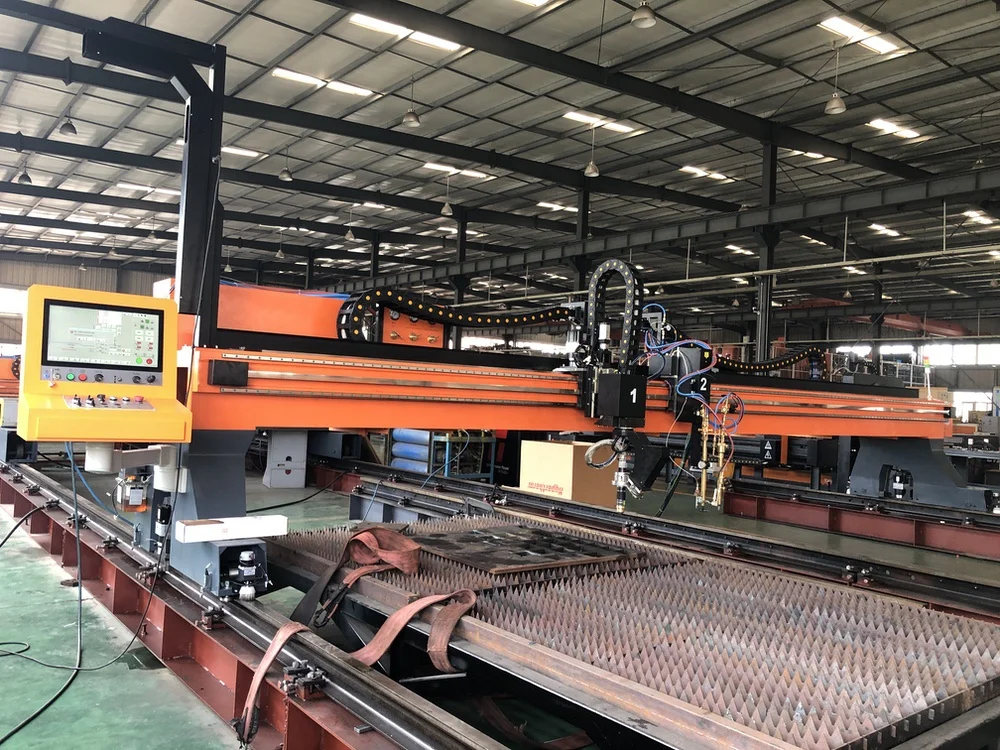

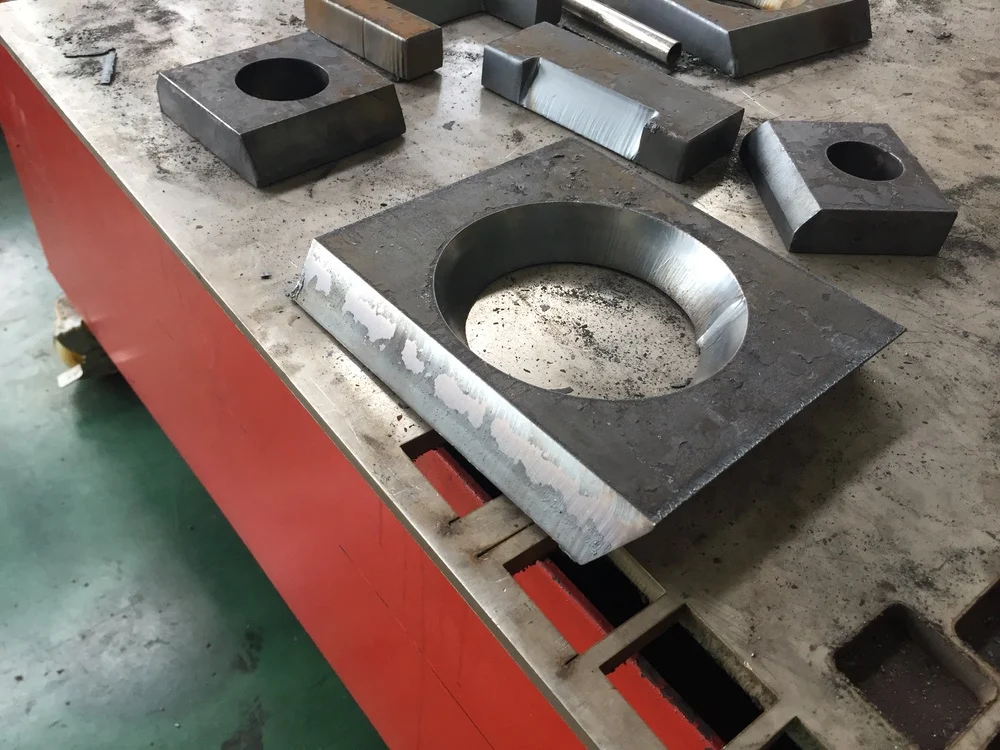

Gantry Type Series CNCSG is heavy duty, precision machine, specially designed for cutting accurate bevel profiles on any angle from +45° to -45°, and it is controlled by CNC system automatically. be capable of cutting line or curve V, Y groove on metal sheet.

Optional items:

Powder marking device

Straight line stripe cutting torch

Straight line triple beveling torch

Rotary triple flame curve beveling torch

Blow and draft dust and fume collection system

Water surface and underwater cutting table

Technical Specification

Effective Cutting Width (mm):4000mm

Effective Cutting Length (mm):12000mm

Flame Cutting Thickness(mm) :5-120mm(Max 300mm)

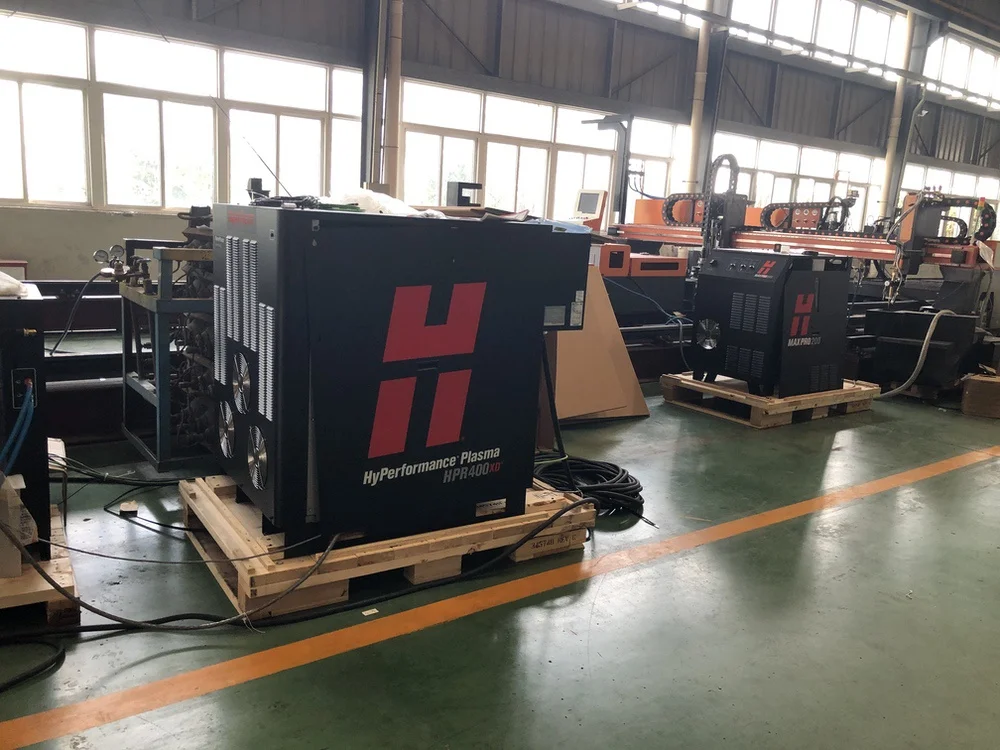

Plasma:1-80mm(according to plasma model)

Max bevel angle 45 degree

Machine Details

1. Gantry and box type welded structure, annealed, long service life, steady and durable under heavy load and high duty cycle condition.

2. Gapless gearing transmit, stable and smooth running in high speed, so that we can achieve excellent cutting quality.

3. Integrated auto-ignition with automatic height controller, keep the proper height between cutting torch and work piece, so that we can achieve the best cutting quality.

4. Flexible Bevel Rotator: Unique design bevel rotator.

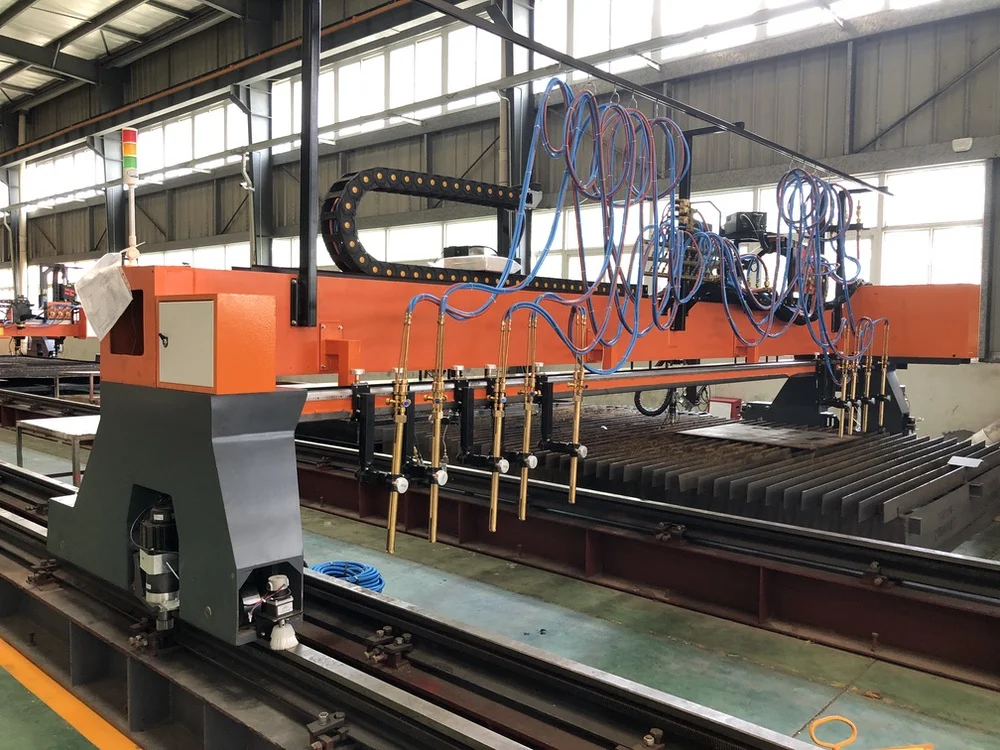

5. Able to cut work piece with several torches at the same time, can improve cutting efficiency

6. Low use and maintenance cost, dispensing special maintenance, friendly operator interface, easy to learn

7. Reliable, safe cnc system, automatic programming, optimization nesting and piercing path, so that we can save steel effectively

Main Application

CNC Plasma bevel cutting machines are widely used for the industry of metal fabrication, shipping building, automation, Aerospace Military, Heavy Equipment, Pressure Vessels, Rail Transportation, Bridge Construction, Hardware Machinery, Energy Industry Etc.
