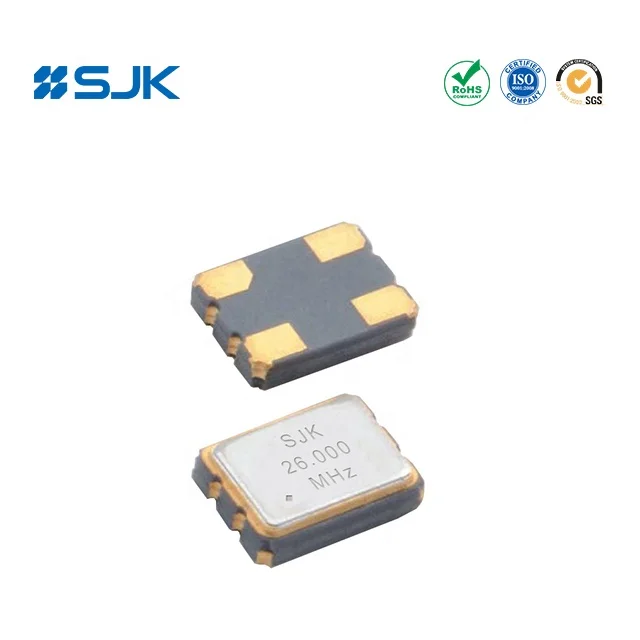

7T Series SMD 3225 TCXO

Model: 7T series (SMD 3225 TCXO)

Frequency range: 10~60MHz

Supply voltage: 1.8~3.3V

Output type: CMOS Size: 3.2×2.5×1.0mm

Frequency stability: ±2.5~±5.0ppm

Applications: GPS, Wireless communications, Mobile phone, etc



Specifications and Dimensions

Features of 7T Series SMD 3225 TCXO

LVCMOS output logic, frequency range from 10MHz to 60MHz

3225size, 1.0mm high SMD TCXO

Low voltage operations: 1.8V, 2.5V, 2.8V, 3.3V

Frequency stability: ±2.5ppm~±5ppm

3-state function

Automatic mounting and reflow soldering

Applications: Mobile phone, Wireless communications, IoT, GPS, WLAN, and more

RoHS Compliant /Pb-Free

Electrical Specifications of 7T Series SMD 3225 TCXO

Item /Type		7T (SMD 3225 TCXO)
Output Type		CMOS
Output Load		15pF, or specify
Supply Voltage		1.8~3.3V
Frequency Range		10~60MHz
Supply Current		10mA Max.
Output Level		0.1Vcc /0.9Vcc
Frequency Stability	Tolerance	±2.0ppm Max. (after 2 reflows )
	vs Temperature	±2.5ppm~±5ppm
	vs Aging	±1.0ppm Max./Year
Duty Cycle		45~55%
RMS Phase Jitter		1pS Max.
Rise /Fall Time		8ns Max.
Start-up Time		5ms Max.
Operating Temperature		-40~+85℃, or specify
Phase Noise @26MHz	100Hz	-110dBc/Hz
	1KHz	-130dBc/Hz
	10KHz	-145dBc/Hz

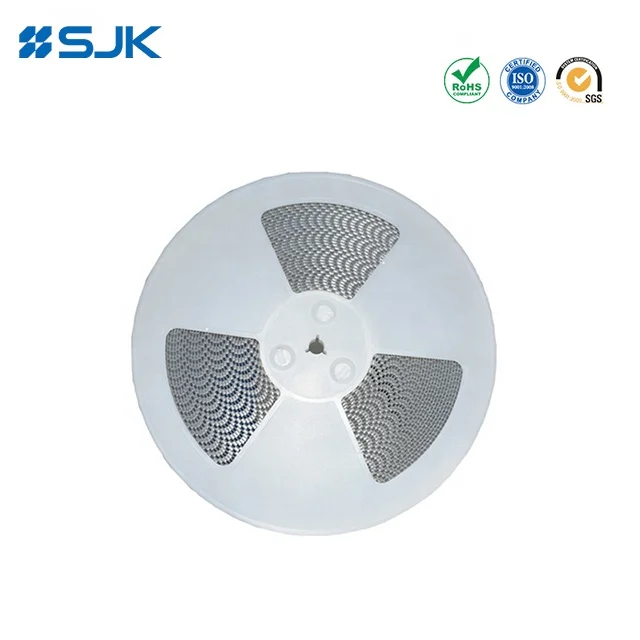

Packing Unit		3000pcs./Reel

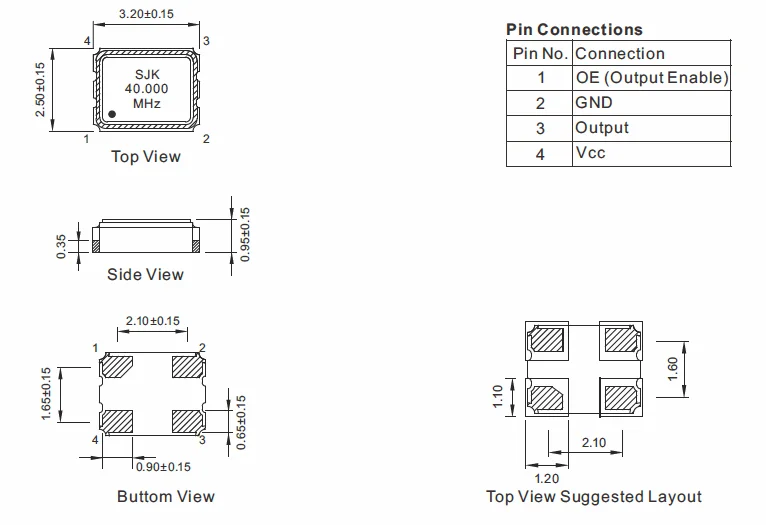

Dimensions [mm]







REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
