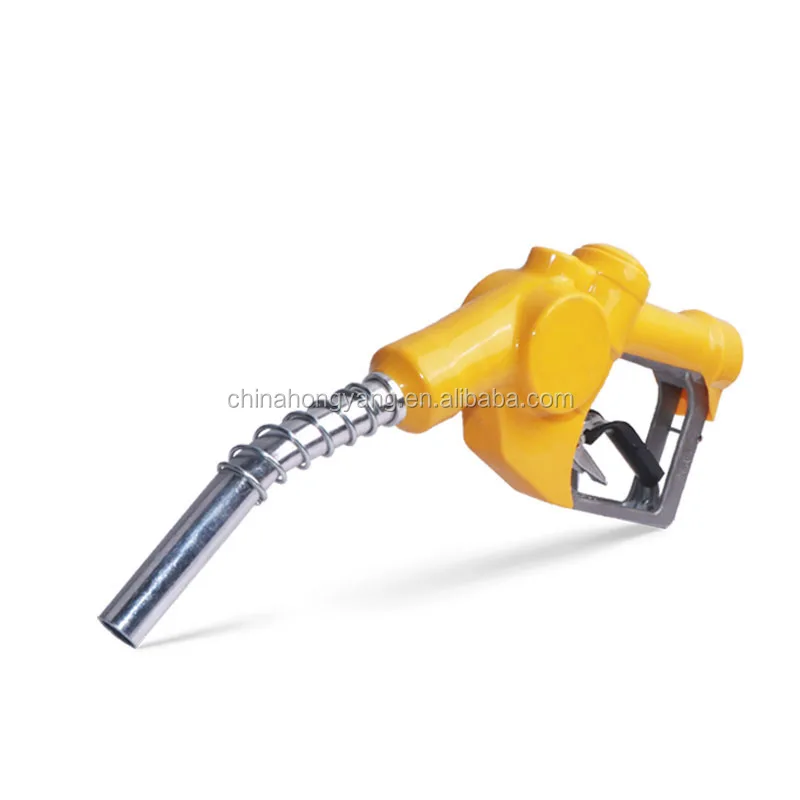

HONGYANG Gasoline automatic nozzle fuel dispenser nozzle

Features :

*

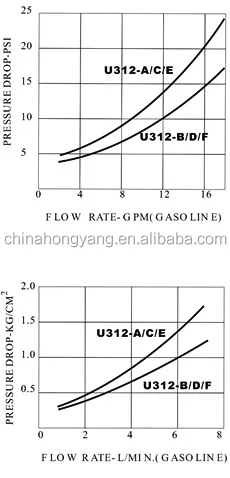

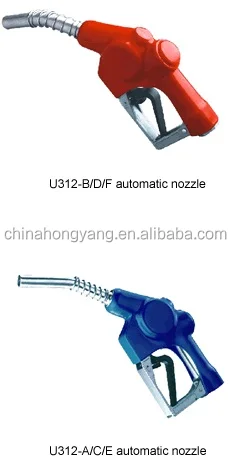

U312-B/D/F Flow rate: 0-60 L/m (15/16")
U312-A/C/E Flow rate: 0-45 L/m (13/16")
Working Pressure: 0.18Mpa

*

U312 Automatic Nozzles-or diesel, kerosene and all kinds of gasoline service

*

Easily replaced spout- simply remove the screw.
Spout kits are available from HONGYANG.

*

Low profile aluminum body- light weight, easier to handle, provides an attractive, image enhancing appearance.

*

Hold-open rack is available for full service applications.
The one hand control means easy setting to flow rate for customer's convenience.

*

Full hand insulator- protects both nozzle and vehicle, and insulates users' hands.

*

Vacuum Design: Side-Sealing Design.
Selective casting process of body- low-pressure casting technique or high-pressure casting technique.
The high-pressure casting technique can reduce diesel foaming and static electricity.

*

100% Factory Tested.

*

Available Colors- color chart on inside back cover Selective splash guard.

Replacement Parts:

Description

1

Spout 13/16" & Spout 15/16"

2

Full hand insulator

3

Main Valve Assembly

4

Lever

5

Ratchet Pin

6

Diaphragm assembly

Package:

Net Weight

Cross Weight

Dimension

18.75kg/case of 15
12.25kg/case of 10

22kg/case of 15
15kg/case of 10

55x34x42.5cm/case of 15
37.5x34x43cm/case of 10

Ordering Specifications:

Product ID

Connection Threads

Outlet

U312-A

NPT 3/4''

13/16''

U312-B

NPT 3/4''

15/16''

U312-C

BSPT 3/4''

13/16''

U312-D

BSPT 3/4''

15/16''

U312-E

G 3/4''

13/16''

U312-F

G 3/4''

15/16''
