Safe And Stable Passenger Elevator

Product Overview

Description

Safe And Stable Passenger Elevator Specifications:

 1.Passenger Elevator Car Size Inside Reference:

Car   Net   Size   Inside	Capacity   load(kg)	Width(mm)	Depth(mm)	Car   net area inside	This Is For Four Reference Only
	1600	1950	1750	≤3.56 m2
	1250	1950	1500	≤2.90 m2
	1150	1600	1500	≤2.65 m2
	1000	1600	1400	≤2.40 m2
	800	1350	1400	≤2.00 m2
	630	1100	1400	≤1.66 m2
	450	1150	1100	≤1.30 m2

 2. Passenger Elevator Type Choose On Speed 1.0m/s

Rate speed(m/s)	capacity  load(kg)	With machine room	No machine room	Small machine room
1.0	320	yes	yes	no
1.0	450	yes	yes	yes
1.0	630	yes	yes	yes
1.0	800	yes	yes	yes
1.0	1000	yes	yes	yes
1.0	1150	yes	yes	no
1.0	1250	yes	yes	yes
1.0	1350	no	no	yes
1.0	1600	yes	yes	yes

  3.Passenger Elevator Type Choose On Speed 1.5m/s

Rate speed(m/s)	capacity load(kg)	With machine room	No machine room	Small  machine room
1.5	630	yes	yes	yes
1.5	800	yes	yes	yes
1.5	1000	yes	yes	yes
1.5	1150	yes	yes	No
1.5	1250	yes	yes	yes
1.5	1350	no	no	yes
1.5	1600	yes	no	yes

 4. Passenger Elevator Type Choose On Speed 1.75m/s:

Rate speed(m/s)	capacity  load(kg)	With machine room	No machine room	Small machine room
1.75	630	yes	yes	yes
1.75	800	yes	yes	yes
1.75	1000	yes	yes	yes
1.75	1150	yes	yes	No
1.75	1250	yes	yes	yes
1.75	1350	no	no	yes
1.75	1600	yes	yes	yes

 5. Passenger Elevator Type Choose On Speed 2.0m/s

Rate speed(m/s)	capacity  load(kg)	With  machine room	No machine room	Small  machine room
2.0	800	yes	no	no
2.0	1000	yes	no	yes
2.0	1250	no	no	yes
2.0	1350	no	no	yes
2.0	1600	yes	no	yes

 6. Passenger Elevator Type Choose On Speed 2.5m/s:

Rate speed(m/s)	capacity load(kg)	With machine room	No machine room	Small machine room
2.5	800	yes	no	no
2.5	1000	yes	no	yes
2.5	1250	no	no	yes
2.5	1350	no	no	yes
2.5	1600	yes	no	yes



 Functions List Of Our Passenger Elevator

• with/without drive operation


• Automatic return to the base landing


• Automatic landing


• Call cancel when begin reverse-running


• Cage door opening when elevator arrives the floor where there is a hall call


• Door opening / closing call indication


• Indication in the cage when hall calling


• Self-Learning of shaft data


• Full load non-stop operation


• Overload alarm, Car Operating panel display: “OL”


• Alarming device


• In-car and m/r inter talk device


• Light and fan auto-control


• Elevator Locking Device


• Door closing time auto delaying


• False-call canceling


• Emergency Light


• Driven over current protection


• Door opening / closing time-limited protection


• Rope sliding protection


• Door Nudging


• Trouble self-diagnosis and memory


• Over speed falling protection


• Top/Bottom landing overpass protection


• Inspection Operation


• Floor display


• Light curtain protection with mechanical safety edge


• Fireman’s return switch

 Passenger Elevator Production Process:

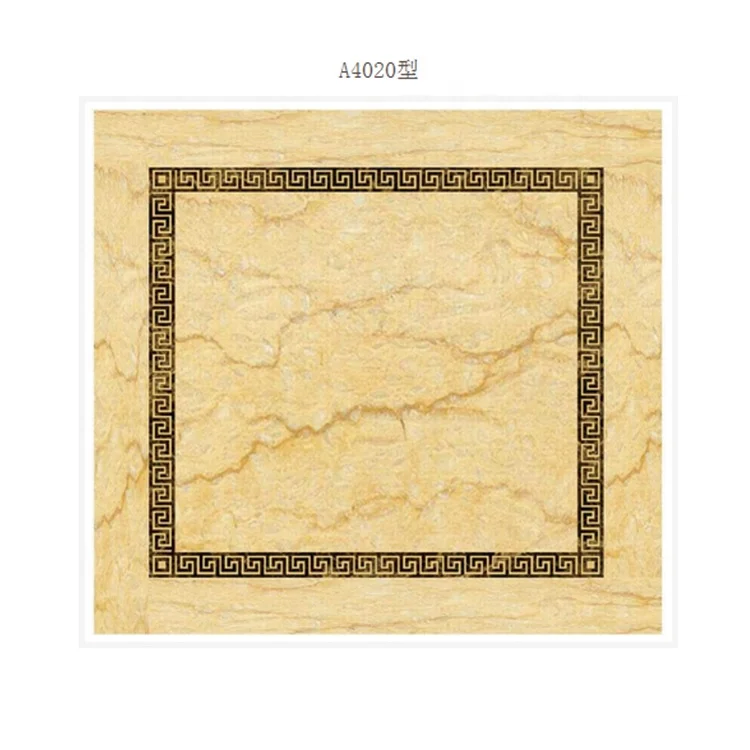

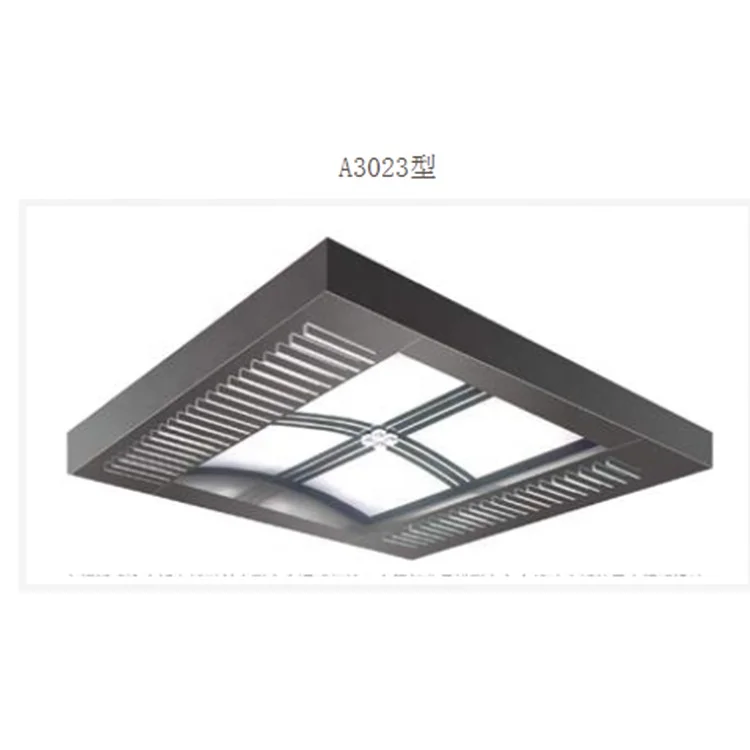

 More Decoration Of Passenger Elevator :



Elevator type	Capacity	Decoration

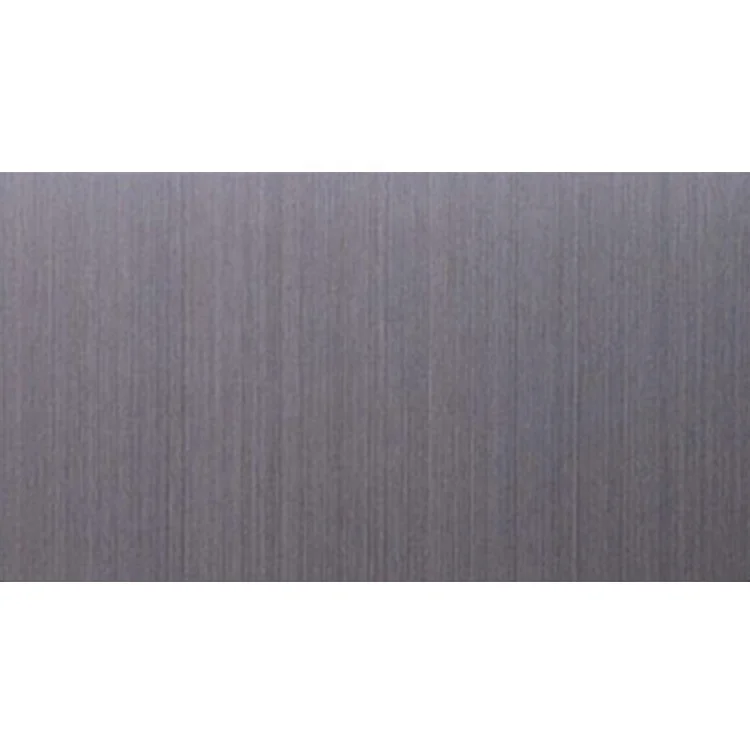

Passenger elevator	450-1600kg	Standard: Car wall, car door and first landing door hariline stainless,other floors painted steel, small jamb
		Optional: Mirror etched Golden mirror etched Etc
