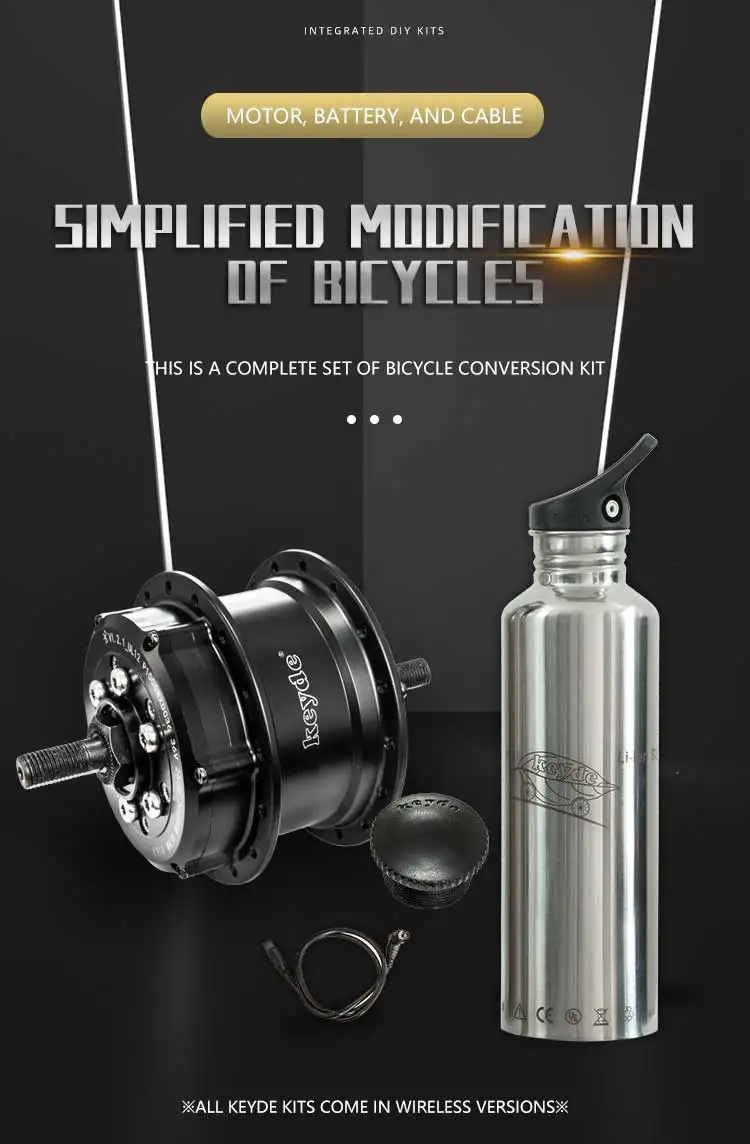

Keyde 250W Motor Controller Inside Lithium Battery Electric Bicycle Kit
- Category: >>>
- Supplier: Zhejiang Chaoji Electric Tech. Co. Ltd.Zhejiang Ltd.
Share on (62550259974):
Product Overview
Description
Product Parameters

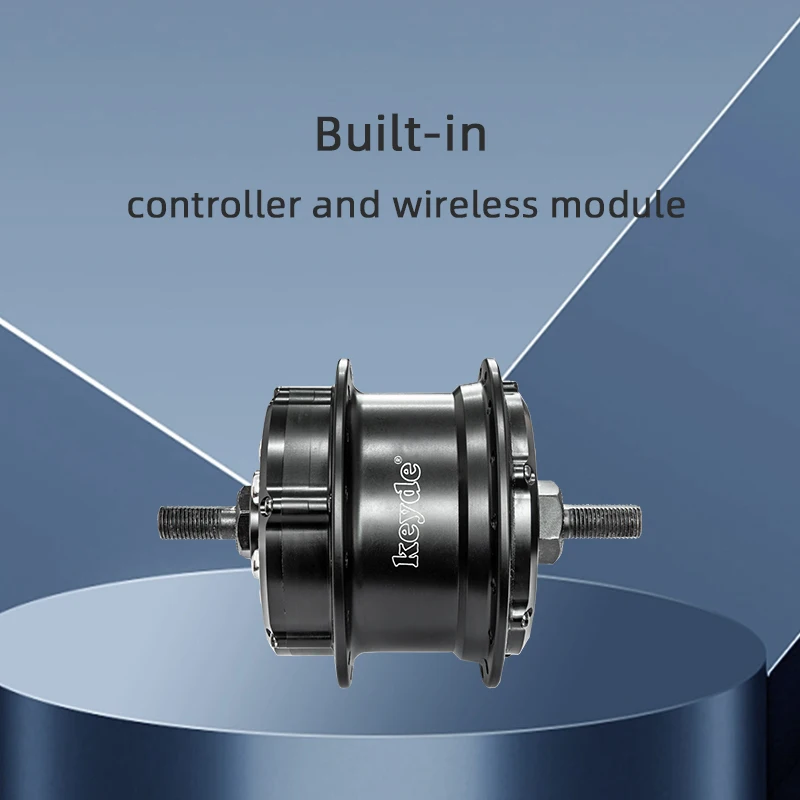

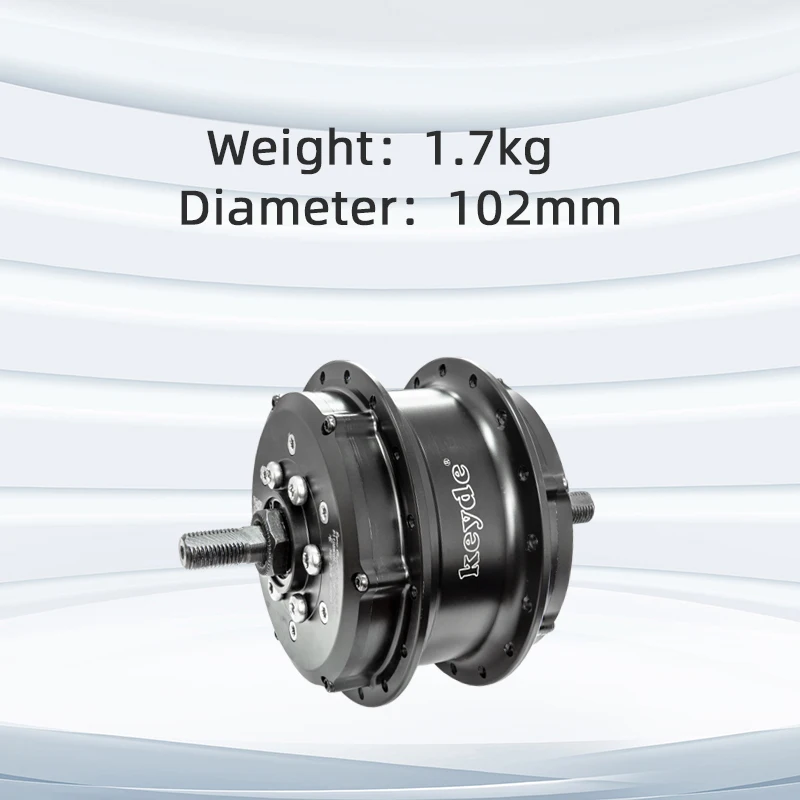

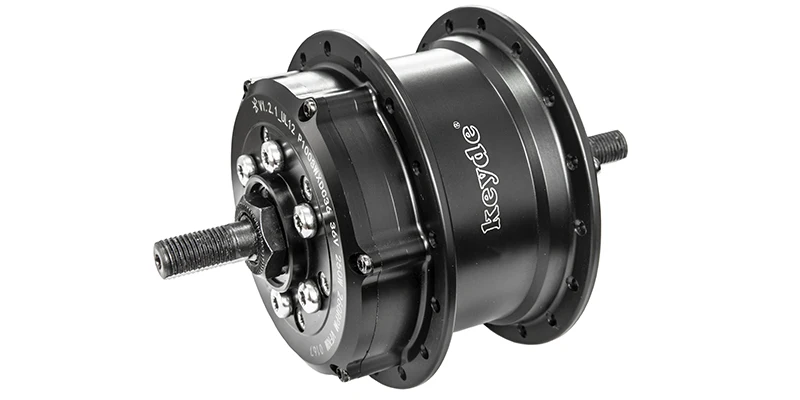

P100 Powerful Front Hub Motor
1. Built-in controller
2. Wireless pedal sensor
3. Easy to install & disassemble
4. Max. power 750W, torque exceeds 40N·m
5. Efficiency ≥90%
6. Wireless control
6. Wireless control

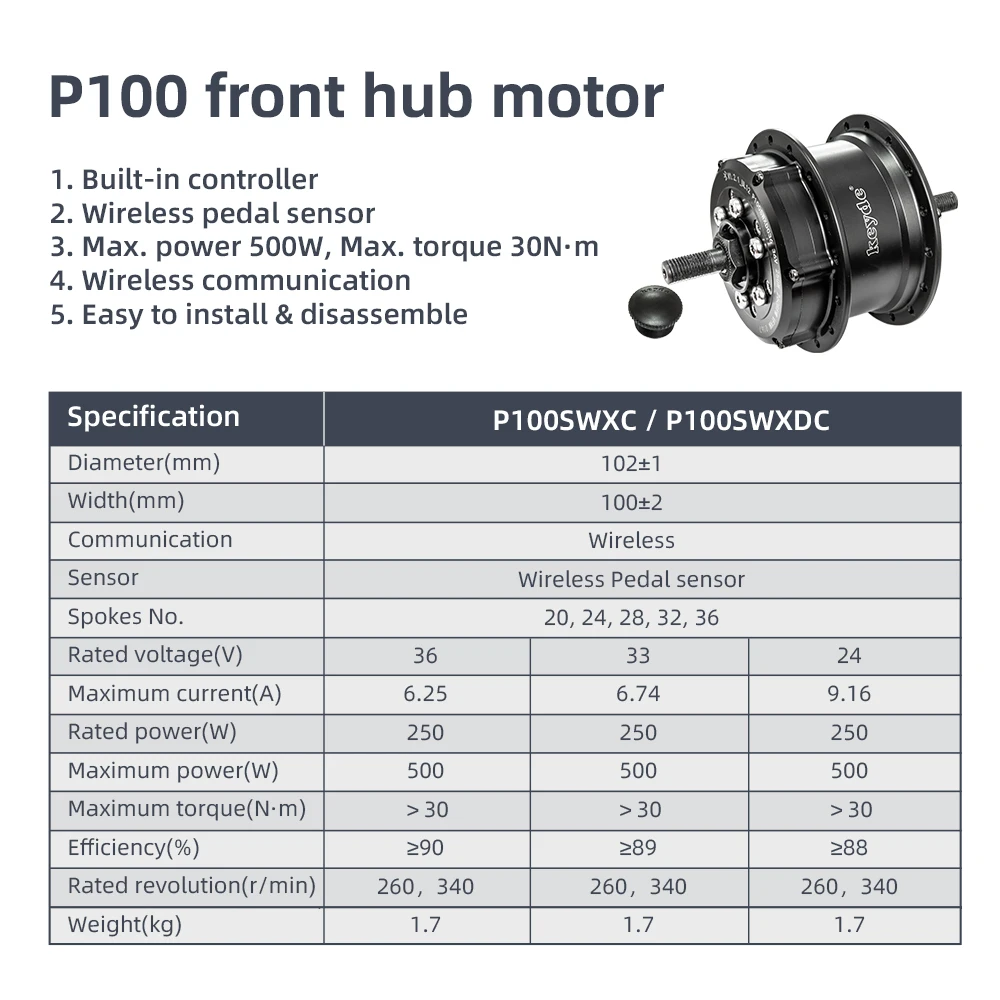

Specification | P100SWXC / P100SWXDC | ||||
Diameter (mm) | 102±1mm | ||||
Width (mm) | 100±2mm | ||||
Communication | Wireless | ||||
Sensor | Wireless Pedal Sensor | ||||

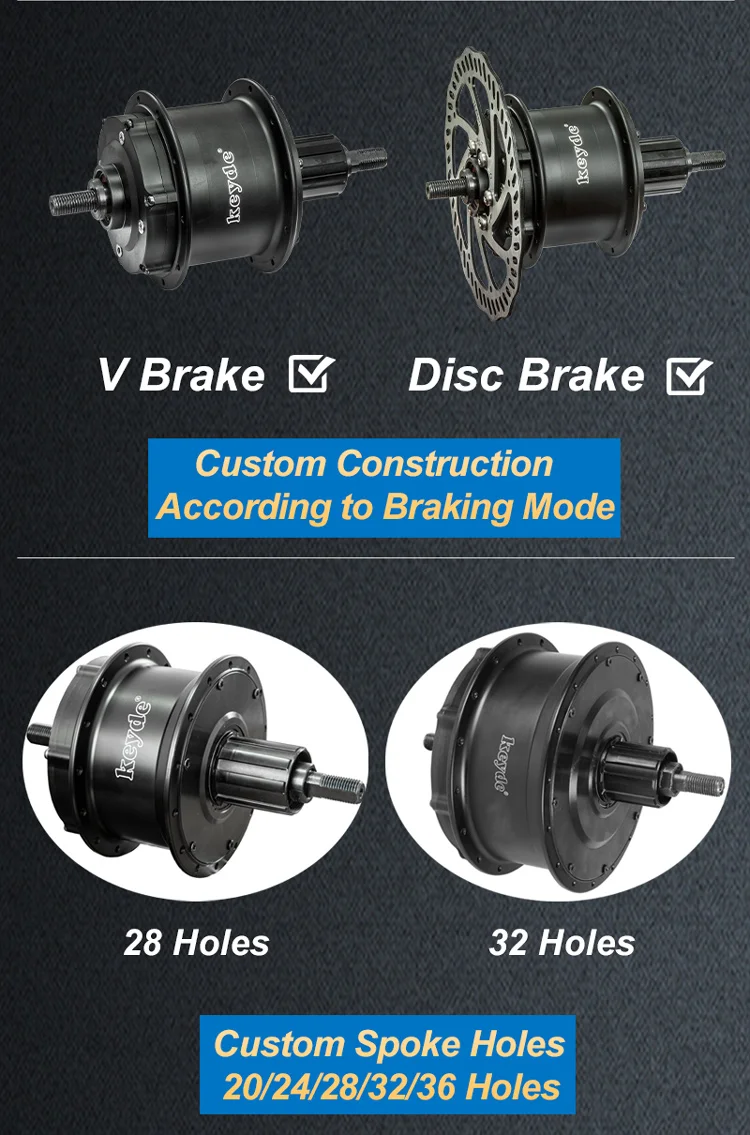

Spokes Number | 20, 24, 28, 32, 36 | ||||
Rated Voltage (V) | 36V | 33V | 24V | ||
Rated Current (A) | 6.25A | 6.74A | 9.16A | ||
Rated Output Power (W) | 250W | 250W | 250W | ||

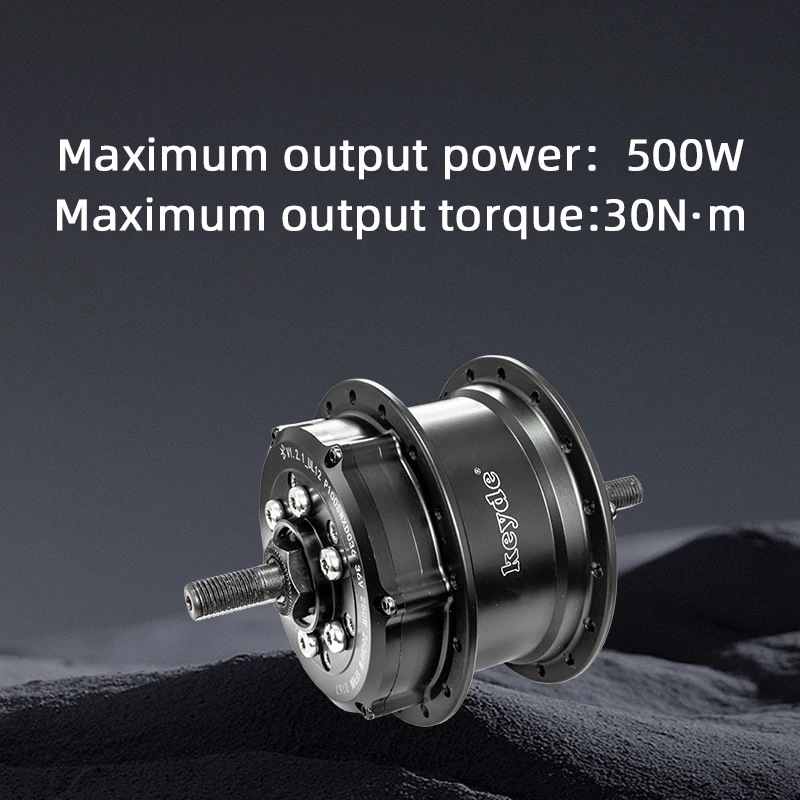

Maximum Output Power (W) | 500W | 500W | 500W | ||
Maximum Output Torque (N·m) | >30N·m | >30N·m | >30N·m | ||
Efficiency (%) | ≥90% | ≥89% | ≥88% | ||
Rated Revolution (r/min) | 160-260r/min | 160-260r/min | 160-260r/min | ||
Weight (kg) | 1.7kg | 1.7kg | 1.7kg | ||

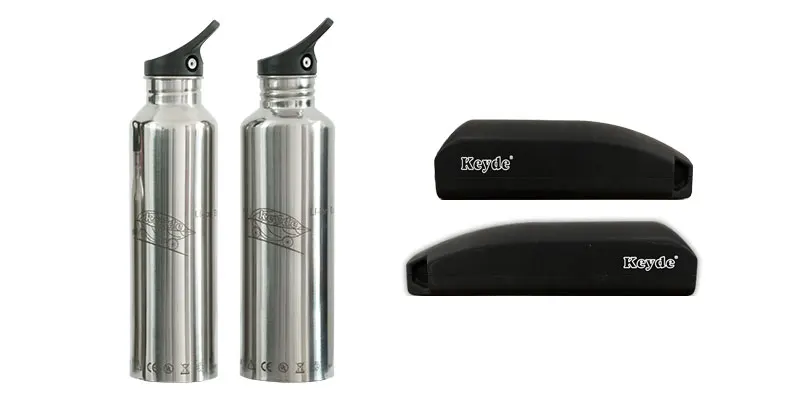

Battery
1. Small size, light weight, easy to disassemble
2. Built-in BMS
3. Adopt imported Panasonic cells
4. Support upgrading to extended rang battery
5. Long cycle life
Specification | BI3611 | BI3615 | BI3614 | BI3620 |
Rated Voltage (V) | 36V | 36V | 36V | 36V |
Rated Capacity (Ah) | 10.5Ah | 15Ah | 14Ah | 20Ah |
Voltage Range (V) | 28V~42V | 28V~42V | 28V~42V | 28V~42V |
Battery Capacity (Wh) | 378Wh | 540Wh | 504Wh | 720Wh |
Maximum Current (A) | 20A/40A | 40A | 40A | 40A |
Charge Current (A) | 3A | 3A | 3A | 3A |
Charge Time (h) | 3.5h | 5h | 4h-5h | 6h-8h |
Working Temperature (℃) | -20℃~60℃ | -20℃~60℃ | -20℃~75℃ | -20℃~75℃ |
Cycle Life (times) | ≥1000times | ≥1000times | ≥1000times | ≥1000times |
Waterproof | IP67 | IP67 | IP66 | IP66 |
Diameter (mm) | 70mm×76mm | 77mm×88mm | 330mm×75mm | 323mm×86mm |
Height (mm) | 290mm | 310mm | 74.3mm | 84.8mm |
Weight (kg) | 1.8kg | 2.5kg | 2.5kg | 3.0kg |
When turning on the torque mode for the first time, please perform horizontal calibration first.
Proceed as follows:

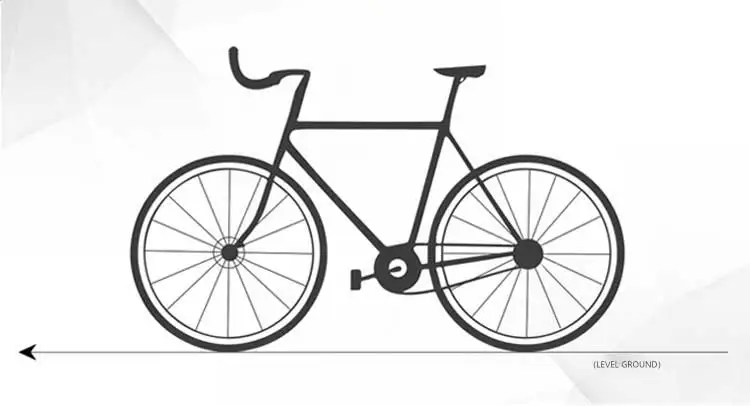

1. After the electric bicycle is assembled, place it vertically on the level ground.

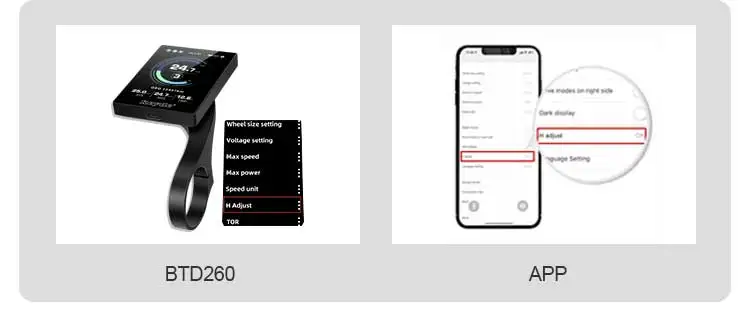

2. On the setting page of the corresponding instrument or APP, click "H-adjust".
3. "OK" is displayed on the right, indicating that the horizontal calibration is completed.
Recommend Products
Buyers Reviews and Show
Company Profile
Certificate Patents and Awards
Exhibitions
Payment Shipping
FAQ
Q: Are you a manufacturer?
A: Yes. Established in 1993, our company is keeping dedicated to the R&D, manufacturing and worldwide marketing of high-end electric bicycle parts. We provide ODM & OEM services as per your requests. Welcome to our company.
Q: Can I get a sample and how long will it take?
A: Yes. We'd like to submit a sample for checking at the beginning of our business. Usually it needs take about 2 weeks to produce sample order.
Q: What is your MOQ and delivery time?
A: Our MOQ is 1 pcs normally. It takes about 30 days to complete an order. The specific delivery time depends on the items and the quantity of your order.
Q: How to control the quality of the products?
A: We have independent quality inspection department for products quality. The parts are inspected in every production process to prevent bad parts from entering the next process. 100% products are inspected before shipment. Third party detection is welcomed.
Q: Do you have customized service?

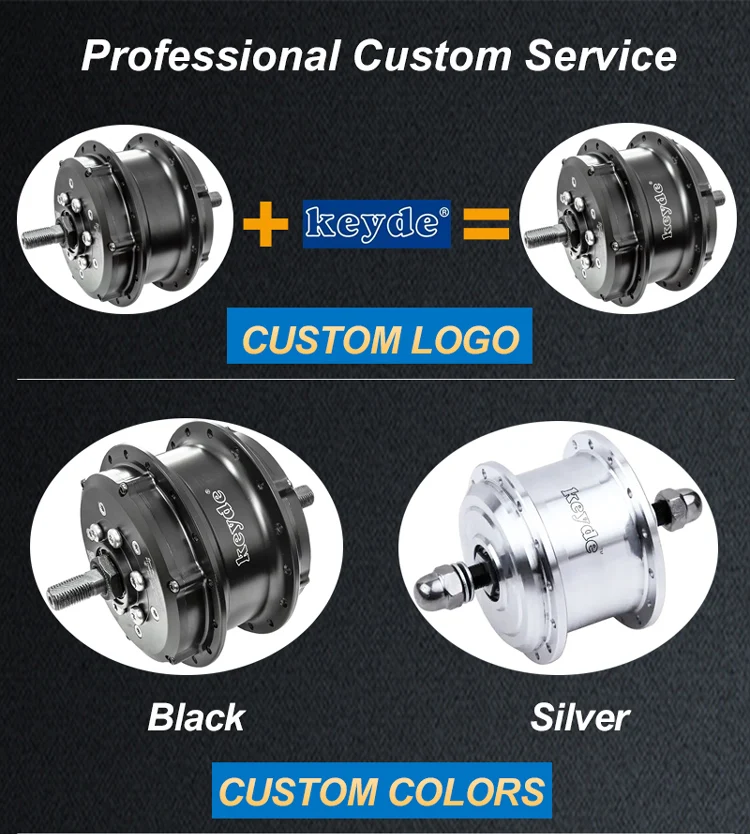

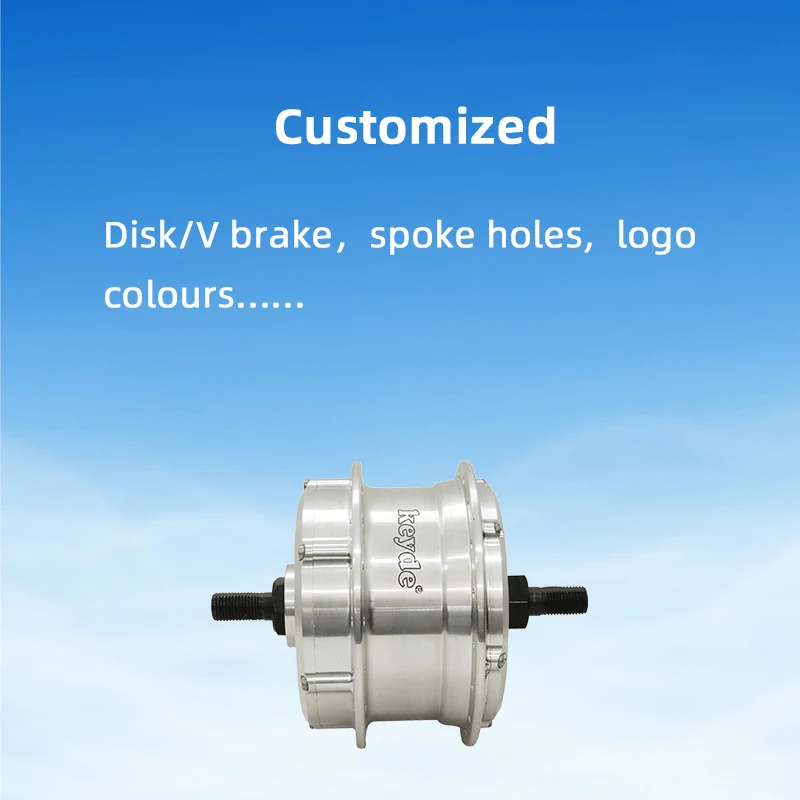

A: Yes, the technical specifications and logo of Motor, and the Keyde APP both can be customized.
Q: What is the warranty period for your products?
A: Motor: 2 years. Battery: 1.5 - 2 years. Other Accessories: 1 year.
Q: Where is your after-sales service location?
A: Germany or China. You can choose a suitable after-sales location according to your convenience.
Q: How do I pay for my order?
A: We accept your payment through T/T, L/C, D/C, Paypal, Western Union, etc.
A: Yes. Established in 1993, our company is keeping dedicated to the R&D, manufacturing and worldwide marketing of high-end electric bicycle parts. We provide ODM & OEM services as per your requests. Welcome to our company.
Q: Can I get a sample and how long will it take?
A: Yes. We'd like to submit a sample for checking at the beginning of our business. Usually it needs take about 2 weeks to produce sample order.
Q: What is your MOQ and delivery time?
A: Our MOQ is 1 pcs normally. It takes about 30 days to complete an order. The specific delivery time depends on the items and the quantity of your order.
Q: How to control the quality of the products?
A: We have independent quality inspection department for products quality. The parts are inspected in every production process to prevent bad parts from entering the next process. 100% products are inspected before shipment. Third party detection is welcomed.
Q: Do you have customized service?
A: Yes, the technical specifications and logo of Motor, and the Keyde APP both can be customized.
Q: What is the warranty period for your products?
A: Motor: 2 years. Battery: 1.5 - 2 years. Other Accessories: 1 year.
Q: Where is your after-sales service location?
A: Germany or China. You can choose a suitable after-sales location according to your convenience.
Q: How do I pay for my order?
A: We accept your payment through T/T, L/C, D/C, Paypal, Western Union, etc.
