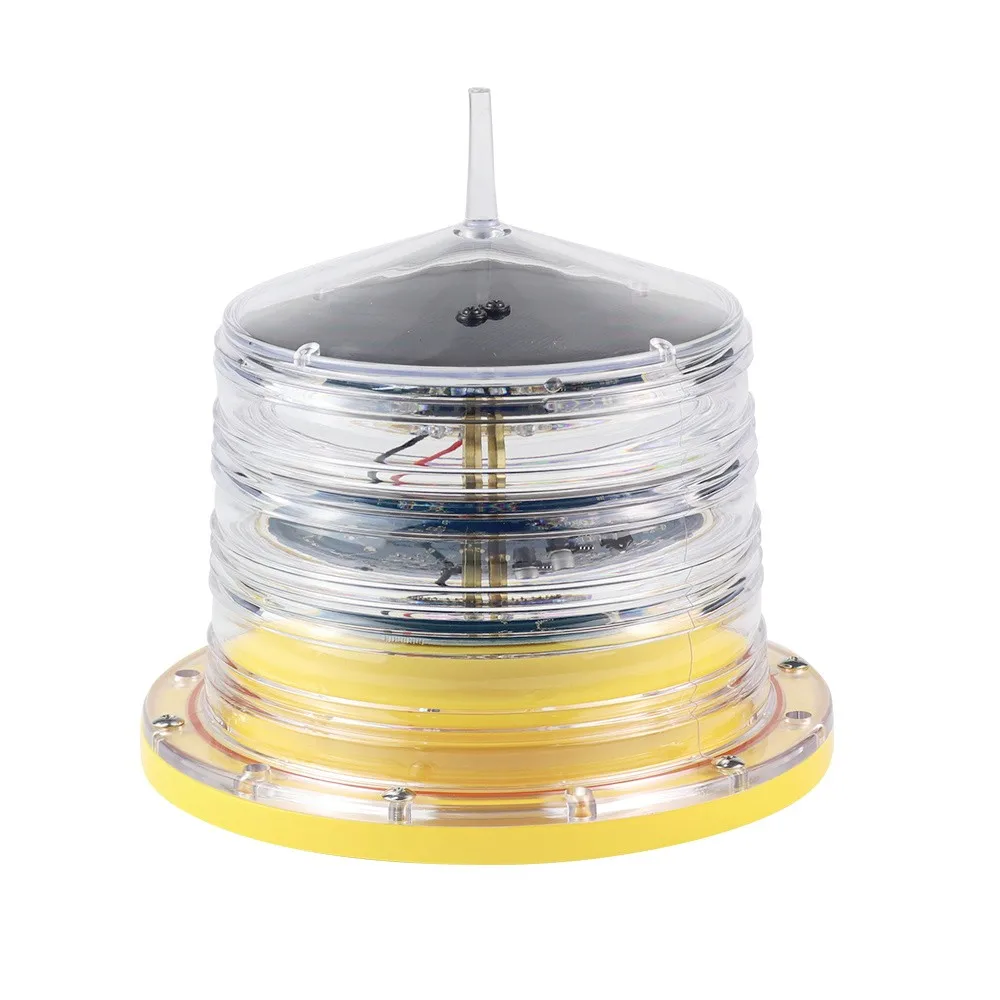

Self contained Marine Aids to Navigation lantern solar energy for inland river
Model type:GS-LS/E
Product Overviews
Product Overviews
GS-LF/E Range 1~4 NM Solar powered marine Marker light Platform LED light adopts insert integrated design Solar panel whose photoelectric conversion efficiency can reach to 25%, cooperated with solar dedicated lithum iron phosphate battery as power supply.
Control circuit adopts micro-power consumption single controlling chip, which can accurately control battery's charge & discharge statue and reduce its power consumption.
Light source adopts high efficient LED chip, which has advantage of high light intensity, low power consuption, long service life and so on.
Lampshade adopts PC material, which has the ability of anti-UV, anti-shock, and corrosion resistance.
The base adopts marine-grade dedicated plastic material, it can apply to seaways and chemical plant that have hostile and strong corrosive environment.
Our light is equiped with GPS timing synchronization module, infrared remote control. It has built-in 350 kinds of light characters code, RS232/485 port and light intensity is adjustable.
Product Details
Name
Parameter
Name
Parameter
Type
GS-LS/E
Light Source Service Life
>100000hours
Power supply
Class A high efficient solar Panel
Optional Emitting Color
Red, yellow Green, white Blue, etc.
Battery Capacity
3.2V3AH
Battry Type
Replaceable Lithium Iron Phosphate Battery
Battery Life
5~8 years
Solar Panel life
>30years
Solar Panel Power
1.8W
Solar Panel Volatge
5V
Power consumption
≤0.3W
Vertical Divergence
>8°
Visual Range
1~4nm
Horizontal Out-put
360°
Light Source
LED
Overall Size
186mm x 190mm (DXH)
Storage temperature
-55℃~85℃
Ambient temperature
-55℃~85℃
Installation size
170mm(D) x M8
Weight
1KG
IP standard
IP68
Anti-wind Ability
80m/s
Working mode
Flashing 1~40times/min
Light Intensity
Red 20cd, yellow 20cd, green 20cd, white 32cd
Continuous working time without sunlight
>30days, work 10 hours a day
Optically Controlled Ambient brightness
300±100LUX
Optional
GPS sync flash
Function & Features
Function & Features
Continuous working time in rainy day can reach to more than 30days.(10 hours a day)
Internal GPS synchronisation system available, as standard for synchronized flashing
Come with RS232/485 port, light can link to PC port
350 IALA flash patterns
Fitted with light intensity encoder, visuable range adjustable
IR programmable
Photocell can switch ON/OFF the light in rainy days or at night automatically
Photoelectric conversion efficiency can reach to 25%
IP68, Waterproof integration body, it can work in soaking sea water.
Adopts special customized LED chip, Higher tranfer efficiency and Longer service life
Circuit applied advanced charging and discharging management system
Good ability of Impact resistance, light fastness, anti-lighting, anti-UV, anti-snow, typhoon resistance, and function well on other severe weather.
Solar phosphoric acid iron battery service life is more than 3 years, User-replaceable, low-maintenance
The base lifespan can reach 30 years, designed to withstand the tough marine environment
Incorporated an enviroment-friendly spike-deterring unwelcome bird life
No radio frequency, no electromagnetic interference
2~5 years warranty subject to our sales term

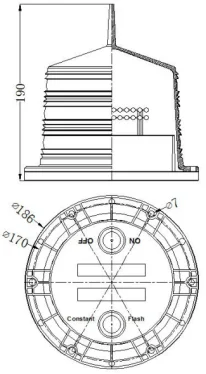

Dimension Drawing
Dimension Drawing
Project Case
Feedback
FAQ
FAQ
Q1:Can I have a sample order for your products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What about the lead time?
A:Sample needs 3~5days, mass production time needs 1~2 weeks. It is negotiable, if quantity more than 100.
Q3:Do you have any MOQ limit order?
A:No limit, 1pc for sample checking is avaiable.
Q4:How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT worldwide Express. It usually takes 3~5days to arrive, door to door. You also could choose freight by air or by sea.
Q5:How to procced an order?
A:Firstly let us know your requirement or appliction.
Secondly we will quote according to your requirement or suggested appropriate products.
Thirdly you confirm prices and check the samples.
Fourthly you confrim order and place deposit for formal order.
Then we will arrange the mass production for you.
Just feel free to contact us, we will effectively serve you and satisfy you.
Q6: is it OK to print my logo on product?
A: Yes, Please inform us formally before our production and confirm the design firstly based on our sample.
Q7:Do you offer guarantee for the products?
A:Yes. we offer 2~5years warranty on our products.
Q8:How to deal with the faulty?
A: Firstly, our products are produced under strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
