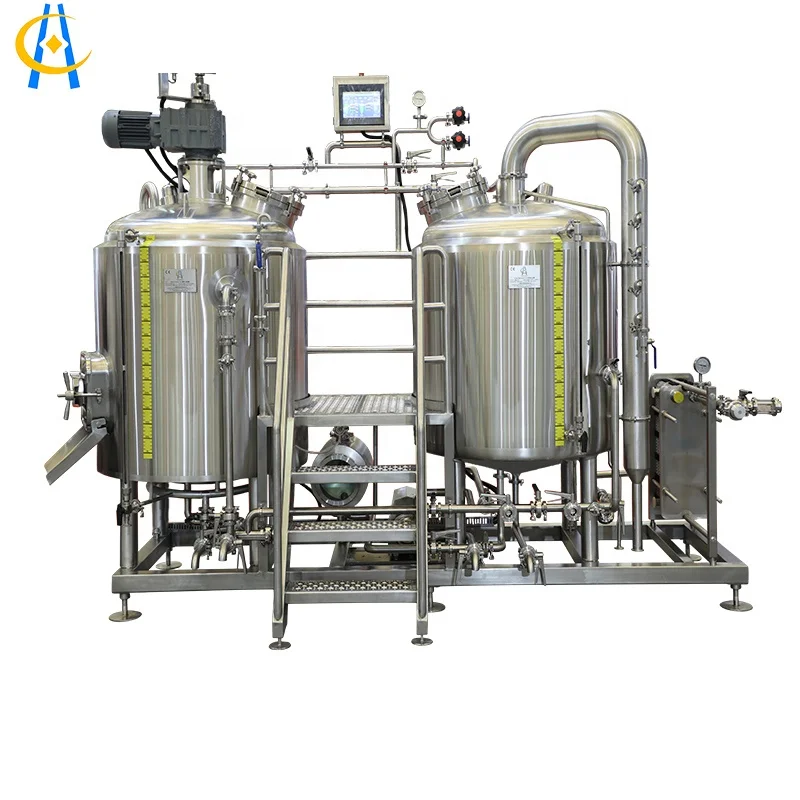

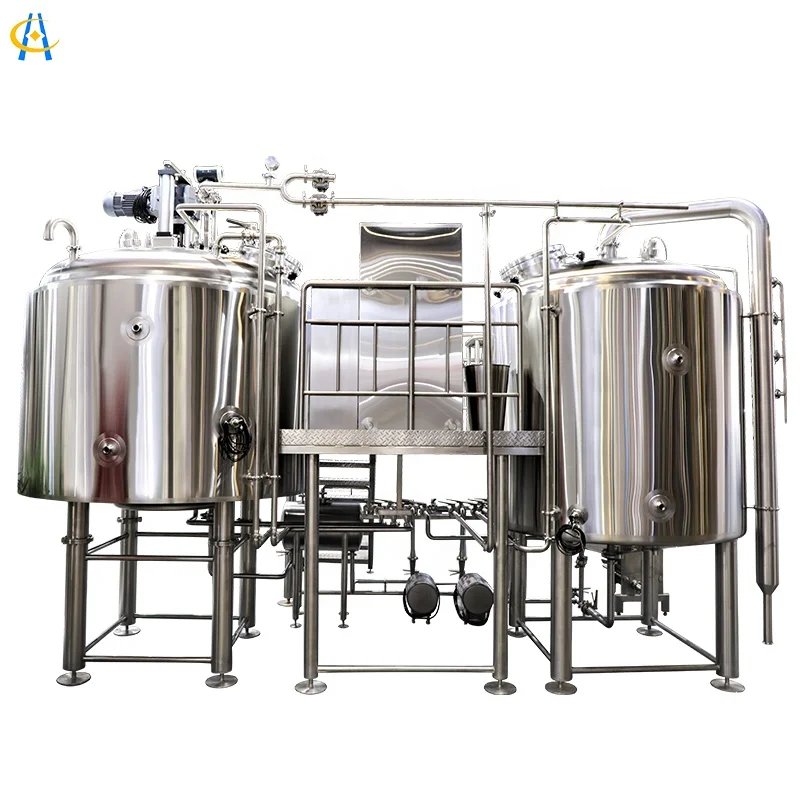

Draft beer 1000l 2000l 5000l home stainless steel beer brewing equipment with Thermometer
Draft beer 1000l 2000l 5000l home stainless steel beer brewing equipment with Thermometer
Draft beer 1000l 2000l 5000l home stainless steel beer brewing equipment with Thermometer
Draft beer 1000l 2000l 5000l home stainless steel beer brewing equipment with Thermometer
Draft beer 1000l 2000l 5000l home stainless steel beer brewing equipment with Thermometer
Draft beer 1000l 2000l 5000l home stainless steel beer brewing equipment with Thermometer
Draft beer 1000l 2000l 5000l home stainless steel beer brewing equipment with Thermometer

Draft beer 1000l 2000l 5000l home stainless steel beer brewing equipment with Thermometer

Share on (62550372203):


Price:$65,000.00

Quantity:


Product Overview

Description


BREWING YOUR STYLE
You could choose! Whatever the advanced PLC control or the manual type, suitable is the best. Steam brewhouse, elcetric brewhouse and direct fire brewhouse are available , size custimized, drawing free. Tell us what you want, and we give you what you need! Let's work together!
Quality Equipment or not
Of course the quality equipment, it is definitly importand for the quality of the beer. We have the professional team---Beer masters & tecnology consultor, experienced workers, passionated sellers, and they will be at your service. Our customers comes from America, Europ, Australia, Rusia, Korea and so on. With us, we make for you, we design for you.
Brewing System
Components
Specification
Milling System
Miller
Double Roller：700rpm, 600rpm
Drive Power: 0.55kw
Output: 50kg/hr

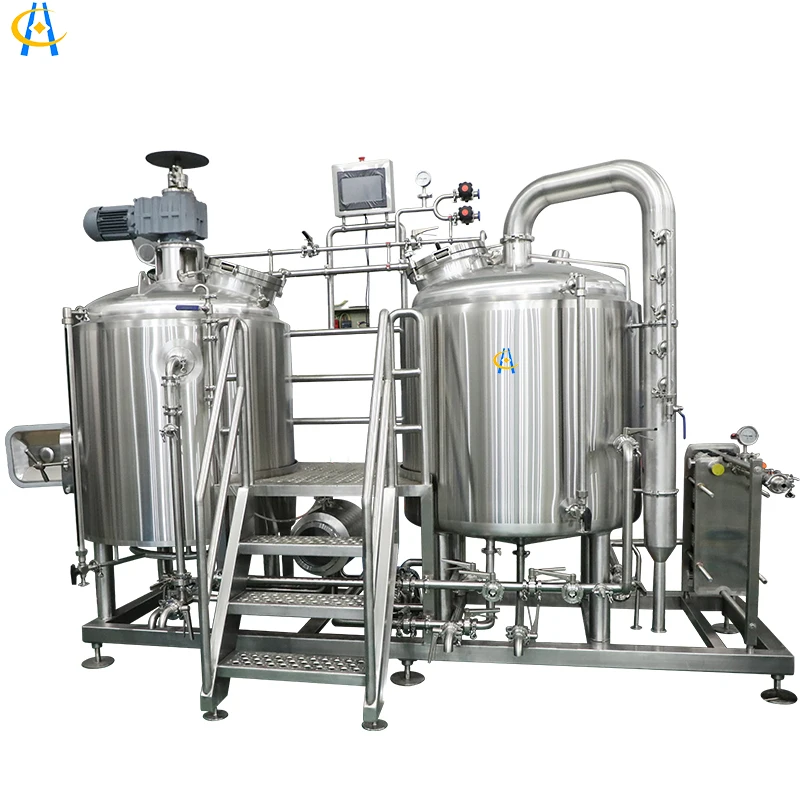

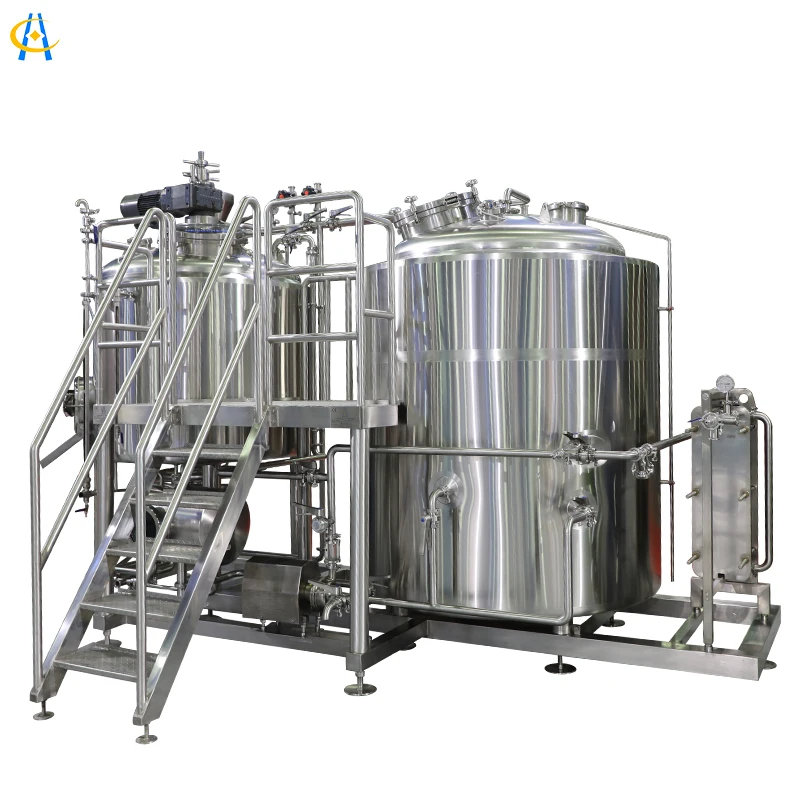

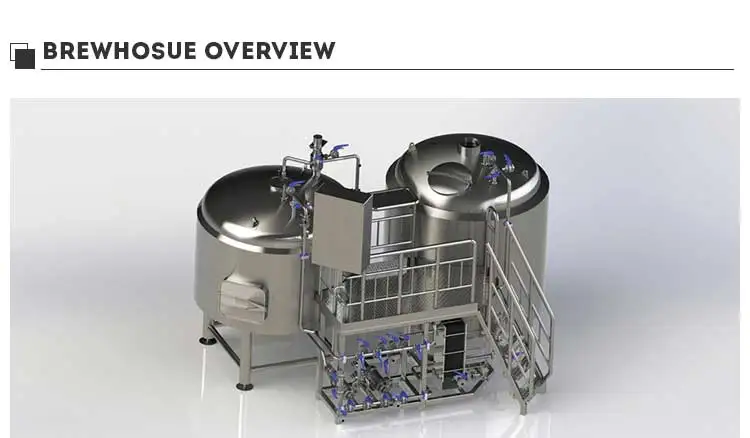

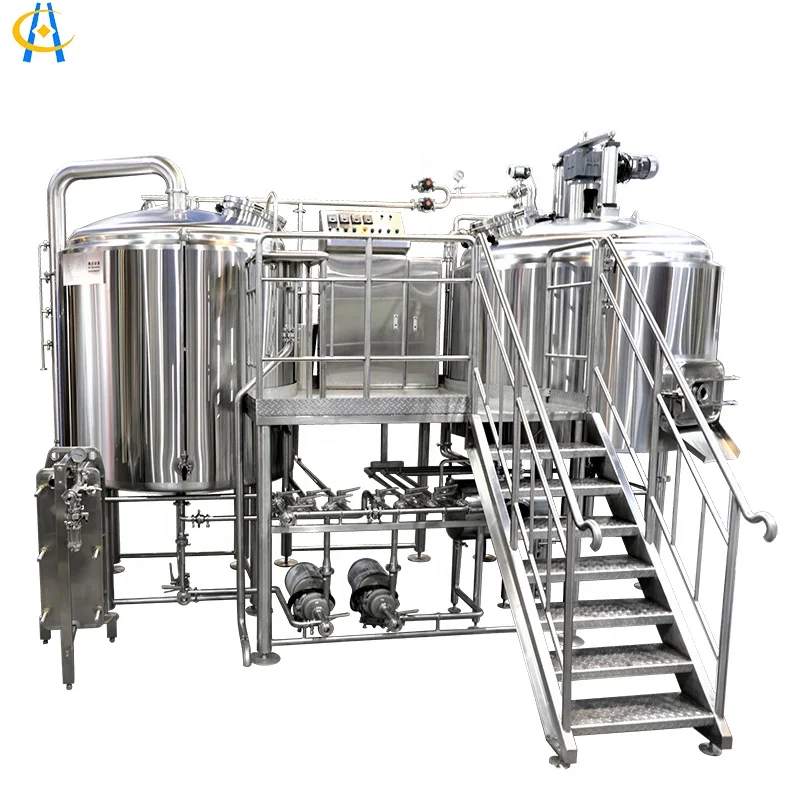

Brewhouse System
Mash/Lauter tun
Grain mashing, Lautering
Brew Kettle/
Whirlpool Tank
Wort boiling and whirlpool
Hot Water Tank & pump
Hot water supply
Heat exchanger
One stage and two stage



Control System
1.Control cabinet: for fermenting system and cooling system
2.Temperature degree display together
3.Siemens PLC control system
4.Control the power and temperature of the brew house&hot water tank
5.Control the variable frequencies of all the pumps automatically
6.Control the temperature of the fermentation tanks; control the temperature of the cooling system
7. Control wire and signal wire
Products Description
Related products

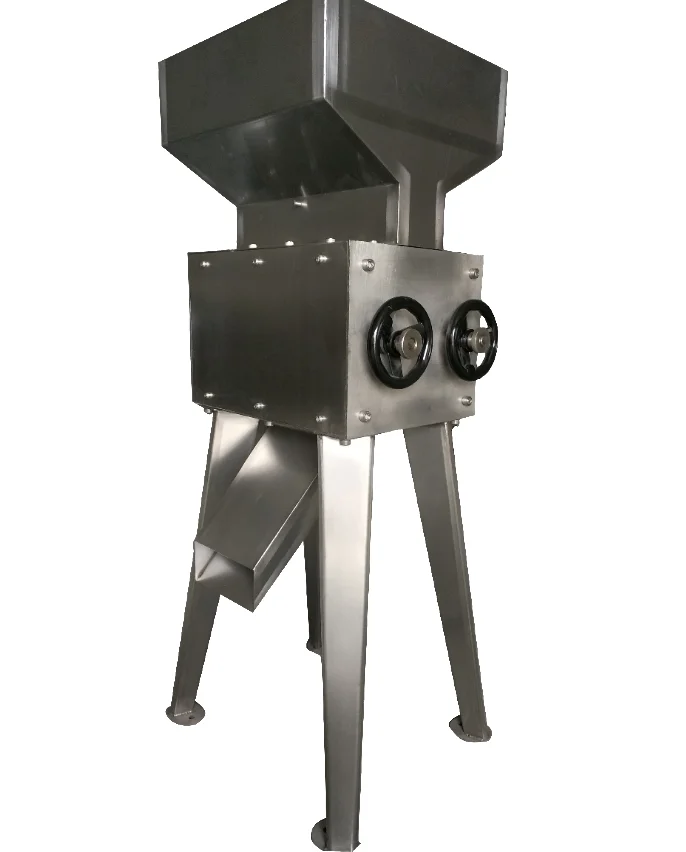

Miller

Function：Malt Milling
Installed Power: 3kw
Roller size: Φ155x300mm，Type：Double Roller
Max speed：700rpm , Mini speed： 450rpm
Particle size after milling: 0.1-2mm
Size: 720×660×1330mm
Weight: 300kg

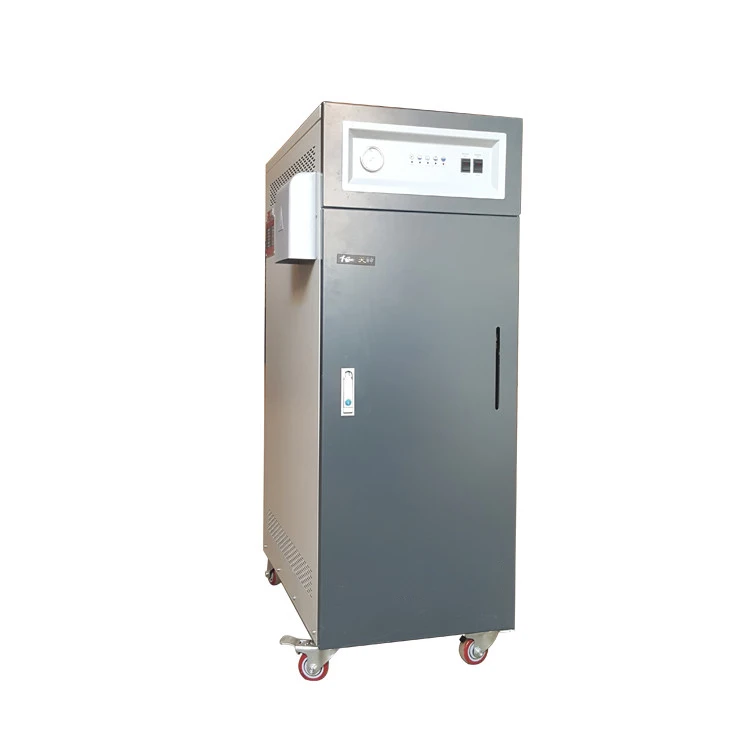

Steam generator
Rated heating power:72KW.
Rated steam output:100kg/h.
Rated current:113A
Working voltage: 380V/50Hz Three phase Five-wire
Rated working pressure: 0.7Mpa
Thermal efficiency: 98%
Saturated steam temperature: 170℃
Power of water pump: 0.55Kw
Voltage of water pump: 220V/50Hz
Thickness of furnace=6mm
Size: 920mm*550mm*1360mm Weight: 250KG

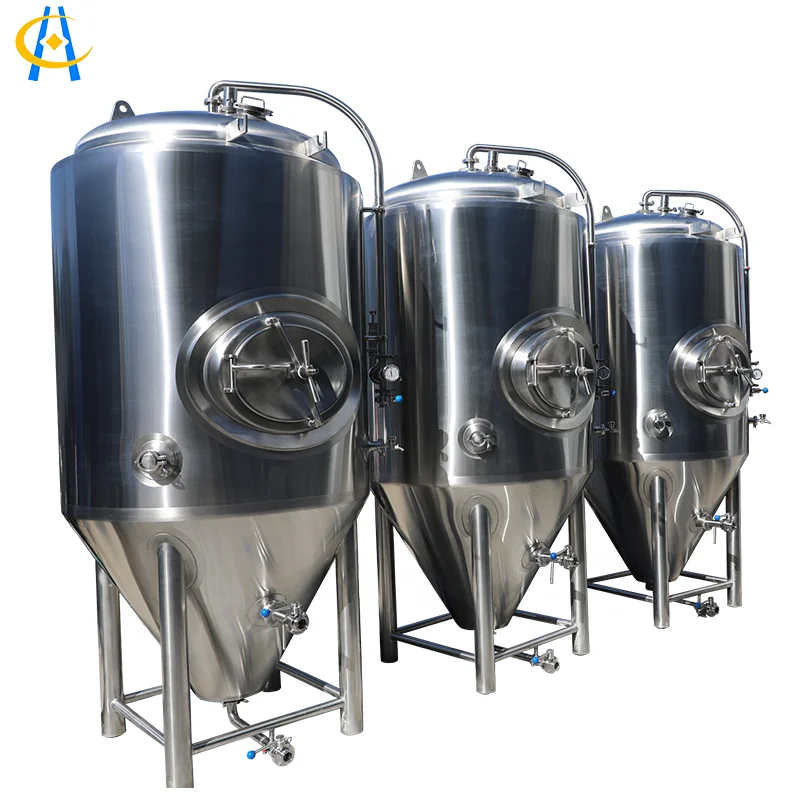

Beer fermenter
Stainless steel legs with stainless leveling footpads
Interior shell: 304 stainless steel, thickness 3mm
Exterior shell: 304 stainless steel thickness 2mm
Interior and exterior finish polished to a sanitary finish
Interior finish pickled and passivated
Exterior brushed.2b finish
Fully welded exterior shell
60 degree cone bottom, with an average of 25% head space
Rotating racking port
Side manway door, shadowless
Dual zone dimple cooling jackets(3 or more on larger tanks)
80mm Polyurethane insulation
CIP arm and spray ball
Sanitary tri-clamp connections，Dry hop port

Company Profile
Product packaging

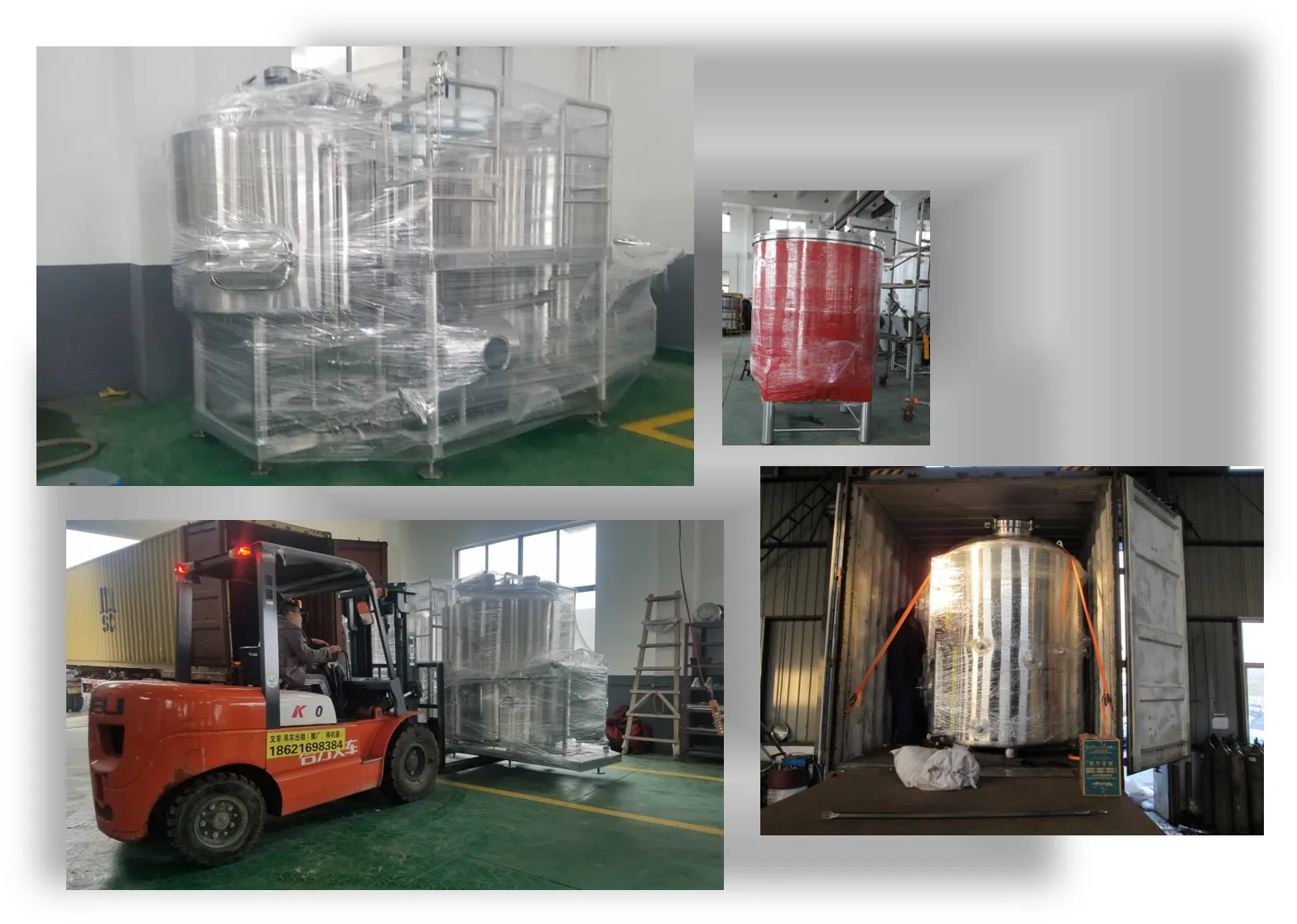

Packing & shipping
1.With export standard film packaging, then for wooden case packaging for alone beer tanks and less brewery equipment -LCLshipping.
2.If more tanks or complete set of brewery, with film packaging- FCL shipping.
3.By bulk carrier or independent containers, the size and quantity rely on the configurations and capacity.
4.Buyers requirement on packaging and shipping, please tell us in advance.
5.Transportation method: By sea/Railway/Road/Air.
FAQ
1.Are you a manufacturer?
Yes,we have been in providing the professional products in this field for more than 10 years.

2.How to install the machine?
We can entrust the video of installation, email, picture. If large project, we can arrange the worker help you to install it in
your country.

3.How to do temperature control?
The PLC or digital display meter can control the temperature via connecting with the PT100 sensor.

4.What is your available port of shipment?
Shanghai or other special requirements

5.Is customized available ?
Yes, according to your detailed drawings.

6.How long is your delivery time?
Generally single tanks need 20-30 working days, for whole plant need 50-60 working days.
