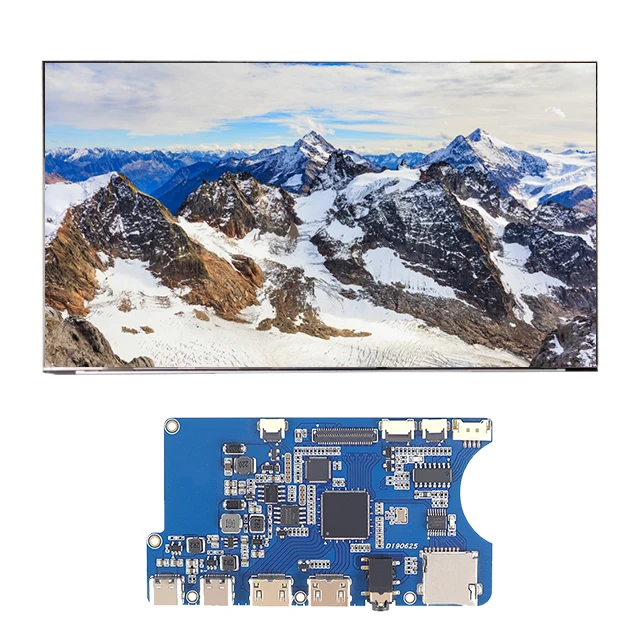

23 inch FHD 1080p IPS lcd module LM230WF9 SSA3 HD to LVDS Driver board Desktop Monitor Display 30 pins LCD Screen
- Category: >>>
- Supplier: Shenzhen Eurotech Technology Co. Ltd.
Share on (62550453834):
Product Overview
Description
23 inch FHD 1080p IPS lcd module LM230WF9-SSA3 HDMI to LVDS Driver board Desktop Monitor Display 30 pins LCD Screen
Dear, hello, are you worried about long delivery time, high MOQ, inventory, ductility, design, professionalism, and poor service?
1. We ship within 2~5days as soon as possible；
2. We support sample service, MOQ = 1；
3. We have strong R & D and production capabilities and have sufficient inventory；
4. We will innovate and develop new products every month；
5. We are OEM / ODM；
6. We are at your service 24 hours. Product quality issues can be returned at any time；
7. We ship your products with the fastest and best logistics；
2. We support sample service, MOQ = 1；
3. We have strong R & D and production capabilities and have sufficient inventory；
4. We will innovate and develop new products every month；
5. We are OEM / ODM；
6. We are at your service 24 hours. Product quality issues can be returned at any time；
7. We ship your products with the fastest and best logistics；
Product Description
LCD SPECIFICATION | ||||||
Panel Size | 23.0 inch | Panel Type | LCM, a-Si TFT-LCD | |||
Resolution | 1920(RGB)×1080 , FHD | Pixel Format | RGB Vertical Stripe | |||
Display Area | 509.184 × 286.416 (H×V) | Bezel Opening | 517.2 × 302.8 × 12.7 (H×V×D) | |||
Outline Size | - | Surface | Antiglare (Haze 25%), Hard coating (3H) | |||
Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (TM) | |||
Best View on | Symmetry | Response Time | 14 (Typ.)(G to G) ms | |||
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |||
Display Colors | 16.7M 72% NTSC | Lamp Type | 14S4P WLED , 30K hours , No Driver | |||
Panel Weight | 1.79/1.88Kgs (Typ./Max.) | Application | Desktop Monitor | |||
Frequency | 60Hz | Touch Screen | Without | |||
Signal Interface | LVDS (2 ch, 8-bit) , Connector 30 pins | |||||
Input Voltage | 5.0V (Typ.) | |||||
Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | |||||

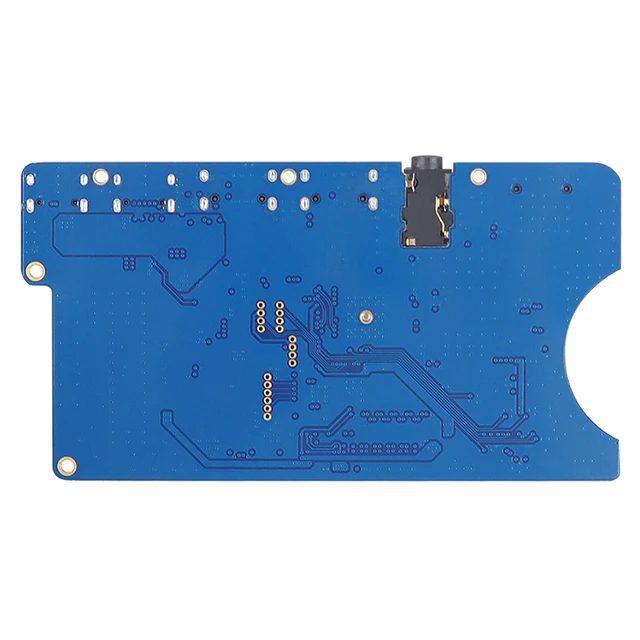

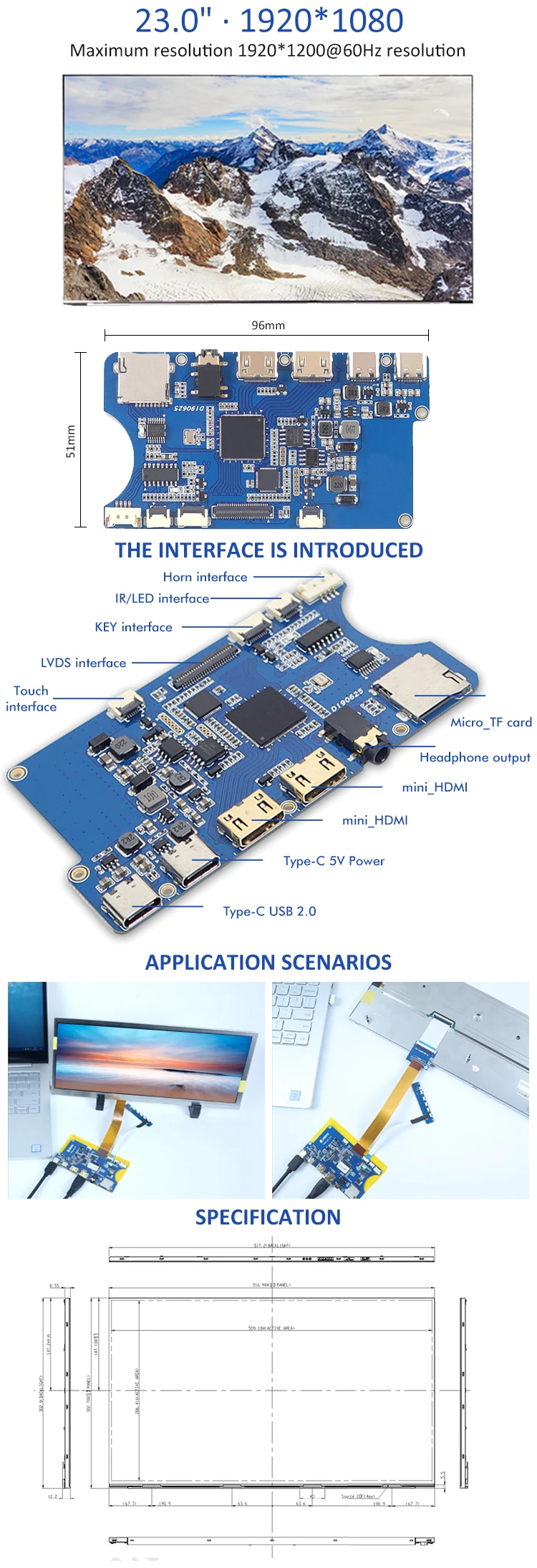

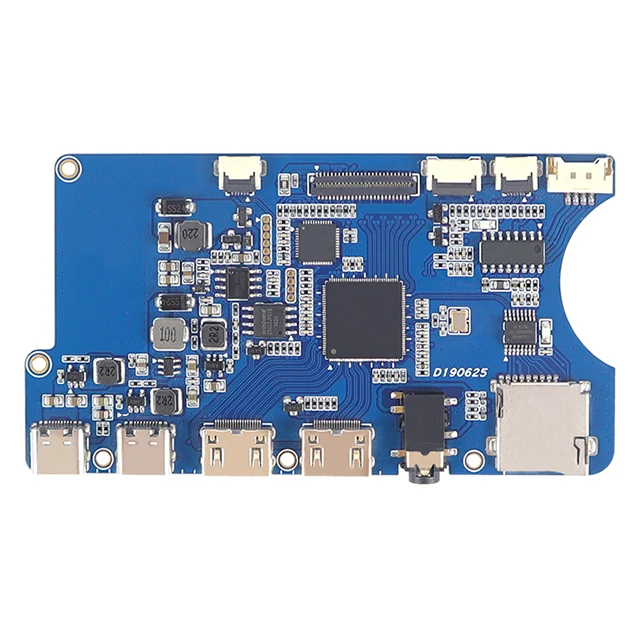

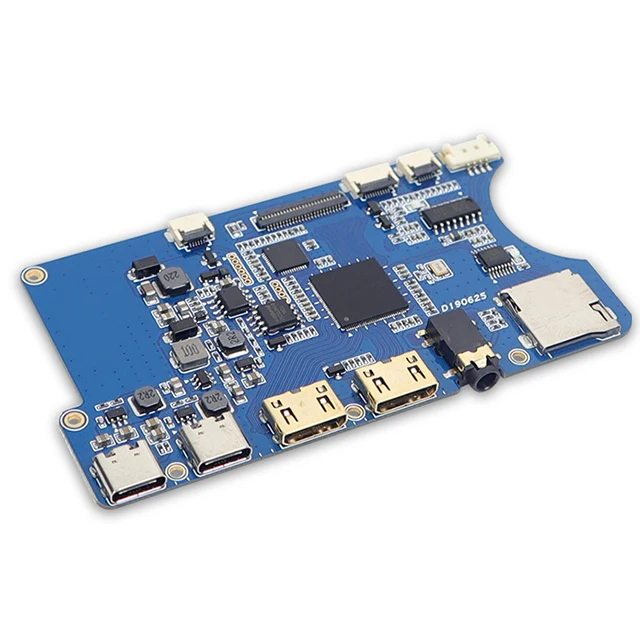

Default parameters | HDMI to LVDS Signal conversion drive board | ||||
Product model | ET53L-2H-V4.0 | Working temperature | -20°~70° | ||
Power interface | Support DC_5V/2A power supply (power base type-c_16pin) | ||||
Product size | 96(W)*51(H)*1.0(D)mm(The highest 5.4 mm thick) | ||||
Input signal | Dual HDMI, type-c 5V power supply, USB touch | ||||
Output signal | 51pin_LVDS, audio output, speaker | ||||
Supported resolution | 1920*1200@60Hz LVDS Screen | ||||
Application field | Hd displays, advertising machines, game consoles... | ||||
Model | Support Size | Support Resolution | Input Interface | LCD Interface | Brief Introduction | ||||
ET53L-2H-V4.0 | Main: 10.1" / 15.4" / 17" / 17.1" / 20.1" / 21.6" / 22" / 22.5" / 23" / 24" / 25.5" / 26" / 27" More: 7.0"~32" | Main: 1920*1200 / 1080p More: Standard portrait panel below 1920*1200 | HDMI | LVDS | HDMI to LVDS driver board 1920*1200 high resolution | ||||
Welcome to contact us to get a quote for this board, or any customize solutions for your product demand, fast response,professional technical support. | |||||||||
