Xilin 5m/7m/9m High lift forklift truck 1500KG 1.5ton Capacity Electric High Level Order Picker
- Category: >>>
- Supplier: Ningbo Ruyi Joint Stock Co. Ltd.
Share on (62550478159):
Product Overview
Description

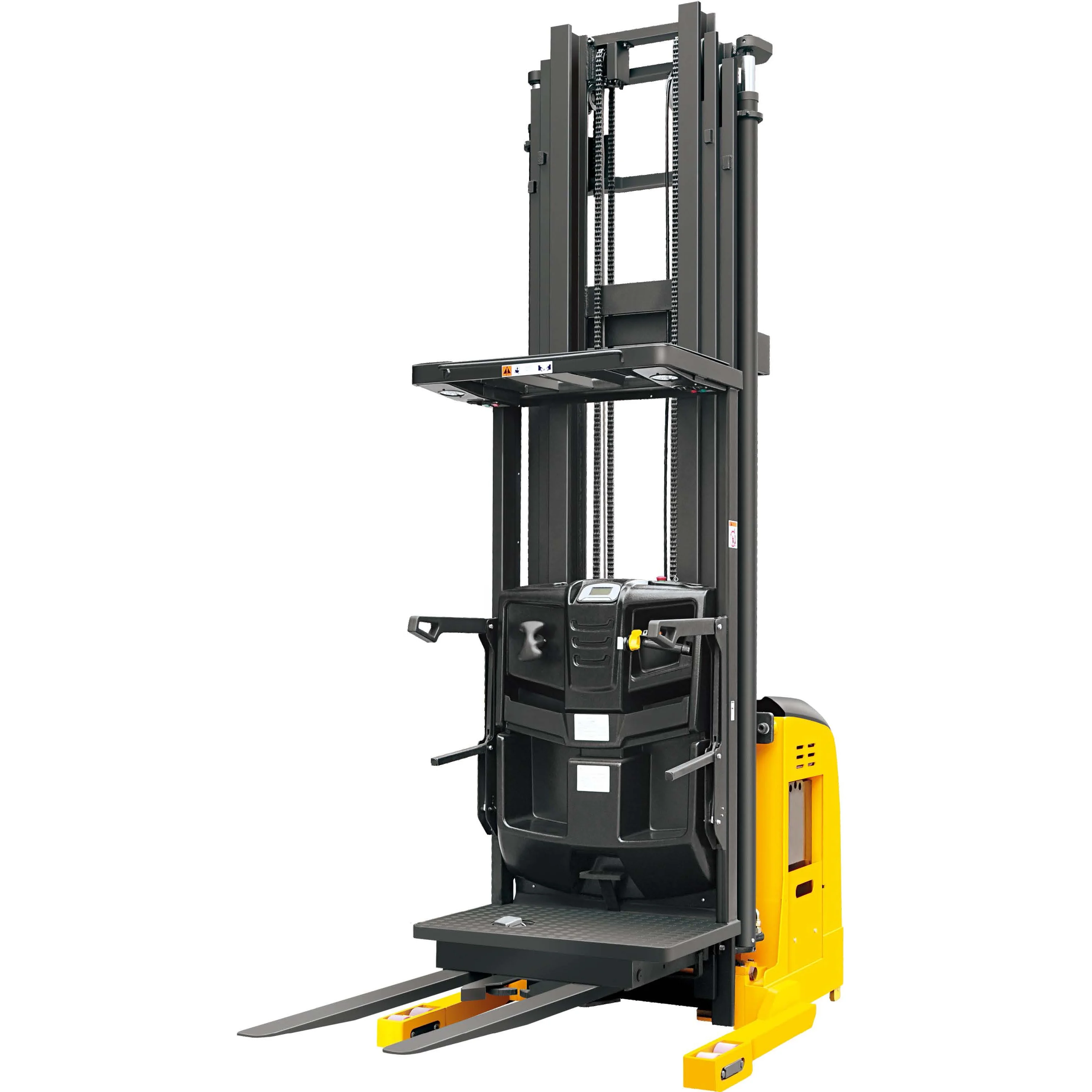

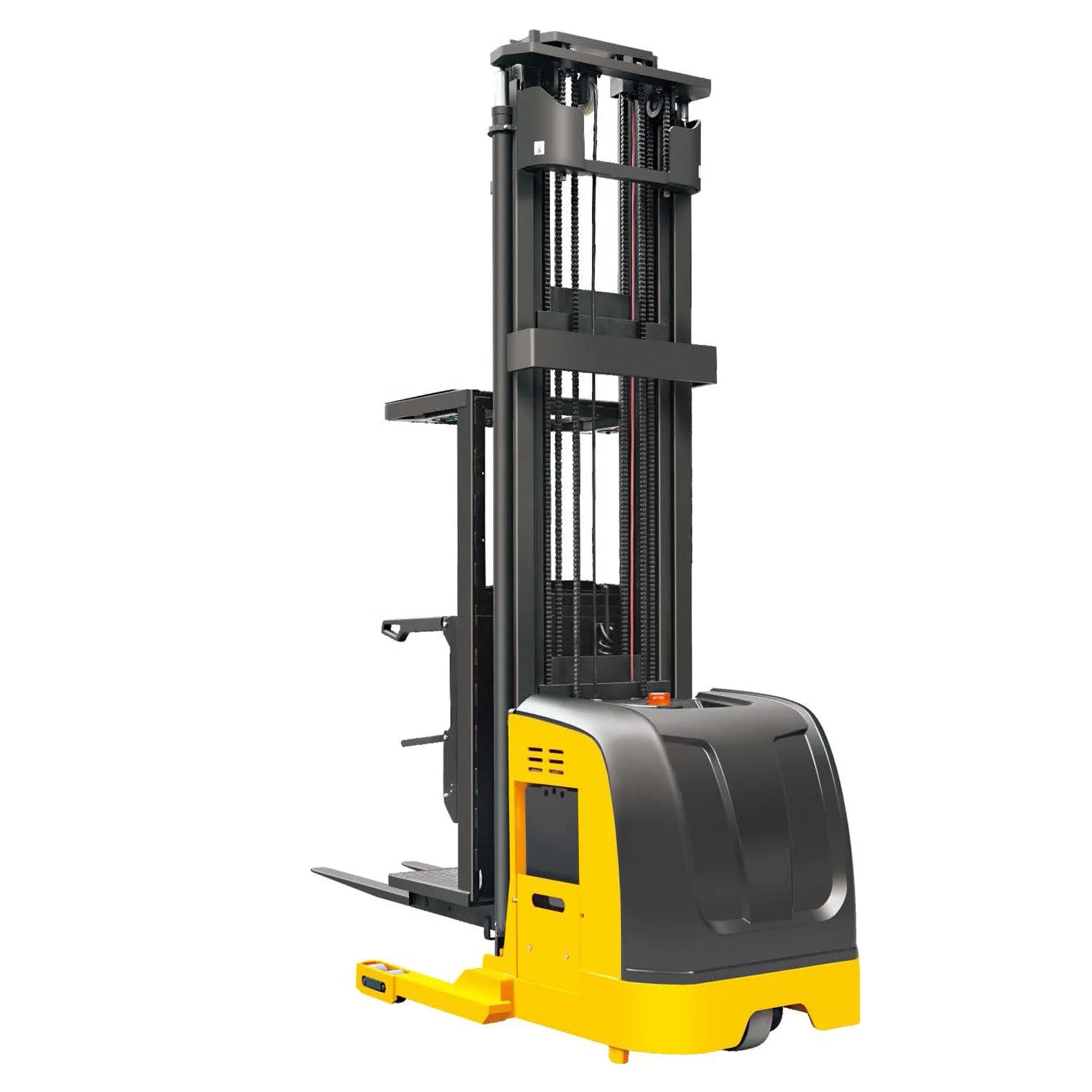

Xilin 9m High lift forklift truck 1500KG 1.5ton Capacity Electric High Level Order Picker
Advantages:
* Advanced electric steering technology(EPS) is humanized designed, with automatic reset , height display and automatic
deceleration at high lifting level.
* Finger tip control via joystick, Stepless speed control for driving,lifting and lowering speed is adjustable.
* The mast and the frame are dividable and exchangeable.
* Low battery protection setting prolongs the battery use time.
* AC motor eliminates replacement of the carbon brush, provides good ramp starting performance and regenerative breaking functions.
* Side way battery is convenient for exchanging and maintaining.
* The mast material is the special type imported from Germany.
* The truck can automatic decelerate when quick turning.

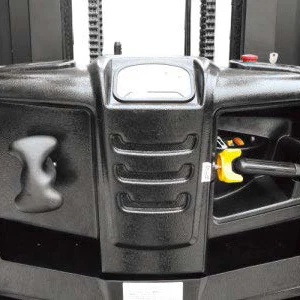

* High performance multi-function instrument has LED light and display function.
* Press right and left keys to switch for different grades: high, normal, low, and lowest.
deceleration at high lifting level.
* Finger tip control via joystick, Stepless speed control for driving,lifting and lowering speed is adjustable.
* The mast and the frame are dividable and exchangeable.
* Low battery protection setting prolongs the battery use time.
* AC motor eliminates replacement of the carbon brush, provides good ramp starting performance and regenerative breaking functions.
* Side way battery is convenient for exchanging and maintaining.
* The mast material is the special type imported from Germany.
* The truck can automatic decelerate when quick turning.
* High performance multi-function instrument has LED light and display function.
* Press right and left keys to switch for different grades: high, normal, low, and lowest.
Model | OPS15 | |
Drive type | Battery | |
Capacity / rated load | Q(kg/lbs) | 1500/3300 |
Max.lift height | h3(mm/inch) | 5000/7000/9000(196.9/275.6/354.3) |
Load centre | c(mm/inch) | 600/23.6 |
Load distance,centre of drive axle to fork | x(mm/inch) | 206/8.1 |
Height,mast lowered | h1(mm/inch) | 2410/3080/3750(95/121.3/147.6) |
Height,mast extended | h4(mm/inch) | 7230/9230/11230(284.6/363.4/442.1) |
Height of platform | h7(mm/inch) | 230/9.1 |
Lowed height | h13(mm/inch) | 80/3.1 |
Overall length | l1(mm/inch) | 3200/126 |
Length to face of forks | l2(mm/inch) | 1975/77.8 |
Overall width | b1/b2(mm/inch) | 1100/1352(43.3/53.2) |

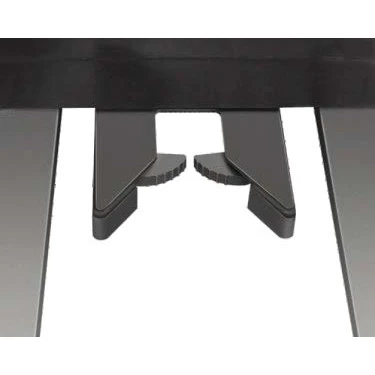

Fork dimensions | s/e/l(mm/inch) | 45/100/1220(1.8/3.9/48) |
Width overall forks | b5(mm/inch) | 530/715(20.9/28.1) |
Height of overhead guard | h6(mm/inch) | 2290/90.2 |
Aisle width for pallets 1000x1200 crossways | Ast(mm/inch) | 1400/55.1 |
Aisle width for pallets 800x1200 lengthways | Ast(mm/inch) | 1400/55.1 |
Turning radius | Wa(mm/inch) | 1800/70.9 |
Travel speed, laden / unladen | Km/h | 7.7/8 |
Battery voltage,nominal capacity K5 | V/Ah | 24/770(1100) |
Service weight (with battery) | (kg/lbs) | 3870/8532 |
Q1: Are you a factory?
A1: Of course. Ningbo Ruyi Joint Stock Co. Ltd., established in 1985, is a national hi-tech enterprise, which owns the unique combination of scientific research, development, production, sale and service.
A1: Of course. Ningbo Ruyi Joint Stock Co. Ltd., established in 1985, is a national hi-tech enterprise, which owns the unique combination of scientific research, development, production, sale and service.
Q2: Can Ruyi provide customized products? OEM products or ODM products?
A2: Yes, Ruyi can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q3: What's the specification of the chargers?
A3: Ruyi have all kinds of the chargers and welcome the customers to custom-made.
Q4: How about the delivery time?
A4: Usually Ruyi producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q5: Do you have agent or representative abroad?
A5: Yes. We have two branches in the US and Russia. We have two warehouses are located in Los Angeles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
Q6: Can we print the LOGO on products?
A6: Yes, the OEM is available with the permission of our customers.
Q7: What is your payment term?
A7: T/T or L/C, if you want any other way, please contact us.
Q8: What can I get from cooperating with Ruyi?
A8: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
A2: Yes, Ruyi can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q3: What's the specification of the chargers?
A3: Ruyi have all kinds of the chargers and welcome the customers to custom-made.
Q4: How about the delivery time?
A4: Usually Ruyi producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q5: Do you have agent or representative abroad?
A5: Yes. We have two branches in the US and Russia. We have two warehouses are located in Los Angeles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
Q6: Can we print the LOGO on products?
A6: Yes, the OEM is available with the permission of our customers.
Q7: What is your payment term?
A7: T/T or L/C, if you want any other way, please contact us.
Q8: What can I get from cooperating with Ruyi?
A8: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
