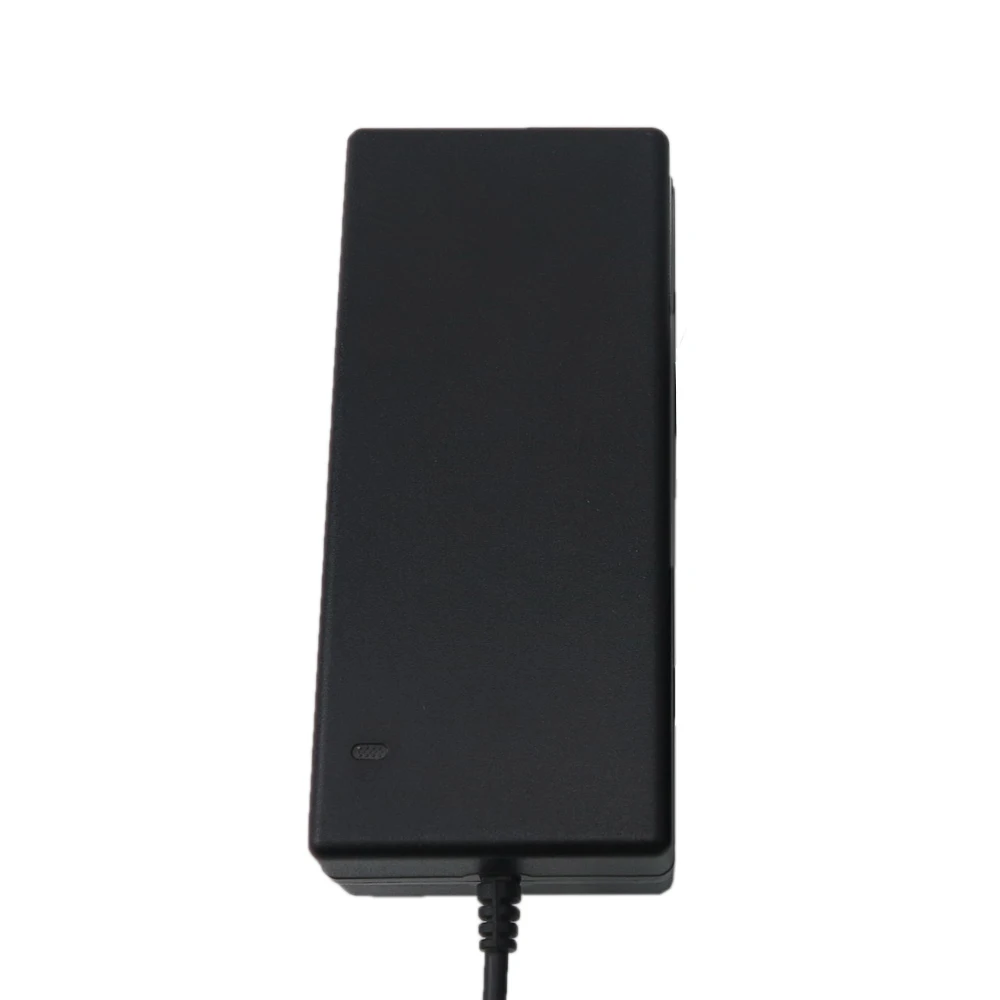

universal ac dc 24v 2.5a desktop power supply charger 60w adapter for Laptop adapter

Share on (62550482629):


Price:$5.70 - $6.00

Quantity:


Product Overview

Description


Title:



universal ac dc 24v 2.5a desktop power supply charger 60w adapter for Laptop adapter



Product Description





Specifications of 60w desktop 5000ma laptop ac to dc power adapter



Base Information

Product name

60w desktop 5000ma laptop ac to dc power adapter

Brand

VORED

Model #

LC-H240250

Material

ABS+PC

Place of Original

China (mainland)

























Product  details

AC Input voltage range

100-240V(±10%)

AC Input current

 1.2A

Inrush current

30A

AC input Frequency

50/60Hz

Rated output voltage

DC 24V

Rated output current

DC 2.5A

Rated Power

60W

Tolerance

±5%

Efficiency

 85%~93%

AC inlet

 Changeable AC sockets and DC tips

Dimension

 110*51*31mm

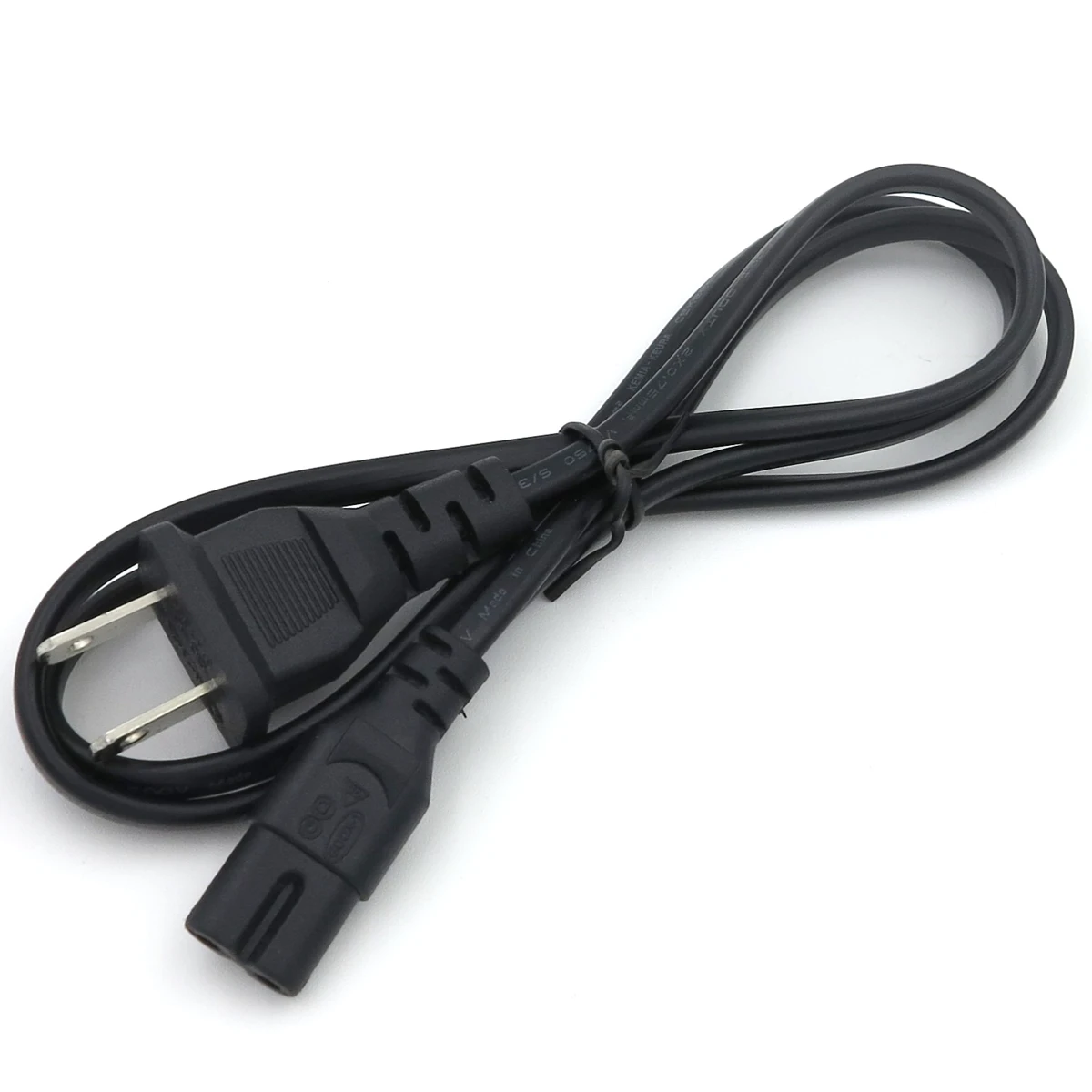

AC cable length

 1.2M

DC cable length

 1.2/1.5/1.8M

IEC connect type

 C6/C8/C14

Output tip

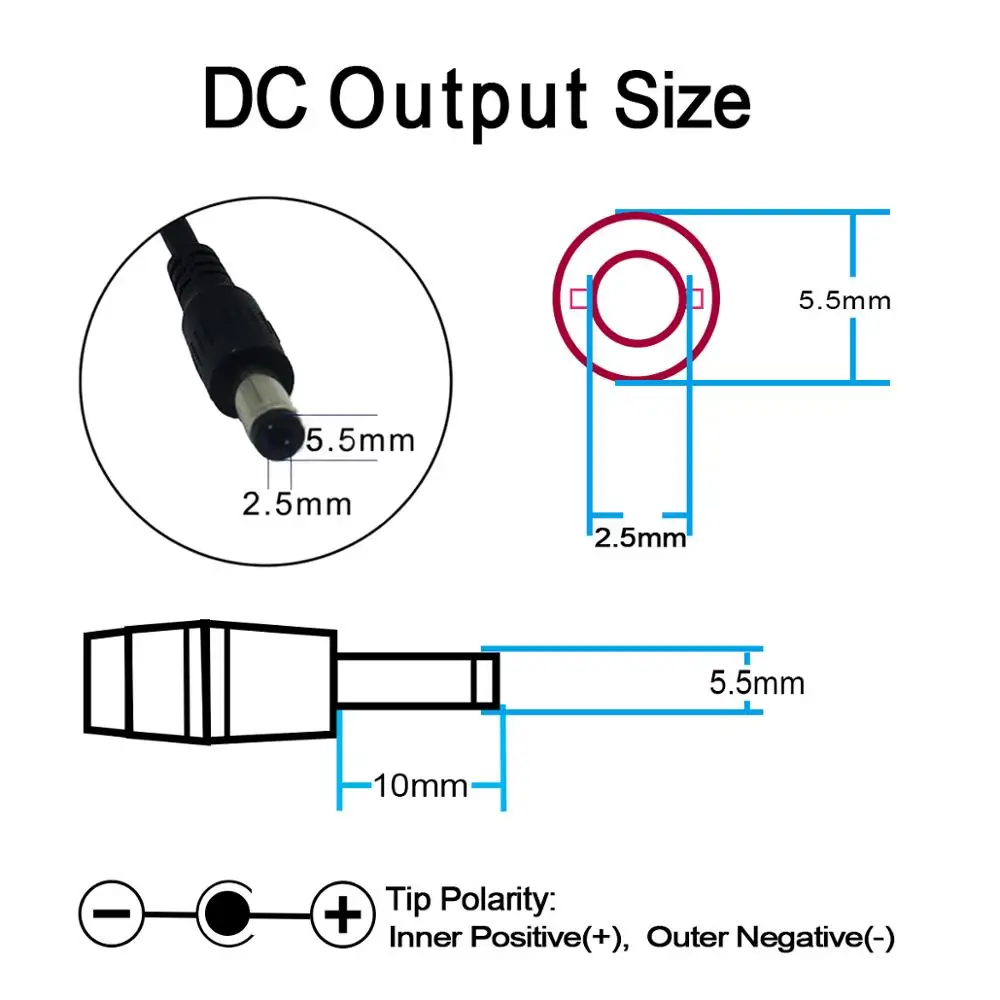

2.0*0.6/2.0*0.7/3.5*1.35/4.0*1.7/5.5*2.1/5.5*2.5mm,etc.

Cable material

 18AWG pure copper

Safety Approval

Short circuit protection, over voltage protection, over current protection

Protections

OCP,OVP,OLP,SCP,OTP

MBTF

50,000 hrs

Standby power consumption

0.5W

Leakage current

5mA

Turn-on

≤2000S

Hold-up

≥10mS

Ripple & Noise

100mV Max.











Safety

Hi-pot Test

 4000V, 60s

Burn-in Test

 4 hrs

Drop Test

 1M to hard board

Insulation resistance Test

Yes , three-layer insulation

Operating Temperature

 -10-45℃

Relative Humidity

 5%-90% RH

Storage Temperature

 -20-65℃

Storage Humidity

 5%-95% RH

Warranty

 2 years



Others

Sample term

we support free samples,1-3days, sample shipping cost paid by customers.

Delivery time

15-20 business days

Payment terms

T/T,L/C,Western Union,Paypal,Money Gram.

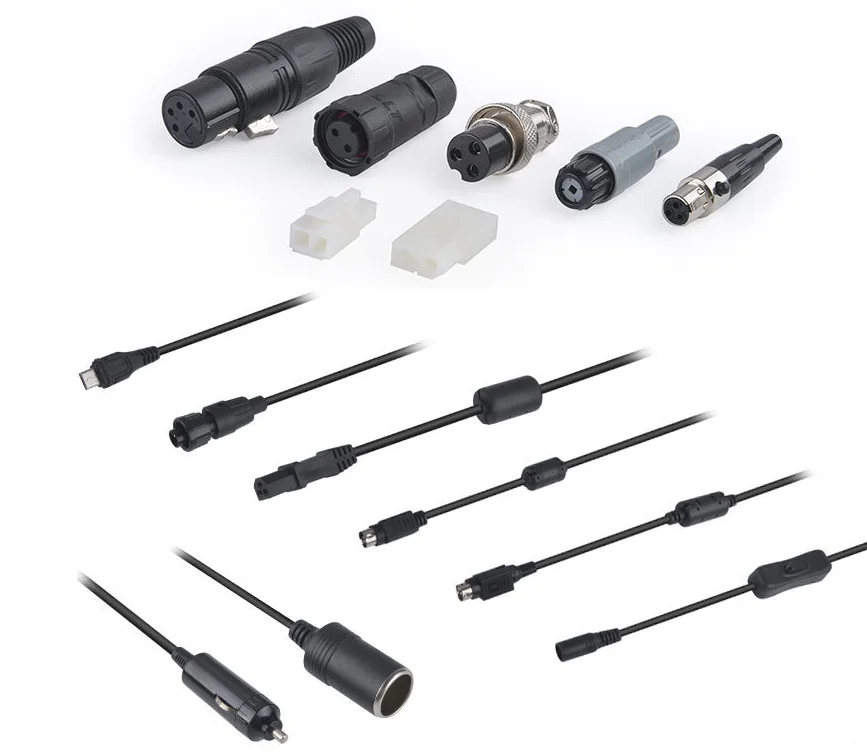

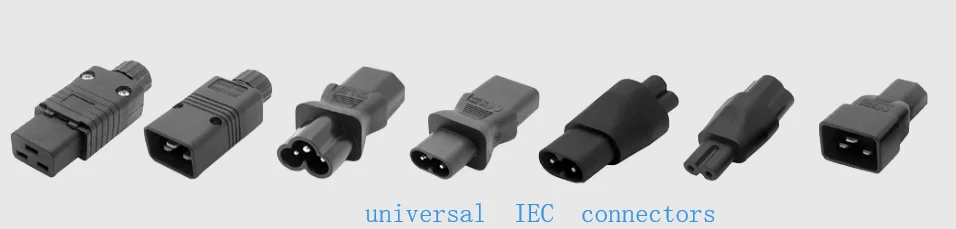

All DC Tips, IEC connectors & AC inlets are changeable.












Applications of 24w 48w desktop laptop ac to dc power adapter:



LED lighting, communication, appliances, security cctv camera, medical, audio, 3D printer, recliner massage chair, vending machine, water purifier,Electric bicycle battery charger, small size LCD TV, laptop(note book), DVD player and set-top box etc.





Our Services





 1.Our professional pre-sales and after sales service make your business easier.



 2.Positive and quick communication, efficient work, save your time.



 3.The perfect quality assurance system and perfect warranty service measures, finish off any menace from the “rear”.(365days warranty )



 4.Our products have passed authoritative certification and all quality indexes are in line with international standard.



 5.Your client satisfied on the on time shipment and quality to get good reputation from your market and obtain more orders base on our high performance price ratio.

Company Information



Established in 2003, Shenzhen LongChuang Electronic Technology Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of chargers, power adapters and switching power supply. We are located in Shenzhen, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

As the company's business scale has been expanding, in order to meet the development needs of our company, G-king Electronics Technology Co.,Ltd emerged as the times require on 7th Dec. 2016, in Humen Town, Dongguan city.
Covering an area of 5,000 square meters, over 100 employees, 4 development engineers. Now we have our own small industrial park, with an annual sales figure that exceeds USD 10 million and are currently exporting 40% of our production worldwide.

Our well-equipped facilities and excellent quality control throughout all stages of production enable to meet all of our customers' requirements. CE, RoHS, SAA, C-Tick, MEPS, UL, FCC, KC and CCC certifications could be offered.

As a result of our high quality products and outstanding customer service, we have gained many customers. If you are interested in any of our products, please feel free to contact us, let’s talk details.

We'll offer our best service, to establish a win-win situation!

 .jpg


Certifications

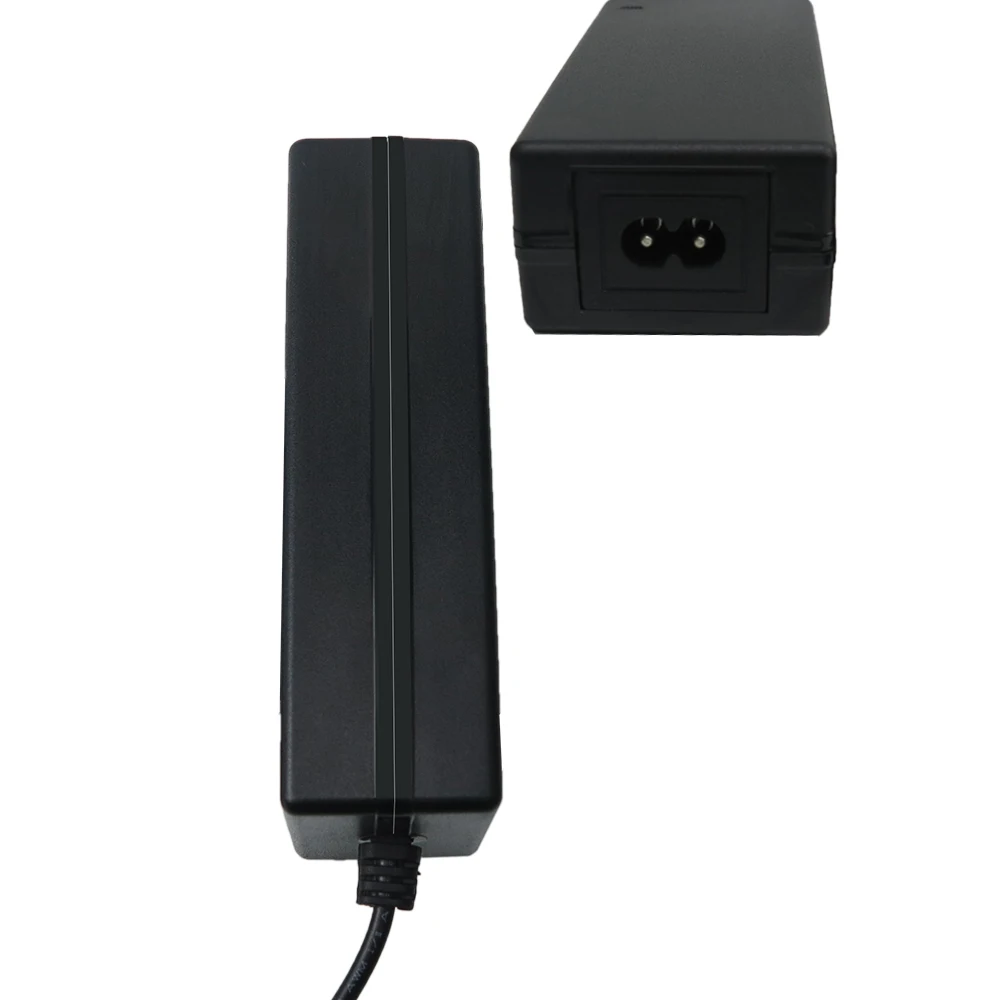

Products Pictures


Packing & Shipping



Packing details:



Section 1

Inside PE/PVC bag/bubble bag + export carton

CTN size: 46*38*34cm

12pcs / layer*4 layers

48 pcs per carton

Apx. G.weight: 16kgs



Section 2

1 Unit put in 1 white box

Or color box / gift box + export carton

CTN size: 46*38*34cm

36-48pcs per CTN



Section 3

Customized your own packing




Delivery Time:



Normally

1K-10K units    15-20 business days

10K-50K units   20-25 business days

50K-100K units  30-40 business days





Shipping methods:



By sea, by air, by express : UPS,DHL,TNT,FedEx,EMS etc.

Customer designated freight forward is warmly welcome as well.



Payment terms:



T/T, LC, Western Union, Paypal, Money Gram, Cash,or any others.

30% deposit for mass production, balance before loading.

Full deposit for goods value < USD 1500








Production Flow


FAQ



FAQ (Frequently Asked Questions)


Q1:What products does your company mainly supply?

A1: We engaged in design,development and production of different kinds chargers, switching power adapters,AC/DC converter adapters and cables.



Q2: Can you handle OEM&ODM service business?

A2:Certainly.Including IC scheme, appearance designs, labels,packages.There are 4 rich experienced professional engineers work for us,we are confident to provide you most suitable solution.



Q3:How soon can I get samples to check quality?

A3:After price confirmed,for our conventional product(not customized products),we can prepare within 3 days.And our samples usually is free charge,you should just pay the express fees.



Q4:How about your lead time?

A4:Its according to the order quantity, normally

1K-10K units    15-20 business days

10K-50K units   20-25 business days

50K-100K units  30-40 business days



Q5:What’s your payment terms?

A5:Standard payment terms: T/T 30% in advance, 70% paid before shipment. Large amount: L/C at sight. Small amount : Paypal and Western Union.



Q6: What is the warranty for your product?

A6: All out products, we provide 1 year warranty. Any quality problem happened in this period of time for our reasons,we will send the replacement products in next order.
