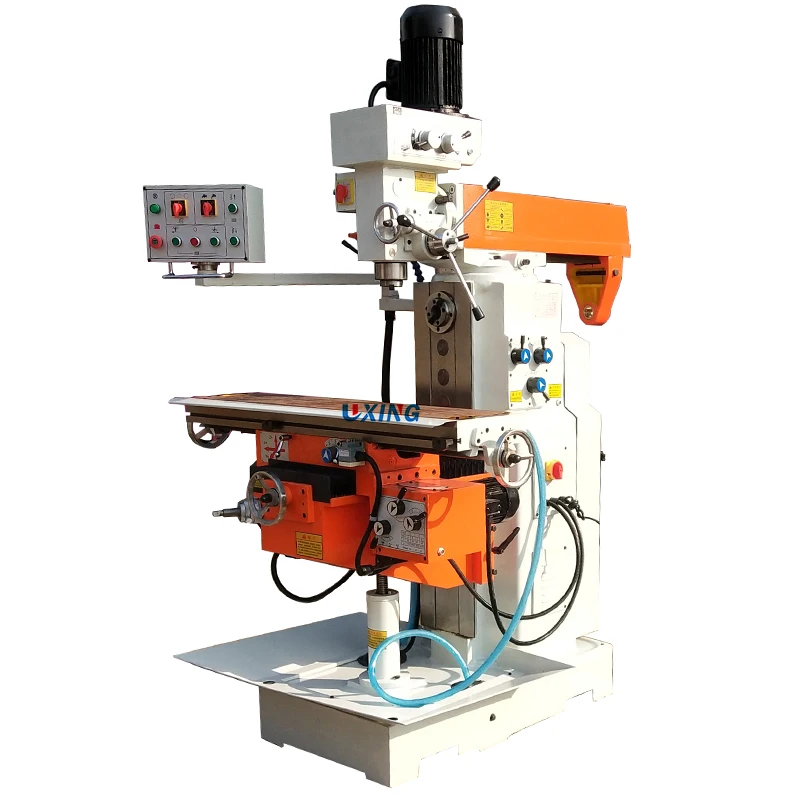

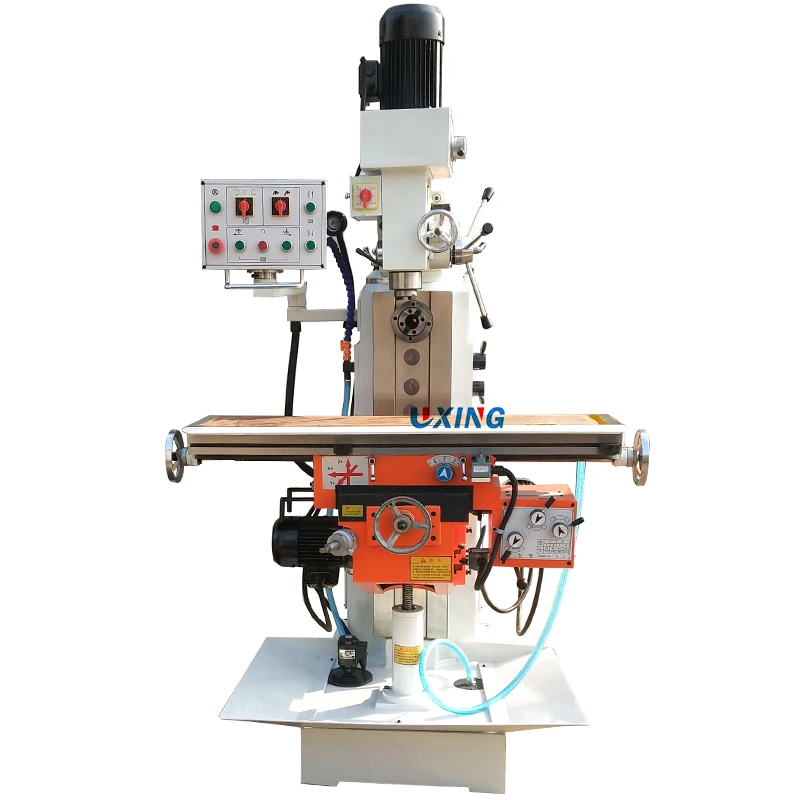

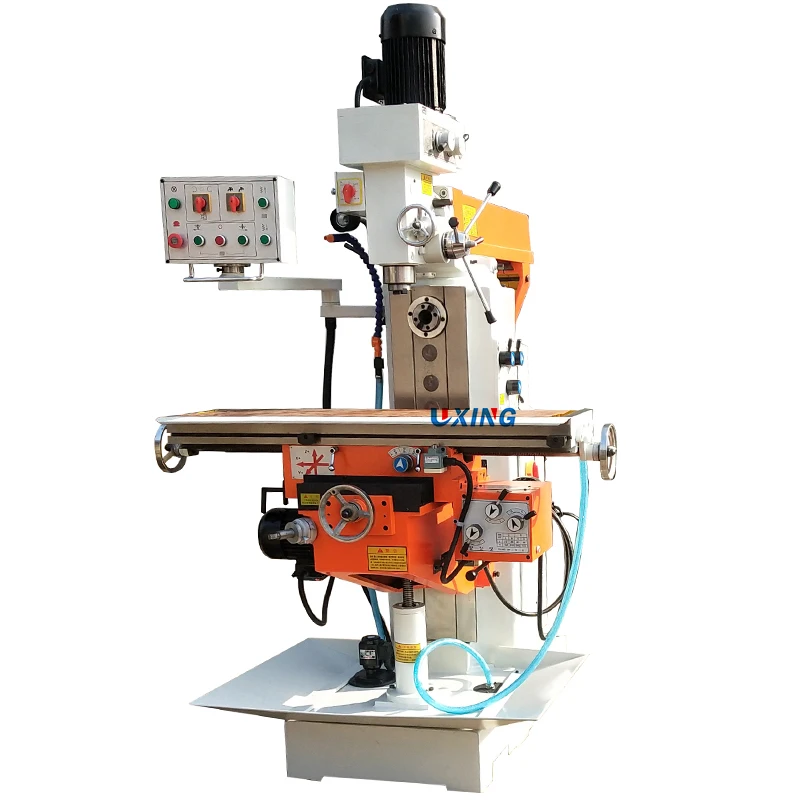

ZX6350A fresadora machine workshop equipment X axis auto feed vertical and horizontal drilling and milling machines
- Category: >>>
- Supplier: Zaozhuang Luxing Machine Tool Co. Ltd.
Share on (62550559556):
Product Overview
Description
ZX6350A fresadora machine workshop equipment X axis auto feed vertical and horizontal drilling and milling machines
Main specifications:
Specifications(mm) | ZX6350C | ZX6350D | ZX6350A | ||
Max. drilling dia.(mm) | 50 | 50 | 50 | ||
Max. end milling width(mm) | 100 | 100 | 100 | ||
Max. vertical milling dia.(mm) | 25 | 25 | 25 | ||
Max.boring dia.(mm) | 120 | 120 | 120 | ||
Max. tapping dia.(mm) | M16 | M16 | M16 | ||
Distance from spindle nose to table surface(mm) | 80-460 | 80-460 | 80-460 | ||
Spindle taper | MT4 | MT4 | MT4 | ||
Spindle speed range(r.p.m) | 36-1526(V) 40-1300(H) | 36-1526(V) 40-1300(H) | 36-1526(V) 40-1300(H) | ||
Spindle travel(mm) | 120 | 120 | 120 | ||
Table size(mm) | 1200×280 Optional: 1500x280 | ||||
Table travel(mm) | 680×280 Optional: 980x280 | ||||
Table feed speed(mm/min) | X:16-480 | X/Y:22-555 | X/Y:22-555 Z:300 | ||
Overall dimensions (mm) | 1500×1600×2200 | 1500×1600×2200 | 1500×1600×2200 | ||
Spindle motor power (kw) | 1.5/2.2(V) 3(H) | 1.5/2.2(V) 3(H) | 1.5/2.2(V) 3(H) | ||
Machine weight (kg) | 1300/1400 | 1350/1450 | 1400/1500 | ||
Details:
FAQ:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .
