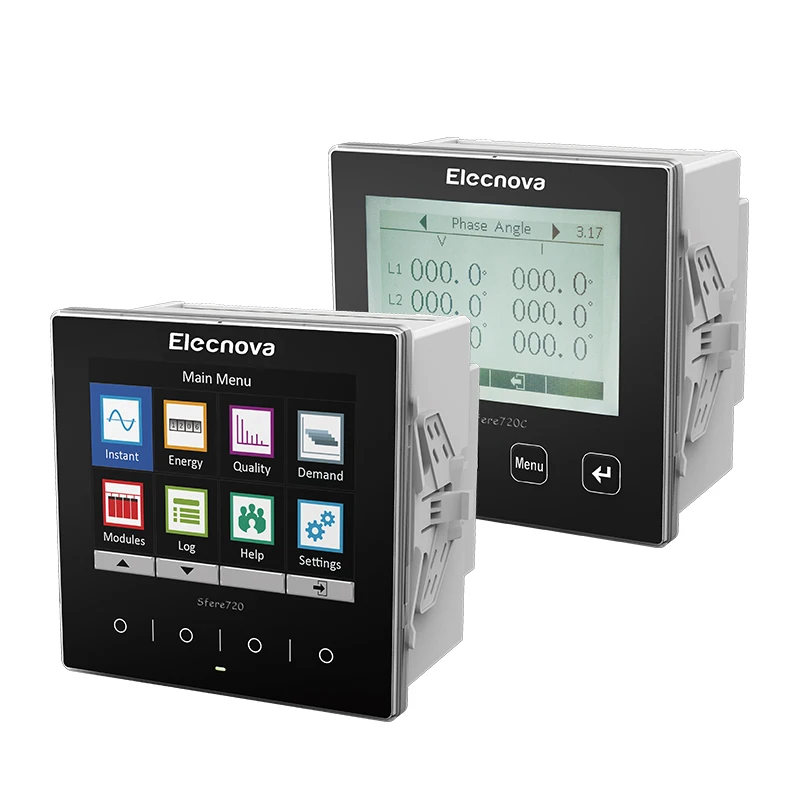

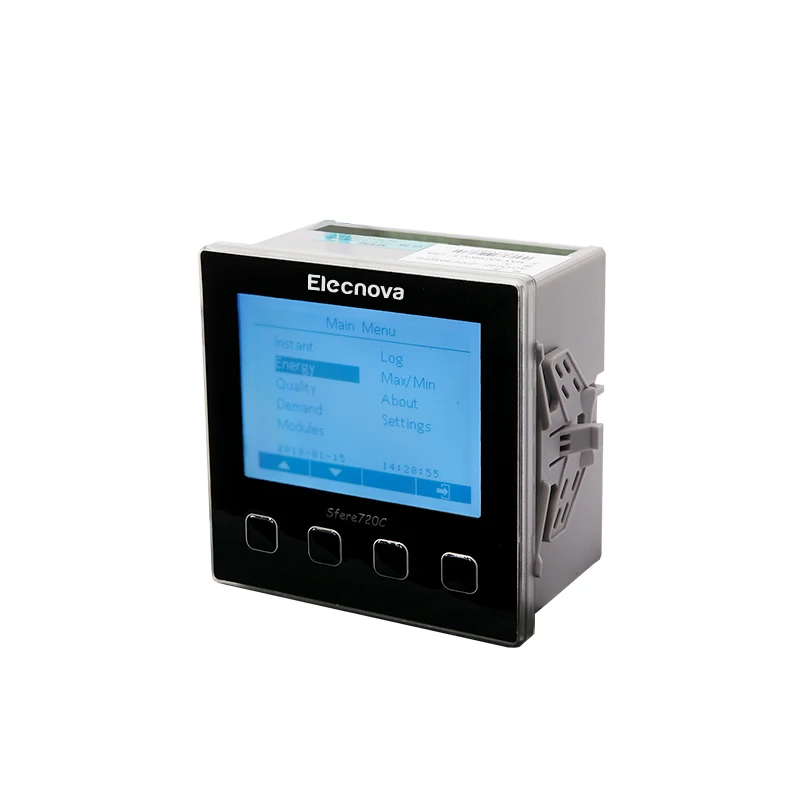

Sfere720C LCD modbus/profibus tariff multifunctional power meter data logger
- Category: >>>
- Supplier: Jiangsu Sfere Electric Co. Ltd.
Share on (62550600041):
Product Overview
Description
Product Description
Product Name:Sfere720C LCD modbus/profibus tariff multifunctional power meter data logger
Sfere720C is equipped with electrical variable measurement, energy metering and power quality analysis functions. Sfere720C also can be extended with I/O modules for monitoring and controlling equipment at field, realizing system
integration with different smart electricity distribution system and energy management system, and sharing monitoring data and energy data.
integration with different smart electricity distribution system and energy management system, and sharing monitoring data and energy data.

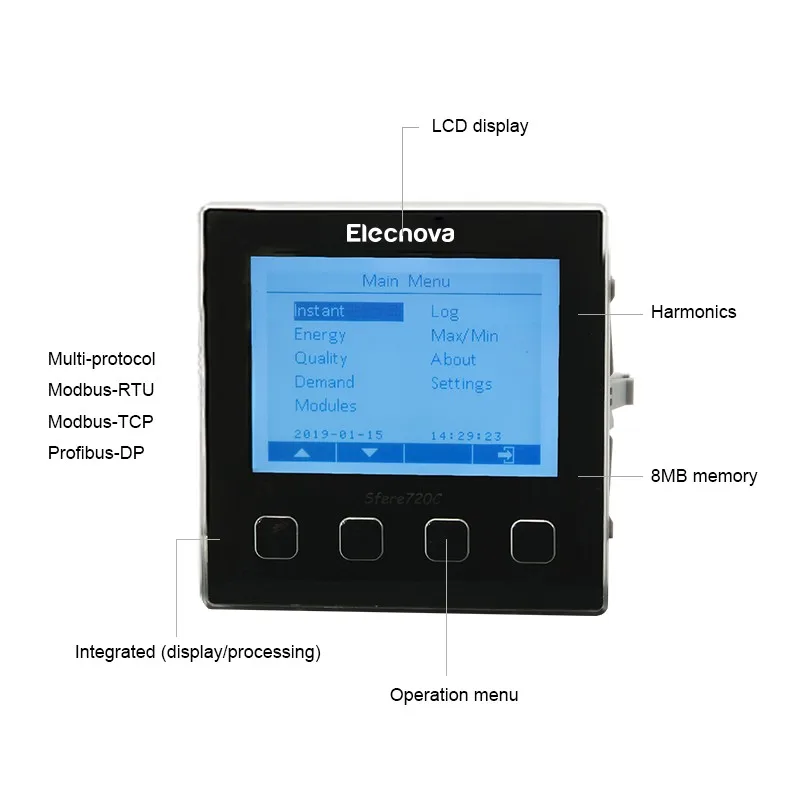

Features
8MB memory, 32,000pcs record
Accuracy: 0.2S
Measurement: full electrical measuring
Harmonics: up to 51st
Display: TFT
Modular design: 12 optional modulars available
Accuracy: 0.2S
Measurement: full electrical measuring
Harmonics: up to 51st
Display: TFT
Modular design: 12 optional modulars available

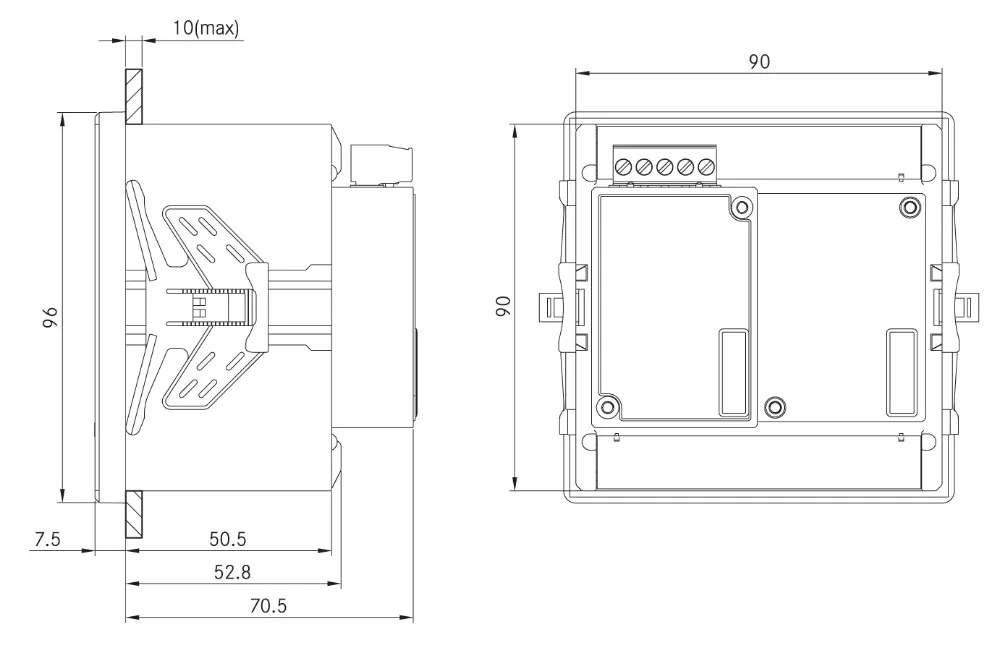

Installation method
1) Choose a right place on the fixed distribution cabinet for cutout by size 91×91mm;
2) Take off the supporting clips of the meter;
3) Insert the meter into the cutout;
4) Insert and push the supporting clips to fix the meter.
2) Take off the supporting clips of the meter;
3) Insert the meter into the cutout;
4) Insert and push the supporting clips to fix the meter.
Technical Parameter

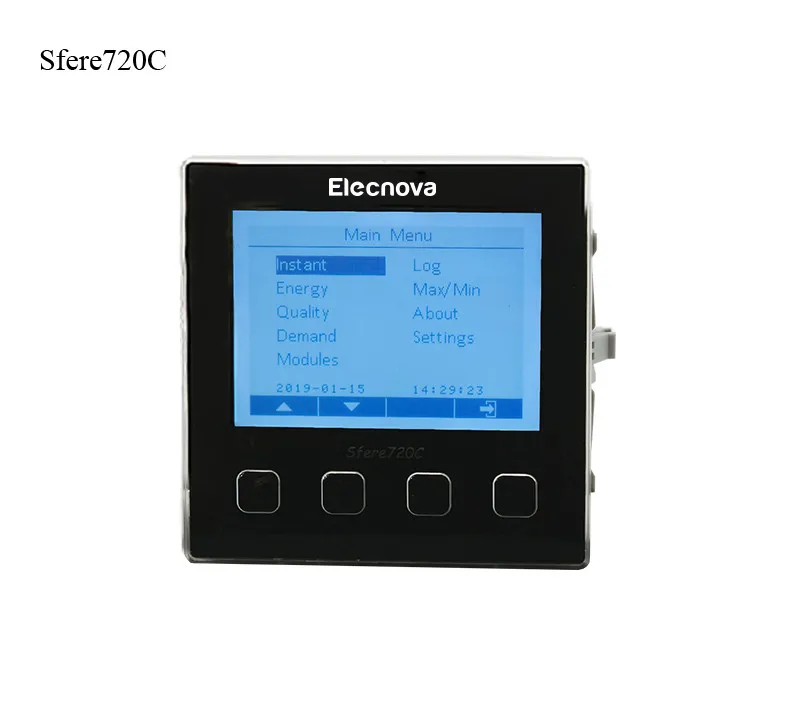

Display Mode | Sfere720C : LCD, Sfere720:TFT | |
Accuracy | V/A | 0.2% |
P/Q/S/PF | 0.2% | |
F | ±0.01Hz | |
±kWh | Class 0.2S | |
±kvar | Class 2 | |
Voltage Input | Rated value | AC 100V/ 380V |
Overload | Continuous: 1.2Vn Instantaneous: 2Vn/1010s | |
Burden | ≤0.1VA(per phase) | |
Impedance | ≥1.7MΩ | |
Frequency | 45Hz~65Hz | |
Current Input | Rated value | AC 1A/5A |
Overload | Continuous: 1.2In Instantaneous: 2In/5s | |
Burden | ≤0.2VA(per phase) | |
Impedance | ≤20mΩ | |

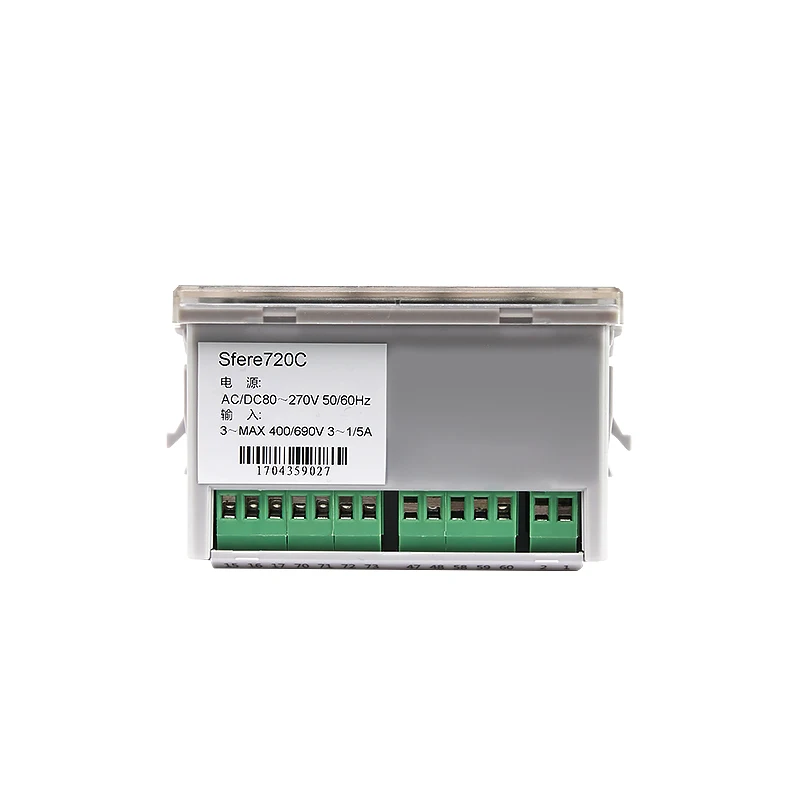

Auxiliary Supply | Working range | AC 80~270V 50/60Hz, DC 100~350V |
Consumption | ≤5VA | |
Communication Port | RS485, Modbus-RTU, 2-wire, up to 38.4kbps | |
Energy Pulse Output | 1 photocoupler output, pulse width(80±20%)ms | |
Digital Input | 2 AC wet contact inputs, Isolation: 5kVAC | |
Relay Output | 2 relay outputs, contact rated at AC 5A/250V or DC 5A/30V, Isolation: 2kVAC | |
Environment | Operating temperature | -25℃~70℃ |
Storage temperature | -30℃~80℃ | |
Relative humidity | ≤93% | |
Altitude | ≤2500m | |
Insulation | ≥2kVAC | |
IP Degree | Front IP64, Rear IP20 |
Monitoring Solution
Sfere720C energy meter can be used as single unit but also multi-devices running which control by an advanced monitoring software SFERE3000. SFERE3000 is a comunication management software which collect the data from the meters and upload them to the PC or Mobile phone tansmitted by the concentrator. It provides high performance of quality management such as power monitoring, error alam and long-range control to the factory, residencial area and commercial building etc. SFERE3000 is a patent product which developed by Jiangsu Sfere Electric Co., Ltd and the company owns the intellectrual property of it.
