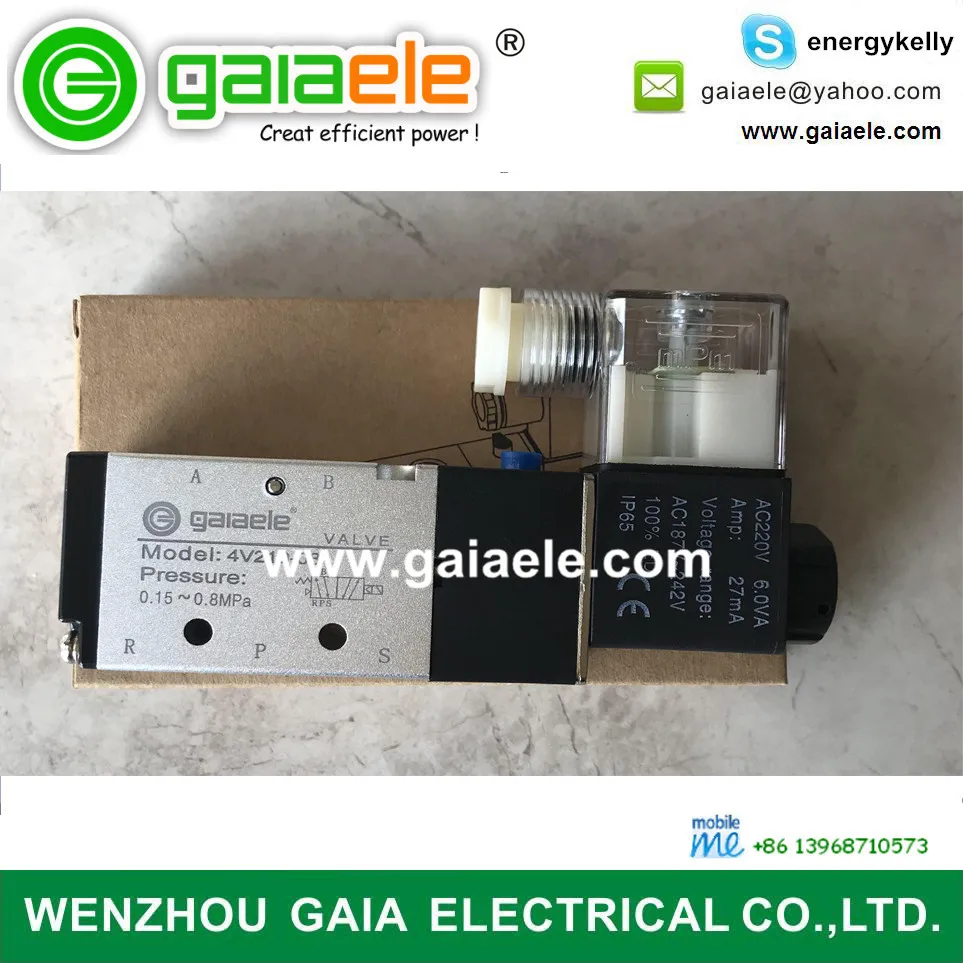

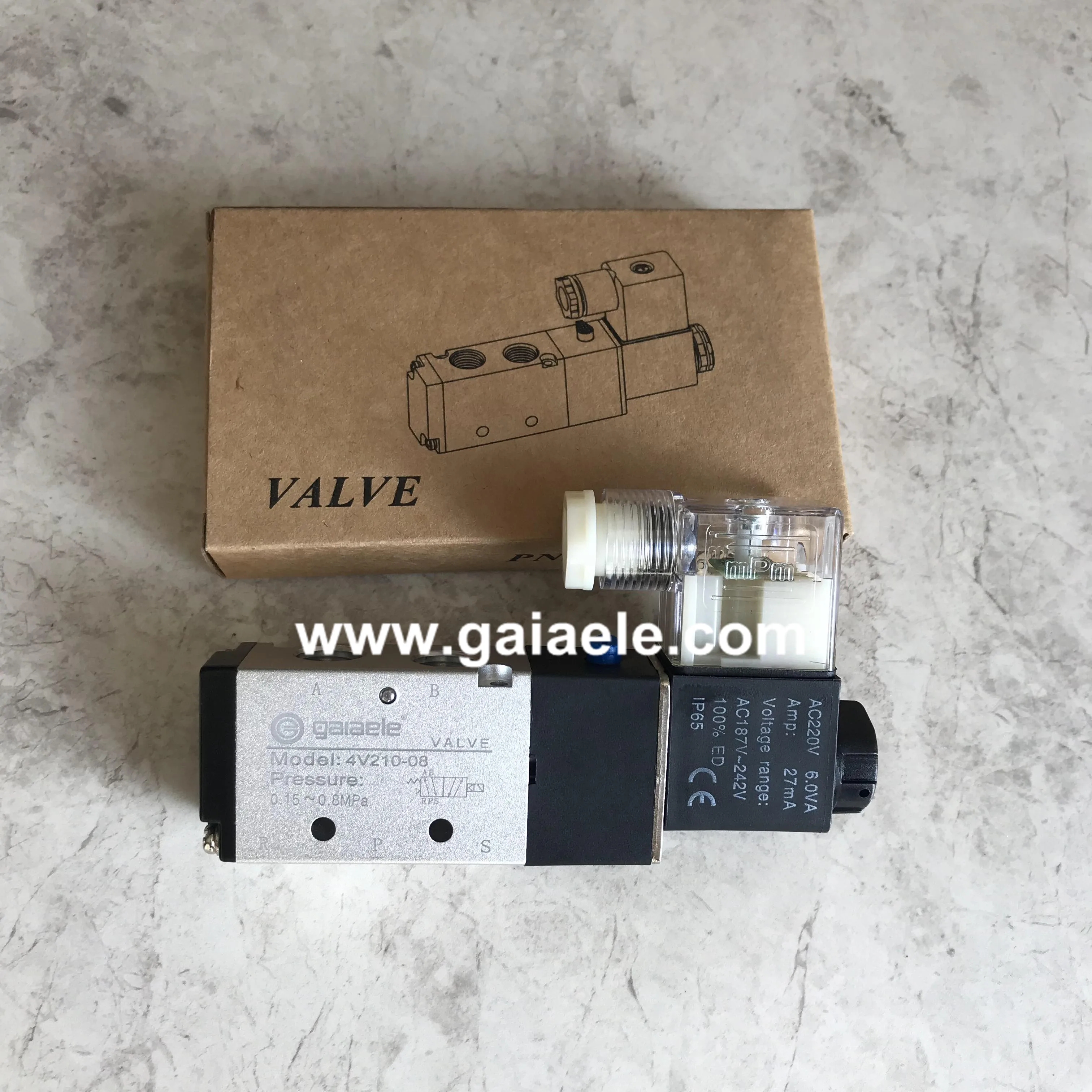

AIRTAC type original color solenoid valve Pneumatic component airtac high quality 4V210 08 24vdc 4V210 08 4v230 08
- Category: >>>
- Supplier: Wenzhou Gaia Electrical Co. Ltd.
Share on (62550888172):
Product Overview
Description
Airtac type 4v210-06 4v210-08 5 2 way solenoid valve wiring diagram pneumatic air valve 12v 220V
Product Description

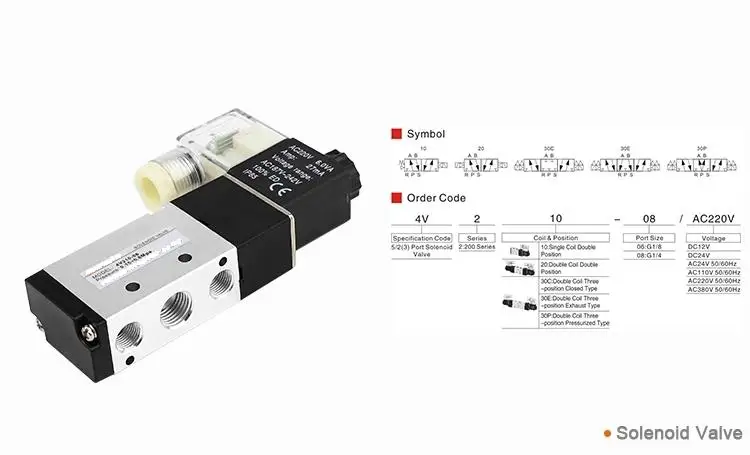

| Model | 4V210-06 | 4V220-06 | 3V230-06 | 4V210-08 | 4V220-08 | 4V230-08 |
| Working Medium | Air | |||||
| Action Mode | Internal Pilot Type | |||||
| Position | 5/2 Port | 5/3 Port | 5/2 Port | 5/3 Port | ||
| Effective Sectional Area | 14.0mm2 | 12.0mm2 | 16.0mm2 | 12.0mm2 | ||
| Port Size | input=output=exhaust Port=G1/8 | input=output=G1/4, Exhaust Port=G1/8 | ||||
| Lubrication | No need | |||||
| Working Pressure | 0~0.8MPa | |||||
| Proof Pressure | 1.0MPa | |||||
| Working Temperature | 0~60℃ | |||||
| Voltage Range | ±10% | |||||
| Power Consumption | AC:5.5VA DC:4.8W | |||||
| Insulation Grade | F Level | |||||
| Protection Class | IP65(DIN40050) | |||||
| Connecting Type | Plug Type | |||||
| Max. Operating Frequency | 5 Cycle/Sec | 3 Cycle/Sec | 5 Cycle/Sec | 3 Cycle/Sec | ||
| Min. Excitation Time | 0.05 Sec | |||||
| Body Material | Aluminum Alloy | |||||
| Seal Material | NBR | |||||
FAQ
Q1. Are you manufacturer or trading company?
A1. We are the manufacturer mainly producing fitting, cylinder,tube with good quality.
Q2. What’s the delivery time ?
A2. Normal model 1-3days,because we have ability to do the stock.For big order,it takes about 10-15days.
Q3. What is the standard of package?
A3. Export standard package or special package according to customer requirement.
Q4. what kind of product quality your factory offer?
A4. We are the suppliers of the top three pneumatic company.We offer top quality to help client to get more market.
Q5. Do you accept OEM business?
A5. We do OEM .
Q6. Which market do you already sell?
A6. We already ship to Russia ,German,Mexico,Middle East, Asia, South America , Afria etc.
