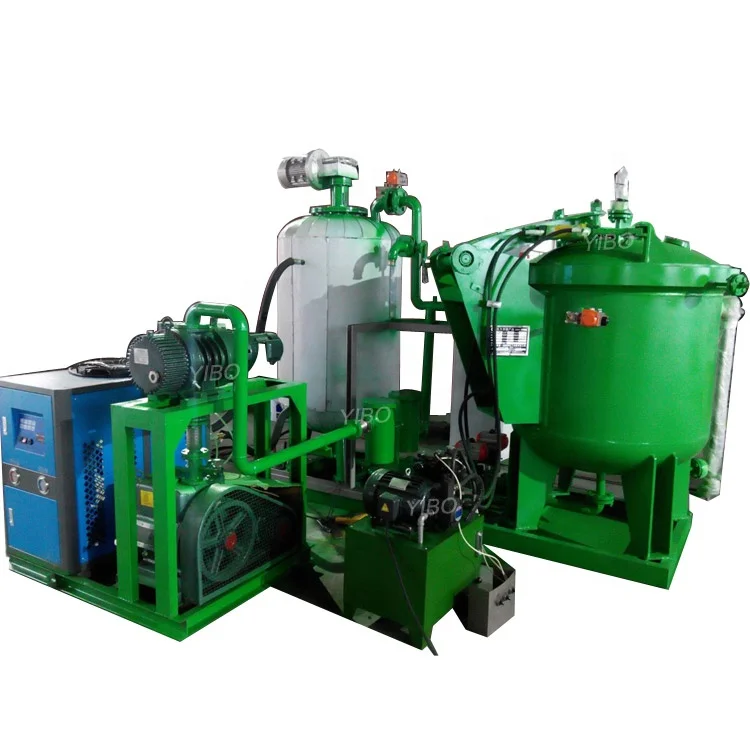

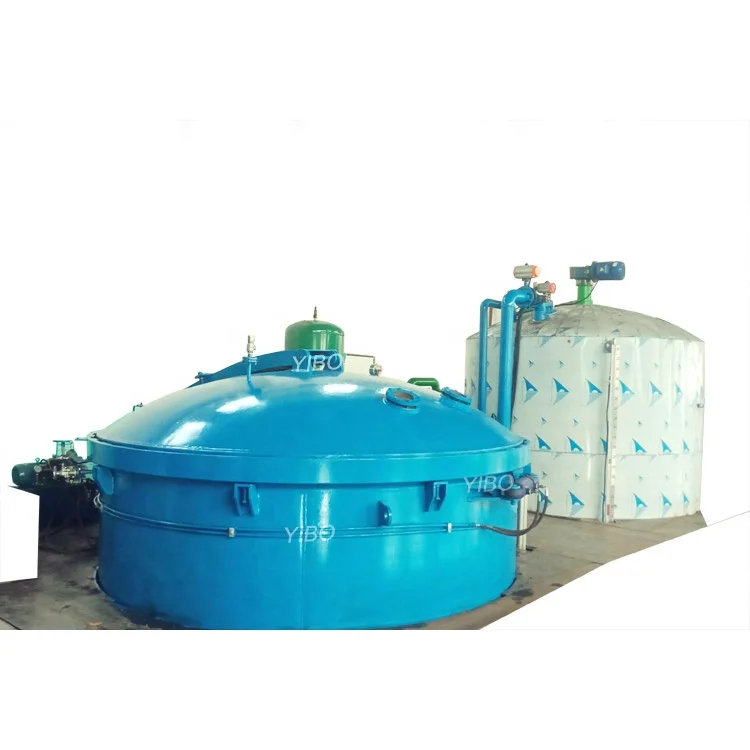

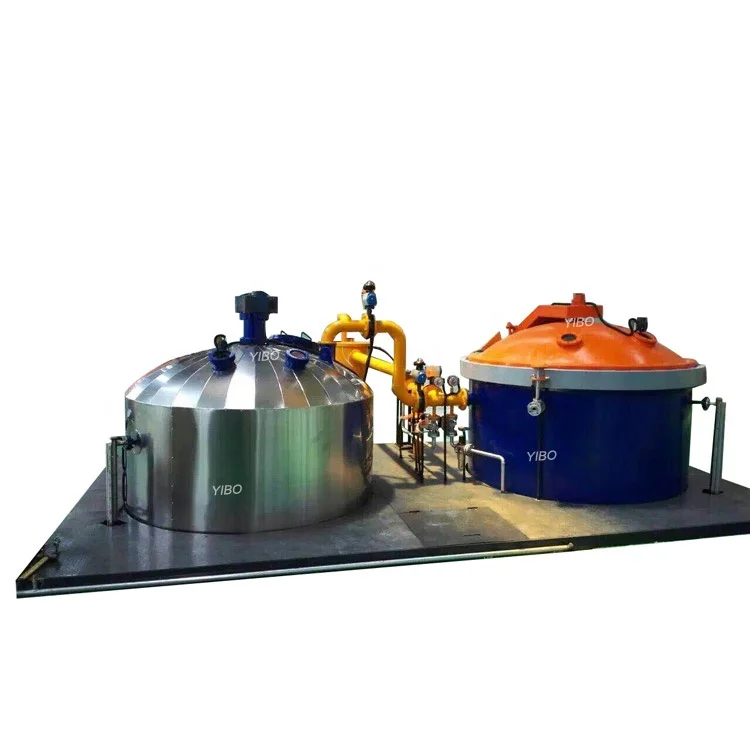

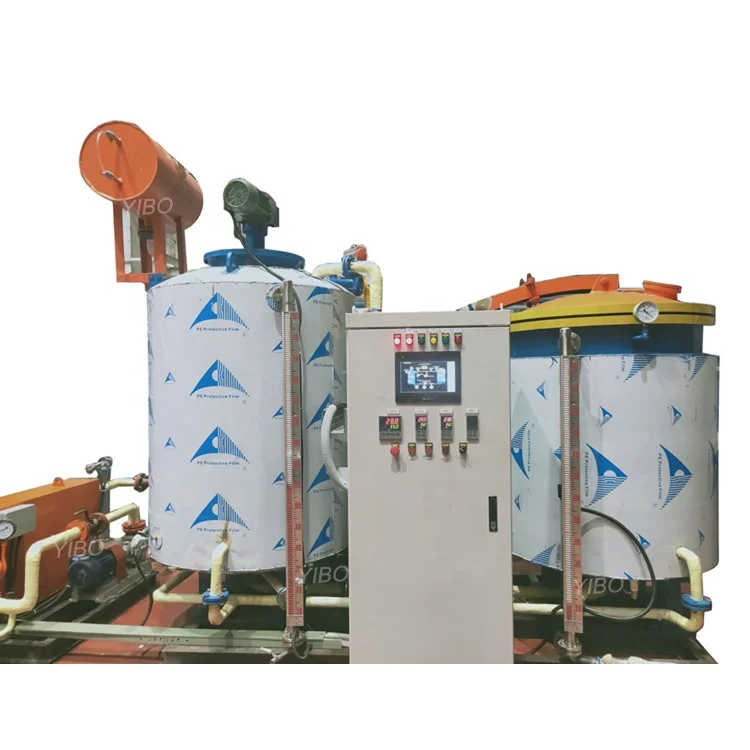

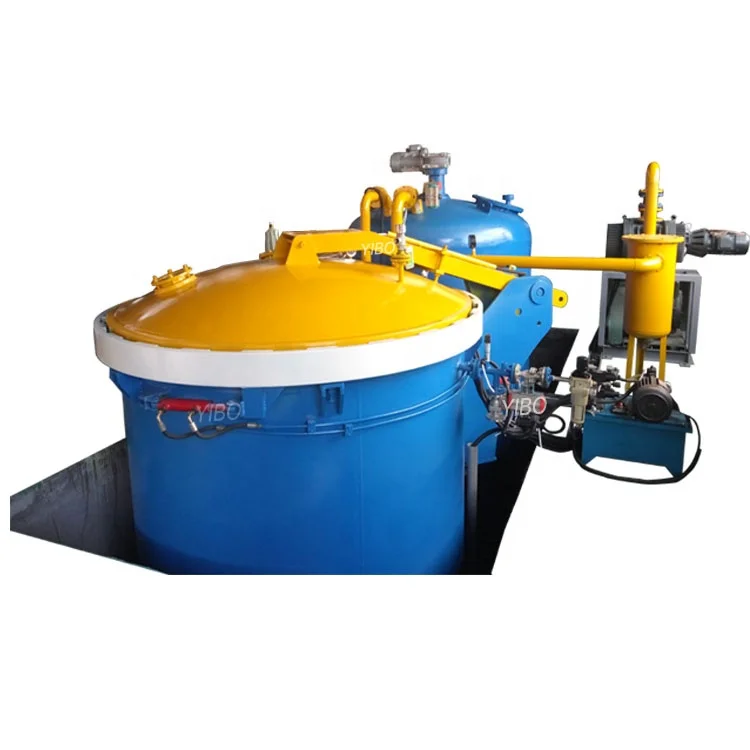

Full Automatic Vacuum Pressure impregnation machine
Product Description
I Brief description
By varying the pressure in the vacuum tank during drying process, and drying step by step, the workpieces are heated evenly. Water vapour, iron rust can be removed thoroughly and leaving the workpieces with minimum deformation. Thanks to reasonable structure and technology of the equipment, the drying time is reduced by about 40% compared to conventional vacuum drying, the process is more reliable, efficient and energy-saving.
This kind of equipment is mainly used for insulation treatment to electrical products, such as high voltage motor, wind turbines, H-grade dry transformer, power capacitor and cable insulation materials, etc.
II Main components
2.1 Vacuum pressure impregnating tank system, one
2.2 Paint storage tank system, one
2.3 Vacuum system, one
2.4 Hydraulic system, one
2.5 Water cooling system, one
2.6 Pressurized air drying system, one
2.7 Pneumatic valve system for repainting, one
2.8 Electric control system, one
2.9 Ventilating system, one
III Main illustrations and parameters
3.1 Vacuum-pressure impregnating tank system (2500 x 2500mm) vertical
3.1.1 Main parameters
Effective dimension | Φ2500 x 2200mm (H) |
Ultimate pressure | |
Working pressure | 0.5MPa |
Ultimate vacuity | 50 Pa |
Working vacuity | 80~10000Pa |
0.6Pa·m3/s | |
Tank body material | Q345R |
3.1.2 Tank structure:
l Vertical type with inspection hole lamp and inspection window.
l Liquid level display
l Air inlet and safety valve.
l Temperature: Room temperature 80℃
l DN108 unloading mouth on the bottom
l Safety interlocking system, one set
l overpressure alarm and automatic decompression valve device, one set
3.2 Paint storage tank system
Tank structure
l Vertical type with inspection hole lamp and inspection window.
l Liquid level display
l DN20 stainless steel ball valve on the sample outlet and inlet parts,
l Magnetism paint filter 200 mesh.
Application
Permanent magnet motor paint dipping equipment, electric vehicle motor paint dipping equipment, new energy motor vacuum pressure paint dipping machine, hydrogen energy graphite board vacuum dip equipment, hydrogen energy graphite sheet dip equipment.vacuum dipping equipment.
