This slitter is PET/VMPET silicone coating film/ 10-80um BOPP/VMBOPP silicone coating film.（single or both side silicone coated. If with metalized film, the silicone coating side is on metalized side. ）
Machine Specification
The following parameter is only for reference. The exact specification can be designed according to buyer's request
BASIC PARAMETERS
Slitting Material
9-150um plain PET/VMPET silicone coating film & 10-80um BOPP/VMBOPP silicone coating film.
Material Thickness
9-150um
Machanical Speed
600m/min
Slitting Way
Razor cut+Rotary cut+ Shear Cut
Unwinding Way
Shaftless unwinding
Unwinding Width
435mm-1700mm
Unwinding Diameter
Max.850mm
Unwinding Core Size
3”&6” paper core (3” core ID 76.2mm+0.4-0.2, 6” core ID 152.4mm+0.6-0.4)
Edge guide Way
Edge guide system (Germany E+L),Ultrasonic edge（EPC）
Rewinding Way
Shaftless and center control
Rewinding Width
415-1700mm
Rewinding Diameter
Max.850mm
Rewinding Core Size
3″paper core,6″paper core
Rewinding Station quantity
4
Unloading Way
Motor screw flat and flip
Edge Trim Way
Vacuum suction system
Equipment Power
Around 80KW
Equipment Size
Length6500mm*Width4100mm*Height2100mm
Control System
Germany siemens servo system
Heating splicing table
Include

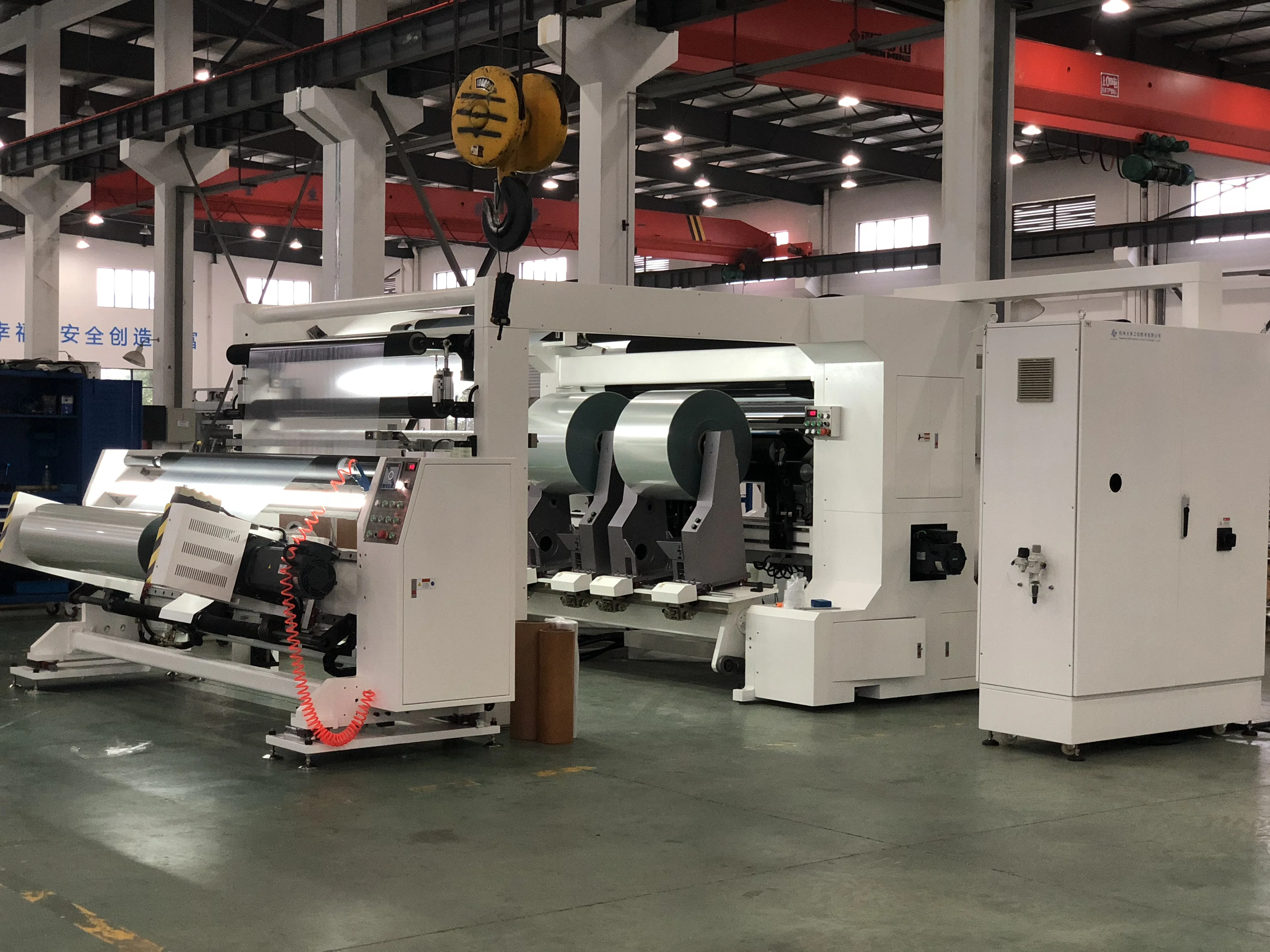

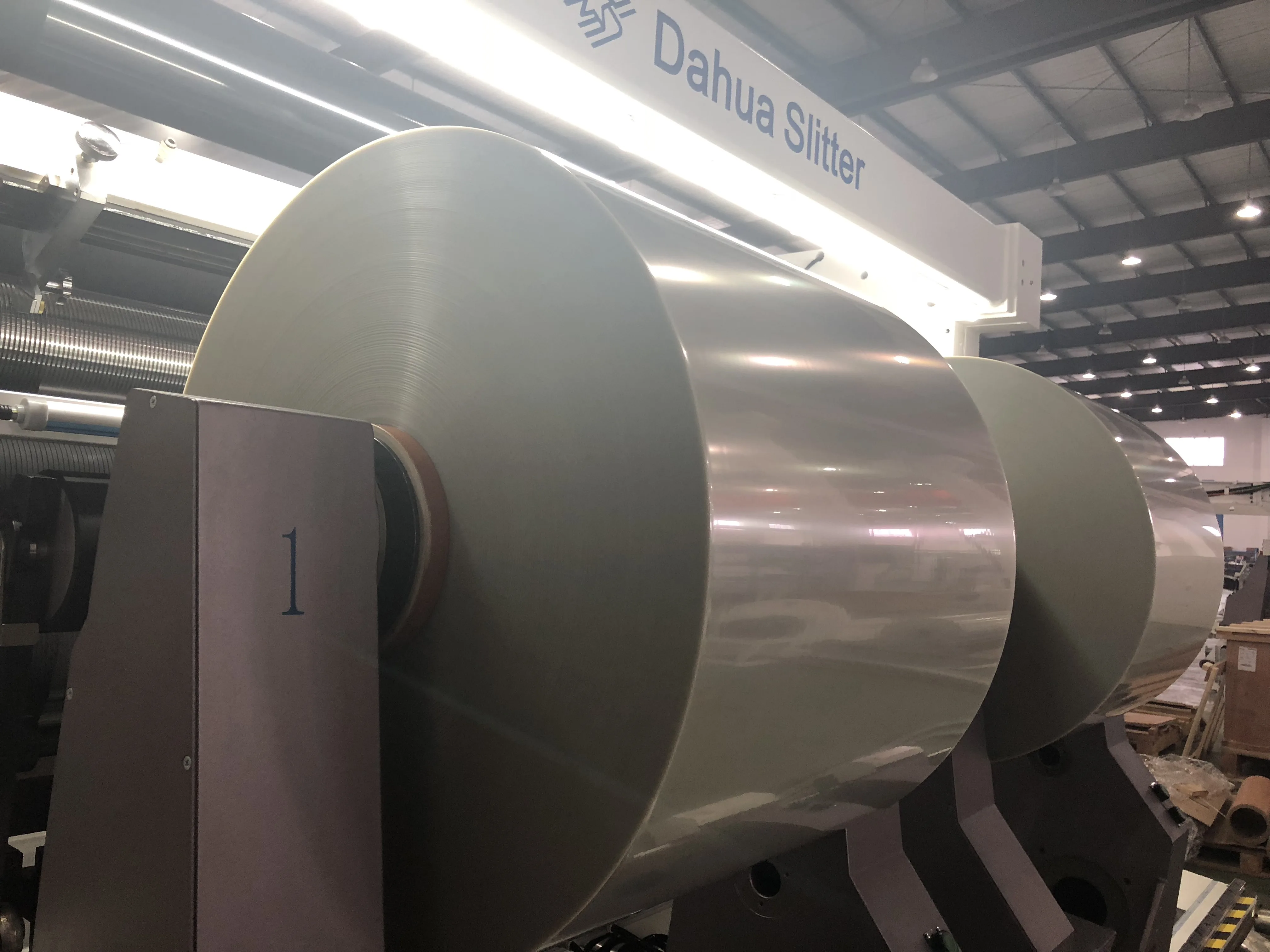

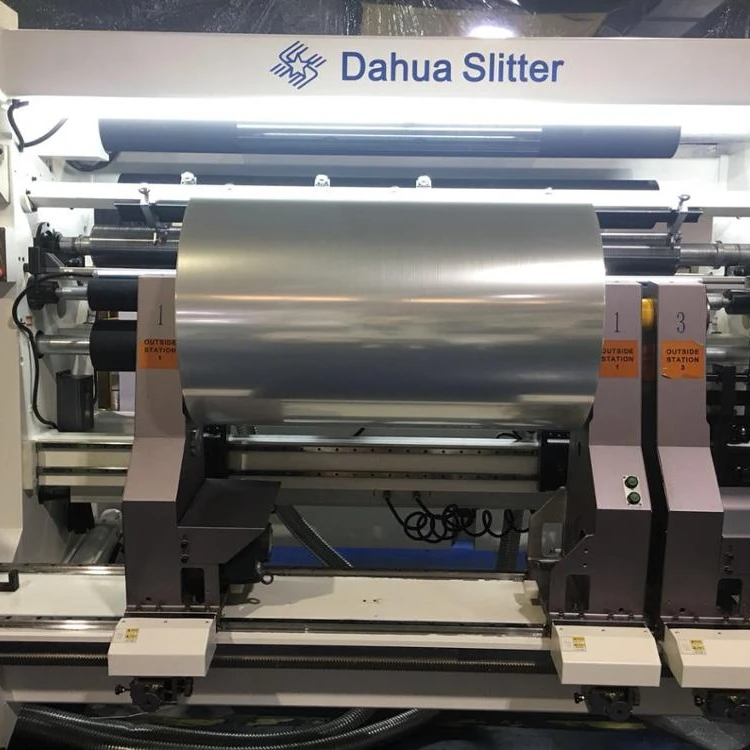

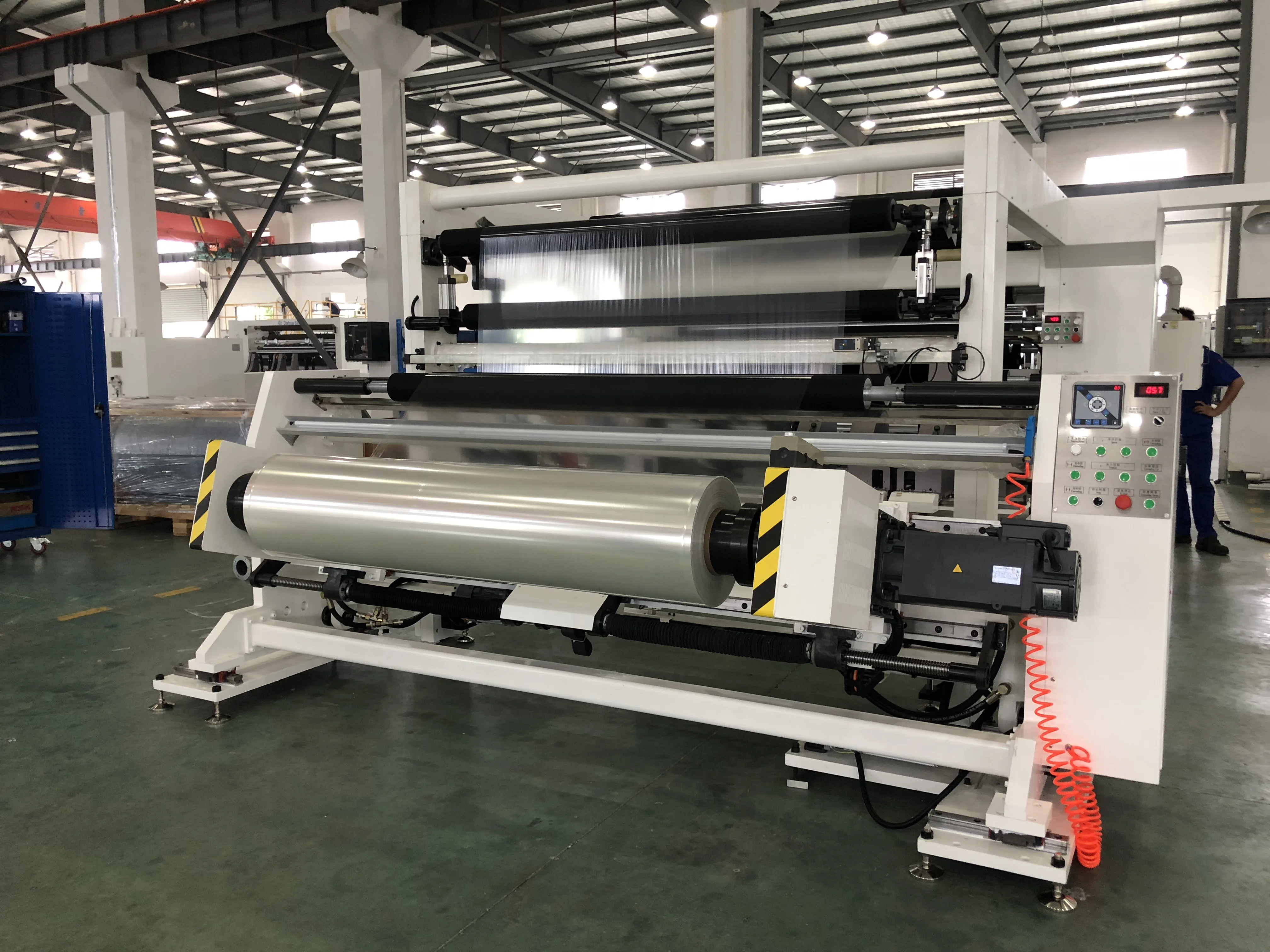

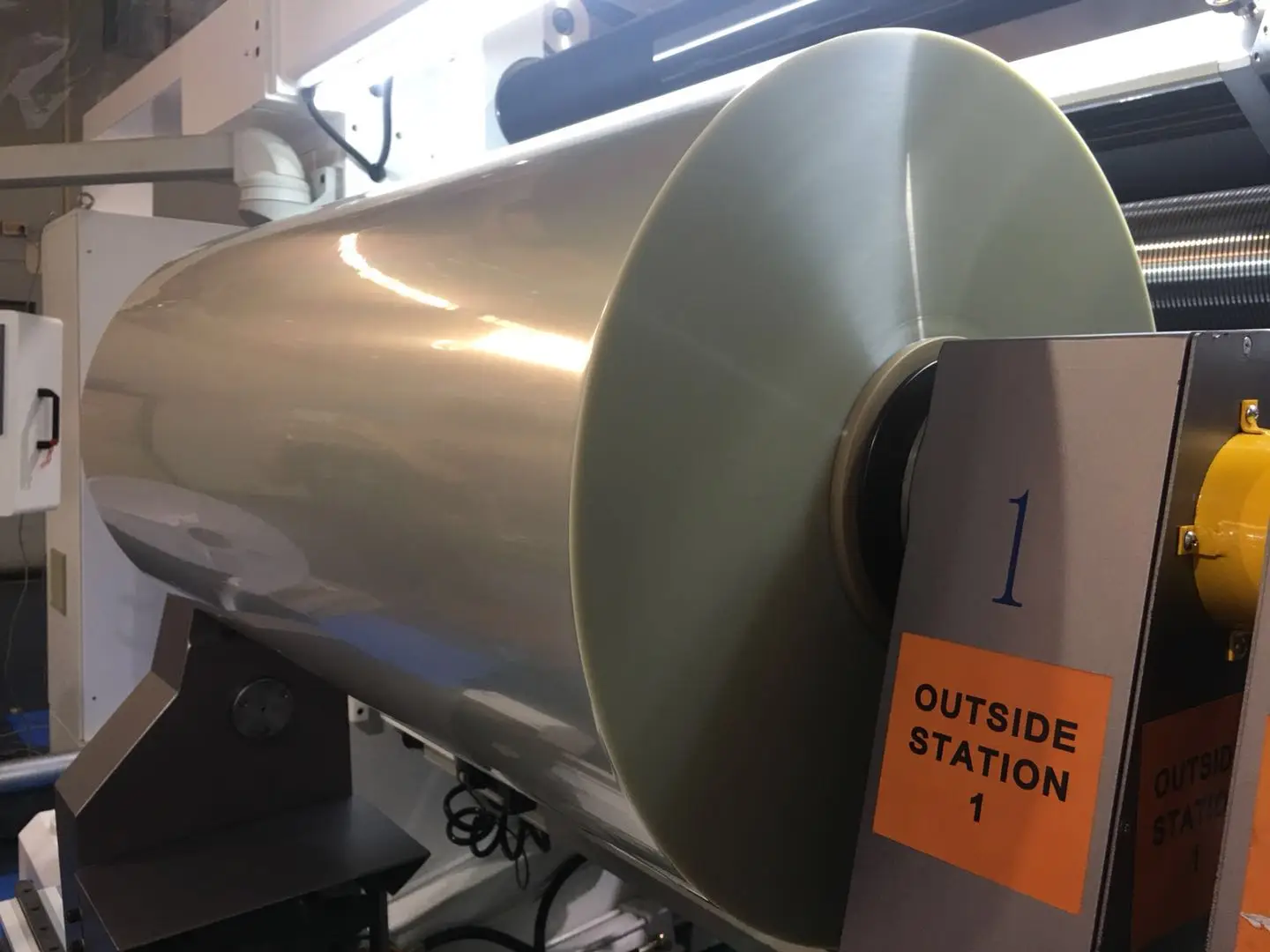

Detail Images
Equipment Main Feature
1、High efficiency with reliable performance
2、Low tension control for thin film
3、Center rewinding technology to ensure the good quality finish roll
4、Cost effective machine
Acceptance index
1、Intelligent control mode, one button works.
2、Advanced structure, good adaptability, High precision of parts processing and assembly
3、Double floating roller control, small tension fluctuation, within 1%
4、energy-saving，common DC bus power supply of siemens system，energy-saving effect is remarkable
Special instructions of Equipment
1、600m/min,high speed
2、Uniformity of slitting end face（Qualified material）: ±0.5mm。
3、Shore hardness of finished roll A90°±3
4、Width is less than 1000mm,wrinkles is no more than 15 meters.
5、Adjustable hardness, even tension. Falt the film surface of the finished product, and no wrinkle, scratch and film surface damage in the slitting and rewinding process.
