T32 Throw Robot

Product Overview

Description

OVERVIEW

T32-V3.0 throw robot is a small remote controlled individual soldier reconnaissance robot, mainly used for the unknown environment of anti-hijacking, assault operations and other missions of covert reconnaissance operations. The robot is compact and flexible, equipped with high-definition night vision camera and multi-stage adjustable LED lights. It can move and shuttle in various terrains, dark and narrow Spaces. Equipped with soft rubber shock absorbing wheels, it has strong anti-drop ability. During the mission, the operator can directly throw the robot to the target area, so that the robot can quickly enter the working state.

KEY FEATURES

Ø Shock resistance
Adopt soft rubber design shock absorb wheel, effective impact resistance

Ø Mandatory ON
In the missions, the robot will not be easily shut down, destroyed or lost contact

Ø Cruise control
Once cruise control is activated, it will maintain its current speed

Ø Multistage adjustable LED lamp
It has two modes of light source: steady on and flash

Ø Night vision camera
It equipped with infrared light module, suit DAY AND NIGHT OPERATION



TECHNICAL DATA:

The robot

1. Dimenison: 249*242*159mm

2. Weight: 1200g

3. Maximum speed: ≥1.21 m/s, CVT

4. Shock resistance:  horizontal 30 m,Multi drops on concrete: vertical 11 m

5. Remote control distance: > 30 m (indoor), > 120 m (outdoor)

6. Climbing ability: ≥30 °

7. Obstacle clearing capability: 35 mm

8. Cross trench capability: 90 mm

9. Protection grade: IP65

10. Working frequency: 902 ~ 928 Mhz

11. Steering radius: in-situ rotary

12. Video pixels: 1080 * 800

13. Continuous walking time: 2 h

14. Display interface: Chinese and English freely set (the default for the Chinese)

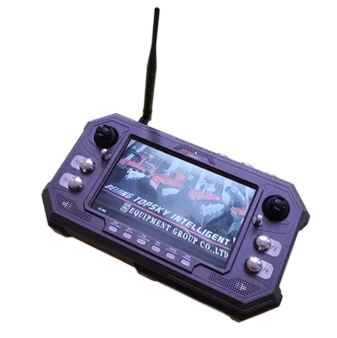

The control unit

1. Display: 7 inches high brightness LCD screen

2. Work time: 5hrs

3. Robot data monitoring:

power, current, speed, real-time feedback

4. Video playback function: Video can be recorded at any time, the recorded video can be saved automatically, it can be played directly via control unit, or copied to other devices to view

5. Screen projection function: can be connected through the HDMI interface for screen equipment such as projector
