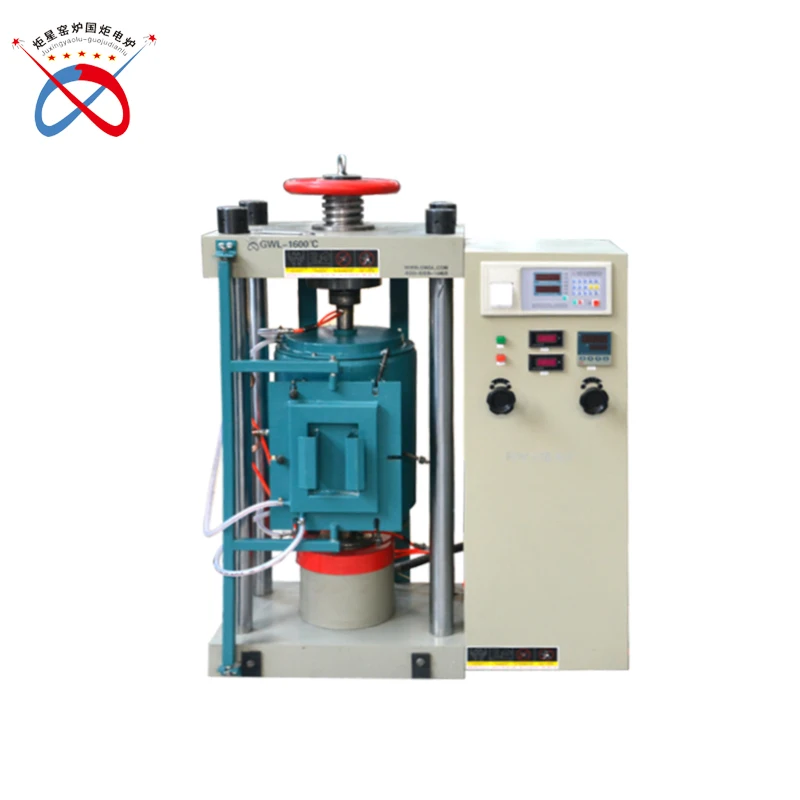

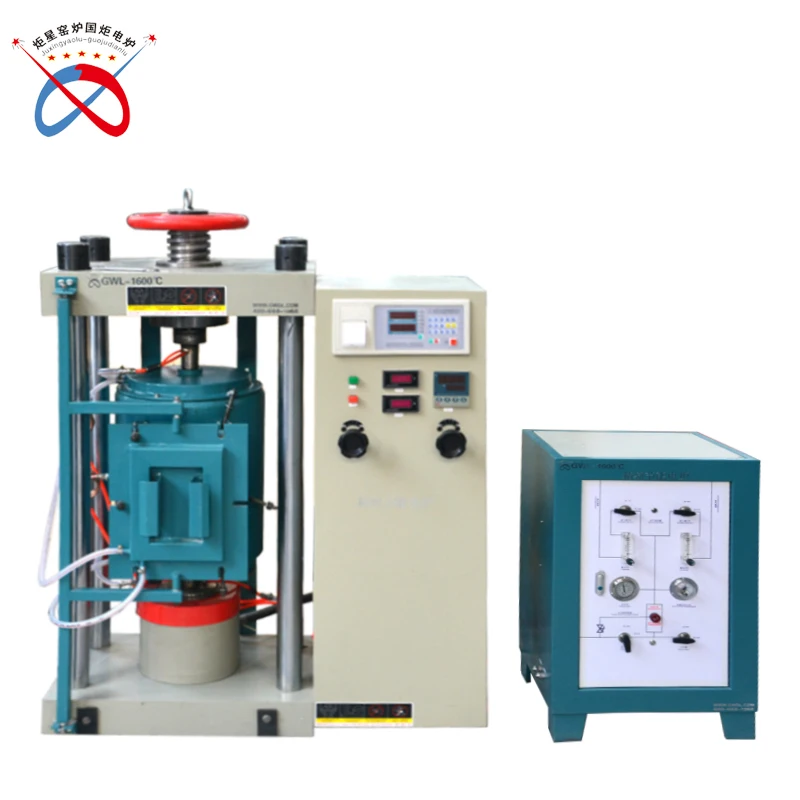

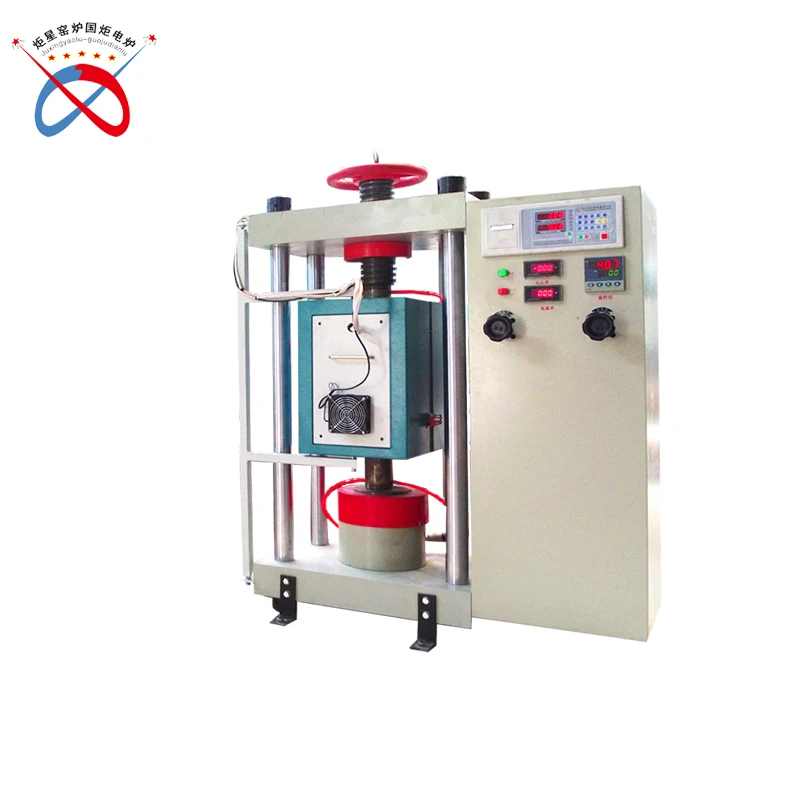

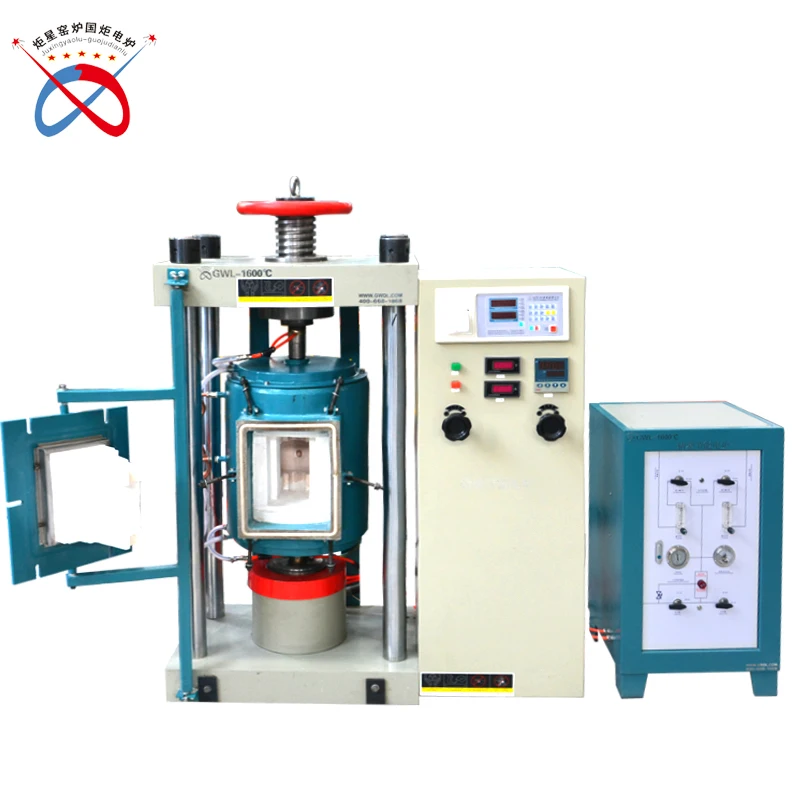

GWL Brand For Powder Metallurgy High Temperature Vacuum Hot Press Furnace
- Category: >>>
- Supplier: Luoyang Juxing Kiln Co. Ltd.
Share on (62551296164):
Product Overview
Description
Product Description
Product Name | High Temperature Vacuum Hot Press Furnace |
Material | Aluminum Fiberboard(Refractory materials) + Sic&Mosi2 (Heating elements) |
Function | It is widely used in hot pressing and sintering of cemented carbide, functional ceramics and powder metallurgy under high temperature and high vacuum envoriment. |
Pressure | Stanard(60Ton) other Pressure requirements can be customize |
Vacuum degree | -0.1Mpa or -0.1Pa or -0.01Pa (Can be customized according to the customer needs) |
Package | Composite wood packaging (fumigation free), or other wooden export packaging. Ensure the safety of the goods. |

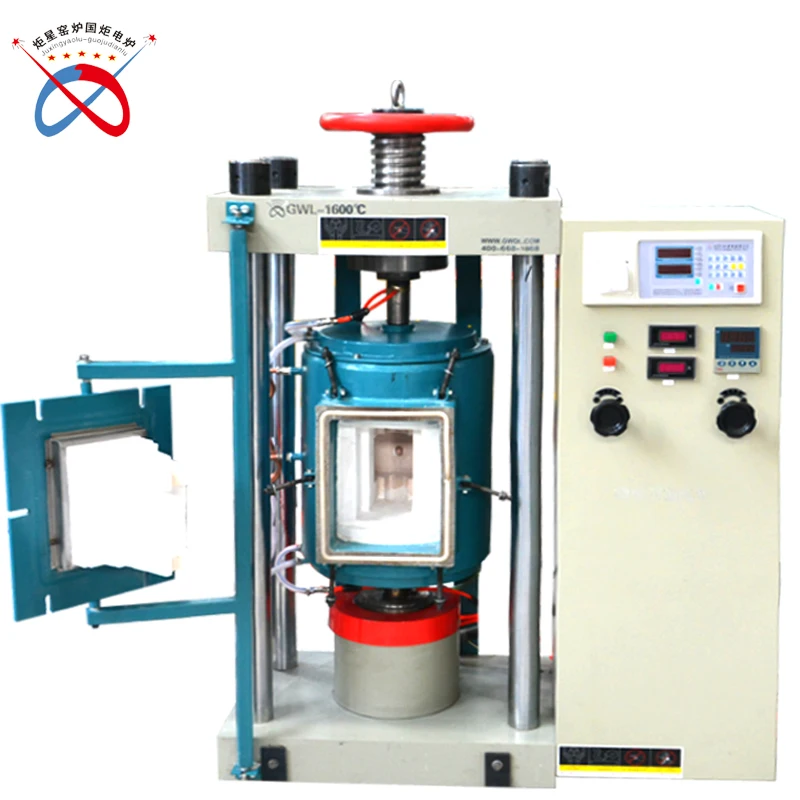

Heating elements and Furnace Structures
Using Sic or Mosi2 as the chamber heating elements(1200c above the silicon carbide rod(Sic)or silicon molybdenum rod(Mosi2)will be using).The furnace body is a standing furnace shell, its inner layer is made of stainless steel cylinder, the outer layer is carbon steel. The furnace body is divided into two parts, one-third of which is the cover of the furnace which can be opened completely by hand, and two-thirds is the fixed furnace body, which is unique in design and easy to operate. A jacket is formed between the two layers to take away the heat transferred to the furnace shell through cooling water, so that the temperature of the furnace wall does not exceed 60℃.
Vacuum and Hydraulic system
oil diffusion pump, roots pump, mechanical pump with electromagnetic differential pressure valve (to prevent sudden power failure, mechanical pump oil reverse) charging valve, vent valve, vacuum butterfly valve, vacuum pressure gauge (±Pa) bellows, vacuum tube and support, etc.
Adopt electric input mode. The hydraulic station is equipped with imported proportional valve, pressure sensor, displacement display using grating ruler (ranging accuracy 0.02mm), hydraulic cylinder and other related hydraulic devices, the pressure regulation is semi-automatic and can be adjusted manually. The instrument can be set to automatically adjust the pressure, and can achieve voltage stabilization, voltage protection.
Water cooling, temperature control, and inflation system
It is composed of the various valve and pipeline-related devices and equipped with automatic cutting off heating source or function of water cut off sound and light alarm.
Adopt thyristor to control temperature, equipped with PID function instrument, digital display meter, with over temperature sound and light alarm function, can also choose PLC touch screen automatic control, and retain historical data, easy to analyze the sintering process.
It is composed of various pipes and valves and equipped with electromagnetic air release valve and pressure sensor. When the pressure in the furnace is higher than the safe value, the air will be discharged automatically
Super Alloy Resistance Wire
Ni-crresistancewire (contains molybdenum)has the characteristics of high resistivity,Good corrosion resistance at high temperature, especially suitable for use in an atmosphere containing sulfur and sulfide, low resistance temperature coefficient, and high operating temperature. normally maximum using temperature is under 1200c below, Continuous is under 1100c.
Silicon carbide rod(Sic)
Silicon carbon rod is made of high purity green hexagonal silicon carbide as the main raw material, according to a certain ratio of processing and blank, after 2200℃ high temperature silicon recrystallization sintering and made of rod, tubular non-metal high temperature heating element.It is usually used below 1600 degrees Celsius.
Silicon molybdenum rod(Mosi2)
Silicon-molybdenum rod resistive heating element, based on molybdenum disilicide, resistant to high temperature and oxidation. When used in a high-temperature oxidizing atmosphere, a layer of bright and dense silica (SiO2) glass film is formed on the surface, which can protect the inner layer of the si-mo rod from oxidation.Normoly using under 1800 degrees Celsius.
Product Usage

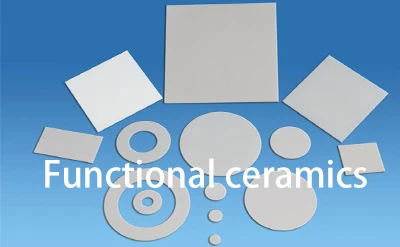

It is widely used for hot pressing and sintering of cemented carbide, functional ceramics and powder metallurgy under high temperature and high vacuum, and also for hot pressing and sintering under the condition of inflation protection
Packing&Shipping
The normal package is the wooden box(Size: L*W*H). If export to European countries, the wooden box will be fumigated.If the container is too tight, we will use pe film for packing or pack it according to customers special request.
Shipment by sea, by air or by express as per customer's requirement.Our company has established a cooperative relationship with many logistics enterprises to guarantee the safe transportation of goods and the time limit.
Company Introduction
Luoyang Juxing Kiln Co., Ltd which is a manufacturing company that manufactures good & high-quality electric resistance laboratory furnaces and industrial kilns. The company provides the customized products and OEM service. The factory owns proficient skills and an updated machine. the company has passed the IOS quality management system. and some products have passed the EU CE certificate.
Our Services & Strength
Our product has widely used in ceramics, metallurgy, electronics, glass, luminescent materials, non-ferrous metals, chemical industry, machinery, refractories, new materials development, special materials, building materials, and other fields.And can be customized according to the customer's process requirements.
All kinds of electric furnaces have a high degree of automation and are at the leading level in China. They are sold to more than 20 provinces, municipalities, autonomous regions and special zones in China, national key colleges and universities, national key laboratories, Chinese Academy of Sciences, and High School Research Institute. Countries such as North America, Russia, the Philippines, and Japan. has a high reputation in the industry.
Certifications
Exhibition
Related Products
FAQ
Q: IF I NEED SPECIAL DESIGN ABOUT FURNACE CHAMBER DOES YOUR COMPANY CAN OFFER IT?
A: Don't worry about it, we have the excellent technical team, based on your requirement we can customize whatever you need.
Q:IF WE PURCHASE YOUR PRODUCT WOULD YOUR COMPANY GIVEN ANY TRAINING OR TECHNICAL SUPPORT?
A: LOL, that is a good question for us, just take relax, for sale is only the first step for us, we will give the basic training
about how to use our product through Technical manual and operation videos, and also Engineer is 24hours standby your call, as we promised we provide the best service for our client.
Q: HOW IS YOUR PRODUCT AFTER-SALE GUARANTEE?
A: We provide one-year service for our product (except the heating element), the heating element we provide three-month service.And also, the engineer available doing service overseas.
Q: YOUR PRODUCT WITH ANY ACCESSORIES?
A: Yes, the standard accessories include (Heating Elements, Specification Certificate, Heat Insulation Brick, Crucible Pliers,
High-Temperature Gloves).
Q: HOW TO CONTACT YOUR COMPANY?
A: Our Company address is: Yujia industrial zone, Wuhan south road, Jianxi District, Luoyang Henan, China.
A: Don't worry about it, we have the excellent technical team, based on your requirement we can customize whatever you need.
Q:IF WE PURCHASE YOUR PRODUCT WOULD YOUR COMPANY GIVEN ANY TRAINING OR TECHNICAL SUPPORT?
A: LOL, that is a good question for us, just take relax, for sale is only the first step for us, we will give the basic training
about how to use our product through Technical manual and operation videos, and also Engineer is 24hours standby your call, as we promised we provide the best service for our client.
Q: HOW IS YOUR PRODUCT AFTER-SALE GUARANTEE?
A: We provide one-year service for our product (except the heating element), the heating element we provide three-month service.And also, the engineer available doing service overseas.
Q: YOUR PRODUCT WITH ANY ACCESSORIES?
A: Yes, the standard accessories include (Heating Elements, Specification Certificate, Heat Insulation Brick, Crucible Pliers,
High-Temperature Gloves).
Q: HOW TO CONTACT YOUR COMPANY?
A: Our Company address is: Yujia industrial zone, Wuhan south road, Jianxi District, Luoyang Henan, China.
