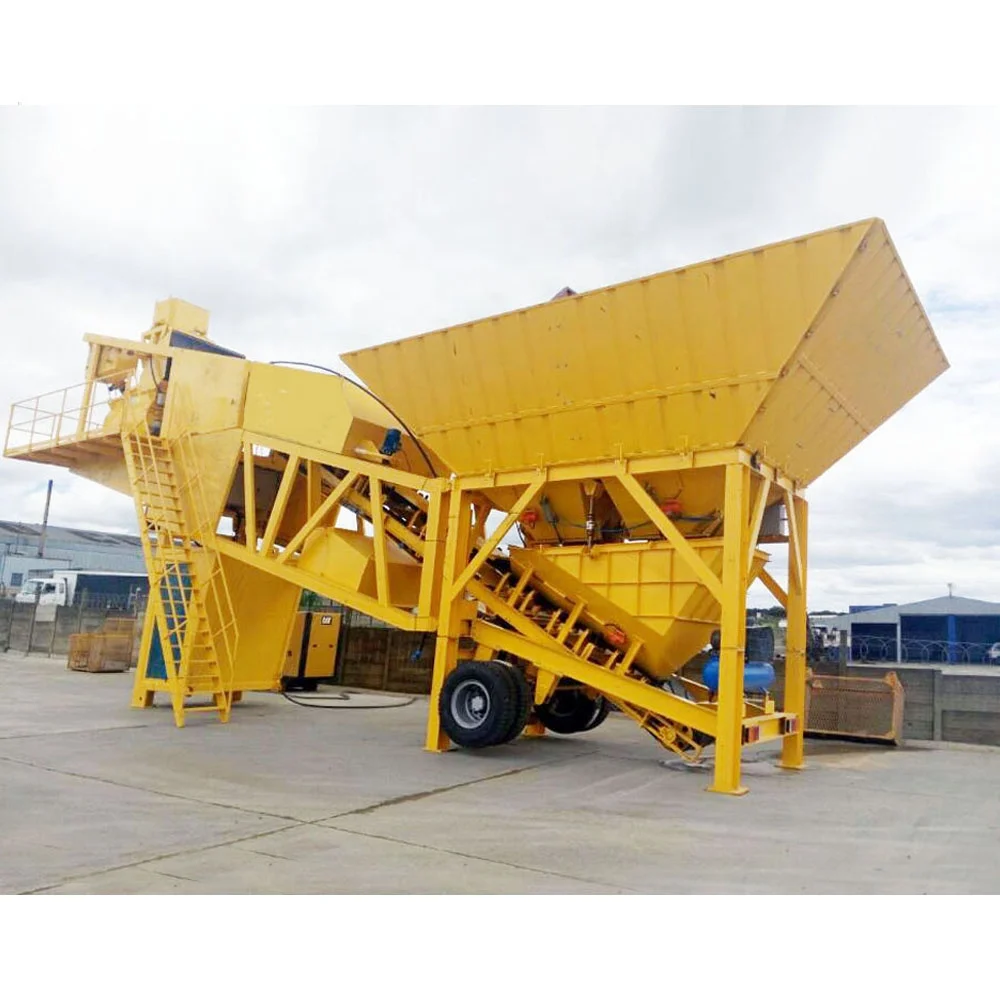

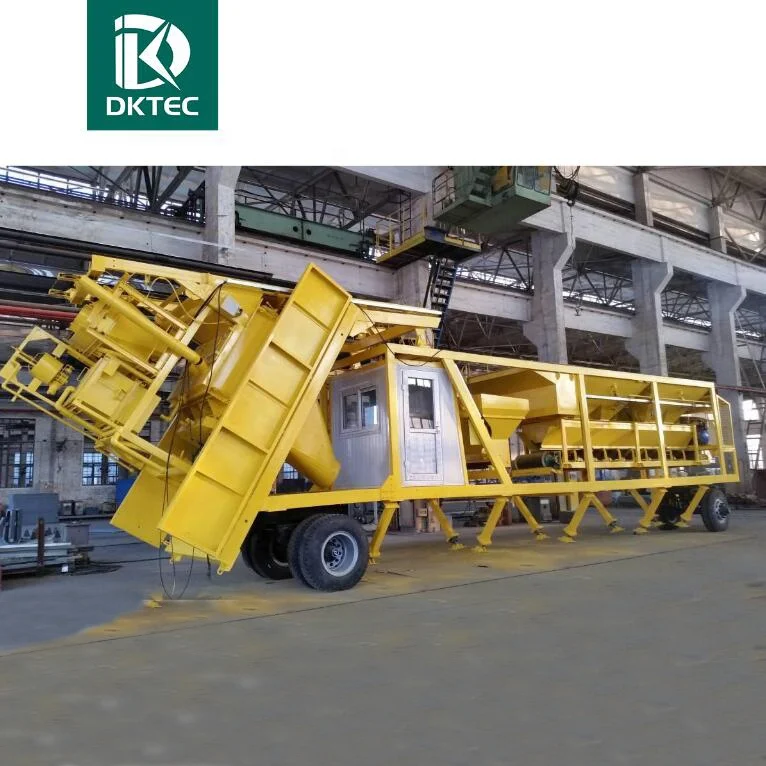

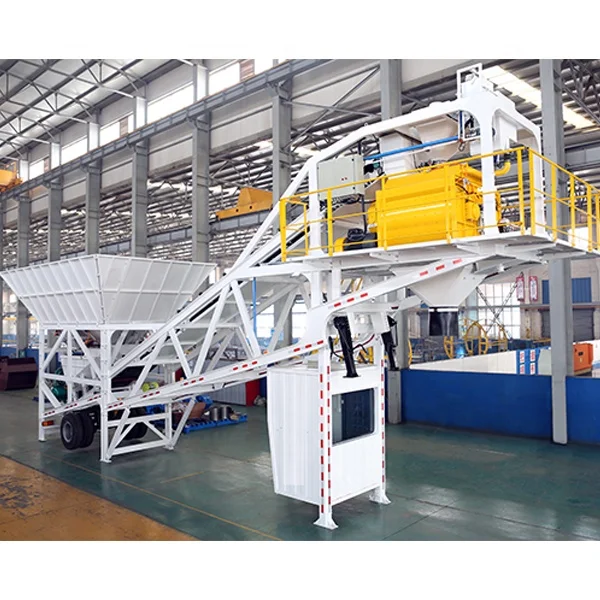

YHZS35 Concrete Batching Plant Price

Product Overview

Description

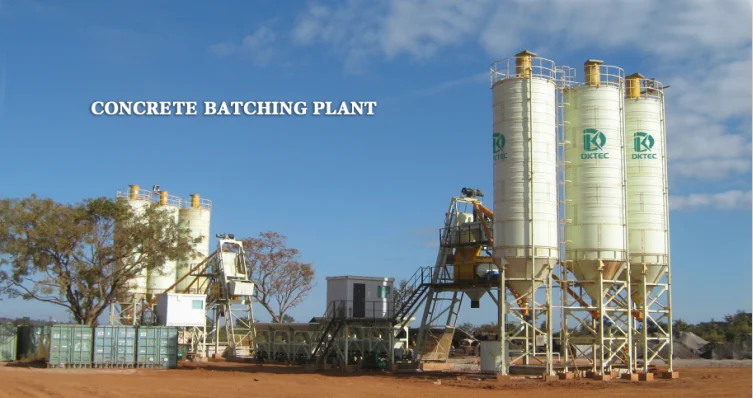

 concrete batching plant









Performance Characteristics



1. The installation & disassembly is convenient and rapid, Integral movement by trailer is flexible, Easy storage management

2. Compact structure and small occupied area, sample installation foundation

3. High degree of automation, sample operation, small investment and quick effect, suit for mobile
construction such as road and railway, bridge, port, water-power construction





Specification



Item		Unit	YHZS25	YHZS35	YHZS50	YHZS40	YHZS60	YHZS75
Theory productivity		m³/h	25	35	50	40	60	75
Output of mixer		m³	0.5	0.75	1	0.75	1	1.5
Feeding type			lifting hopper	lifting hopper	Belt Feeding	Belt Feeding	Belt Feeding	Belt Feeding
Batcher model			PLD800	PLD1200	PLD1600	PLD1200-Ⅲ	PLD1600-Ⅲ	PLD2400-Ⅲ
Batcher(bin's amount)		m³	4*4	4*4	4*4	6*4	12*2	15*2
mixer's power		kw	18.5	30	18.5*2	30	22*2	30*2
Lifting power		kw	5.5	7.5	18.5	15	7.5*2	11*2
Discharge height		m	3.8	3.8	3.8	3.8	3.8	3.8
Max weighing & Accuracy	Aggregate	kg	1500±2%	1500±2%	2000±2%	3000±2%	3000±2%	3000±2%
	Powder material	kg	300±1%	300±1%	500±1%	500±1%	600±1%	800±1%
	Water	kg	150±1%	150±1%	200±1%	200±1%	250±1%	300±1%
	Additives	kg	20±1%	20±1%	20±1%	20±1%	20±1%	20±1%
