Share on (62551514447):


Price:$1,440.00 - $1,508.00

Quantity:


Product Overview

Description



Products Description


Overview

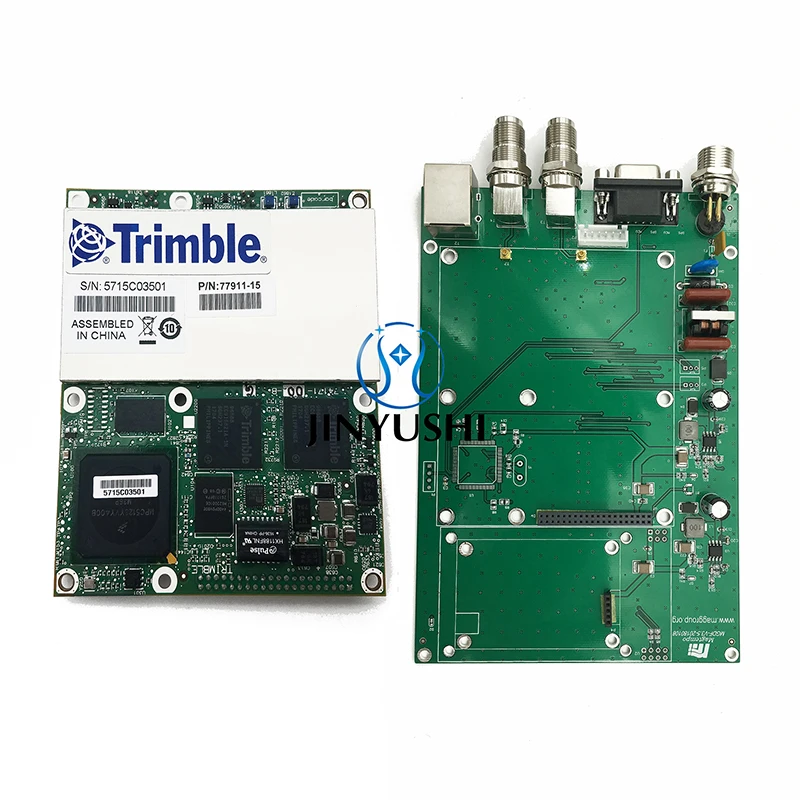

The Trimble BD982 GNSS system is a single board solution for precise position and heading. The product delivers the latest in GNSS signal support delivering multi-constellation RTK baselines between the two connected antennas and to a remote base station. With the Trimble BD982, OEM’s and integrators can be assured their investment is sound today and into the future. The Trimble BD982 GNSS supports GPS L1/L2/ L5, GLONASS L1/L2/L3 and BeiDou B1, B2 signals.


Technical Specifications


Size
100 mm x 84.9 mm x 11.6 mm
Power
3.3 V DC +5%/ - 3%

Typical 2.1 W (L1/L2 GPS)

Typical 2.3 W (L1/L2 GPS and G1/G2 GLONASS)
Weight
92 grams
Connectors
I/O: 40 pin header

GNSS Antenna: 2 x MMCX receptacle


Key Features


* Dual-Antenna Inputs for Precise Heading Calculation
* Multi-Constellation GNSS Support
* OmniSTAR VBS/XP/G2/HP Support
* Flexible RS232, USB, Ethernet or CAN Interfacing
* Centimeter Level Position Accuracy










Package list:
BD982 receiver * 1 set
Harxon GPS500 antenna * 2pcs
TNC-TNC cable 5M *2pcs
