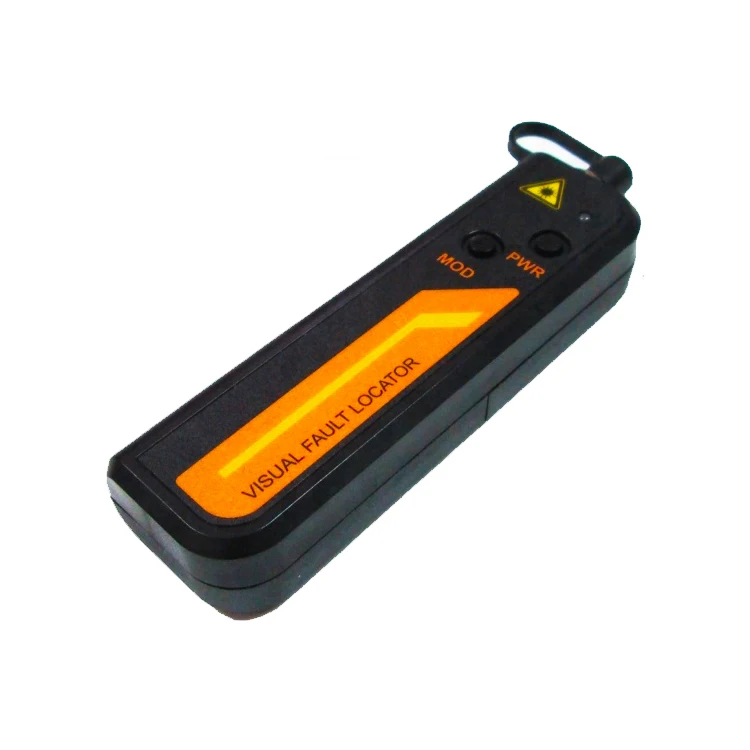

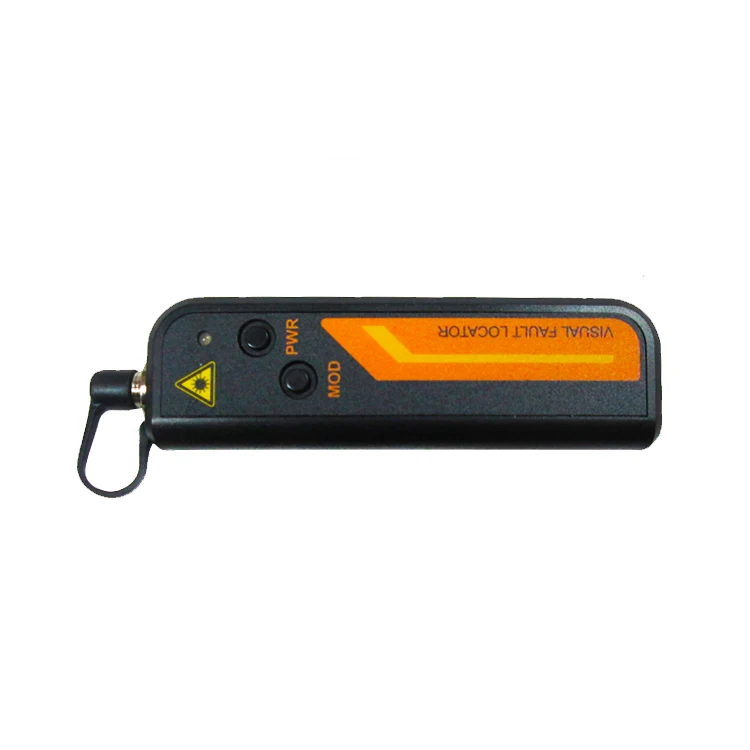

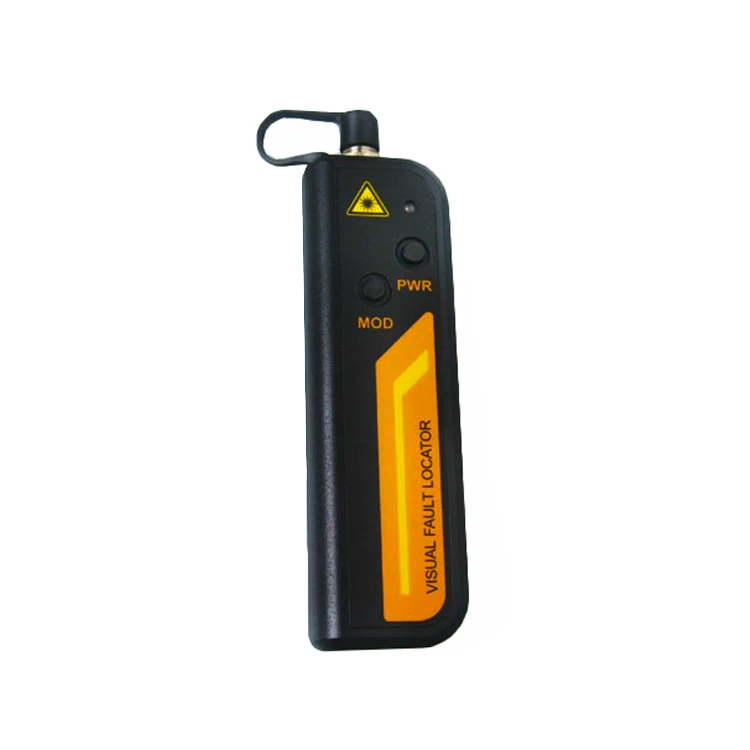

FCST080501 Economical VFL 30km Visual Fault Locator For End To End Visual Fiber Identification In Optical Network Installation
- Category: >>>
- Supplier: Fiber Cable Solution Technology Co. Ltd.
Share on (62551533785):
Product Overview
Description
Product Views
Product Overview
FCST080501 VFL is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical network. It includes:
Finding the break point, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR dead zone.
End-to-end visual fiber identification.
Finding the break point, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR dead zone.
End-to-end visual fiber identification.
Product Advantages
-Constant & stable output power.
-Low battery warning, reminds users to change the battery timely.
-Long battery life.(up to 40 hours with AAA batteries)
-Operates either in CW or Pulsed.
-Pocket size and light weight, easy to use.
-Special laser driver circuit design, to make sure the laser output power remains a constant power level as long as in an available battery voltage.
-Low battery warning, reminds users to change the battery timely.
-Long battery life.(up to 40 hours with AAA batteries)
-Operates either in CW or Pulsed.
-Pocket size and light weight, easy to use.
-Special laser driver circuit design, to make sure the laser output power remains a constant power level as long as in an available battery voltage.
Type | FCST080501 Economical VFL |
Central Wavelength | 650nm±10nm |
Emitter Type | FP-LD |
Output Power | 1mw or 10mw |

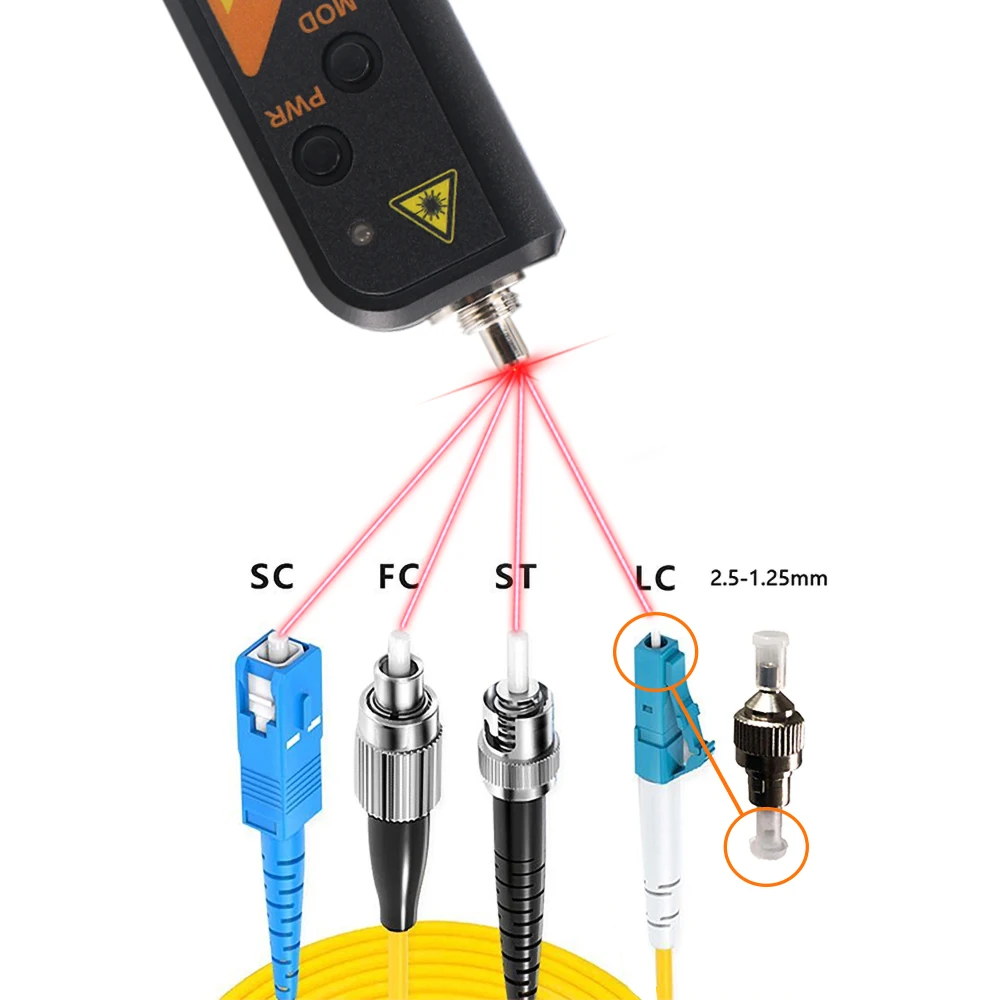

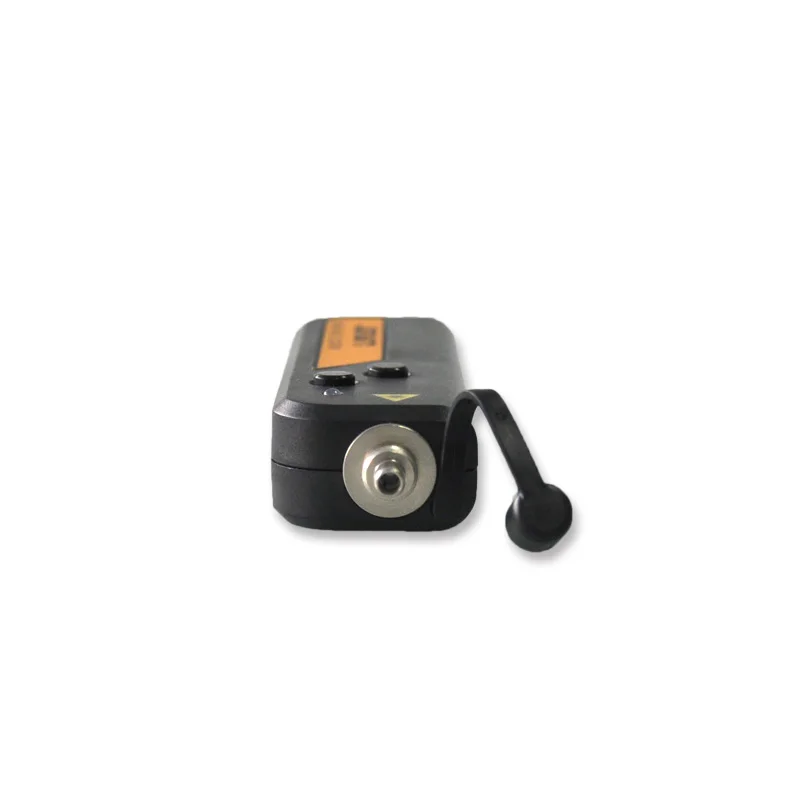

Optical Connector | FC/2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests |
Operating Model | Both CW and Pulse(2Hz) available |
Power Supply | Two AAA alkaline batteries |
Battery Operating Time | 40hours Test with Panasonic LR6 AAA ALKALINE battery |
Operating Temperature | -10~+60 (℃) |
Storage Temperature | -25~+70 (℃) |
Dimension (mm) | 100*30*18 |
Weight | 37g |
