ATC100B471JW200X 470pF ATC 100B Series porcelain superchip multilayer capacitors

ATC100B471JW200X 470pF ATC 100B Series porcelain superchip multilayer capacitors

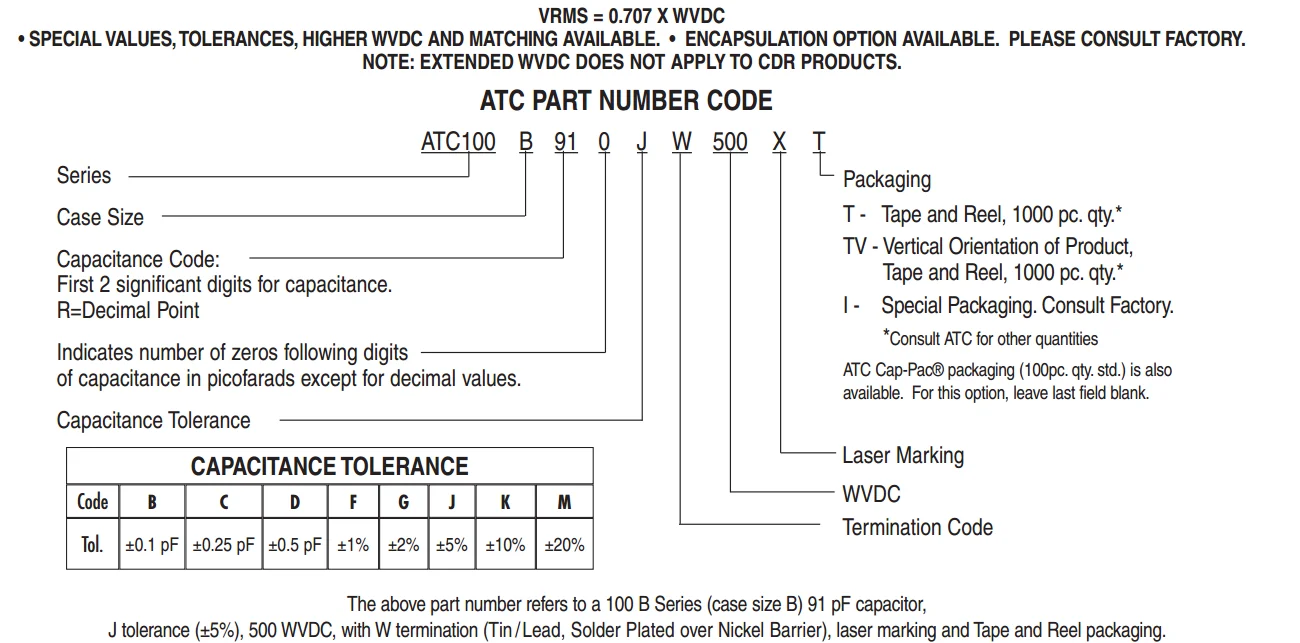

Capacitor:470pF

Capacitance Tolerance:J 5%

The price on page are incorrect,please contact us for a quote.

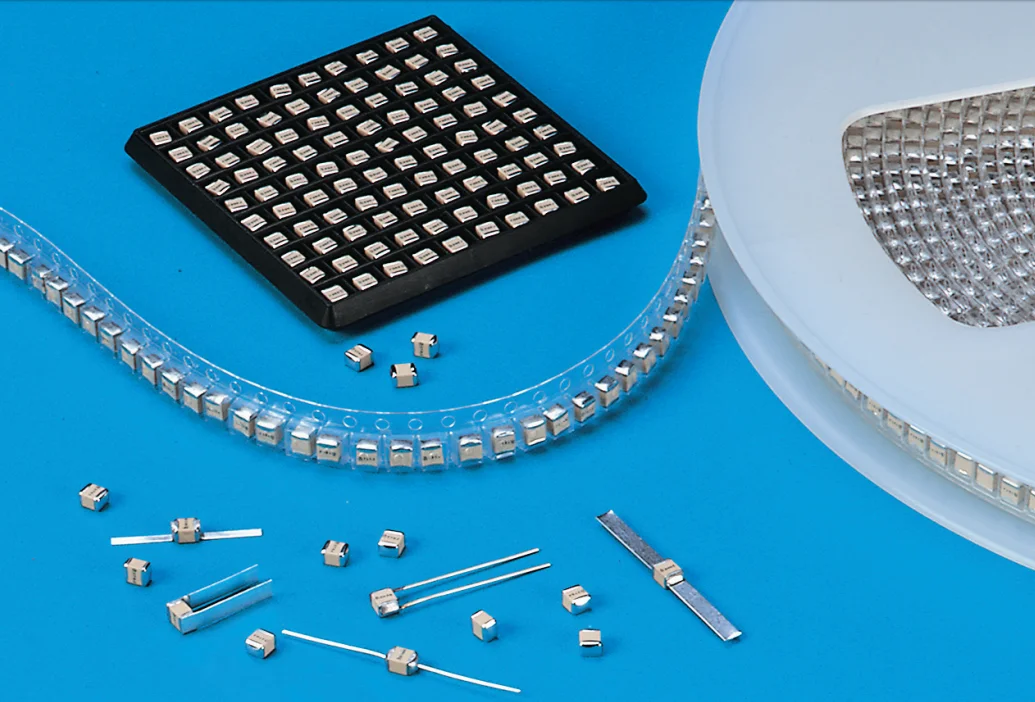

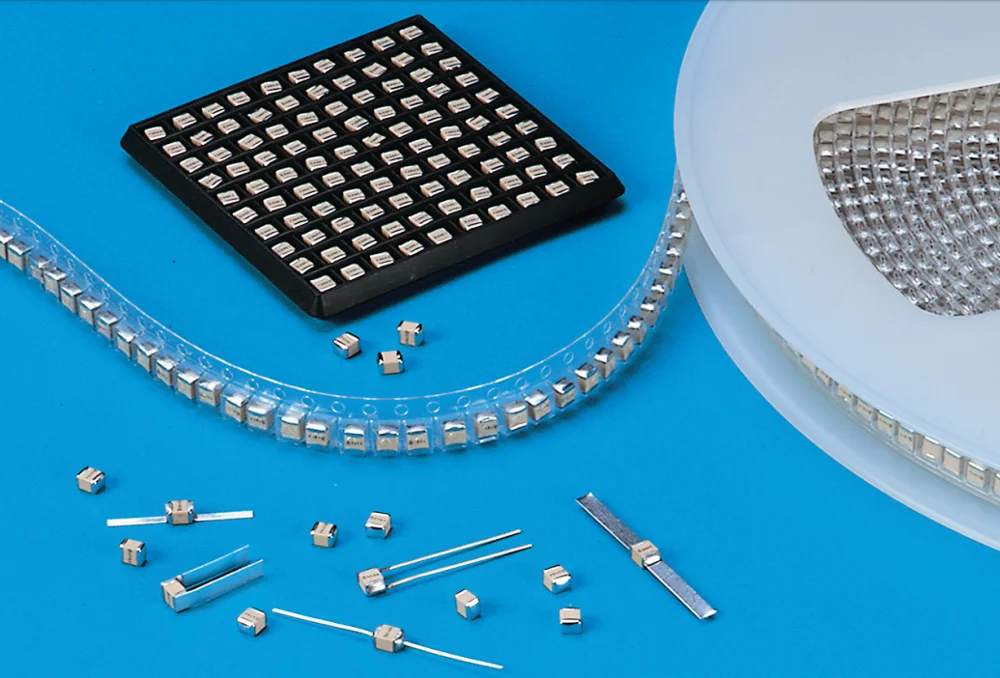

porcelain superchip multilayer capacitors
Case B Size 110*110
High Q
Ultra-stable performance
Low ESR\\ESL
High Self-Resonance
Low Noise
Established reliability(QPL)
Extended WVDC up to 1500 VDC

ATC, offers new improved ESR\\ESL performance for the 100 B Series RF\\Microwave capacitors,This series is now available with extended operating temperatures up to 175.High Density porcelain construction provides a rugged,hemetic package.
Typical functional applications:Bypass,Coupling,Tuning,Feedback.Impedance Matching and DC Blocking
Typical circult applications:UHF\\Microwave RF power Amplifiers,Mixer,Oscillators,Low Noise Amplifiers,Filter Networks,Timing Circuits and Delay Lines

ELECTRICAL AND MECHANICAL

SPECIFICATIONS

QUALITY FACTOR (Q): greater than 10,000 at 1 MHz.

TEMPERATURE COEFFICIENT OF CAPACITANCE (TCC):

+90 ±20 PPM/°C (-55°C to +125°C)

+90 ±30 PPM/°C (+125°C to +175°C)

INSULATION RESISTANCE (IR):

0.1 pF to 470 pF:

 106 Megohms min. @ +25°C at rated WVDC.

 105 Megohms min. @ +125°C at rated WVDC.

510 pF to 1000 pF:

 105 Megohms min. @ +25°C at rated WVDC.

 104 Megohms min. @ +125°C at rated WVDC.

IR above +125°C is derated by one order of magnitude.

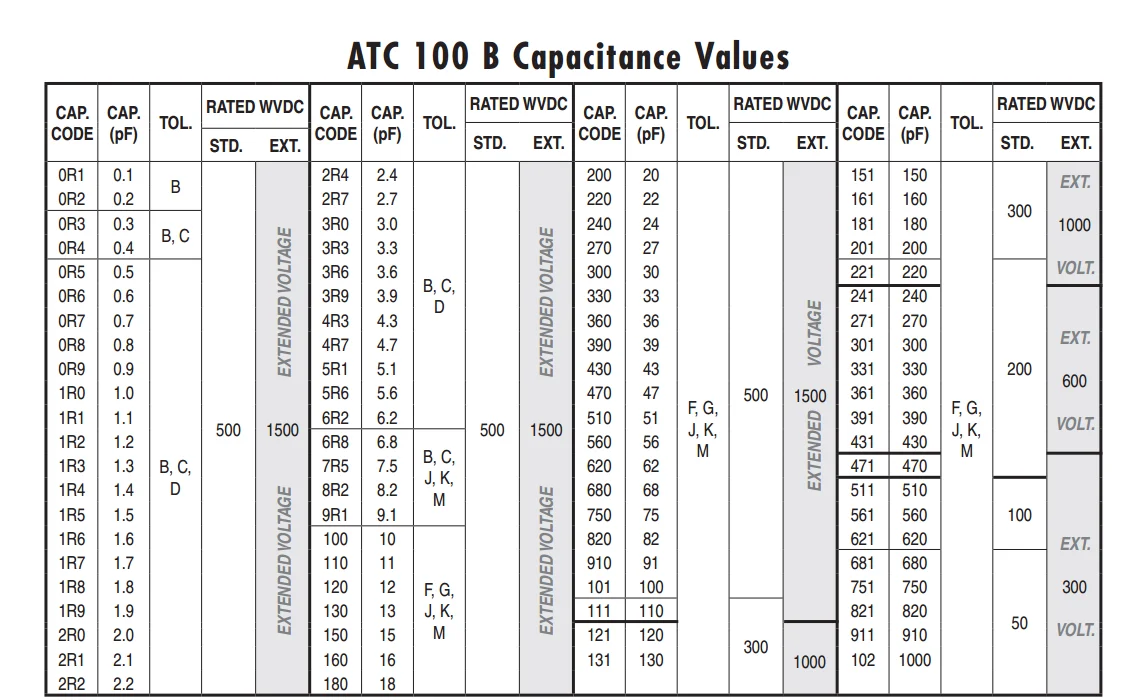

WORKING VOLTAGE (WVDC): See Capacitance Values Table, page 2.

DIELECTRIC WITHSTANDING VOLTAGE (DWV):

250% of WVDC for capacitors rated at 500 volts DC or less for 5 seconds.

150% of WVDC for capacitors rated at 1250 volts DC or less for 5 seconds.

120% of WVDC for capacitors rated above 1250 Volts DC for 5 seconds.

Test voltage is applied for 5 secs.

RETRACE: Less than ±(0.02% or 0.02 pF), whichever is greater.

AGING EFFECTS: None

PIEZOELECTRIC EFFECTS: None

(No capacitance variation with voltage or pressure).

CAPACITANCE DRIFT: ±(0.02% or 0.02 pF), whichever is greater.

OPERATING TEMPERATURE RANGE:

Standard WVDC:

 0.1 to 330 pF: from -55°C to +175°C

 360 to 1000 pF: from -55°C to +125°C

Extended WVDC:

 0.1 to 1000 pF: from -55°C to +125°C

(No derating of working voltage).
