Electric Forklift Part Throttle Control Accelerator ET 126
- Category: >>>
- Supplier: Yueqing Wodu Electric Co. Ltd.
Share on (62551594376):
Product Overview
Description
Product Description

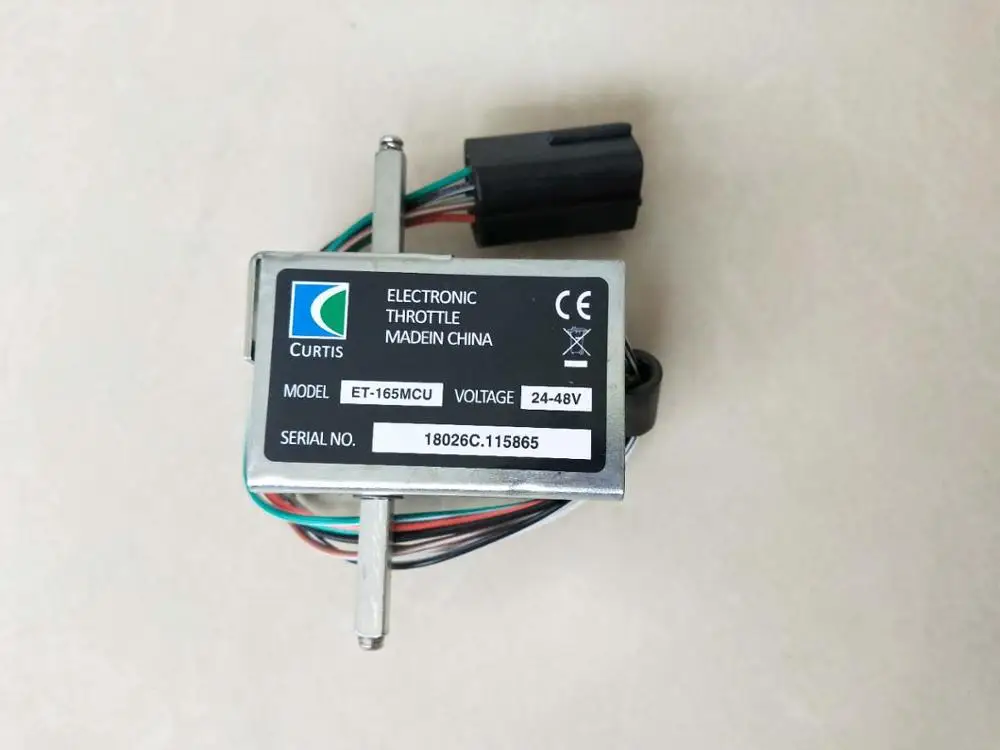

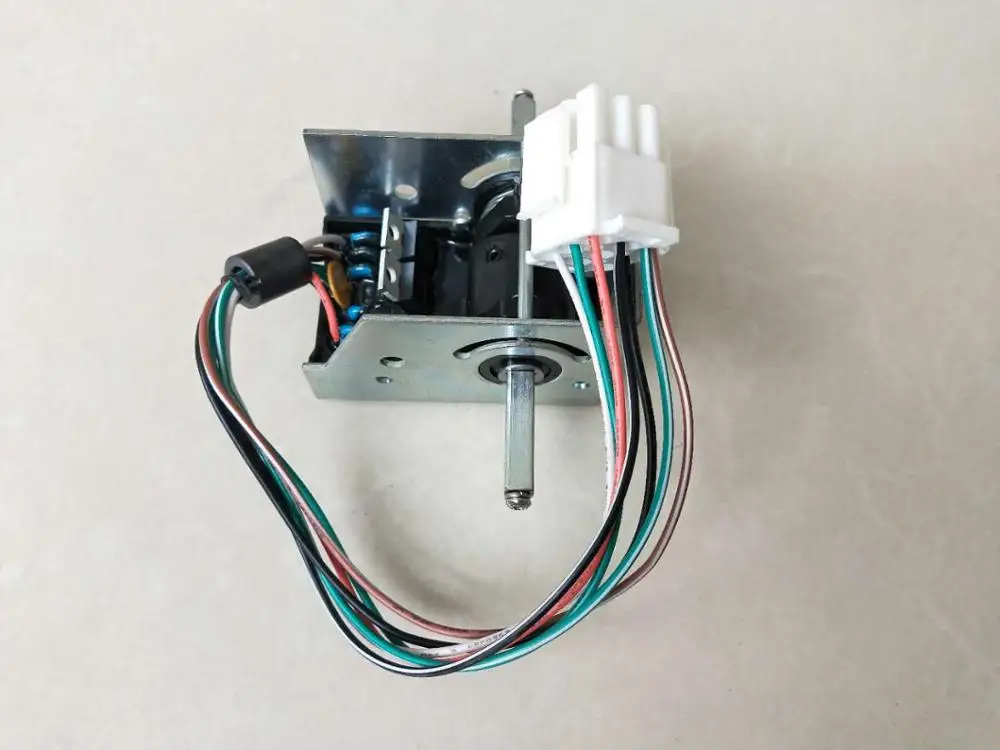

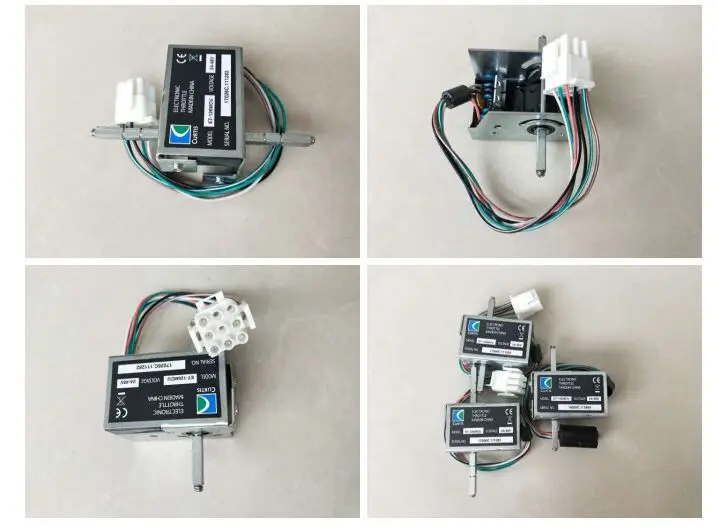

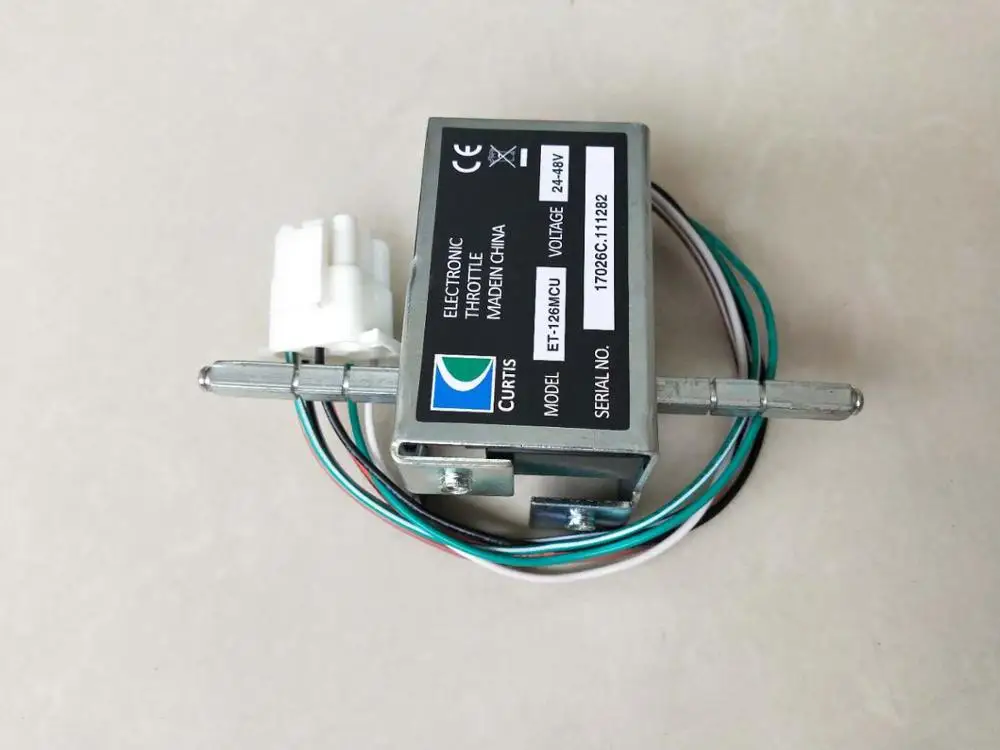

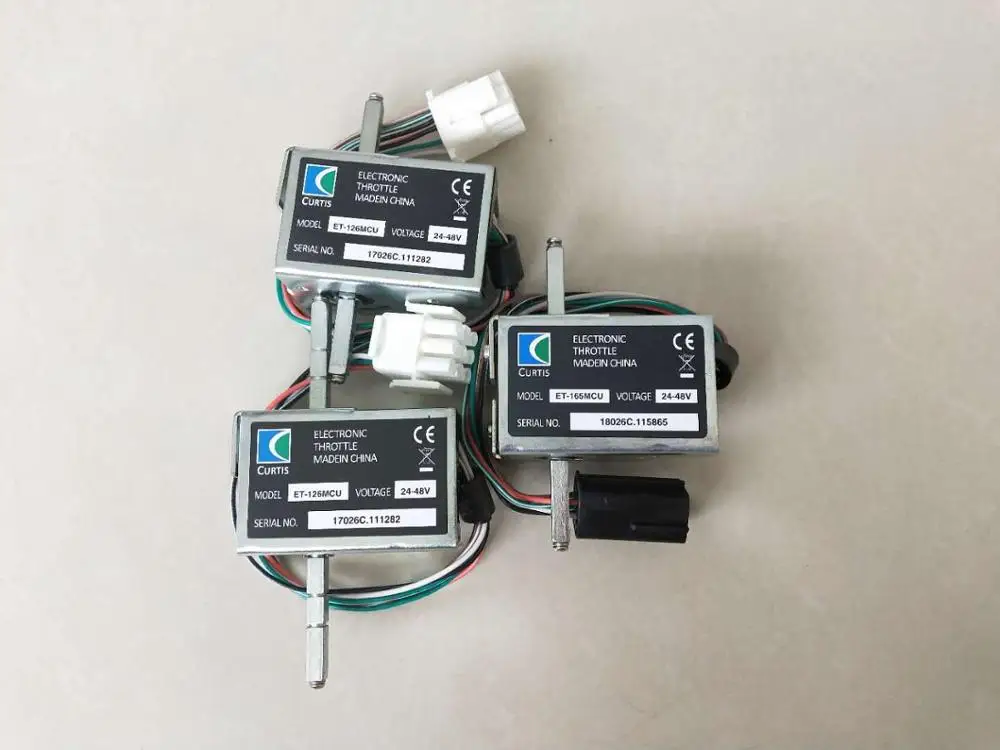

Electric Forklift Part Throttle Control Accelerator ET-126
Specifications:
* Input voltage (volt): 24-48V DC
* Signal output: 0-5V
* Maximum throttle output: 5.3V
* Minimum throttle output: 0V
* Maximum deadband at zero throttle: 10 degrees
* Maximum deadband at full throttle: 10 degrees
* Forward/Reverse current: 1.5A max
* Symmetrical throttle response in both directions
CURTIS ET-126 MCU throttle assemblies provide an analog 0-5V output proportional to throttle position for interfacing with CURTIS
PMC motor speed controllers.
This new MCU version replaces the old ET-126 throttle. They are functionally identical, but the MCU version has a microprocessor,
providing more accurate speed signal output.
Key Features:
* Model: ET-126 MCU
* Hall effect sensors and solid state MOSFET contactor drivers minimize moving parts, thereby increasing reliability and Mean
Time Between Failure.
* Symmetrical throttle response in both forward and reverse directions ensures smooth, concise acceleration and deceleration in
both directions.
* Minimal deadband areas at both zero and full throttle positions eliminates hesitation when beginning to accelerate or
decelerate.
* Environmental protection of major components through an epoxy layer over the circuit board assures operation in harsh
environmental conditions.
* Wig-wag type throttle returns the throttle to neutral for convenience and safety.
* Input polarity protection to ensure no damage occurs to the throttle if it is incorrectly wired.
* Easy to install.
* Input voltage (volt): 24-48V DC
* Signal output: 0-5V
* Maximum throttle output: 5.3V
* Minimum throttle output: 0V
* Maximum deadband at zero throttle: 10 degrees
* Maximum deadband at full throttle: 10 degrees
* Forward/Reverse current: 1.5A max
* Symmetrical throttle response in both directions
CURTIS ET-126 MCU throttle assemblies provide an analog 0-5V output proportional to throttle position for interfacing with CURTIS
PMC motor speed controllers.
This new MCU version replaces the old ET-126 throttle. They are functionally identical, but the MCU version has a microprocessor,
providing more accurate speed signal output.
Key Features:
* Model: ET-126 MCU
* Hall effect sensors and solid state MOSFET contactor drivers minimize moving parts, thereby increasing reliability and Mean
Time Between Failure.
* Symmetrical throttle response in both forward and reverse directions ensures smooth, concise acceleration and deceleration in
both directions.
* Minimal deadband areas at both zero and full throttle positions eliminates hesitation when beginning to accelerate or
decelerate.
* Environmental protection of major components through an epoxy layer over the circuit board assures operation in harsh
environmental conditions.
* Wig-wag type throttle returns the throttle to neutral for convenience and safety.
* Input polarity protection to ensure no damage occurs to the throttle if it is incorrectly wired.
* Easy to install.
Packing & Delivery
FAQ
Q: How to confirm a spare part ?
A: Usually, we confirm a spare part according to following details:
(1) Applied forklift model and forklift brand.
(2) Model number of a part.
(3) Photos of a spare part.
Q: How long is your delivery time?
A: Generally, 1-2 days for normal products.
A: Usually, we confirm a spare part according to following details:
(1) Applied forklift model and forklift brand.
(2) Model number of a part.
(3) Photos of a spare part.
Q: How long is your delivery time?
A: Generally, 1-2 days for normal products.
Q: Any service about spare parts ?
A: Based on clients' enquiry, we supply correct products with photos.
Q: How to do the order and payment ?
A: Please check below details for your reference.
(1) We send an order to you on Alibaba, then you transfer payment by Credit Card or T/T.
(2) Please tell us your PayPal account, then we send you an invoice by PayPal.
(3) After you confirm an order, we will send you an official invoice for your payment.
A: Based on clients' enquiry, we supply correct products with photos.
Q: How to do the order and payment ?
A: Please check below details for your reference.
(1) We send an order to you on Alibaba, then you transfer payment by Credit Card or T/T.
(2) Please tell us your PayPal account, then we send you an invoice by PayPal.
(3) After you confirm an order, we will send you an official invoice for your payment.
