Product Overview

Description

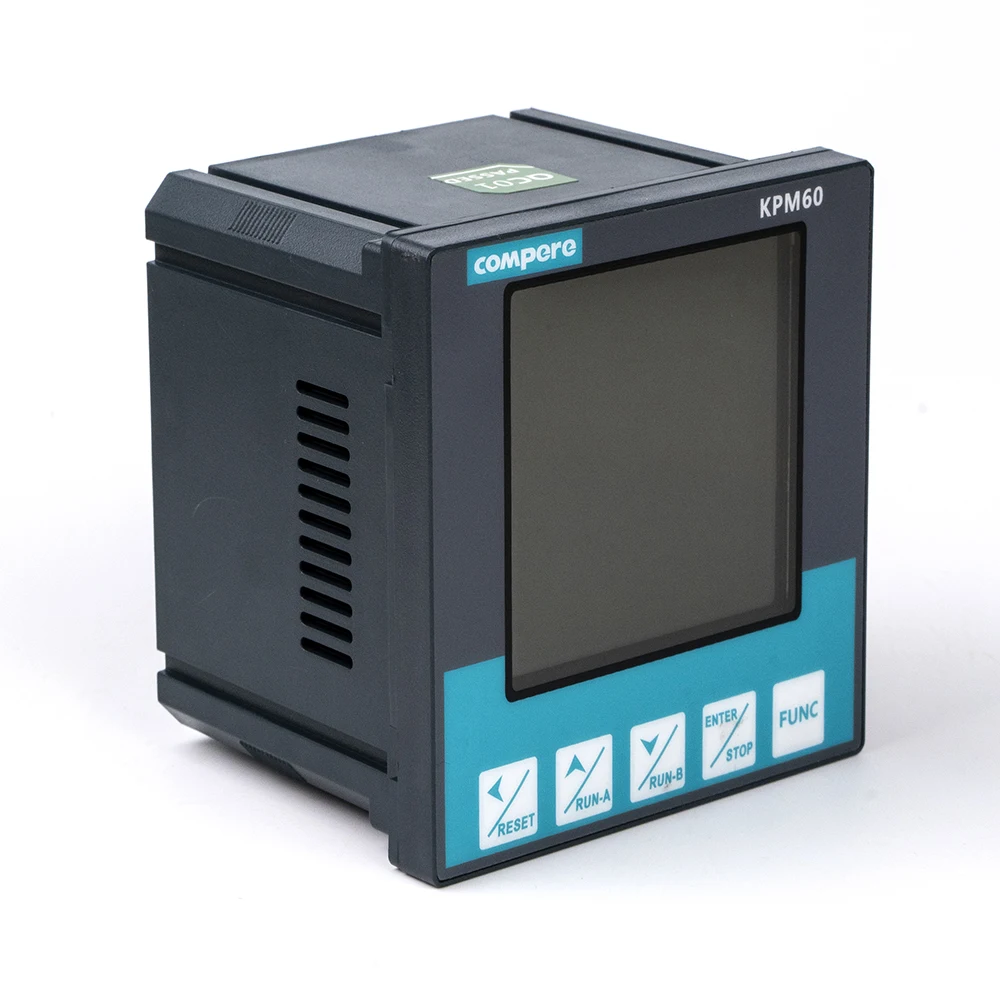

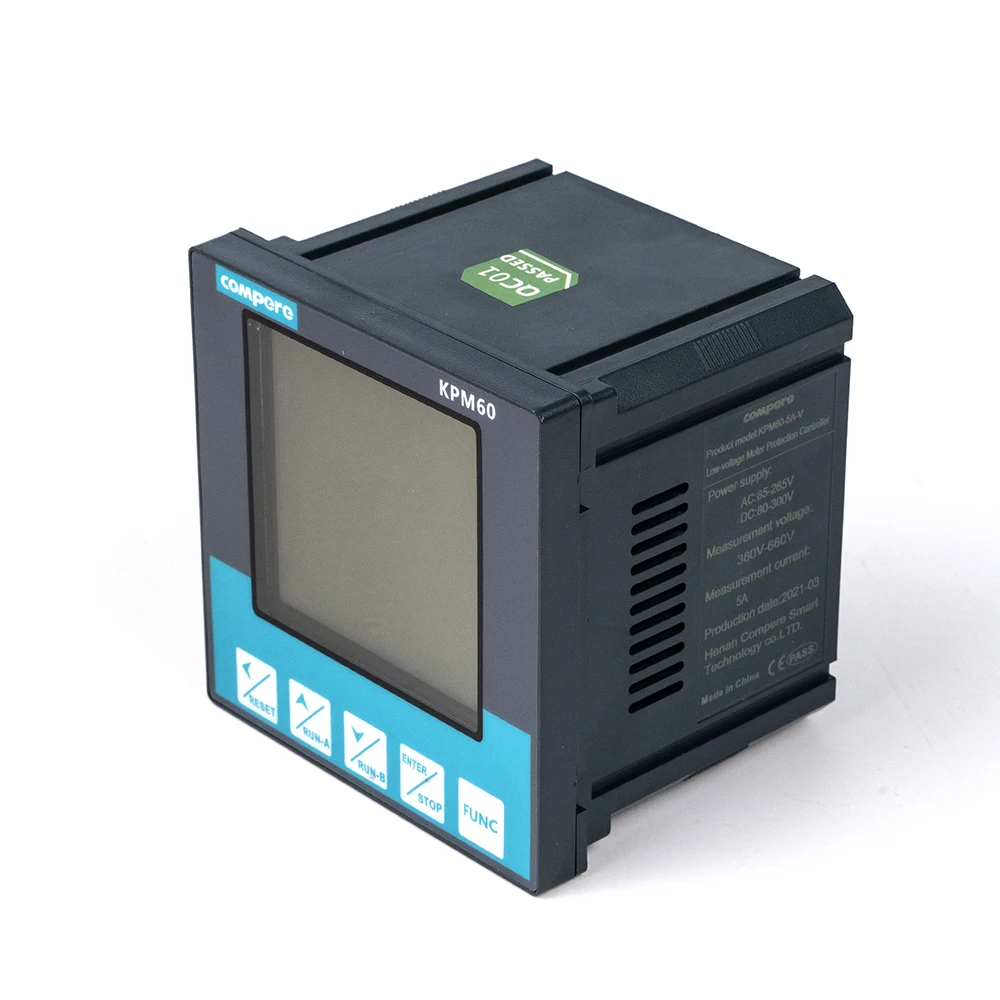

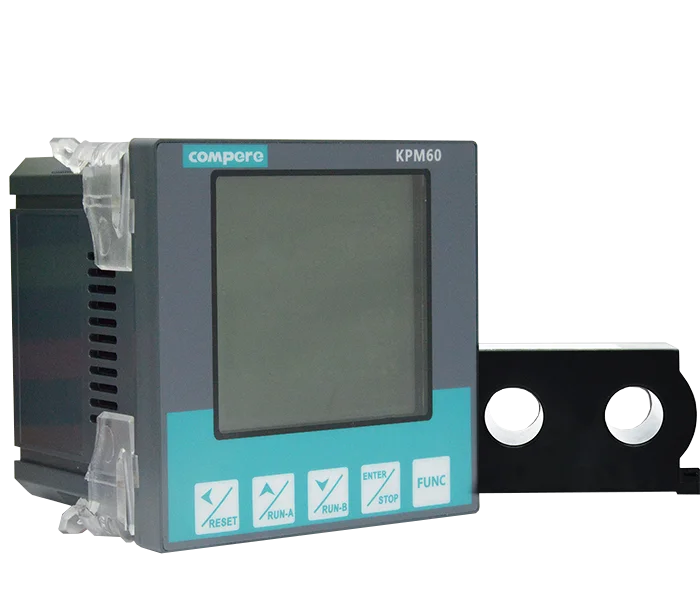

High Accuracy Protection Stepper Motor Controller

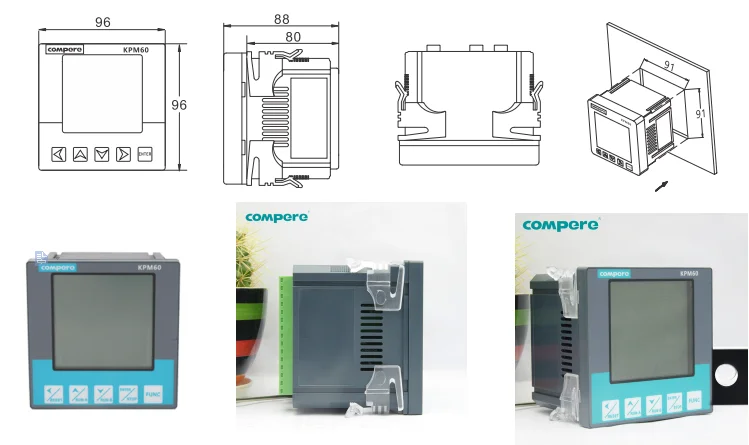

Details Images








Feature
Protection functions: overload protection, blocking protection, blocking protection, external fault protection, current imbalance protection, starting overtime protection, grounding protection, phase failure protection, contactor breaking protection,underloadprotection;

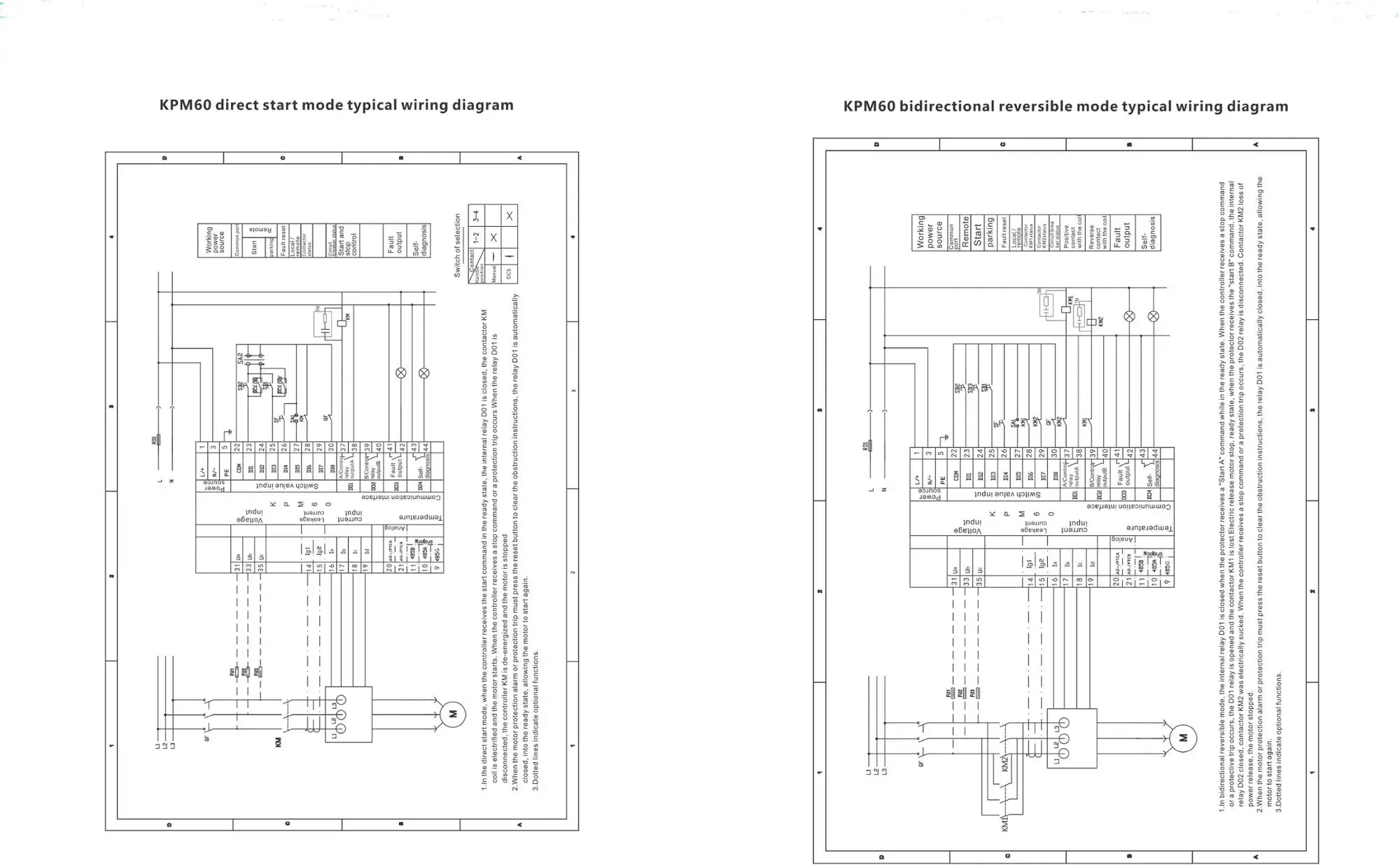

Start mode: protection mode, direct start mode, bidirectional reversible start, star / delta start, autotransformer start;
Monitoring functions: 3 phase current, A phase voltage, active power, reactive power, power factor, frequency, active energy, work energy, grounding current, leakage current, 4 ~ 20mA analog input, heat capacity;
Optional protection: leakage protection, TE protection, temperature protection, analog input protection, overvoltage
protection,undervoltage protection, under power protection, undervoltage restart;
Special features: analog input, digital input, relay output

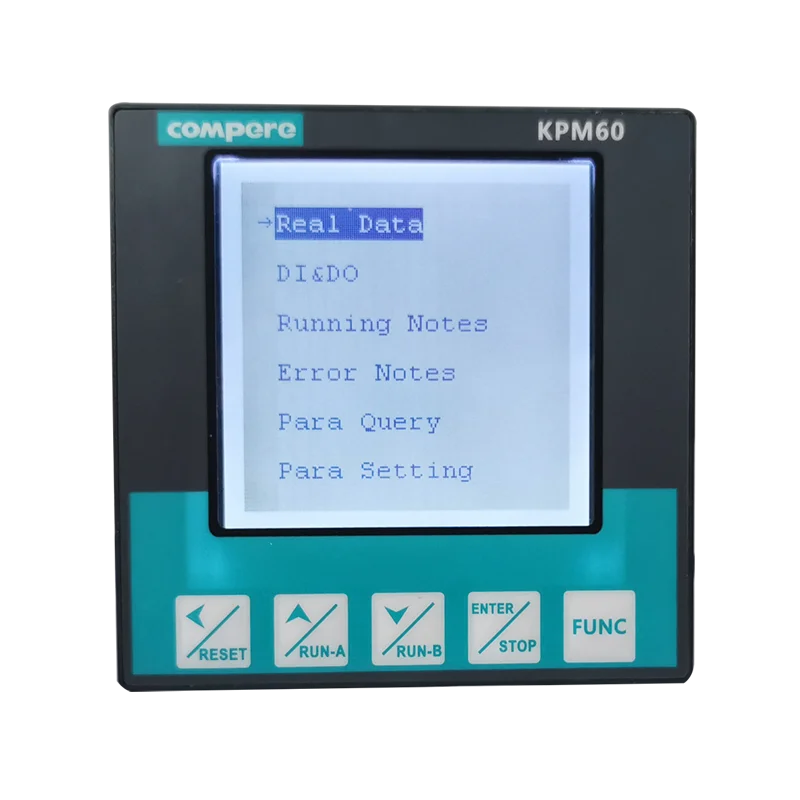

Display: large-screen LCD display, high quality, wide viewing angle, high visibility;
Communication: RS485 communication, Modbus-RTU;
Applicable motor: Motor rated voltage: 380V ~ 660V, rated power 0.25 ~ 250kW


Technical parameters
Working power source
Operating Voltage
AC85~265V/DC80~300V
Rated power
＜5VA
Input voltage
Rated voltage
380V-660V
Frequency range
45~65Hz
Input current
Rated current
5A，32A, 100A, 250A, 500A
Frequency range
45~65Hz

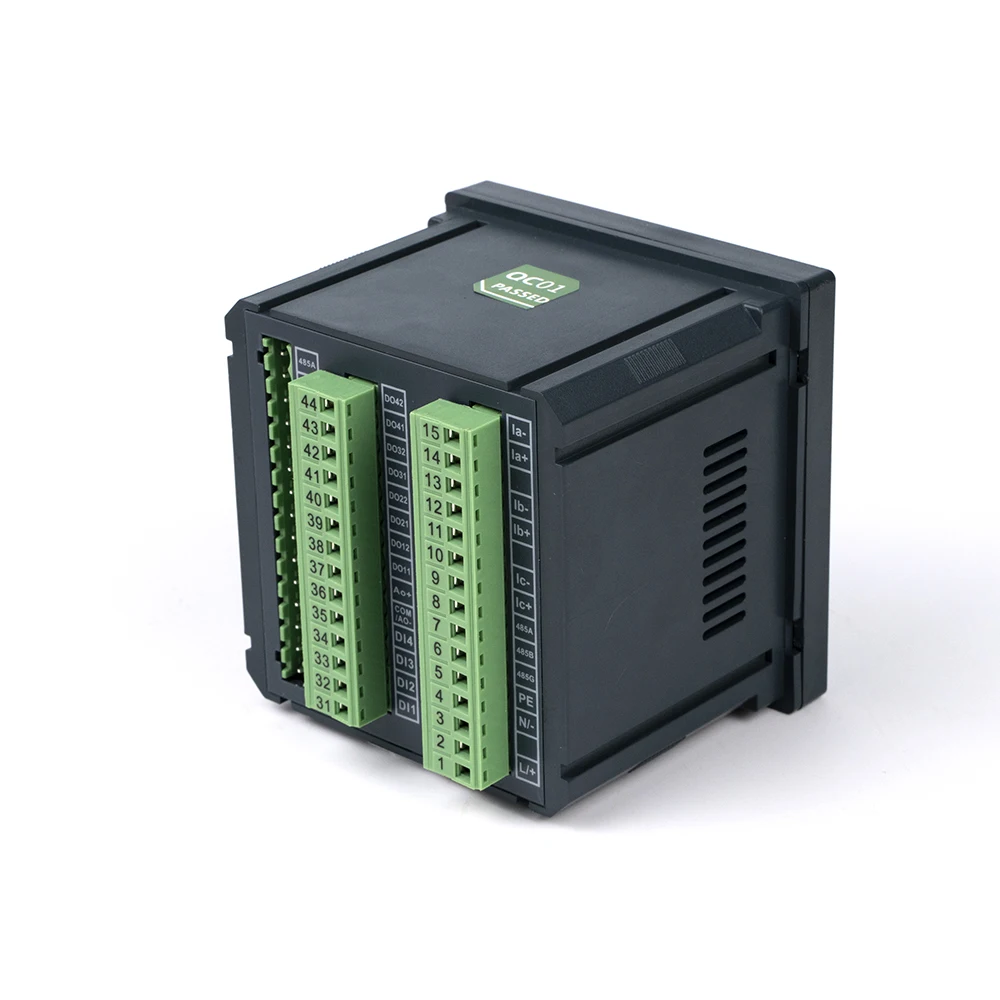

Input/Output
Switch value input
8-way passive main line contact DI input, internal supply DC24V power source
Relay output
4-way DO output，Contact capacity 250VAC/5A，30VDC/5A
Analog output
Output range 4~20mA，Programmable
Temperature input
Measure range 0℃~100℃
Measurement accuracy
Current
±1.0%(10%Ie~120%Ie)
Leakage current
±1.0%(5%Ise~100%Ise)
Voltage
±0.5%(20%Ue~150%Ue)
Frequency
±0.02Hz(45Hz~65Hz)
Power factor
±1.0%(-1~1)
Energy
±2.0%
Power
±2.0%
Communication
Communication interface
RS485，Photoelectric isolation interface
Communication protocol
Modbus-RTU，1200~38400bps
Profibus-DP，9600~12Mbps
Electrical insulation
Power frequency withstand voltage
AC2kV/min~1mA Input-output-power source （GB/T 13729)
Insulation resistance
＞50MΩ （GB/T 13729)
Impact voltage
5kV（Peak），1.2/50us （GB/T 13729)
Working environment
Operating temperature
-25℃ ~ +70℃
Relative humidity
5%~95% No condensation
Storage temperature
-30℃ ~ +75℃
Electromagnetic Compatibility
Surge (impact) immunity
GB/T 17626.5-2008，Level3
Electrical fast burst immunity
GB/T 17626.4-2008，Level3
Electrostatic discharge immunity
GB/T 17626.2-2006，Level3
Power frequency magnetic field immunity
GB/T 17626.8-2006，Level3




Certifications
