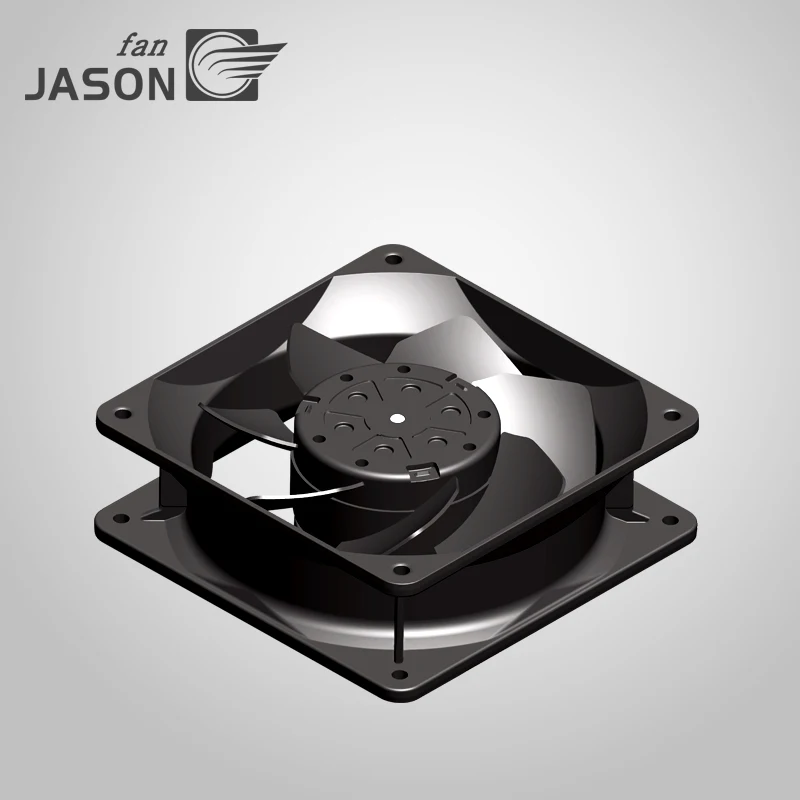

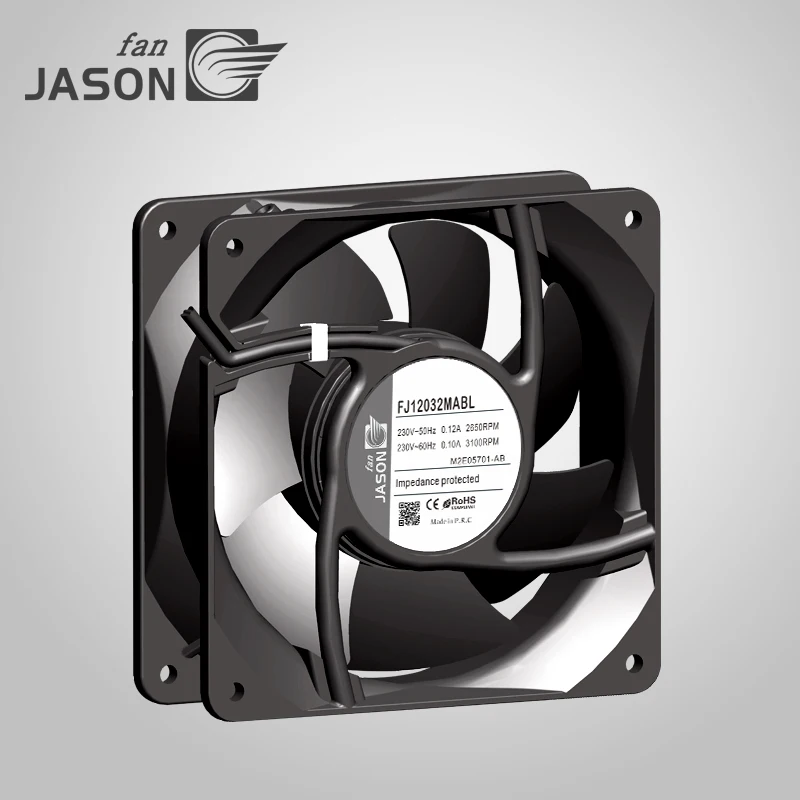

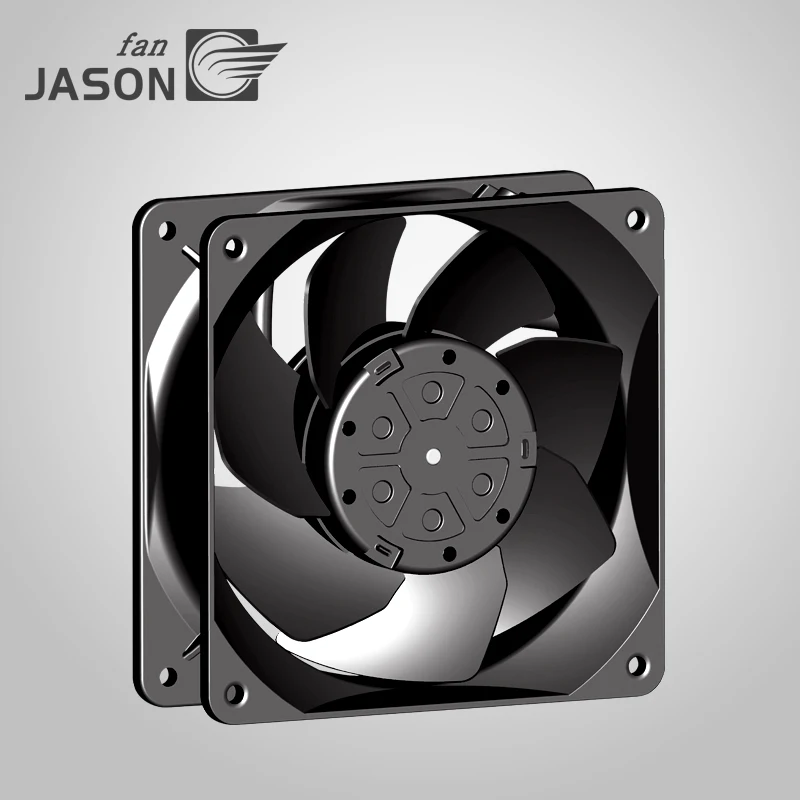

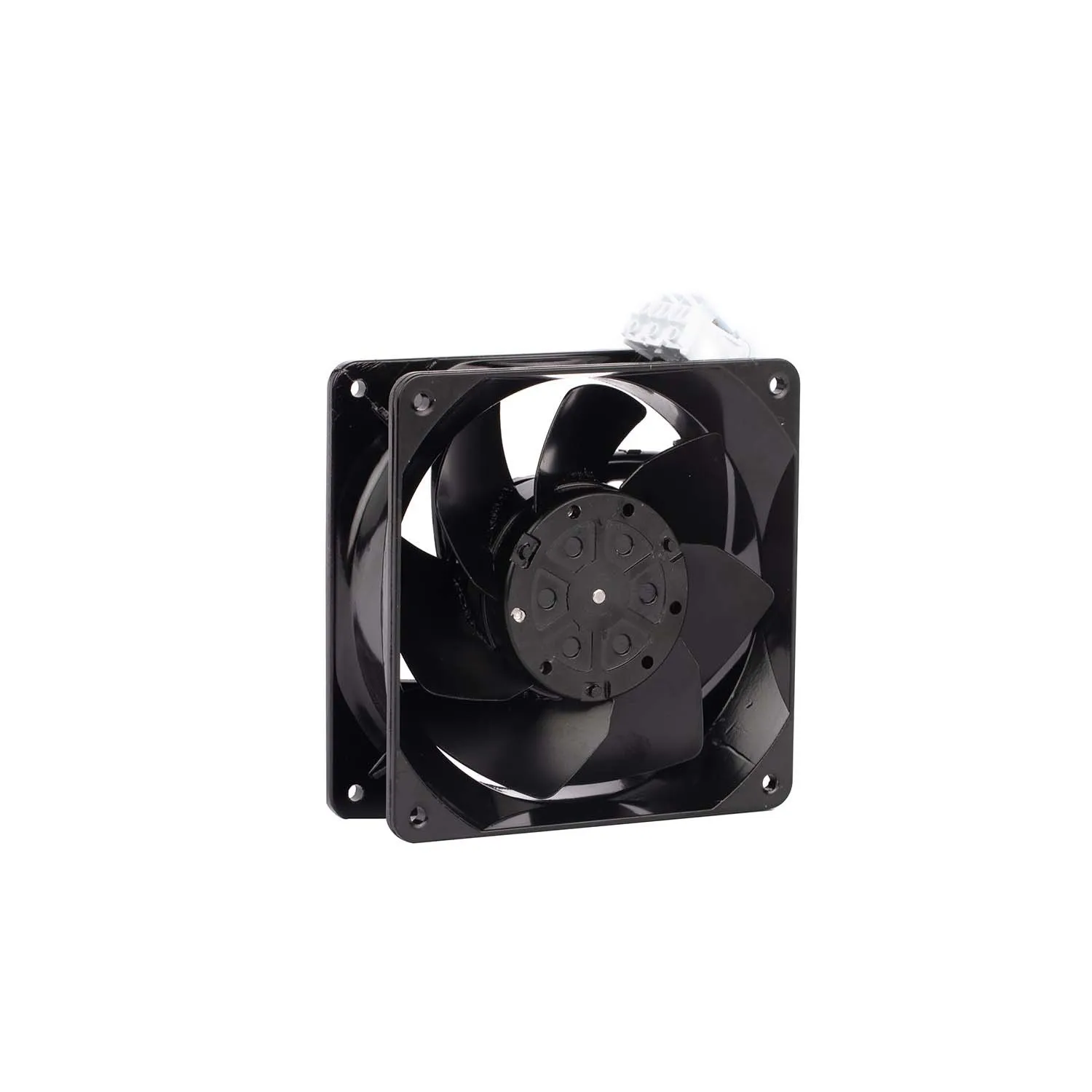

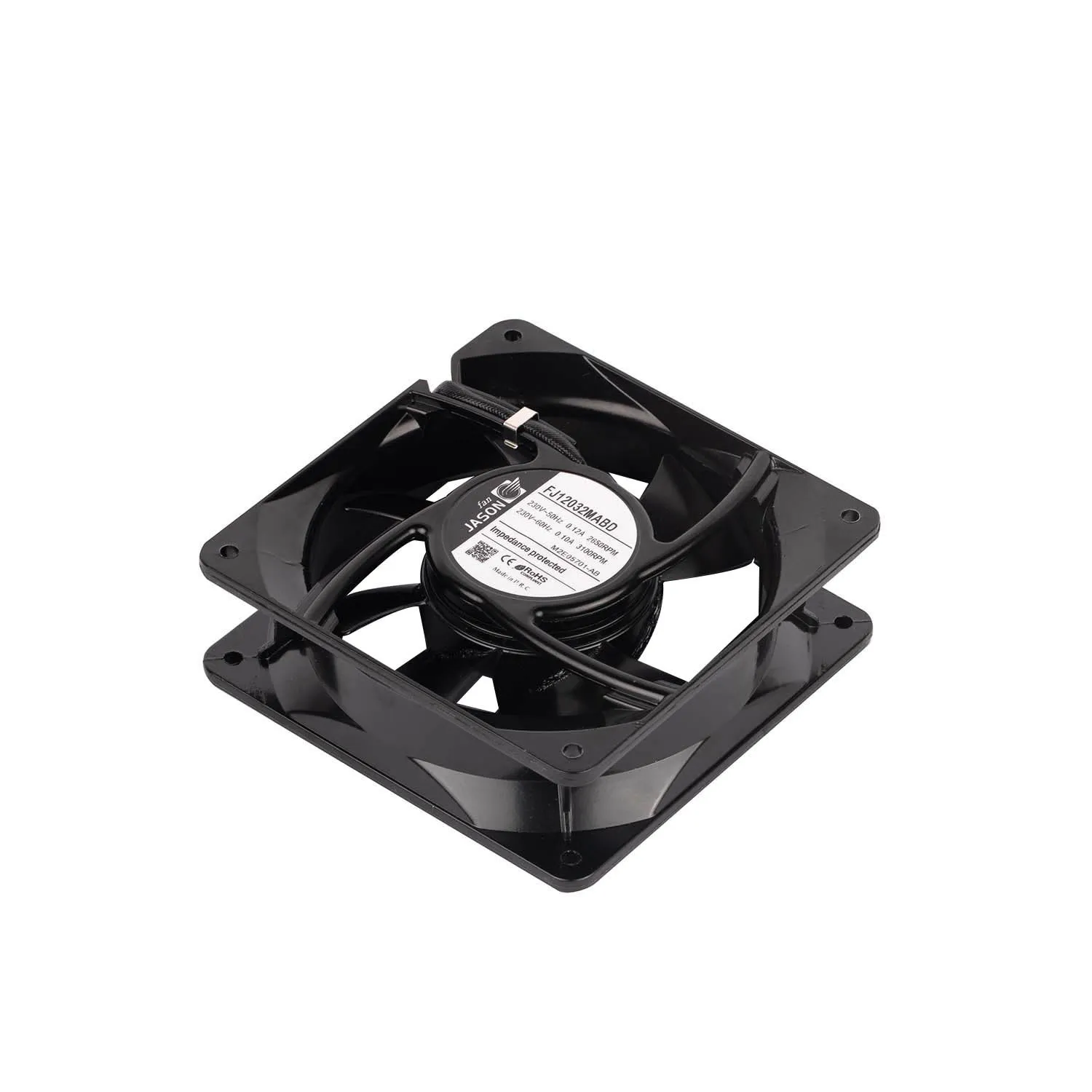

120mm cooling fan 12038 axial fan 230v 115v industrial ventilation with metal blade and case for welding machine UPS
- Category: >>>
- Supplier: Wenzhou Jason Fan Manufacturer Co. Ltd.
Share on (62551644168):
Product Overview
Description

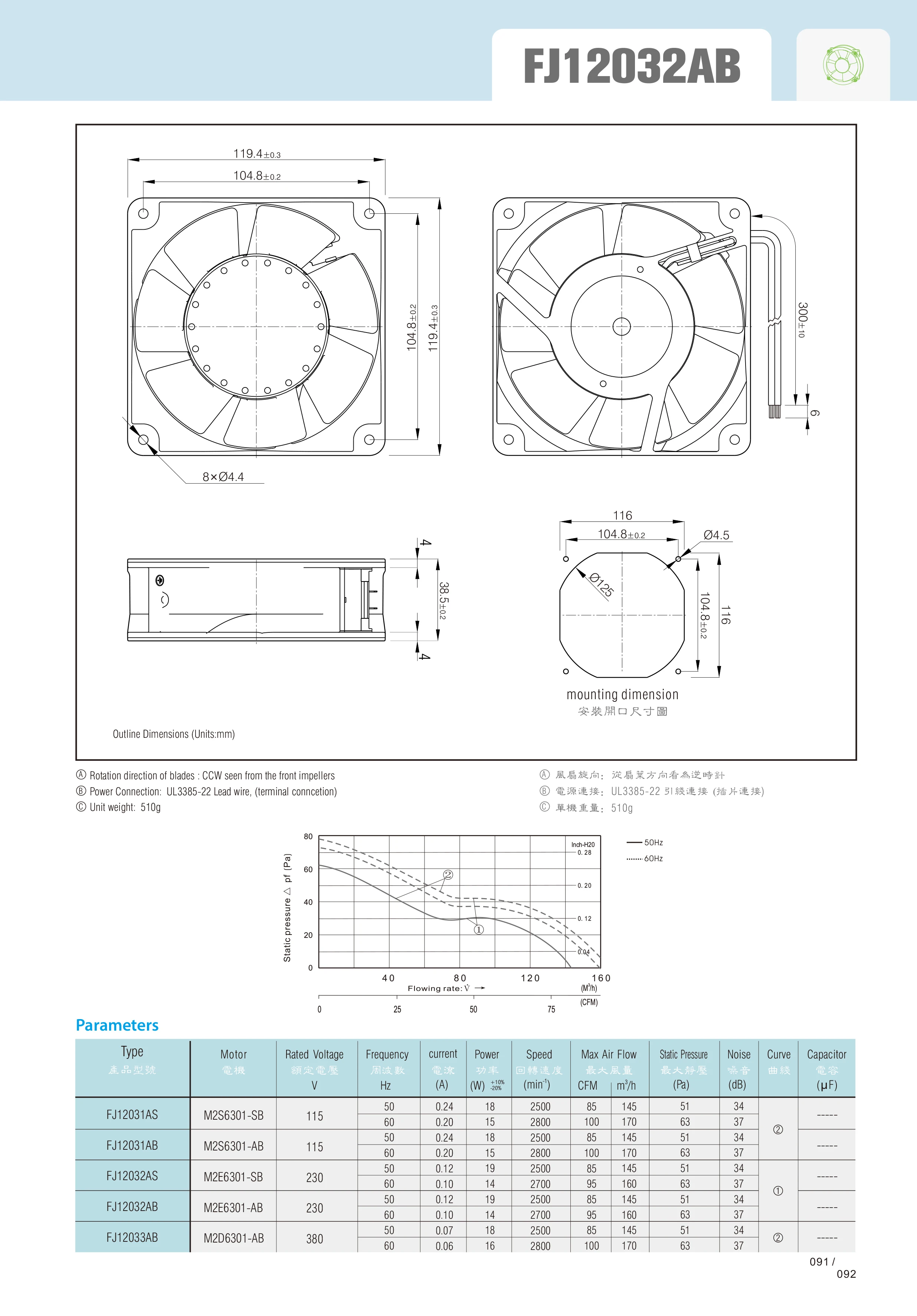

FJ12032MAB
Frame
Aluminium alloy die-casting, surfaces is finished by black
anti-corrosion treatment.
Impeller
C, and surface is finished by black electrophoresis anti-corrosion treatment
Operation Temperature/Humidity Range:
(under unconcretionary state)
-30ºC ~ +65ºC (temperature), 0% ~ 95% (himidity)
Protection
Impedance Protected
Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz
Insulation System
design according to IEC61858 Grade F,
Protection Grade
IP34
Quick Details:
| Type | Axial Fan |
| Frame Material | Aluminum alloy die-casting |
| Impeller | Impact molding of aluminium alloy plate |
| Motor Structure | Shaded pole motor |
| Protection | Impedance Protected |
| Temperature & Humidity | -30ºC ~ +65ºC, 0% ~ 95% |
| Withstand Voltage | AC 1800V at 0.5mA 50/60Hz |
| Power connection | UL3385-22 Lead wire |
| Protection Grade | IP34 |
| Insulation Systerm | B |
| Model Number | FJ12032MAB |
| Voltage | 230VAC |
| Power: | 50/60Hz |
| Air Volume | 94/106CFM |
| Speed | 2600/2900RPM |
| Certification | CE, ROHS UL, CSA |
| Unit weight | 0.54KG |
| Color | Black |
