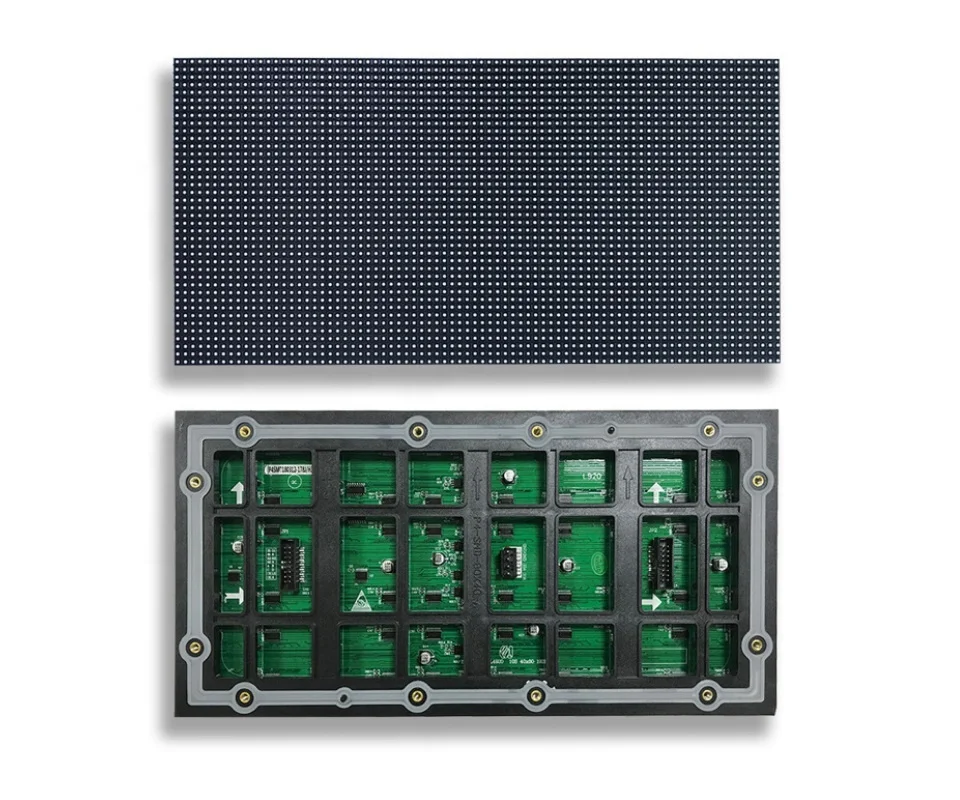

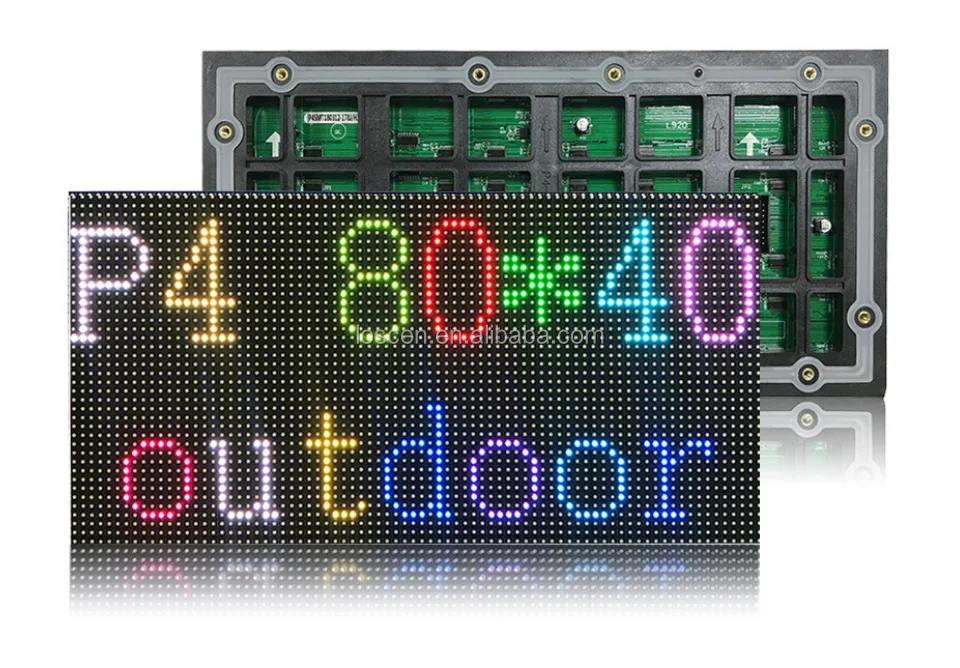

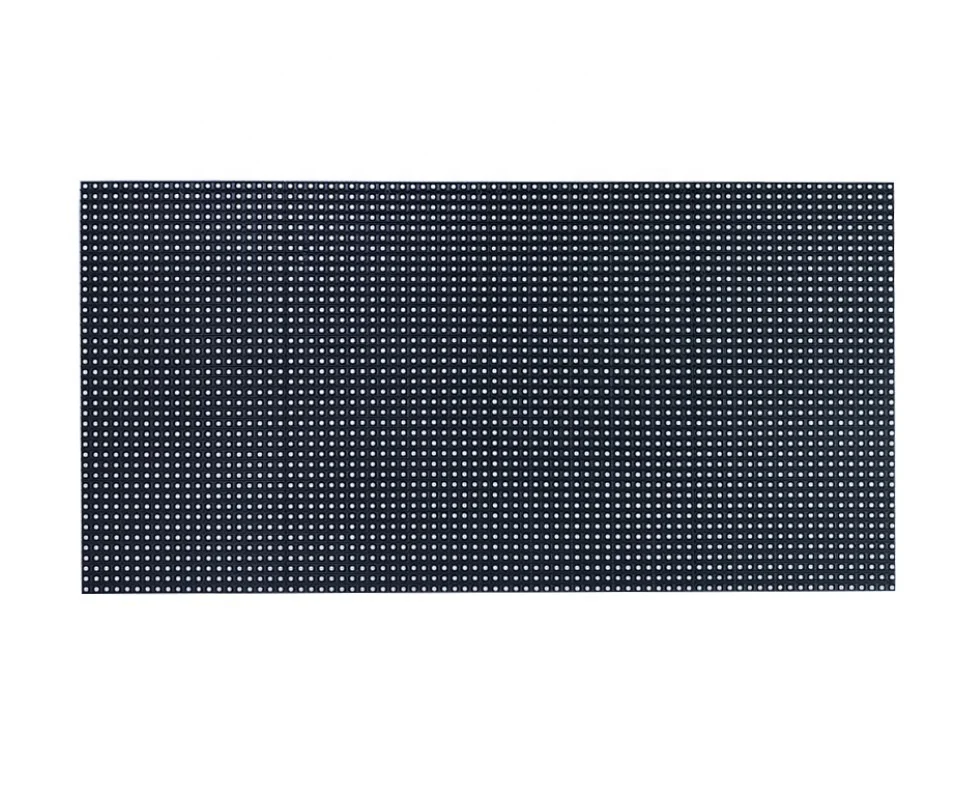

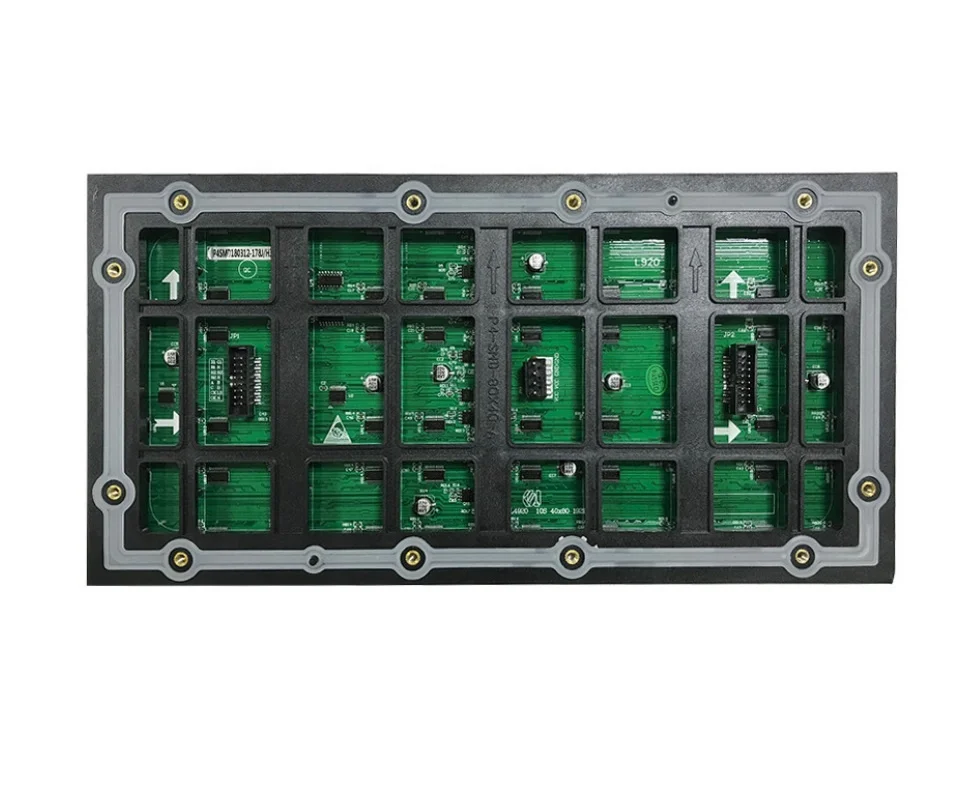

Red/Green/Blue P4 LED Module 320*160mm Outdoor IP65 10Scan
- Category: >>>
- Supplier: Shenzhen Longcheng Photoelectric Technology Co. Ltd.
Share on (62551699681):
Product Overview
Description
Product Description
Red/Green/Blue P4 LED Module 320*160mm Outdoor IP65 10Scan
| Specification | ||
| Unit Module | Item | Parameter |
| Part No | P4-LC-10S | |
| Pixel pitch | 4mm | |

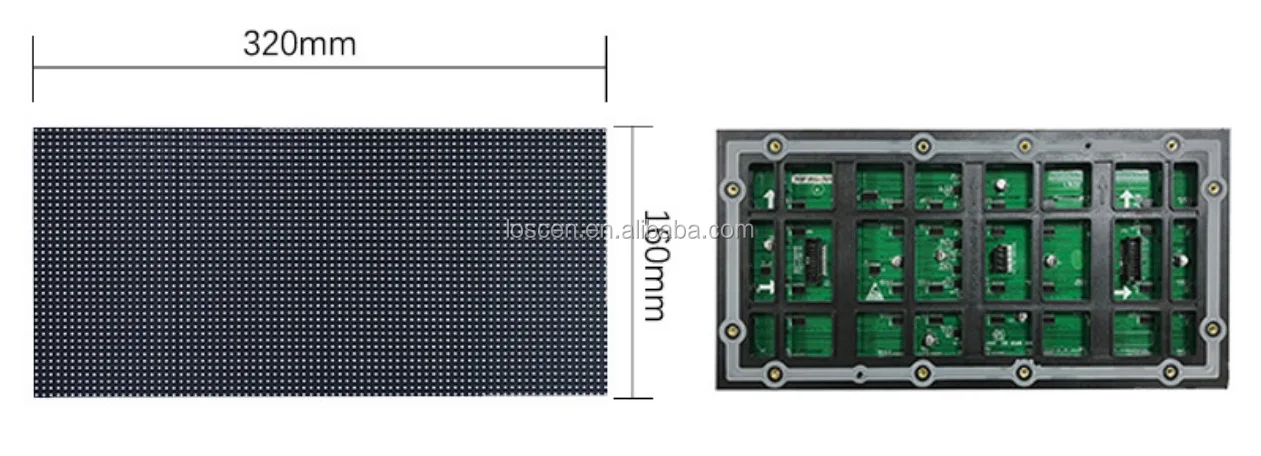

| Module size | 320mm*160mm | |
| Tube chip color | full color | |
| Pixel Density | 62500dots/sqm | |
| led type | SMD1921 | |
| led combination | 1R1G1B | |
| Module resolution | 80*40dots | |
| main technical parameters | Scan method | 1/10s |
| refresh rate | ≥1920Hz | |
| Brightness of white balance | ≥6200cd/sqm | |
| cabinet resolution | 256*256dots | |
| cabinet size | 1024mm*1024mm | |
| Best view distance | 4m-40m | |
| Best view angle | 160°(W)*160°(H) | |
| Storage temperature | -35℃-+85℃ | |
| Working temperature | -20℃-+50℃ | |
| working voltage | AC110/220V±10% | |
| Average power consumption | <600W/sqm | |
| Max power consumption | <1500W/sqm | |
| brightness adjustment method | Brightness induction automatic adjustment | |
| MTBF | ≥5000hrs | |
| Control system | Display card | DVI graphics |
| Control method | Synchronization | |
| Operation syetem | WIN98,WINXP,WIN2000,etc | |
| display sign | RF,S-Video,RGB,RGBHV,YUV, YC,COMPOSITION, etc | |
