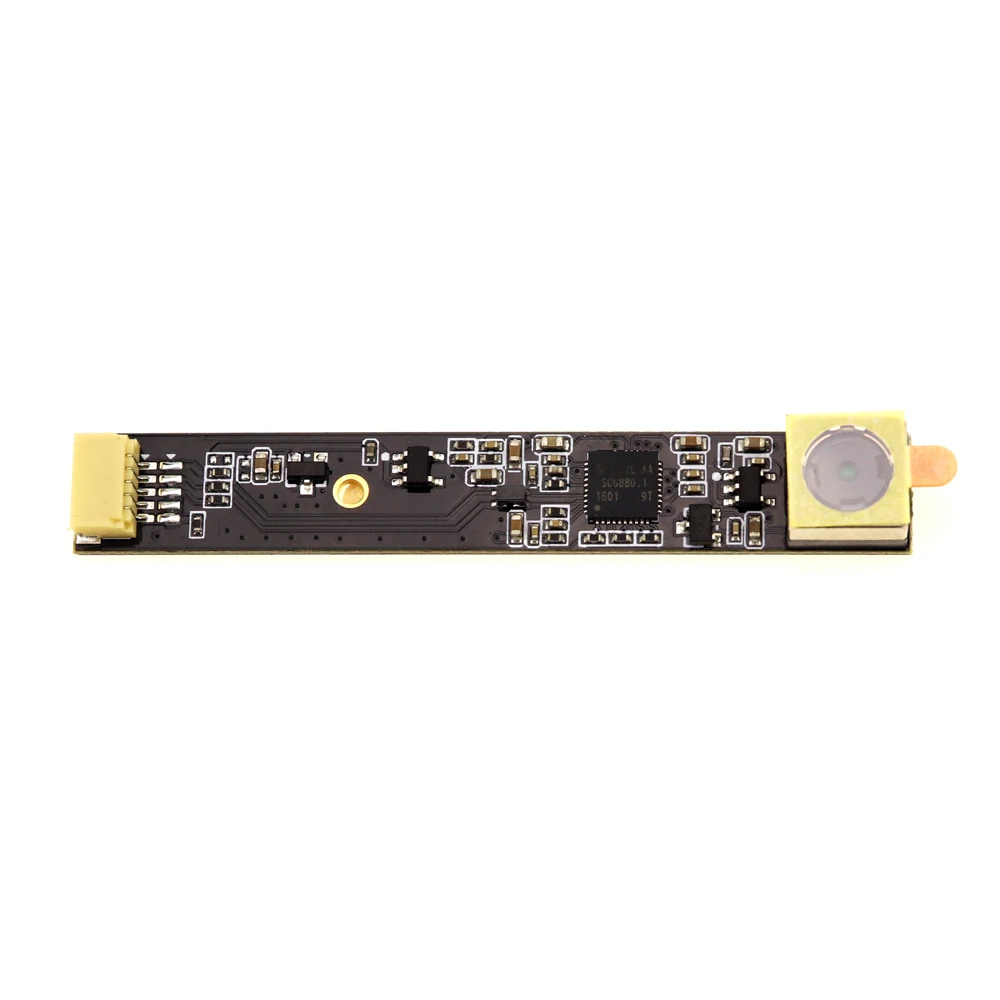

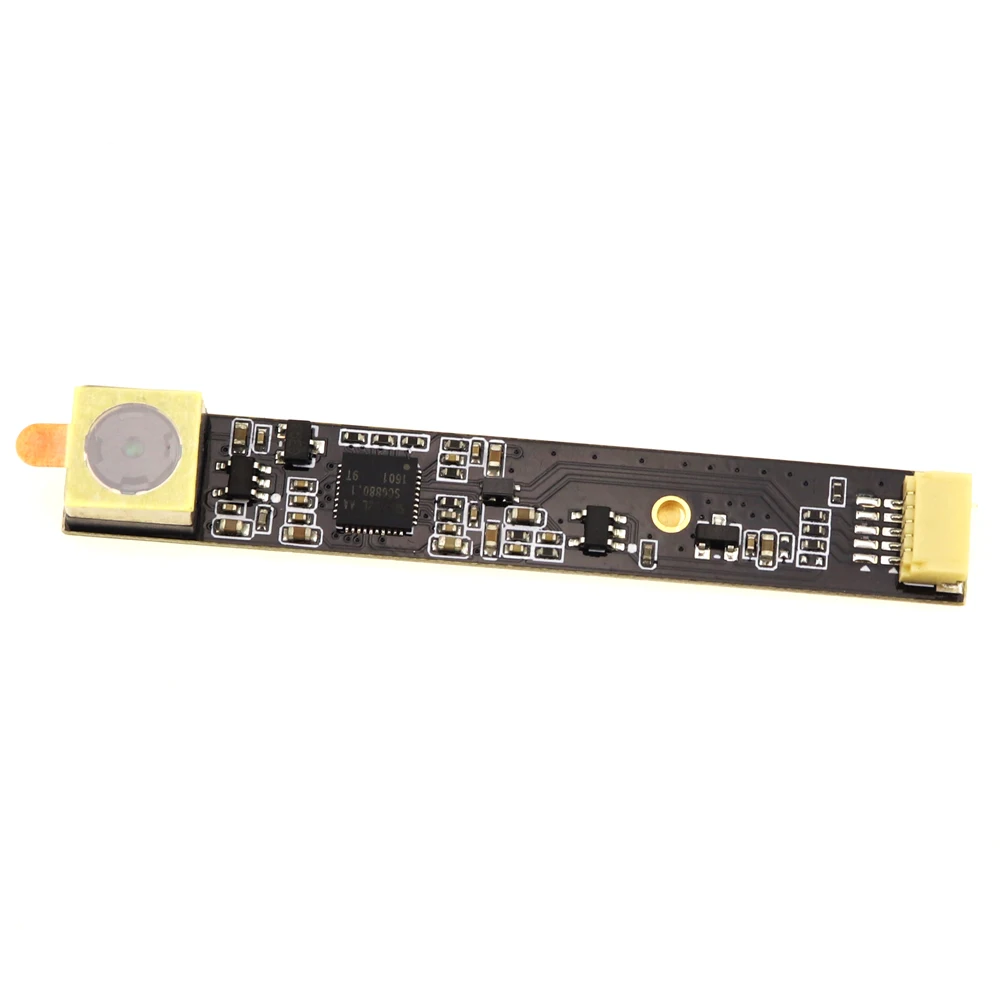

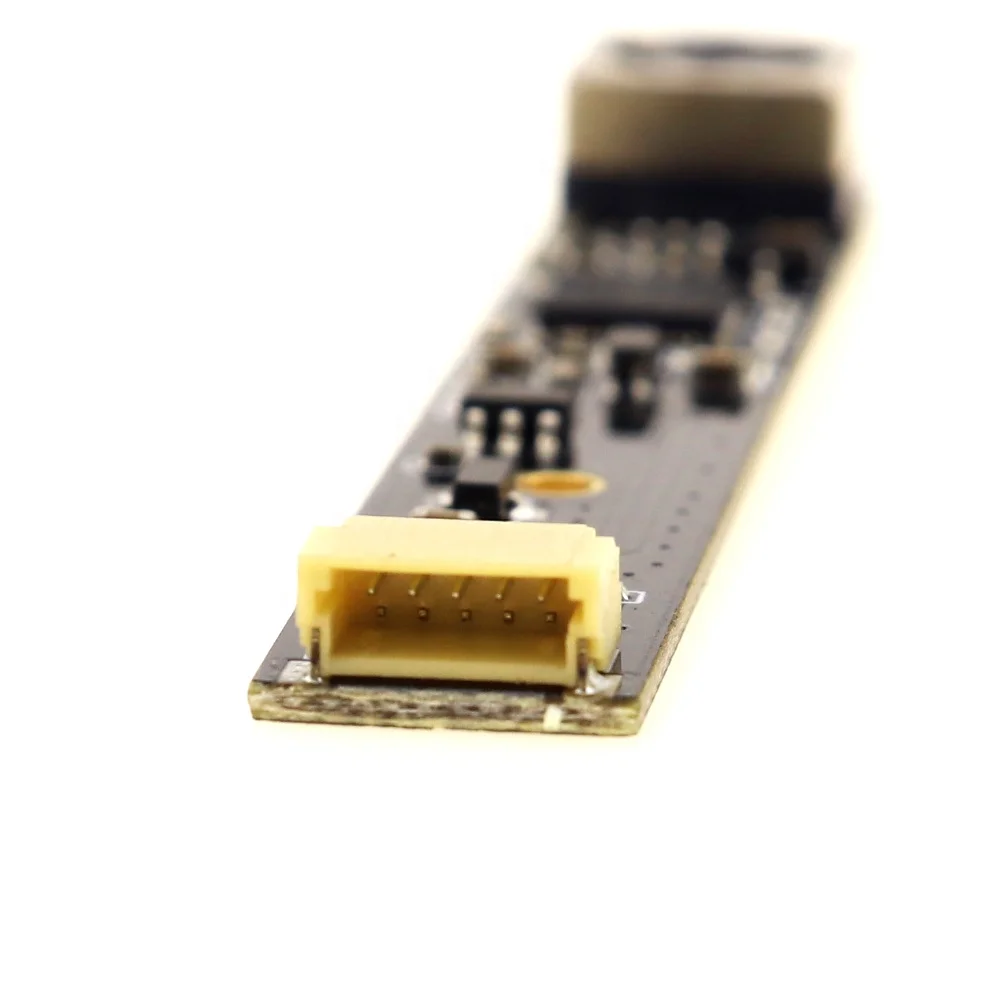

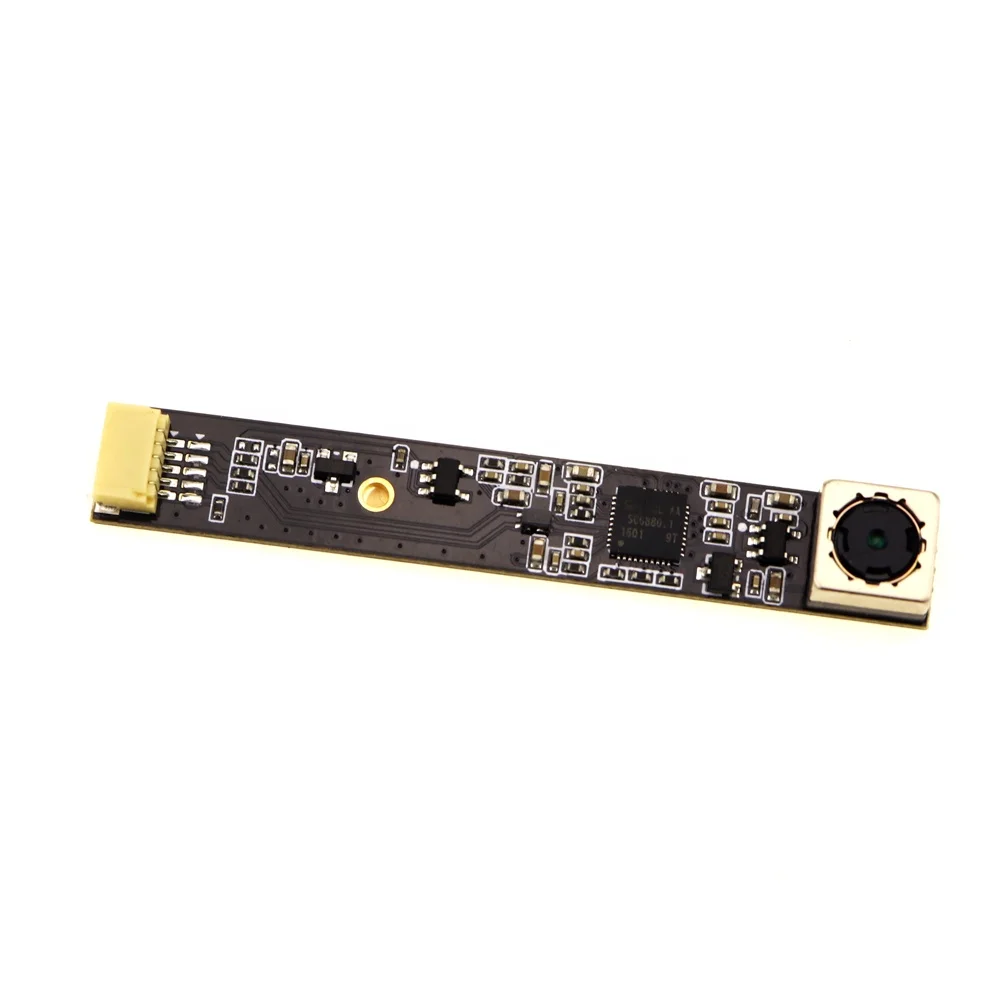

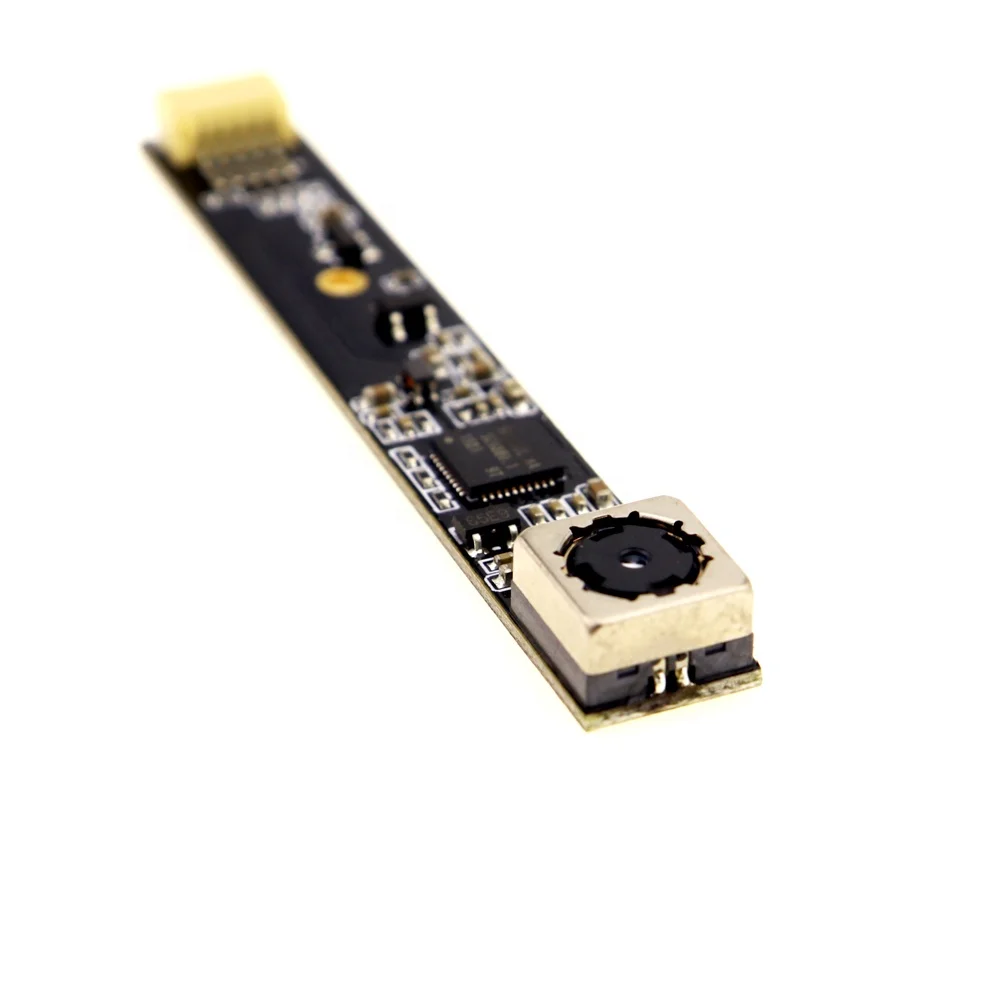

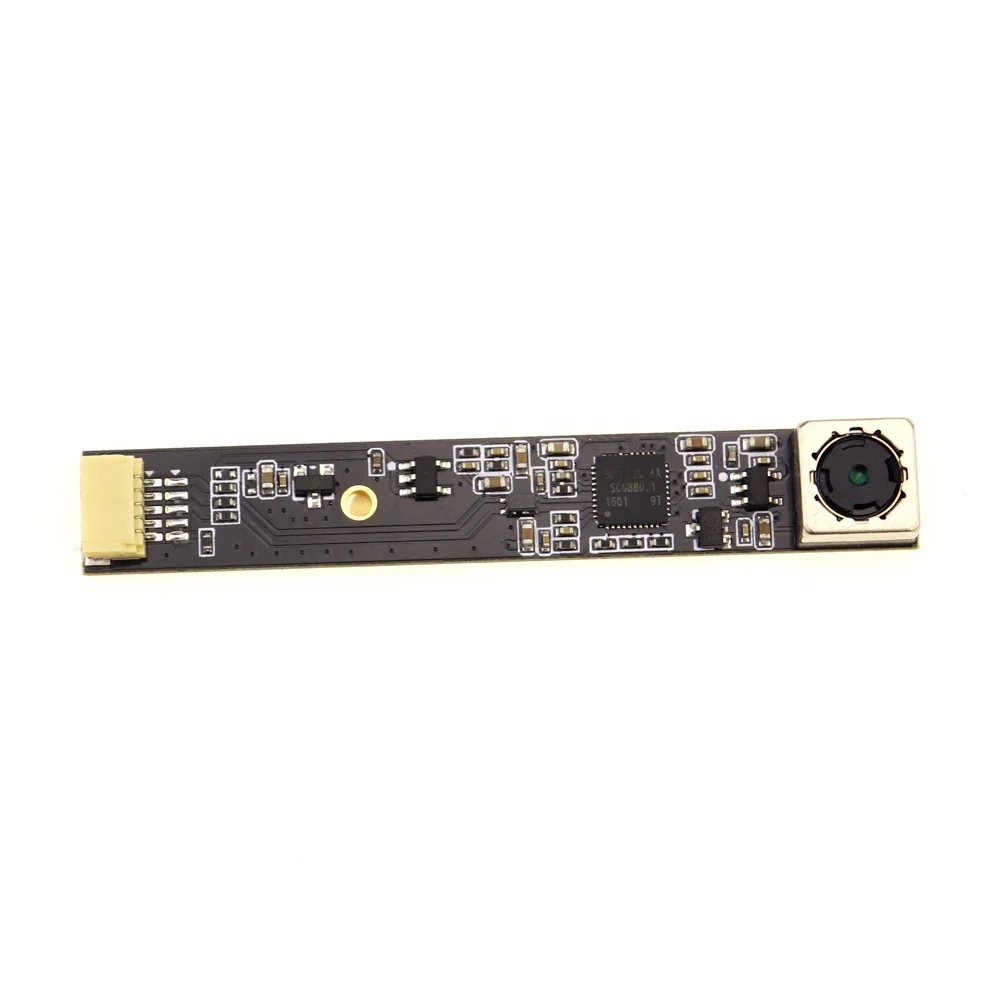

OV5640 5Pin Plug and Plag CMOS 5MP UVC PCB Board Auto Focus Usb OEM Camera Module

Product Overview

Description



500W OV5640 5Pin Plug and Plag CMOS 5MP UVC USB Camera Module PCB Board OEM Auto Focus Usb Webcam

Auto focus USB webcam

SPECIFICATION

    This is the 5.omega pixels and aF camera module with sensor on-board, lens
module and usB2.0 video/image process controller. it is designed for the webcam
application with the low power consumption
     The ov5640(color) image sensor is a low voltage, high performance, 1/4-inch
5 megapixel CMos image sensor that provides the full functionlity of a single chip 5
megapixel(2592X1944)camera using OmniBsi™ technology in a small footprint
package. It provides full-frame, sub-sampled, windowed or arbitrarily scaled
8-bit/10-bit images in various formats via the control of the serial camera control
Bus(sccb) interface



1. Model: 5.0mega AF Camera module(Model: NLK-5MP01A)





2. Size drawing:



3. Application area:

1) Notebook

2) ATM machines

3) Fingerprint identification Equipment

4) Barcode-scanner and other equipment need USB interface for cameras.

4. Features

USB specification compliance

USB 2.0 & 1.1 compliance

USB video V1.1 compliance (UVC)

USB audio V1.0 compliance

USB high speed,full speed auto switching

Supports QSXGA,QXGA,SXGA,1080P,720P,VGA,CIF output formats.

USB Video Class compliant, works with native driver in Microsoft Windows XP 32-bit/64-bit,VISTA 32-bit/64-bit,Windows 7 and Windows 8 system

Auto Exposure (AE). Auto White Balance(AWB)

Auto Flicker Correction. Color Correction.

Gamma Correction.

Dark Level Compensation.

Auto Edge enhancement.

Software controlled connection to USB bus for re-enumeration.

Adjustable and dynamic frame rate control on USB transaction.

Automatic frame rate adjustment when exposure in low light environment.

Selective suspend to minimize power consumption.

5. Key Specification



Parameter		SPEC.
Optical size Sensor		1/4  inch COMS sensor
Sensor Resolution		2592 (H) x 1944 (V),QSXGA
Unit pixel size		1.4um
Color filter		RGB Bayer pattem
Shutter type		Electronic Rolling Shutter
Max.capture frame rate		15fps@full resolution, 15fps@1080P,
Max. video frame rate		30fps@VGA,25fps@720p
View Angle		62°
F Number		2.8
AEC / AGC/ White Balance		Auto
Focus Distance		Auto focus  10CM - ∝/ /with fixed lens 5CM-∝
Interface		USB 2.0
Power		USB Bus Power
Dimensions (mm) (L x W x H)		60mm x 9mm x 5.2 +/-0.2mm
Operating Temperature		0℃to +50°C
Operating System Request		Windows XP/ Windows 7/ Windows 8(UVC), Linux(>V2.6 )
Max pixel rate		28Mp/s
ADC accuracy		10-bit
USB 2.0 PHY		On Chip PHY
Power Consumption	Suspend	90mA±5mA
	Operating	150mA±30mA @ 640x480
