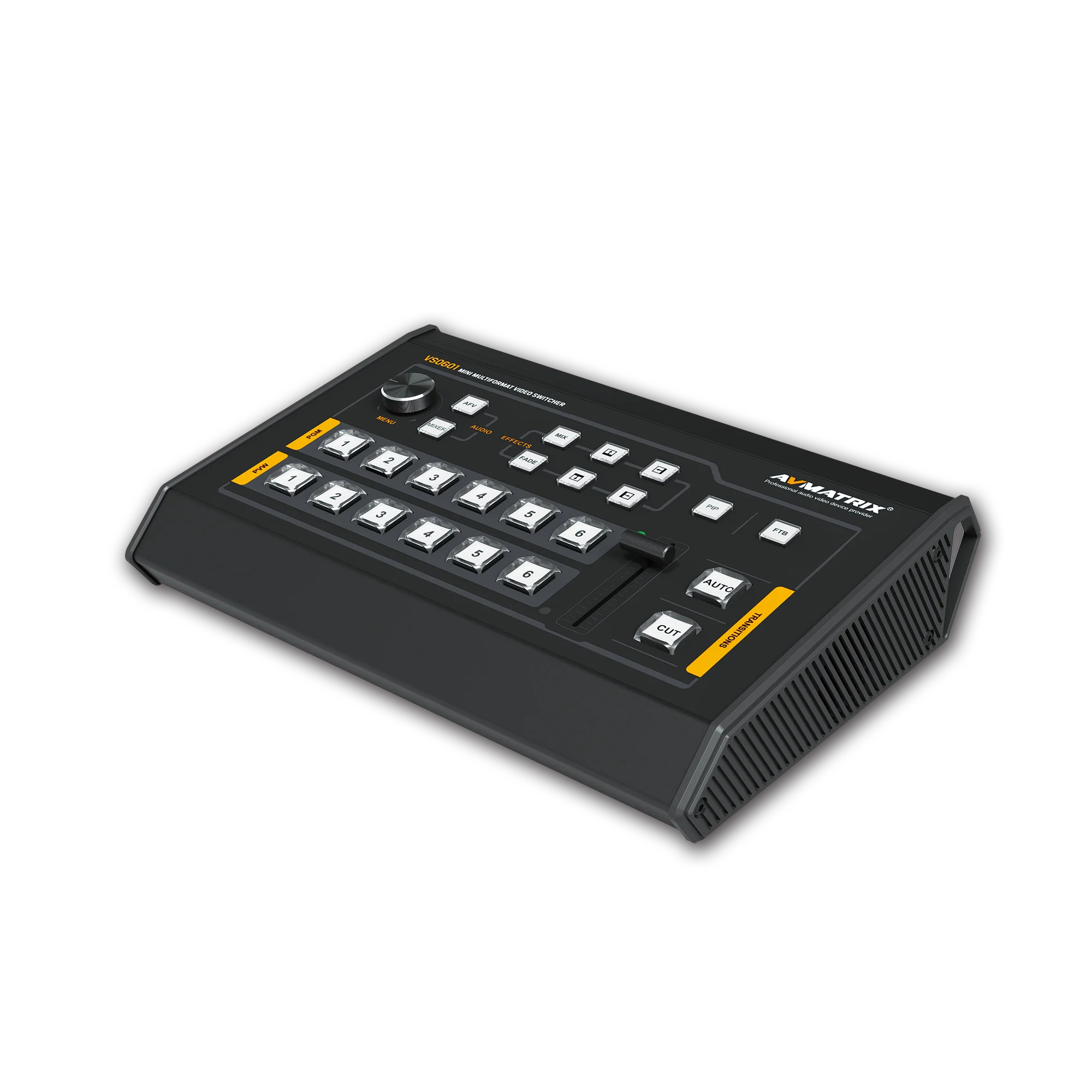

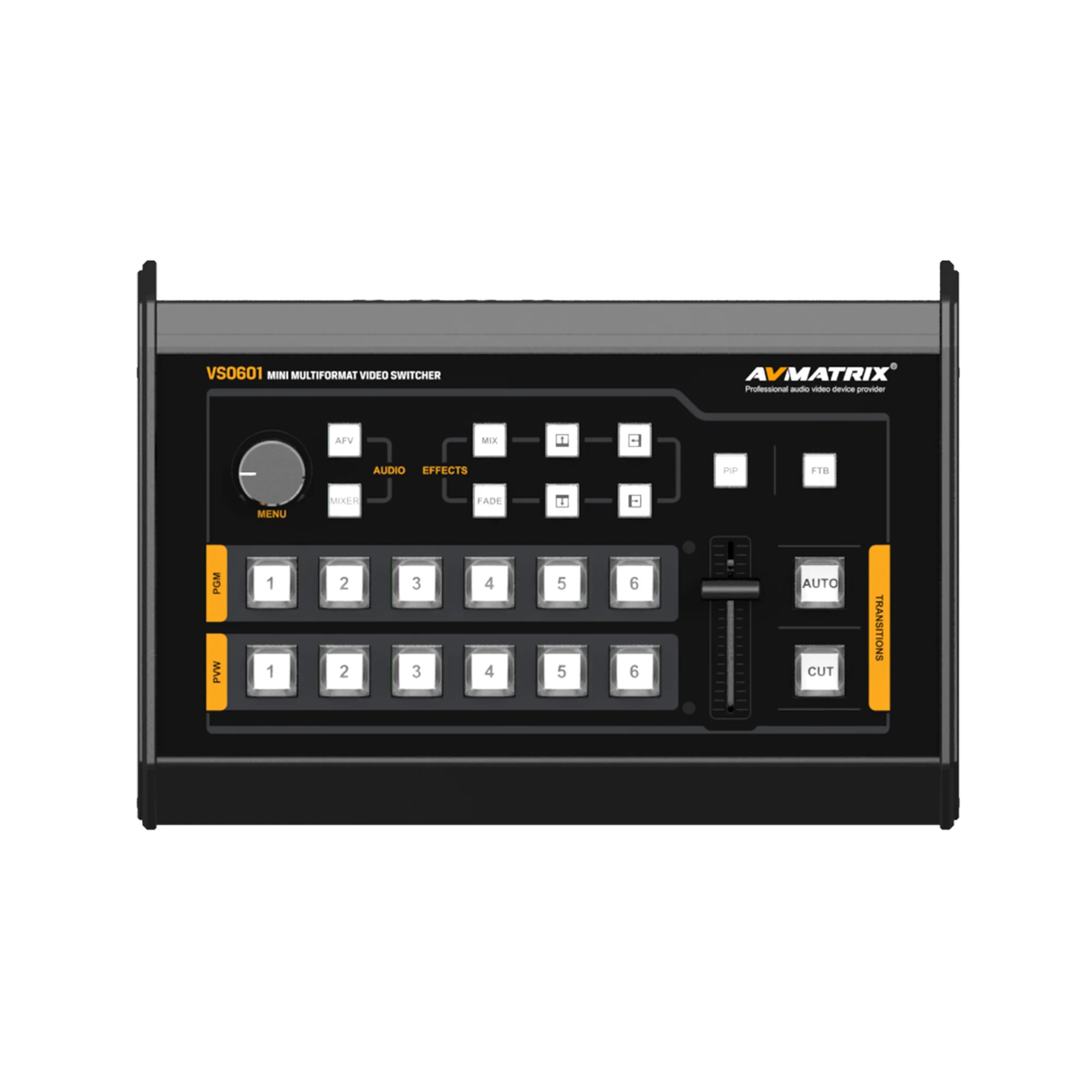

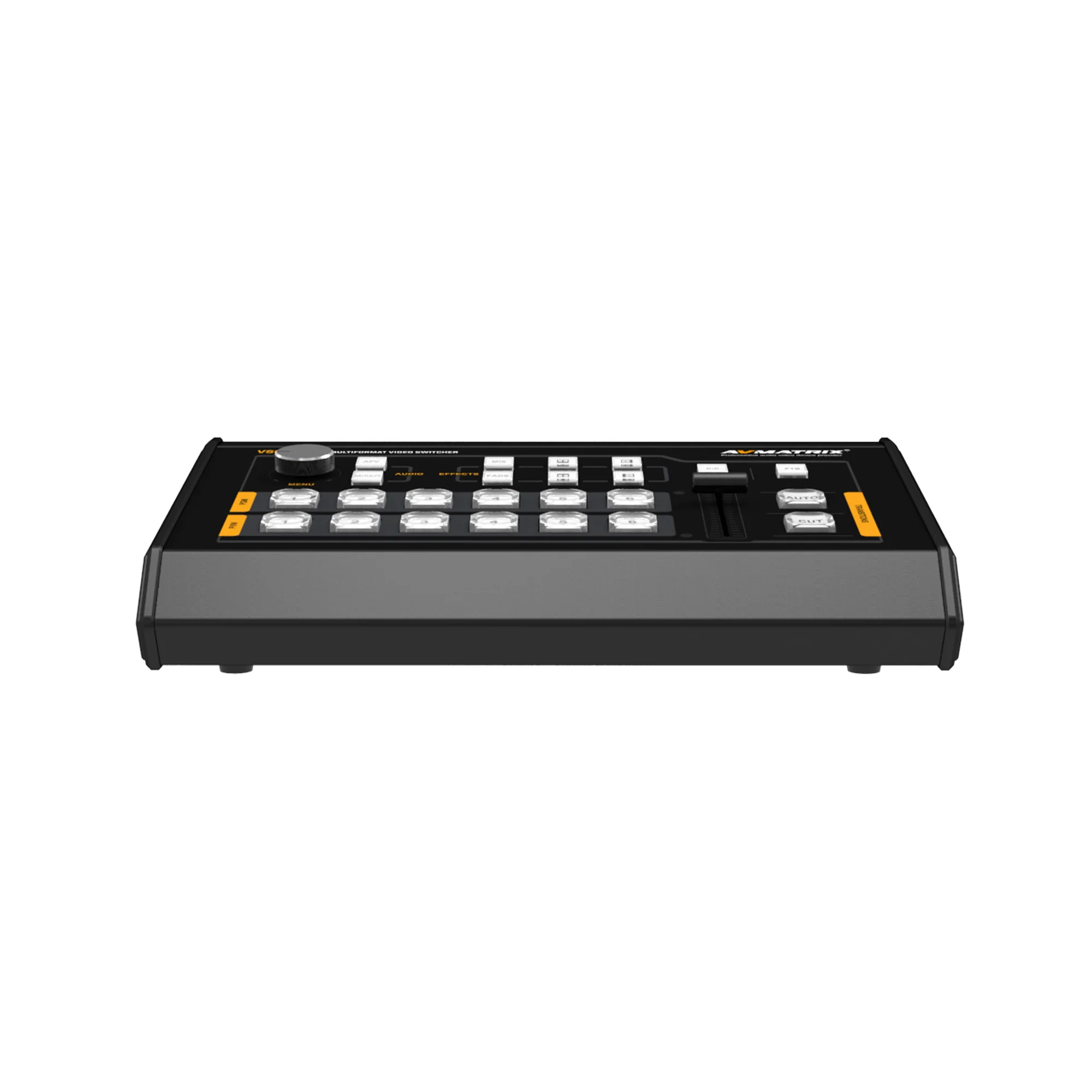

Hot selling digital adjustable audio and video mixer audio professional switcher
- Category: >>>
- Supplier: Zhangzhou Matrix Electronic Technology Co. Ltd.
Share on (62551860416):
Product Overview
Description
Brief Introduction
PVS0601
Hot selling digital adjustable audio and video mixer audio professional switcher

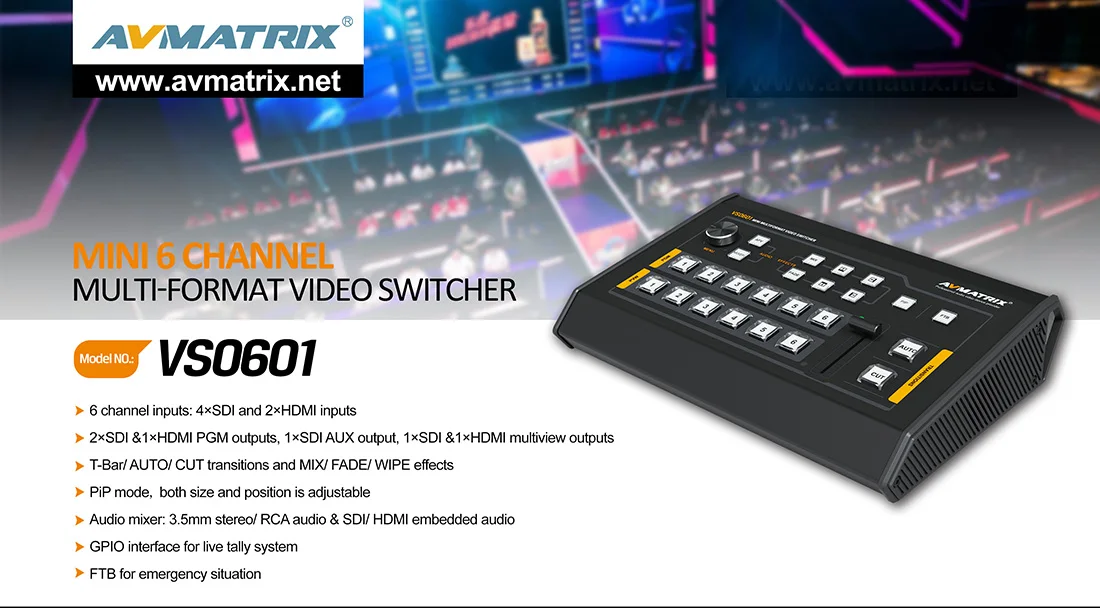

Main Features
- (1) 6 channel inputs: 4×SDI and 2×HDMI inputs

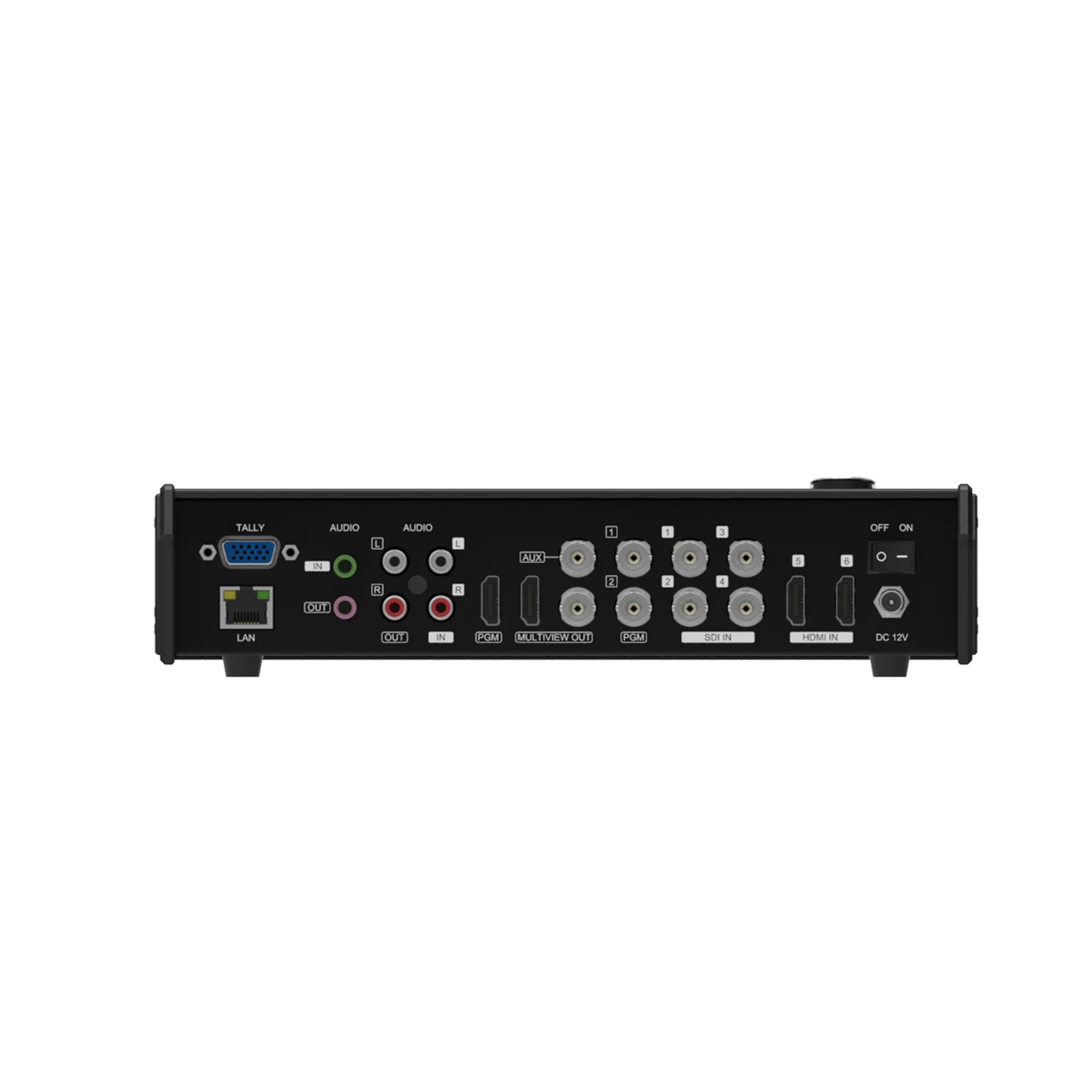

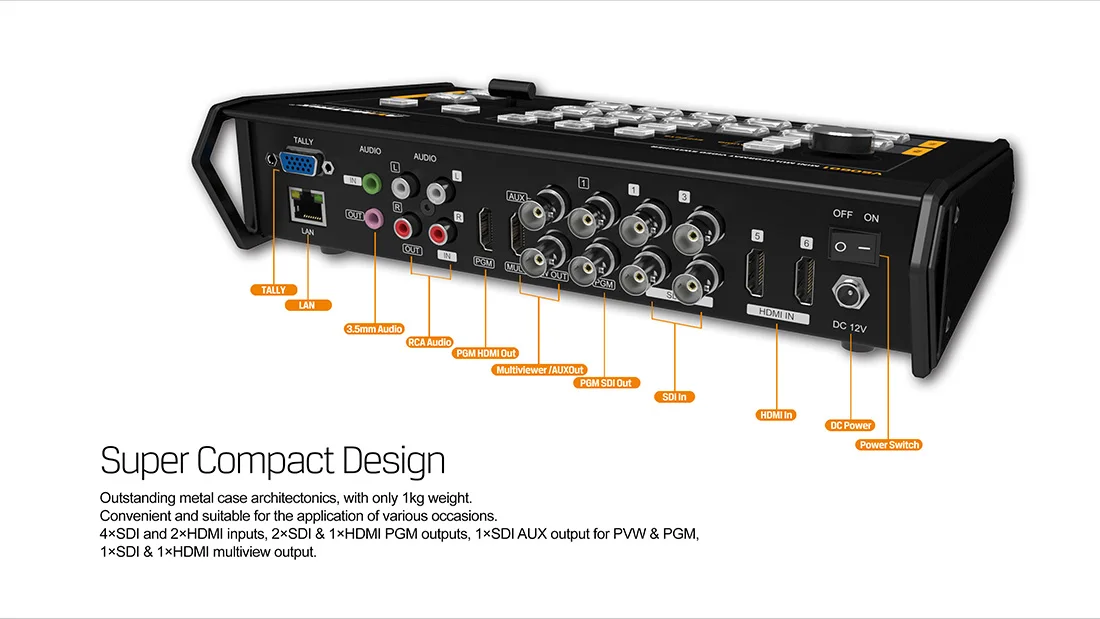

- (2) 2×SDI &1×HDMI PGM outputs, 1×SDI AUX output, 1×SDI &1×HDMI multiview outputs
- (3) 6 input signals autuo detected, multi format signals supported
- (4) T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
- (5) PiP mode, both size and position is adjustable
- (6) Audio mixer: 3.5mm stereo/ RCA audio & SDI/ HDMI embedded audio
- (7) GPIO interface for live tally system
- (8) FTB for emergency situation
Product Description
Multi-format & Scaler
Flexible to accept 6 input sources with different format and frame rate, with build-in scaler, PGM output can be scaled to 1080i and 1080p.
Multiviwer Monitoring
Multiview output make it easy to monitor 6 cameras as well as PVW and PGM on one display at same time. Besides, a clock and menu list are located in the lower right corner of the multiview.
PIP
To insert a second picture into/outside the main picture. Simply adjust the size and position of windows and then overlay on the program.
Transition Effects
Transition between PVW and PGM with Wipe/ Mix/ Fade effect through T-bar & Auto.
Audio Mixer
A built-in audio mixer can mix 2 external stereo 3.5mm &RCA audio and 6ch embedded audios.
Portable Handbag
The switcher comes with a handbag, total around 1.7kg, very portable for taking to anywhere.
About AVMATRIX
After-Sales Service
AVMATRIX converters have earned a reputation for the highest quality and best levels of reliability. Built to the exacting standards of all avmatrix hardware, Mini-converters are backed by our world class support network and advanced replacement policy with 3-year international warrnaty.
About AVMATRIX
AVMATRIX is specialized in processing high definition video signals for years. we have developed and produced a series of pro video devices, including signal converter, multi-viewer, optical fiber converter, signal distribution amplifier, signal generator and matrix switcher, etc.
