E waste recycling machine pcb crushing plant Circuit board shredding machinery :
Scape of application:
It is used for separating metals and non-metals in materials, such as waste circuit boards, CCL, computer boards, cell phone boards, TV boards, copper-clad laminate, and other household appliances,, and recovering metals and resin powder in those materials.
Introduction of E-waste pcb recycling plant flow chart:

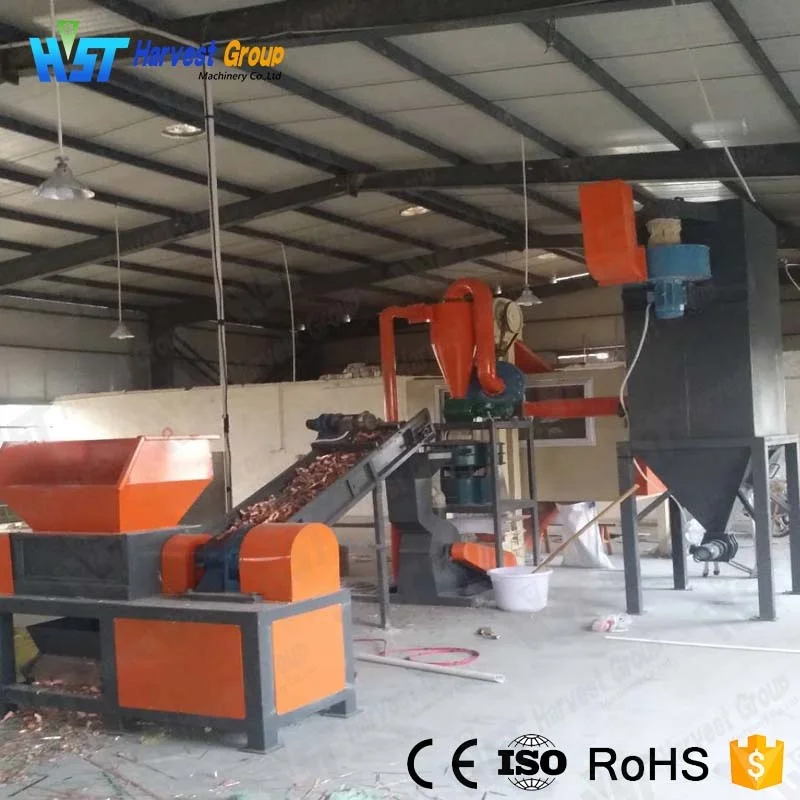

The production line consists of shredding system, milling system, sorting system and dust collection system.
The whole recycling plant is PLC control system.
Through shredding, grinding, vibration screening, (the incompletely separated metal and nonmetal will reentry into the grinding machine to be grinded again) gravity separating, electrostatic separating and pulse dust collecting, the metal and nonmetal will reach about 99% of separation, eventually get metal and non-metallic collective, and the valuable components after dismantling machine can also be recycled refined.
The whole recycling plant is PLC control system.
Through shredding, grinding, vibration screening, (the incompletely separated metal and nonmetal will reentry into the grinding machine to be grinded again) gravity separating, electrostatic separating and pulse dust collecting, the metal and nonmetal will reach about 99% of separation, eventually get metal and non-metallic collective, and the valuable components after dismantling machine can also be recycled refined.

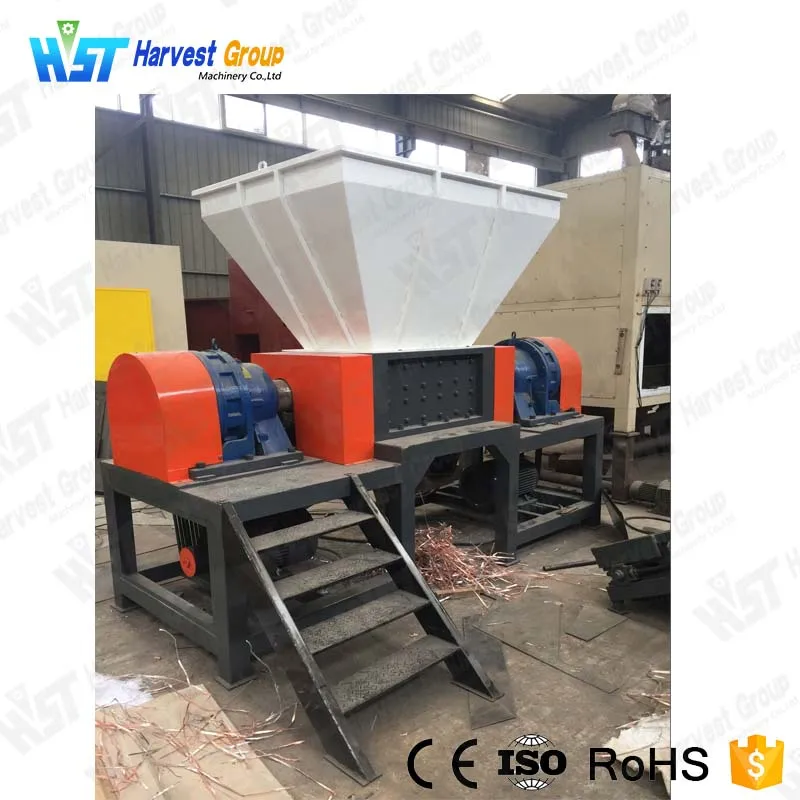

E-waste shredder
Double shafts shredder, the blades use high quality material, working performance is well.

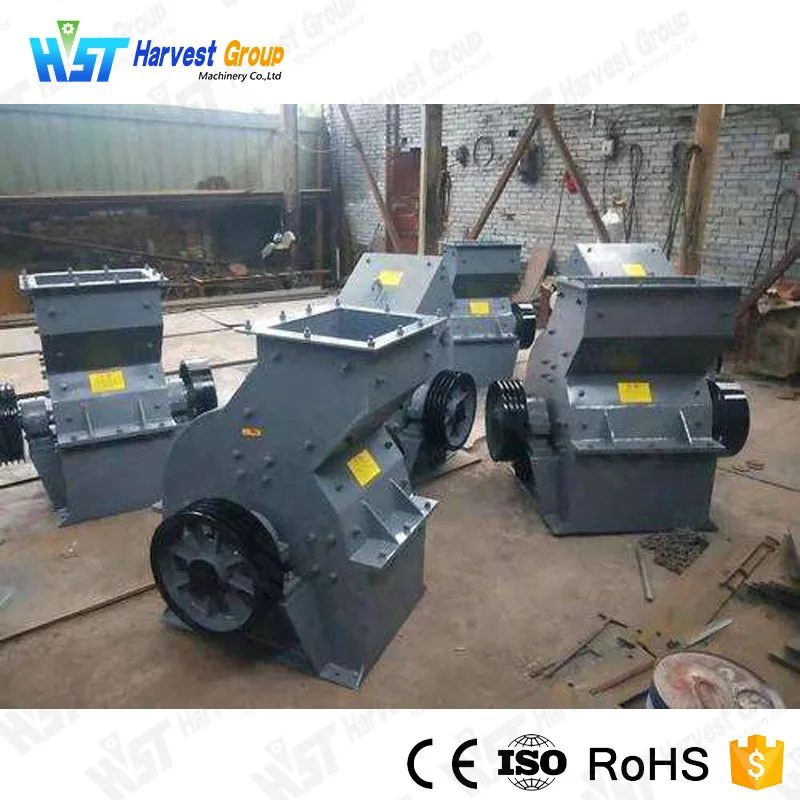

Hammer shredder
Hammer shredder is designed to crush the material into smaller size. High efficiency performance.
Features of pcb recycling machine:
1. The entire assembly line uses the PLC intelligent programming automatic control and man-machine interface touch screen, so
that the even feeding of the entire production line and coordinated work can be realized.
2. Compact structure, reasonable layout, stable performance, noise reduction treatment of the crushing equipment.
3. The crushing part uses shredding, smashing and crushing processes, and circulating water cooling is used inside and outside the crushing chamber.
4. Use the negative pressure feeding system and pulse dust removal system to purify the working environment.
5. The sorting part adopts the proportion sorting combined with the static careful selection, so that the metal recovery rate can reach up to more than 99%..
that the even feeding of the entire production line and coordinated work can be realized.
2. Compact structure, reasonable layout, stable performance, noise reduction treatment of the crushing equipment.
3. The crushing part uses shredding, smashing and crushing processes, and circulating water cooling is used inside and outside the crushing chamber.
4. Use the negative pressure feeding system and pulse dust removal system to purify the working environment.
5. The sorting part adopts the proportion sorting combined with the static careful selection, so that the metal recovery rate can reach up to more than 99%..

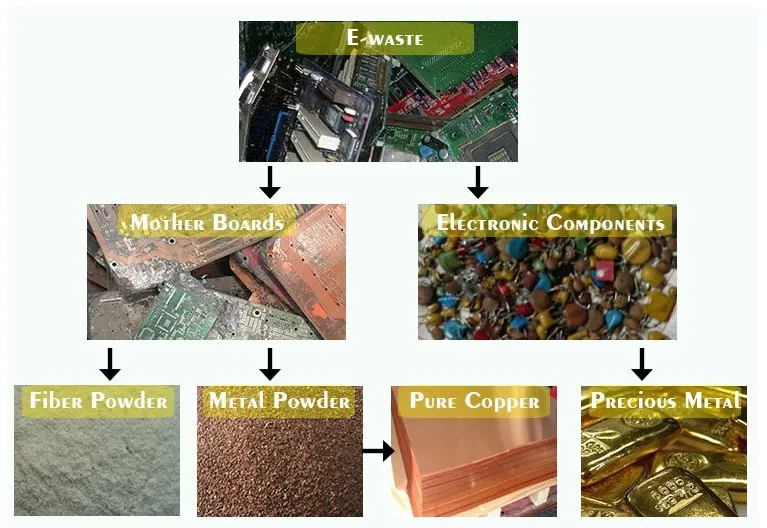

Final products application:
the metals, fiber separated, the separating purity can be reached to 99%.
Size Information
Model | HVST-PCB300 | HVST-PCB500 | HVST-PCB700 | HVST-PCB1000 | |||
Capacity | 300kg/h | 500kg/h | 700kg/h | 1000kg/h | |||
Power | 102KW | 134KW | 194kw | 219.3kw | |||
Weight | 15t | 20t | 25t | 30t | |||
Tips | the metal recovery rate can reach up to more than 99% | ||||||
FAQ
Q: When we establish one kind of shredder machine, can we use it to shred other materials?
A: Yes, you can. We will design the shredder machine for you as per your materials.
Q: How to choose a suitable shredder?
Q: How to choose a suitable shredder?
A: Please tell us your raw material and what capacity you need, we will recommend you the most suitable shredder.
Q: What About The Machine Installation?
Q: What About The Machine Installation?
A: For the Scrap Circuit Board Crusher Shredder PCB Recycling Machine installation, we will provide you the wire connection drawing and technical support, normally you can finish by yourself; but if you really need our technician, we will send technician to your working site as required.
Q: How about the machine quality test?
Q: How about the machine quality test?
A: We will test every machine and production line before delivery and send you the working video. You also can come to us for inspection before delivery.
