NK30/30 Needle Roller Bearings NK Series Without Inner Ring 30x40x30 mm

Product Overview

Description

NK30/30 Needle Roller Bearings NK Series Without Inner Ring 30x40x30 m

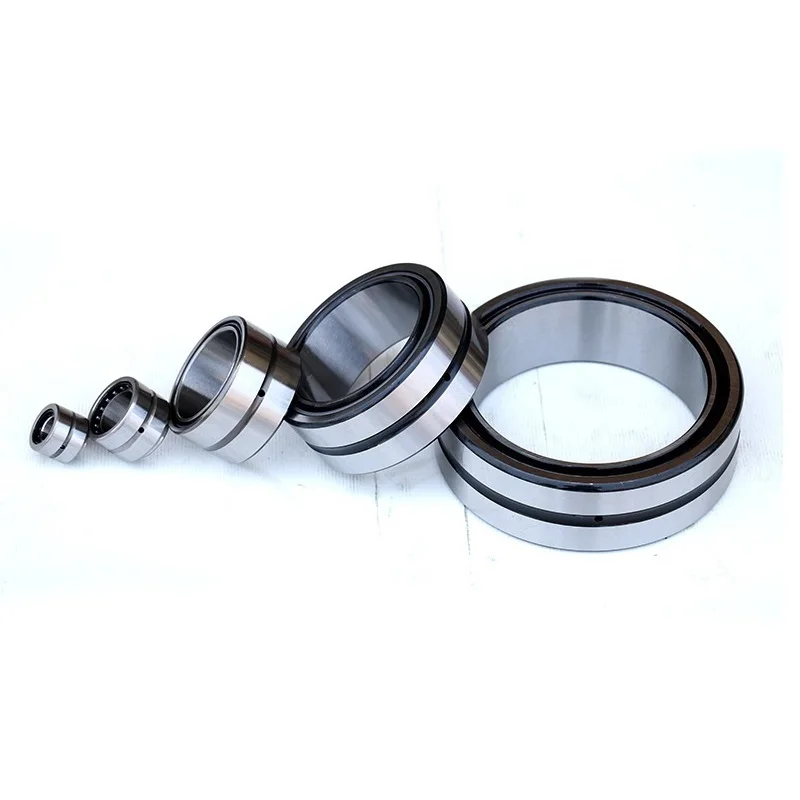

C&H Roller bearings are with cylindrical needle rollers, needle roller bearings have a compact structure, because the ratio of the inner diameter and the outer diameter of the bearing is small, so it has a relatively large radial load capacity. Therefore, it is very suitable for occasions where radial space is limited. This type of bearing is suitable for occcsions where shaft and seat hole can be used as rolling raceway . Main applications are Automotive, machine tools, textile and other types of machinery. Compared to ball bearings and ordinary roller bearings, needle bearings have a greater surface area in contact with the races, so they can support a greater load. They are also thinner, so they require less clearance between the axle and the surrounding structure.



• it consists of a machined outer ring, a needle roller and cage assembly


• ultra clean bearing steel race, fine superfinish OD and end face, nylon cage


• temperature resistance ranging from -10 °C up to 100 °C


• suitable for the shaft can be hardened and ground

Shaft diameter (mm):	30
Outside diameter (mm):	40
Width (mm):	30
Radius (mm):	0.15
Weight (kg):	0.098
Race material	ultra clean chrome steel
Roller material:	ultra clean chrome steel
Cage material:	Nylon 66

Designation	Fw	D	C	Mass	Dyn Load	Stat.Load	Max rpm
	mm	mm	mm	kg	N	N
NK 5/10 TN	5	10	10	0.003	2350	1920	37000
NK 5/12 TN	5	10	12	0.004	3000	2650	37000
NK 6/10 TN	6	12	10	0.005	2600	2280	33000
NK 6/12 TN	6	12	12	0.006	3350	3150	33000
NK 7/10 TN	7	14	10	0.007	2850	2650	31000
NK 7/12 TN	7	14	12	0.008	3650	3600	31000
NK 8/12 TN	8	15	12	0.009	3950	4100	29000
NK 8/16 TN	8	15	16	0.012	5100	5800	29000
NK 9/12 TN	9	16	12	0.010	4500	5000	28000
NK 9/16 TN	9	16	16	0.013	5900	7100	28000
NK 10/12 TN	10	17	12	0.010	4750	5500	27000
NK 10/16 TN	10	17	16	0.013	6200	7800	27000
NK 12/12	12	19	12	0.012	6400	7100	25000
NK 12/16	12	19	16	0.016	9000	11000	25000
NK 14/16	14	22	16	0.021	10100	11500	24000
NK 14/20	14	22	20	0.026	12800	15600	24000
NK 15/16	15	23	16	0.022	10700	12700	23000
NK 15/20	15	23	20	0.027	13600	17200	23000
NK 16/16	16	24	16	0.022	11300	13900	22000
NK 16/20	16	24	20	0.028	14400	18800	22000
NK 17/16	17	25	16	0.024	11900	15000	22000
NK 17/20	17	25	20	0.030	15100	20400	22000
NK 18/16	18	26	16	0.025	12500	16200	21000
NK 18/20	18	26	20	0.031	15800	22000	21000
NK 19/16	19	27	16	0.026	13000	17400	21000
NK 19/20	19	27	20	0.032	16500	23600	21000
NK 20/16	20	28	16	0.027	13000	17500	20000
NK 20/20	20	28	20	0.034	16400	23800	20000
NK 21/16	21	29	16	0.028	13500	18700	20000
NK 21/20	21	29	20	0.035	17100	25500	20000
NK 22/16	22	30	16	0.030	14000	19900	19000
NK 22/20	22	30	20	0.037	17700	27000	19000
NK 24/16	24	32	16	0.032	15000	22300	18000
NK 24/20	24	32	20	0.040	19000	30500	18000
NK 25/16	25	33	16	0.033	14900	22400	17000
NK 25/20	25	33	20	0.042	18800	30500	17000
NK 26/16	26	34	16	0.034	15300	23600	16000
NK 26/20	26	34	20	0.042	19400	32000	16000
NK 28/20	28	37	20	0.052	22000	34000	15000
NK 28/30	28	37	30	0.082	33000	57000	15000
NK 29/20	29	38	20	0.054	21900	34000	15000
NK 29/30	29	38	30	0.084	32500	57000	15000
NK 30/20	30	40	20	0.065	22600	36000	14000
NK 30/30	30	40	30	0.098	33500	60000	14000
NK 32/20	32	42	20	0.068	23100	37500	13000
NK 32/30	32	42	30	0.102	34500	63000	13000
NK 35/20	35	45	20	0.074	24300	41500	12000
NK 35/30	35	45	30	0.112	36500	69000	12000
NK 37/20	37	47	20	0.077	24900	43500	12000
NK 37/30	37	47	30	0.113	37000	73000	12000
NK 38/20	38	48	20	0.079	25500	45000	11000
NK 38/30	38	48	30	0.116	38000	76000	11000
NK 40/20	40	50	20	0.083	26000	47000	11000
NK 40/30	40	50	30	0.125	39000	79000	11000
NK 42/20	42	52	20	0.086	26500	49000	10000
NK 42/30	42	52	30	0.130	39500	82000	10000
NK 43/20	43	53	20	0.086	27000	51000	10000
NK 43/30	43	53	30	0.133	40500	85000	10000
NK 45/20	45	55	20	0.092	27500	53000	10000
NK 45/30	45	55	30	0.139	41000	88000	10000
NK 47/20	47	57	20	0.095	28500	56000	9500
NK 47/30	47	57	30	0.142	43000	94000	9500
NK 50/25	50	62	25	0.158	38000	74000	9000
NK 50/35	50	62	35	0.221	50000	106000	9000
NK 55/25	55	68	25	0.180	40000	82000	8000
NK 55/35	55	68	35	0.250	53000	118000	8000
NK 60/25	60	72	25	0.185	42000	90000	7500
NK 60/35	60	72	35	0.258	56000	130000	7500
NK 65/25	65	78	25	0.221	44000	98000	7000
NK 65/35	65	78	35	0.310	59000	142000	7000
NK 68/25	68	82	25	0.241	43500	89000	6500
NK 68/35	68	82	35	0.338	62000	139000	6500
NK 70/25	70	85	25	0.260	44500	92000	6500
NK 70/35	70	85	35	0.370	63000	144000	6500
NK 73/25	73	90	25	0.302	53000	100000	6000
NK 73/35	73	90	35	0.428	75000	156000	6000
NK 75/25	75	92	25	0.315	54000	104000	6000
NK 75/35	75	92	35	0.445	77000	162000	6000
NK 80/25	80	95	25	0.301	56000	119000	5500
NK 80/35	80	95	35	0.425	78000	184000	5500
NK 85/25	85	105	25	0.425	69000	123000	5000
NK 85/35	85	105	35	0.600	98000	193000	5000
NK 90/25	90	110	25	0.450	72000	132000	4900
NK 90/35	90	110	35	0.630	103000	208000	4900
NK 95/26	95	115	26	0.490	73000	137000	4700
NK 95/36	95	115	36	0.680	107000	223000	4700
NK 100/26	100	120	26	0.515	76000	146000	4500
NK 100/36	100	120	36	0.715	111000	237000	4500
NK 105/26	105	125	26	0.540	78000	155000	4300
NK 105/36	105	125	36	0.713	114000	250000	4300
NK 110/30	110	130	30	0.650	98000	210000	4100
NK 110/40	110	130	40	0.830	127000	290000	4100
NK 120/40	120	140	40	0.910	113000	275000	3800
NK 155/32	155	180	32	1.200	114000	260000	2900
