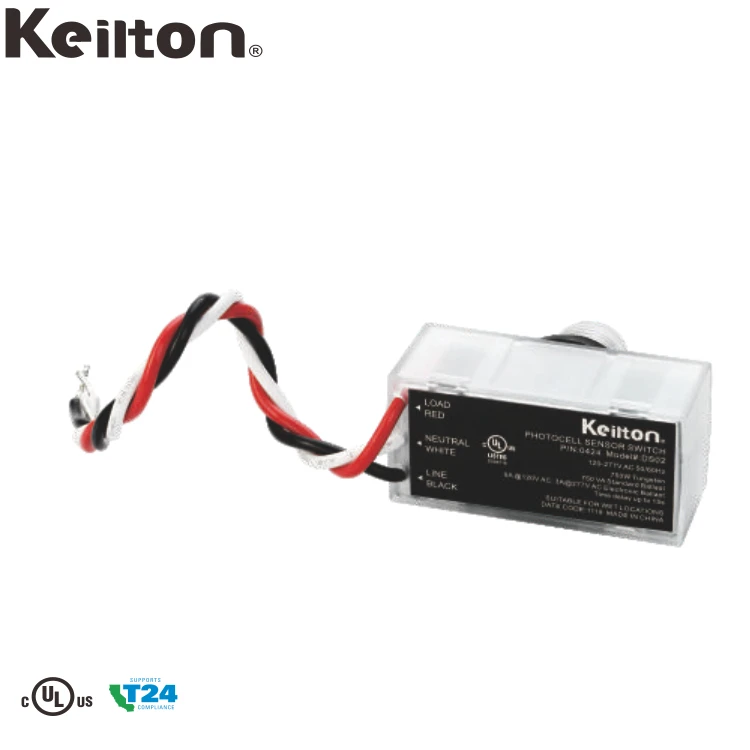

1, Automatic ON/OFF-This photocell sensor replaces existing photocells and automatically turns lights ON at dusk and OFF at dawn, light up when it should be to save energy cost
2,Delay Function-This photocell sensor has the delay function to prevent the light turn off due to car headlights, lightning, or other temporary light sources
3,Safe and Security-UL listed with UL773A lighting control standard. Use UL qualified components and shell material, up to 5,000 times On/Off switch, IP65, high reliable patented product
4, Wide Application-Universal voltage and easy installation make it perfectly work with wall pack, driveway and walkway lighting, post lamp, pole lantern, entry way porch light and other fixtures
5, Electrical Rating-Input 120-277V AC, 50/60Hz, Max. load: 750W tungsten, 600W electronic ballast@120V AC, 800W electronic ballast@277V AC, Power consumption 0.8W

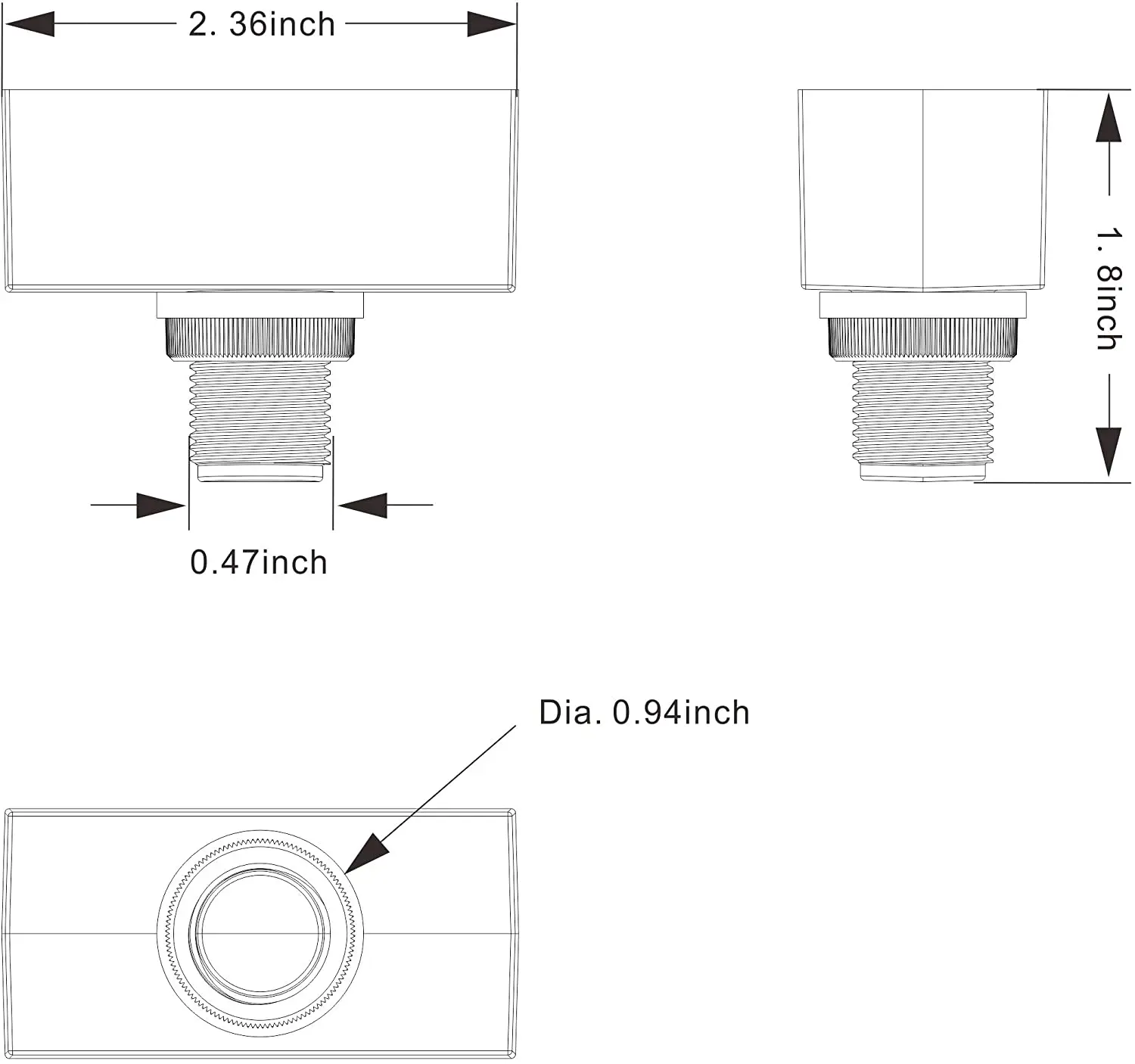

Specification
FAQ
How Do You Install?

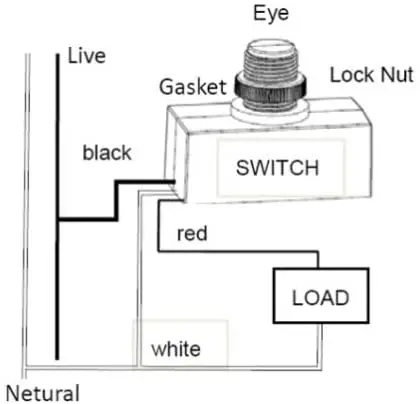

Step 1: Shut OFF the power at the breaker. Step 2: Use a hole puncher to punch a Dia. 0.6" knockout on junction box if needed. Step 3: Screw out the lock nut from the sensor. Step 4: Let the sensor's eye go through the knockout then secure the sensor with the lock nut. Step 5: Connect the wires according to the wire diagram, black to black (Line), white to white (Neutral), red to Load.
Tips.
When you decide where to install the sensor: 1, Do not face the photocell into the midday sun. If the photo control is installed on the south side of a building, face the photocell east or west or point the photo control down toward the ground. The best direction to face the photo control is north. 2, Do not face the photocell to artificial or relected light. Light from windows, signs, street lights, etc., will cause the photo control not to switch on or cause the light to cycle on and off at night.
How Do You Test DS02 ?
Step 1: Turn ON the light power, then wait up to 5 minutes for the photocell to switch it OFF. Step 2: Cover the photocell eye completely with black tape or other dack material to simulate night condition. Wait about 8~15s, the light should be switched OFF.
