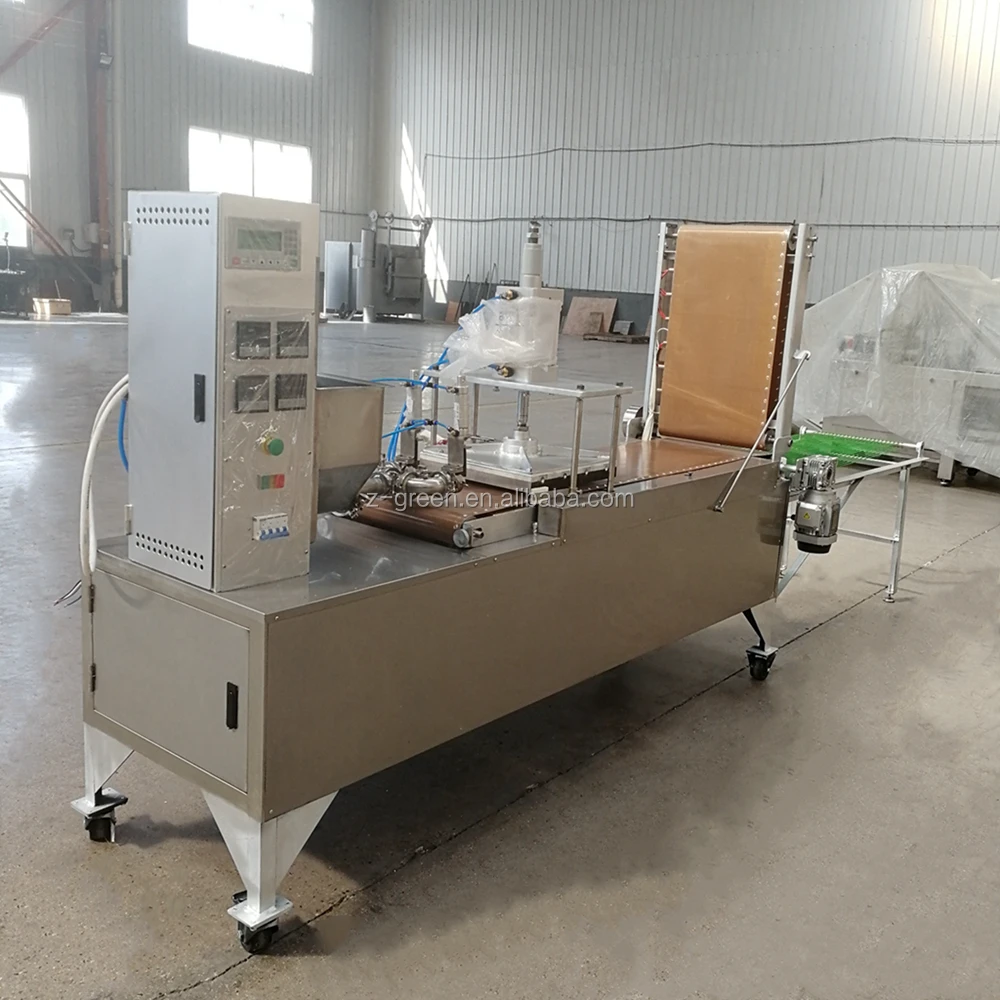

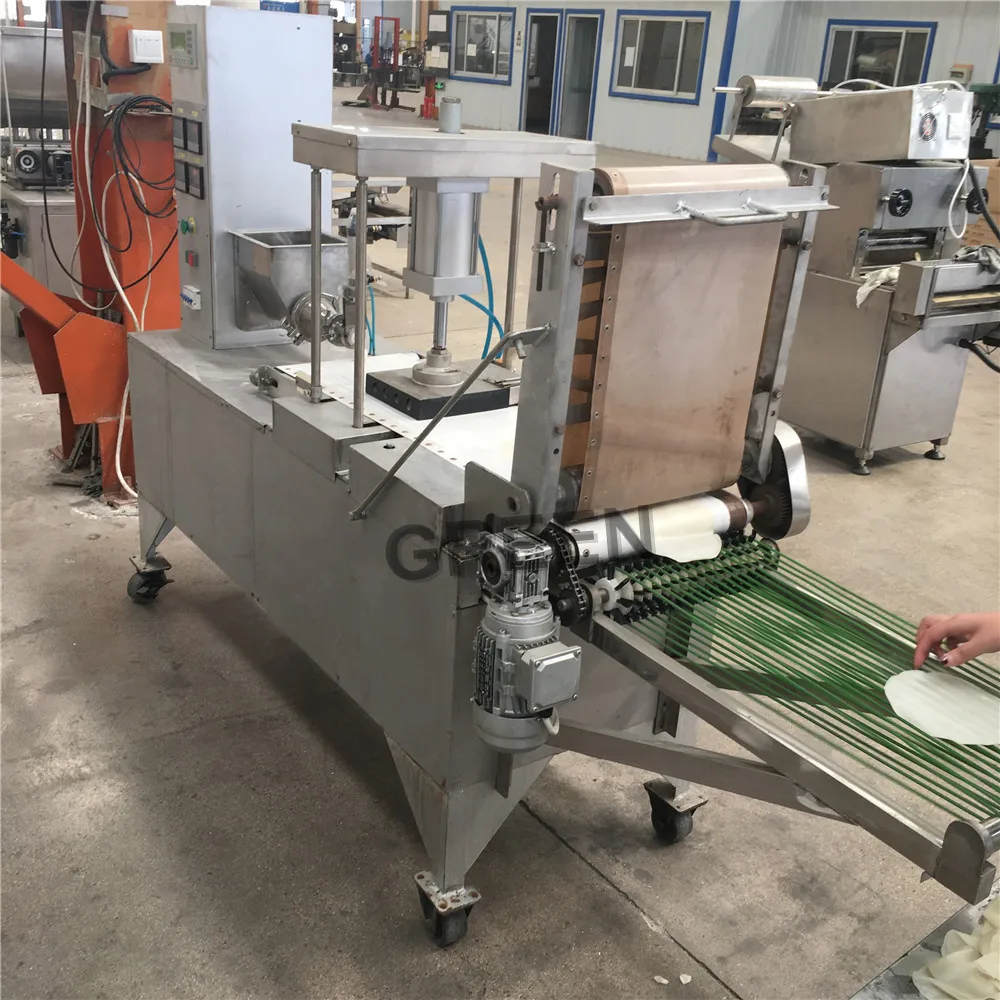

Corn Tortilla Machine Maker Warmer from Zhucheng
- Category: >>>
- Supplier: Weifang Green Food Machinery Co. Ltd.
Share on (62551994411):
Product Overview
Description

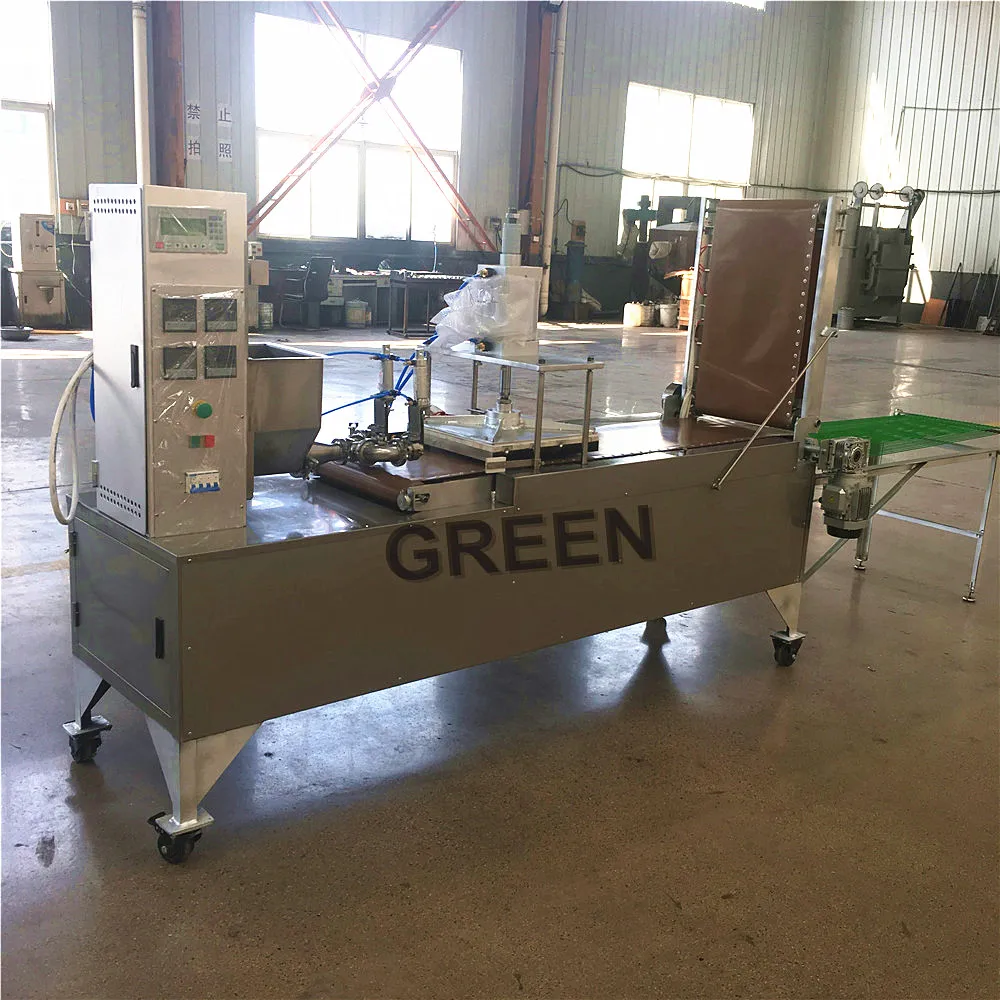

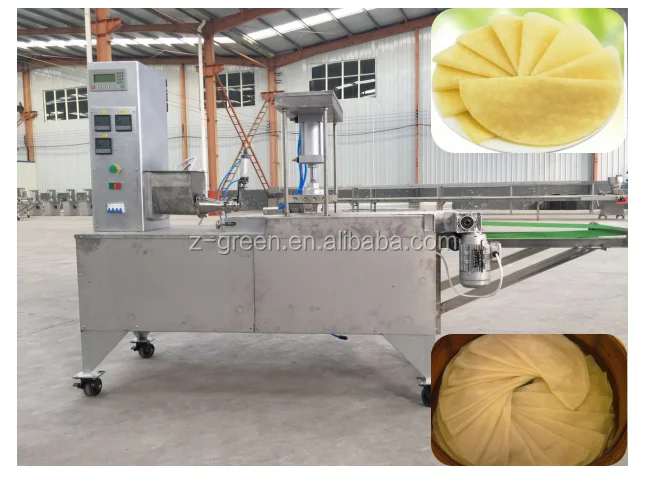

Description of Full Automatic Pancake Pressing Machine:

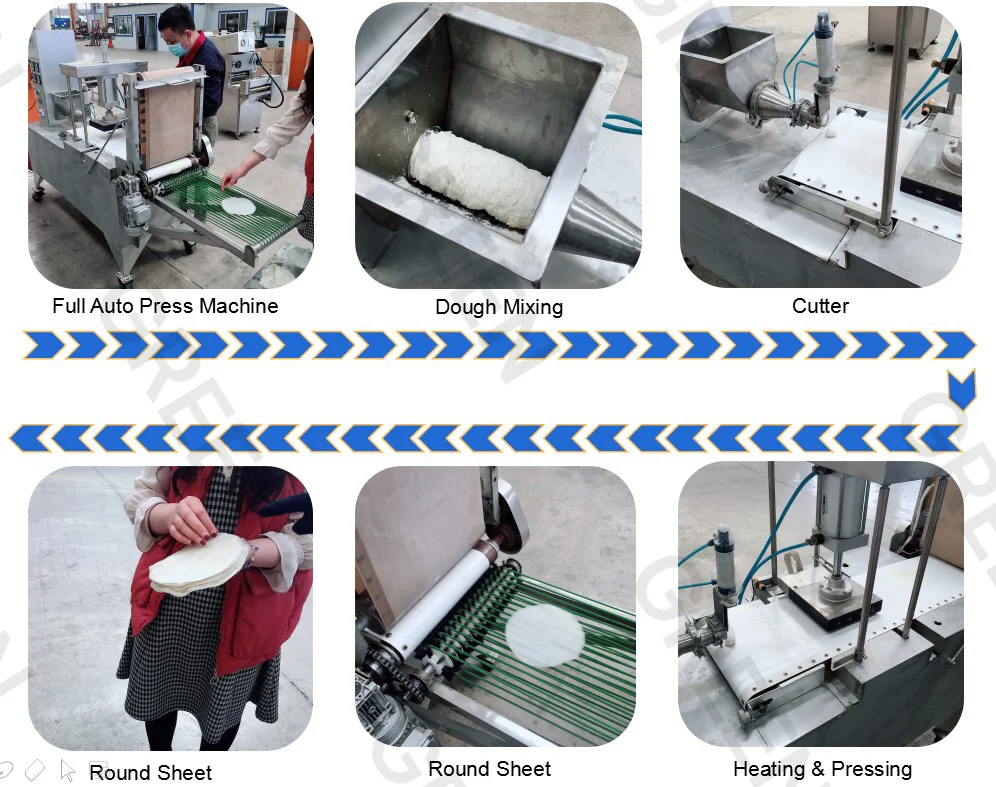

1. New automatic pancake press machine is including the automatic dough dividing, automatic pancake press, automatic curing,automatic pancake counting.
2. The divided dough can be accurate to grams, the size is adjustable.
3. It is easy to operate, the end pancake thickness is 0.4-0.8mm which is adjustable. It is mainly used for roast duck bread, single cake, baked bread cake, lotus leaf cake and other flour cakes.
1. New automatic pancake press machine is including the automatic dough dividing, automatic pancake press, automatic curing,automatic pancake counting.
2. The divided dough can be accurate to grams, the size is adjustable.
3. It is easy to operate, the end pancake thickness is 0.4-0.8mm which is adjustable. It is mainly used for roast duck bread, single cake, baked bread cake, lotus leaf cake and other flour cakes.
Detailed Images
1. Fast speed, the preset heating temperature and heating time can finish pressing and heating within the set time (only a few seconds).
2. High efficiency, 800-1200 sheets can be made per hour.
3. Well-shaped, uniform thickness, smooth and round, even heating and better taste of the flour cake pressed by the machine mold.
Features:
1. Fast speed, the preset heating temperature and heating time can finish pressing and heating within the set time (only a few seconds).
2. High efficiency, 800-1200 sheets can be made per hour.
3. Well-shaped, uniform thickness, smooth and round, even heating and better taste of the flour cake pressed by the machine mold.
Features:
4.Simple operation, turn on the power switch, set the heating time and temperature, press the start switch, press down the mould of the cake press, and automatically reset when the setting time is completed.
5. The size of duck cake is 14.5cm and the weight is about 9g. Duck bread skin is thin, transparent,soft, waxy, fragrant, tough.
5. The size of duck cake is 14.5cm and the weight is about 9g. Duck bread skin is thin, transparent,soft, waxy, fragrant, tough.
Technology Parameters:
Model | YBZ200 | YBZ300 | YBZ400 | |||
Heating power | 2*5.5KW | 2*5.5KW | 2*7.5KW | |||
Motor power | 0.75+0.55KW | 1.1+0.75KW | 1.1+0.75KW | |||

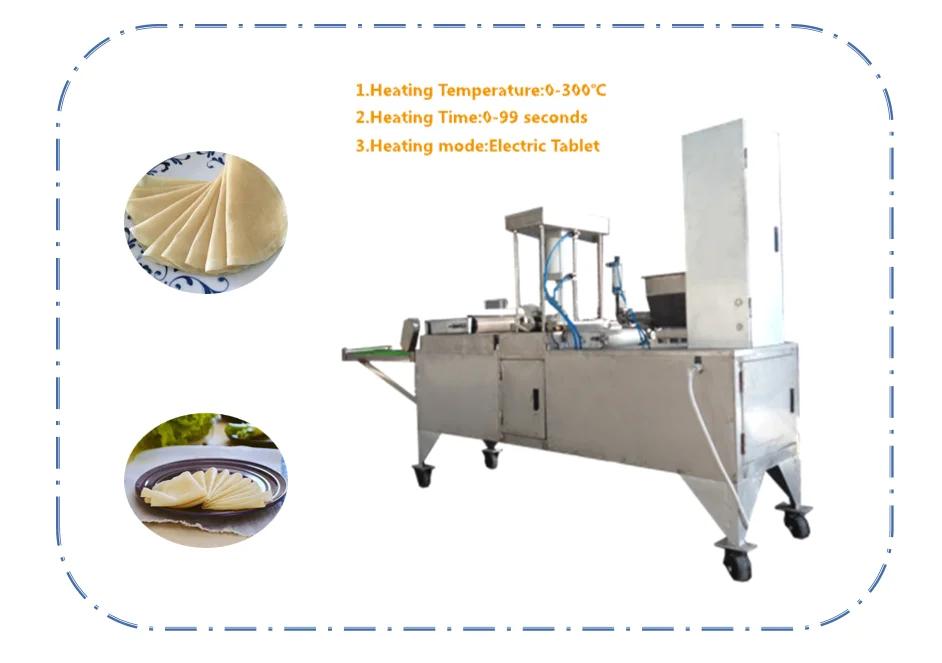

Heating temperature | 0-300 ℃ | |||||
Pressing Period Range | 0-99 seconds | |||||
Heating mode | Electric Tablet | |||||
Voltage | 3 Phases Electric Power | |||||
Air pressure | 0.6MPa | |||||

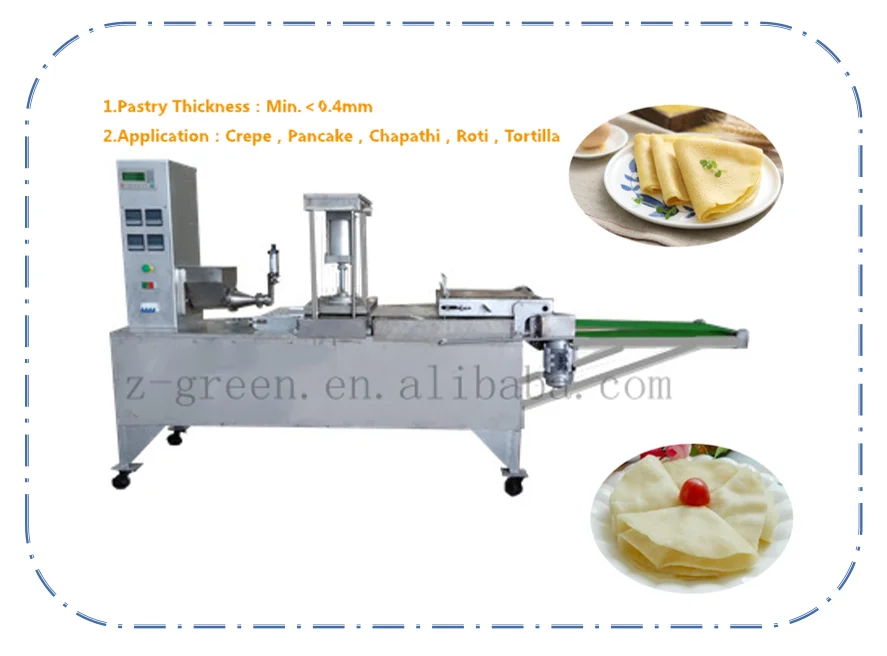

Product thickness | Min. 0.4mm | |||||
Product diameter | <180mm | <260mm | <370mm | |||
Capacity | 800-1200pcs/h | |||||
Dimension | 2380*600*1500mm | 2500*640*1500mm | 3100*780*1700mm | |||
Weight | 200kg | 230kg | 250kg | |||
Attention: Technology Parameters are adjustable according to client's requirements. | ||||||

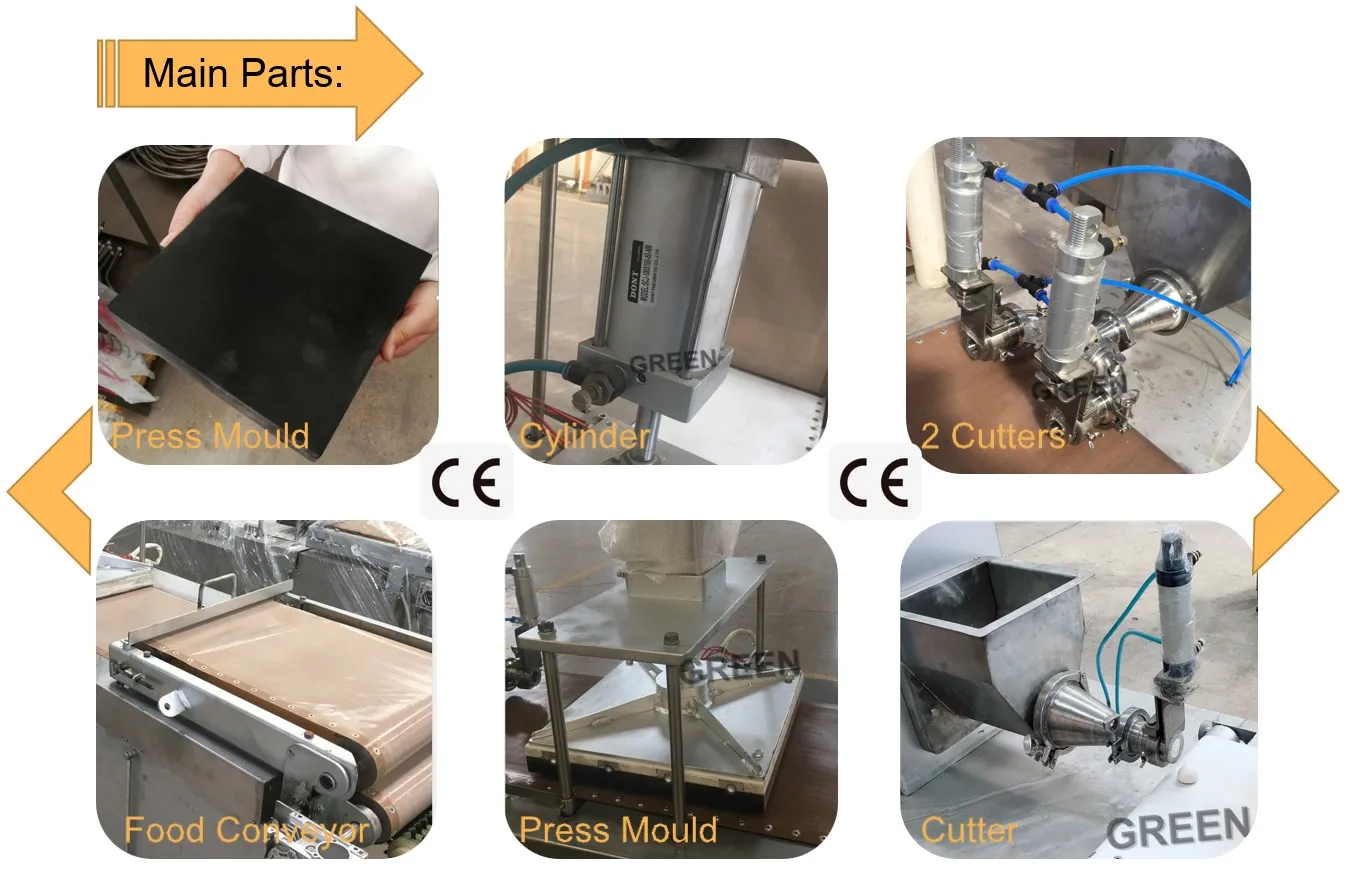

Features:
1. The pressing and roasting moulds are made of aluminum alloy.
2. The high-temperature conveyor belt is made of glass fiber and teflon hot rolling.

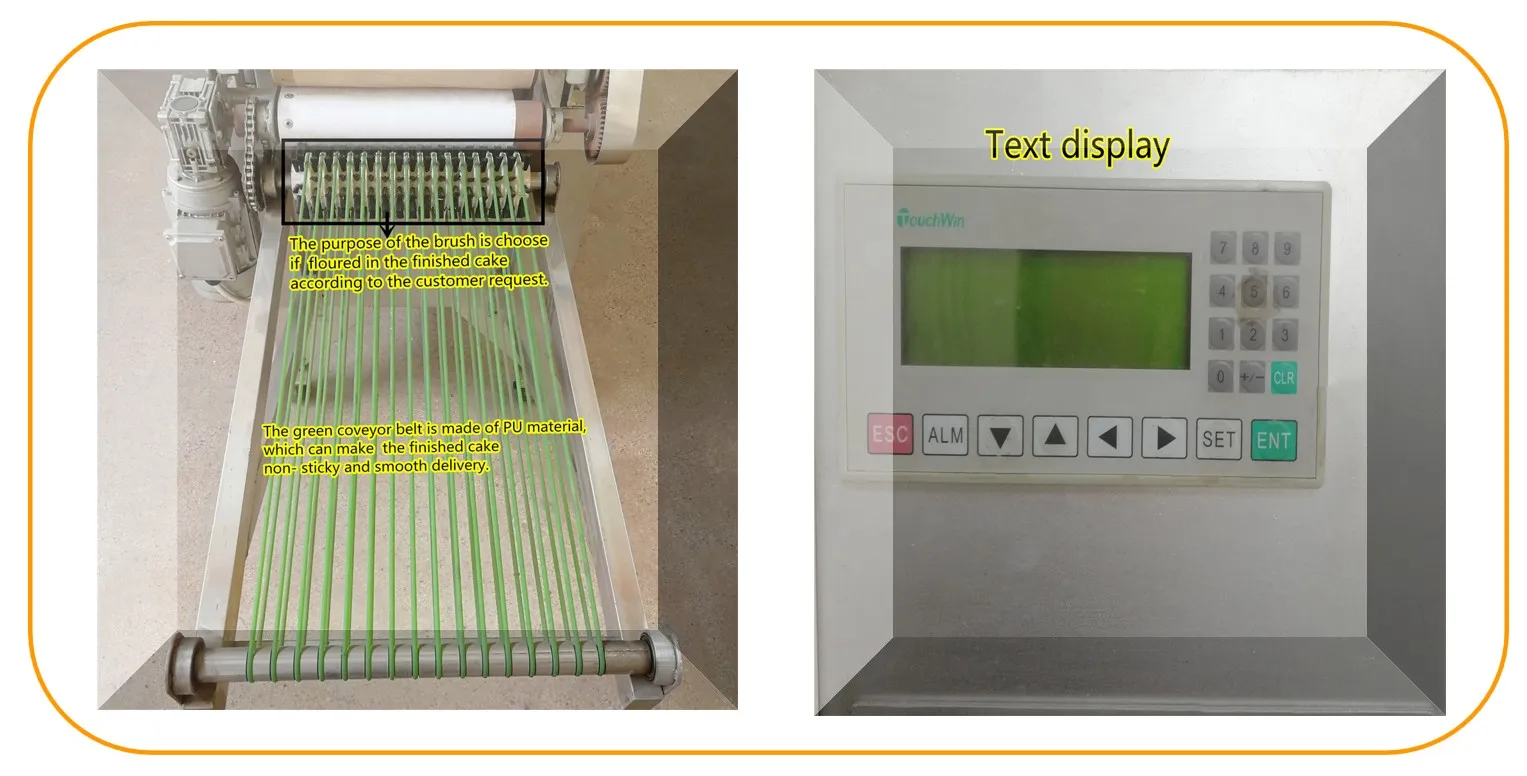

3. The green strip conveyor belt is made of PU material, which helps to dissipate heat.
SUS 304
1. Adopt SUS304 Stainless Steel.
2. Have round, rectangular and other speical SUD pipes.
3. Thickness is more than 2mm.
4. Also have carbon steel parts. such as roast wheel.
High technology manual welding
1. Excellent technical skills.
2. More than 8 years of welding experience.
3. Have 3 Professional Working Teams.For best quality, raise the awareness of competition.
Scales welding
1. Ensure no leakage.
2. Beautiful appearance.
3. Improve service life.

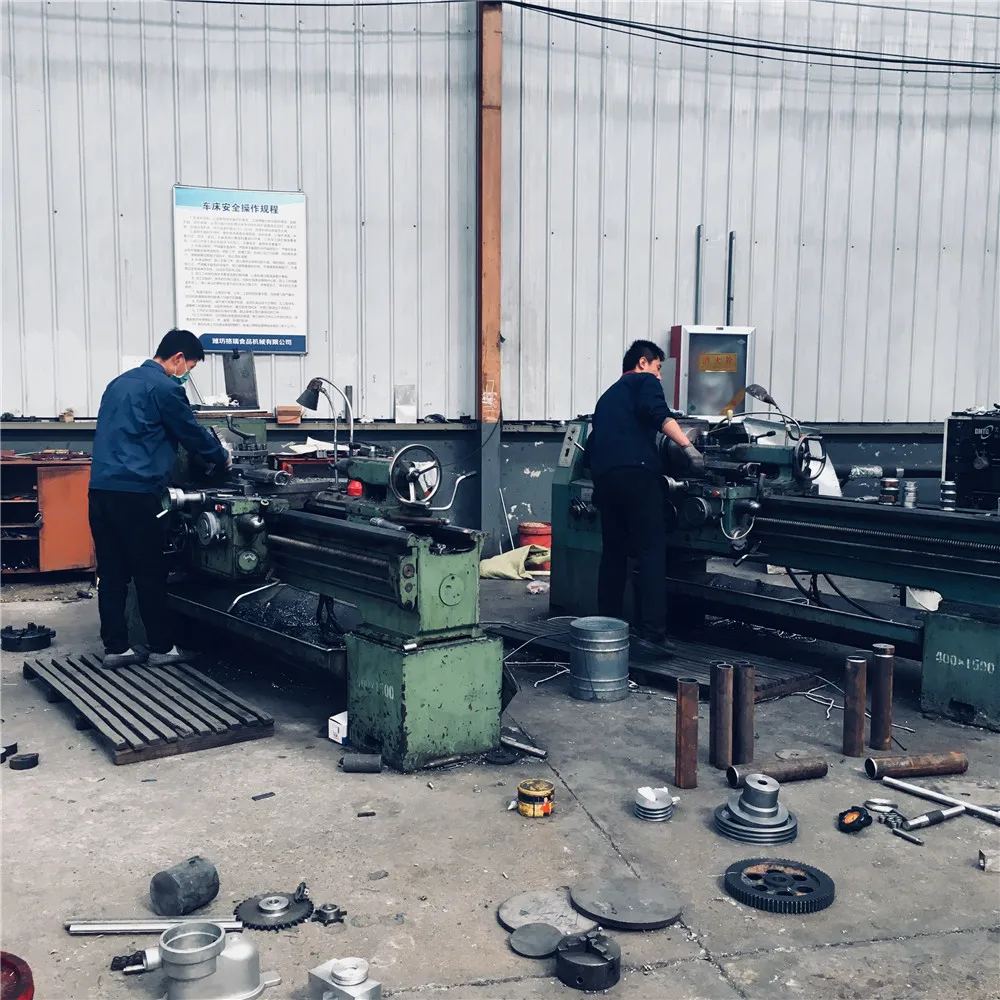

Numerical control machine tool
1. Improve equipment quality.
2. Ensure productivity.
3. Reduce artificial interference.
4. Processing standard parts.
2. Ensure productivity.
3. Reduce artificial interference.
4. Processing standard parts.
Mobile universal radial drilling machine
1. Improve accuracy.
2. Standardization of main accessories.
3. Reduce artificial interference.
4. Improve productivity.
2. Standardization of main accessories.
3. Reduce artificial interference.
4. Improve productivity.

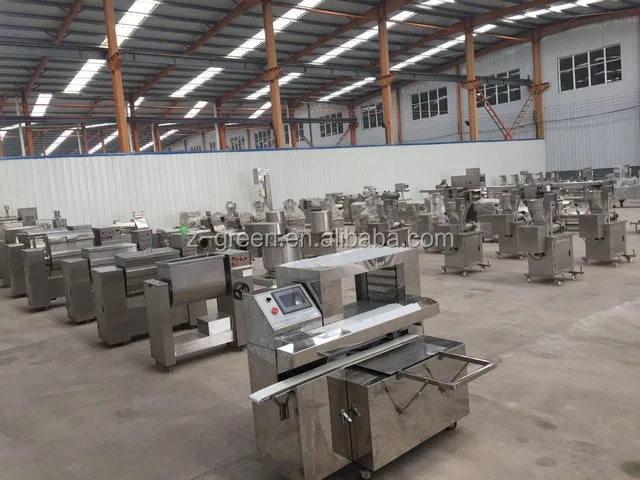

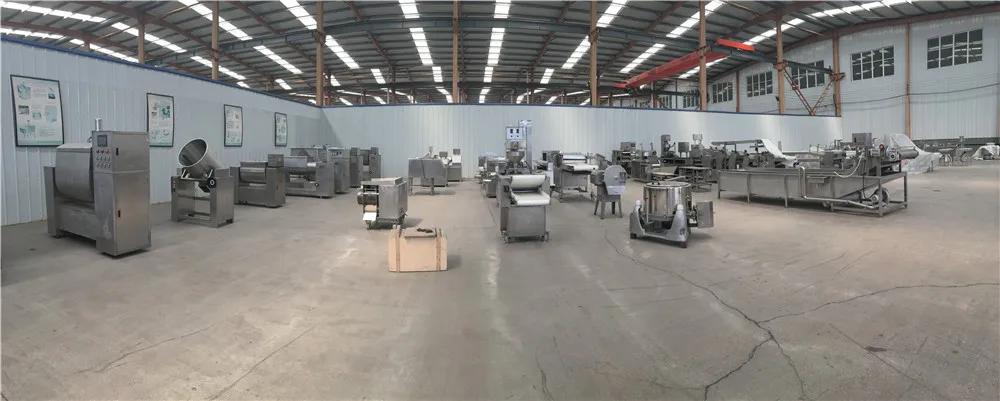

Exhibition Hall
1. Show the quality and quantity of equipment.
2. Conduct experiments for customers and check whether the equipment is qualified.
3. Showcase your company.
4. Stock can be delivered in time.
2. Conduct experiments for customers and check whether the equipment is qualified.
3. Showcase your company.
4. Stock can be delivered in time.
Company Introduction
Weifang Green Food Machinery Co., Ltd. is a comprehensive enterprise that is integrated with the ability of food machinery development, manufacture, technical advice and service. The company has a group of senior engineers engaged in the development and manufacture of food machinery with more than ten years experience, excellent managerial personnel and staff. The Green people begin with the slight place, constantly absorb the latest technology at home and abroad and learn widely from others' strong points. It ensures the products achieve leading position in the industry with exquisite technology and first-rate technology.
Packing&Shipping
Packing: Anti-rust oil, PE film and complete wooden case (standard export packing).
