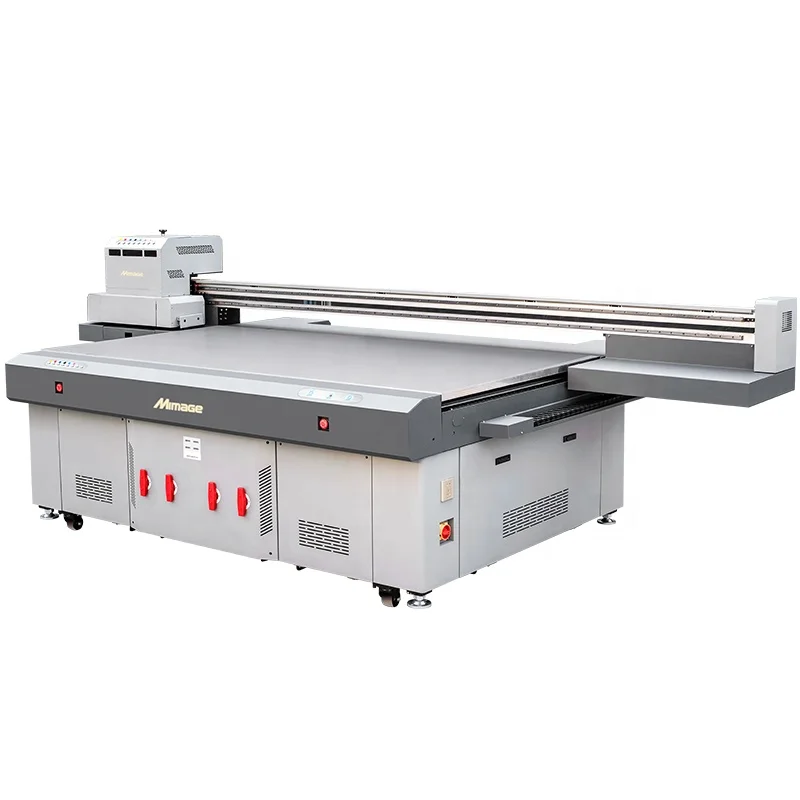

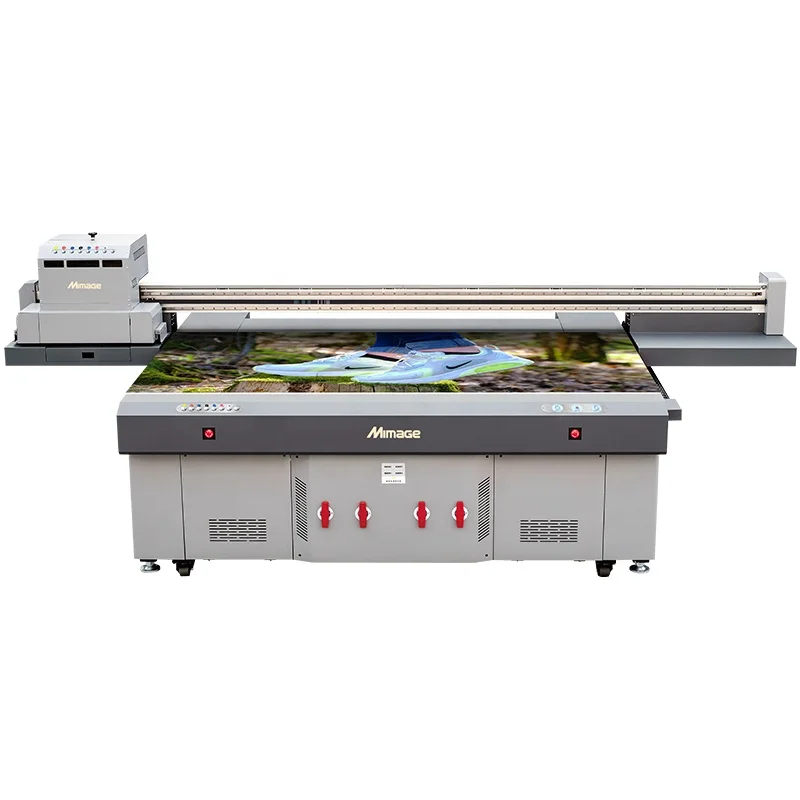

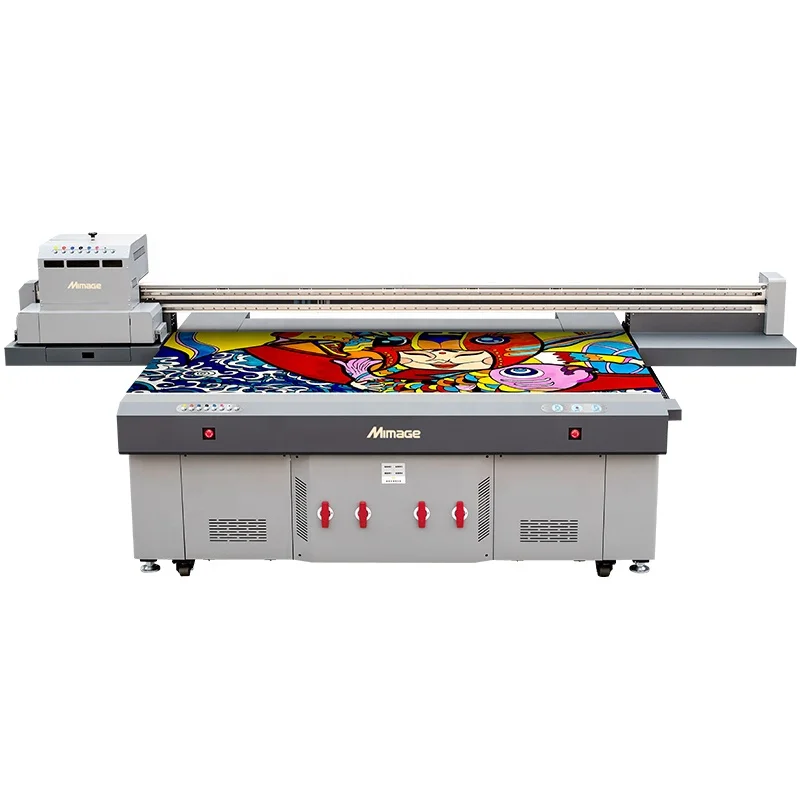

Mimage G5/G6 Large Format UV Flatbed Printer
UV-2513 is a high quality and widely used UV flatbed printer in all kinds of printing field. It's equipped with high quality G5/G6 print heads, water cooling system and imported low noise rail guide for high quality printing and pleasant using experience for customers.
Product Paramenters
Model
UV-2513
Print Head
Ricoh Gen5(Gen6 available)
Print Head Number
2-8 heads
Print resolution
720*600dpi,720*900dpi,720*1080dpi,720*1440dpi
Print Width
2500×1300mm
Print Speed
4 pass
17 sqm/h
6 pass
10 sqm/h
8 pass
6 sqm/h
Ink
Ink Curing Type
LED curing
Color
C+M+Y+K +Lc +Lm +W + Vamish
Ink Tank Volume
3000ml tank for each color
Supply Type
Positive pressure CISS
Print Media
Media Size
2500×1300mm
Media Thickness
100mm
Media
Glass, aluminum composite, wood board, gusset plate, ceiling sheet, tiles, foam board, metal board, plastic, weaving materials,wall paper, brick, stone etc.
Platform
Vacuum adsorption type
Operating System
Win7,64bit
Working Environment
Temperature 20℃-35℃Humidity 40%-70%
Image Format
JPG/TIF/PDF/PSD etc.
Interface
USB 2.0
Rip Software
Photoprint , Onyx etc.
Power Supply/Rate
AC 220-240, 50HZ/60HZ, 32A/4000W

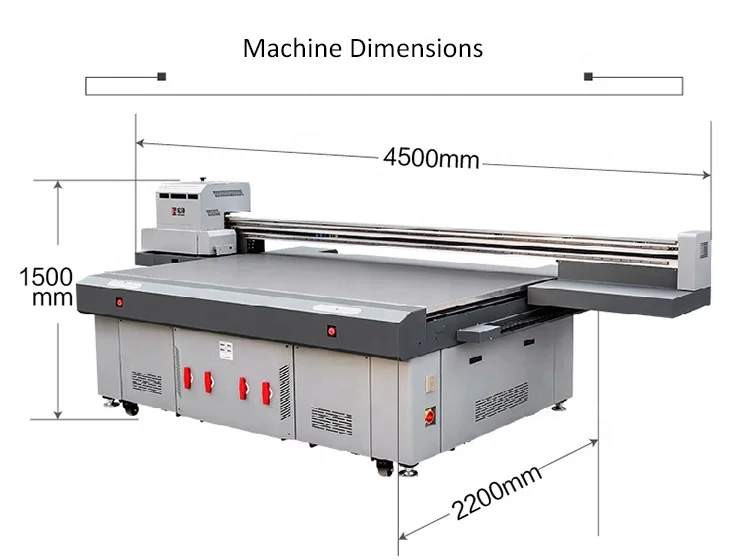

Machine Size
L×W×H 4500×2200×1500mm
Package Size
L×W×H 4650×2230×1860mm
Machine Net Weight/Gross Weight
1200kg/1600kg

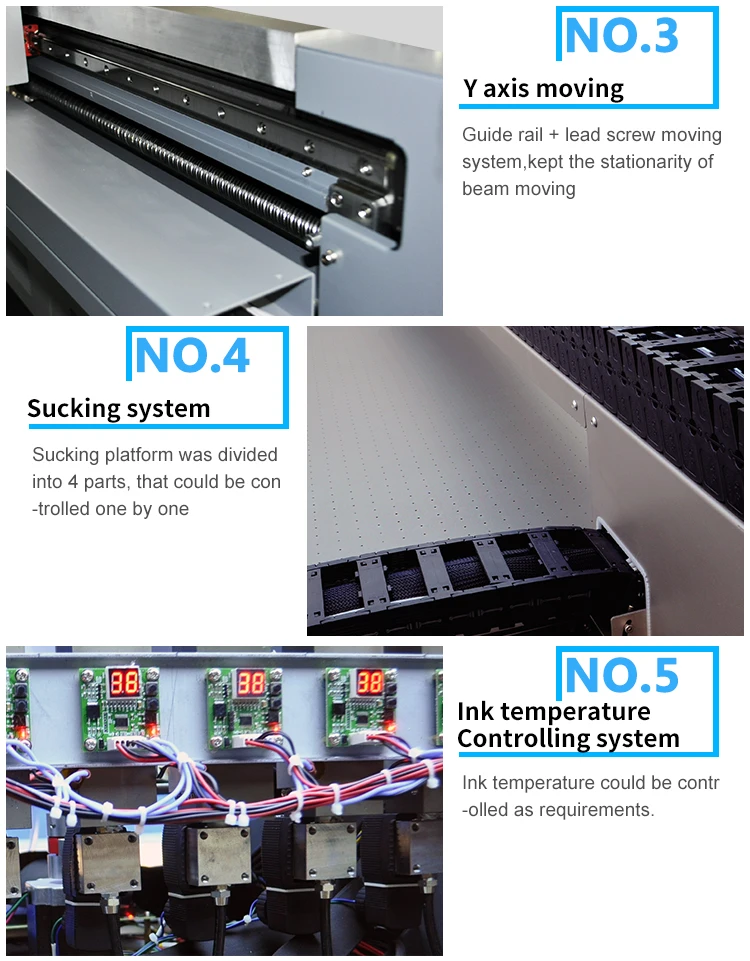

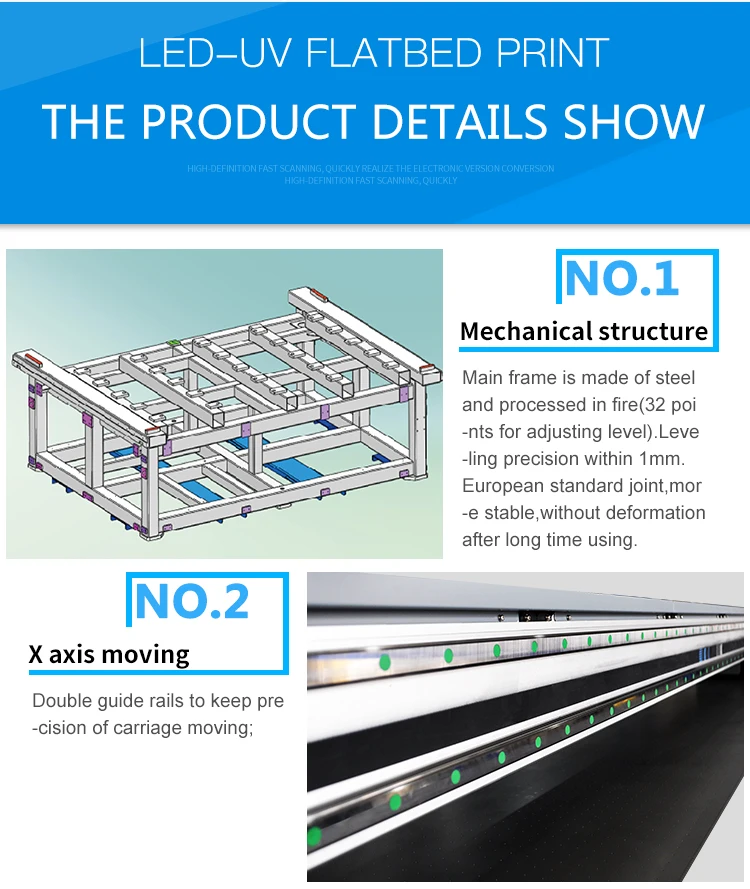

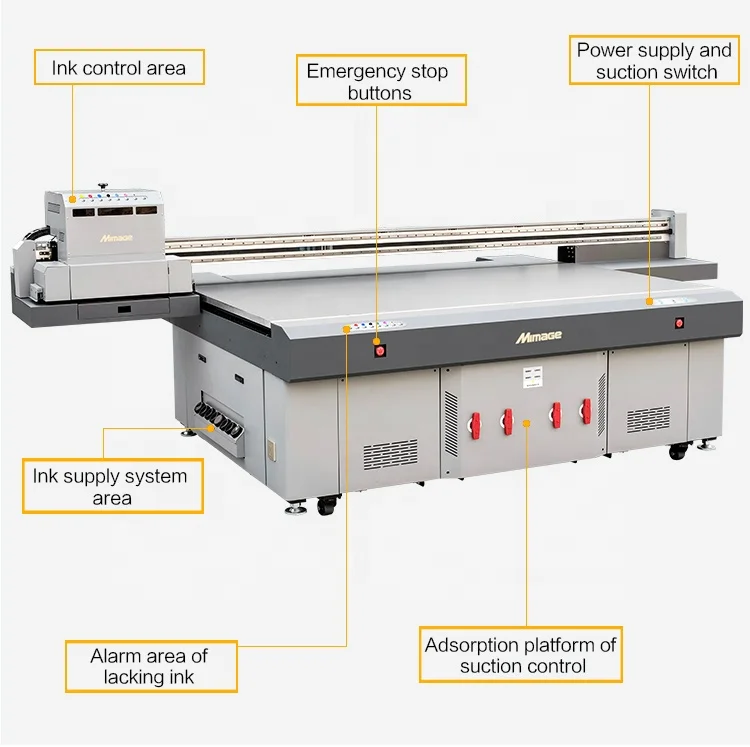

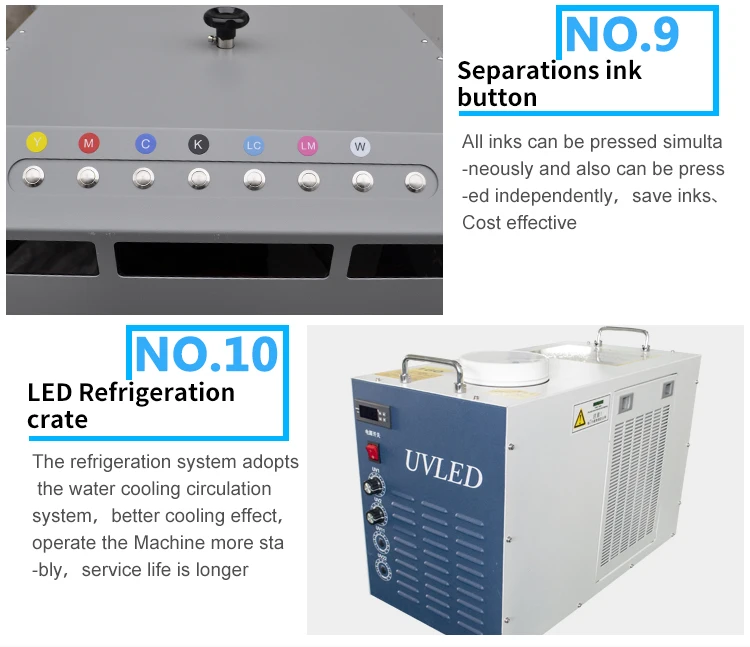

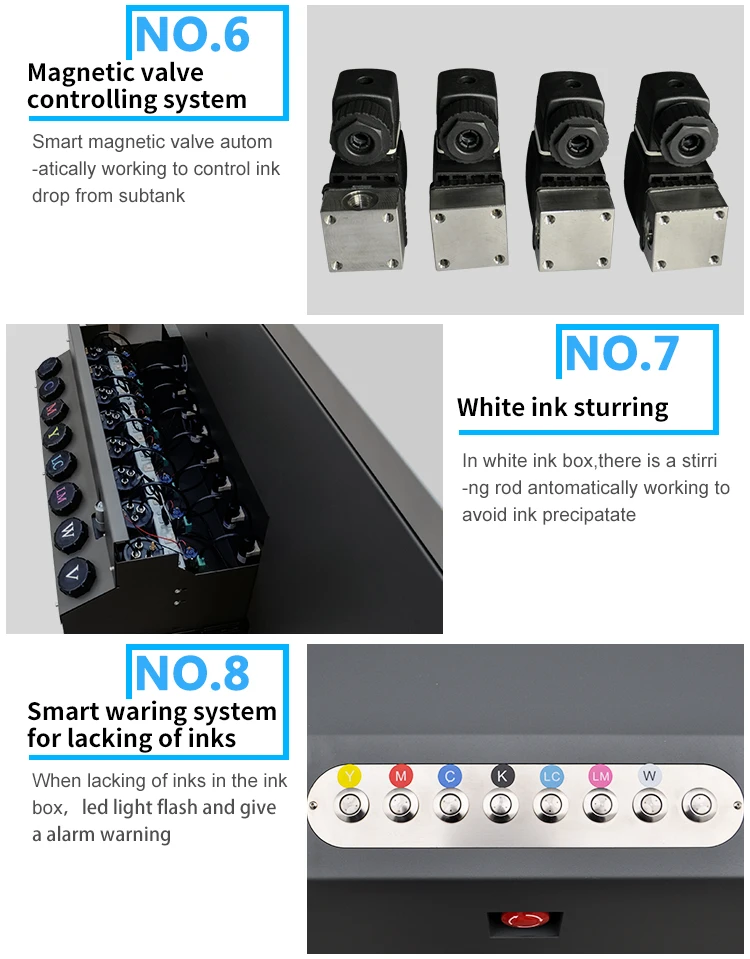

Details Images
Applications
Installation Instructions
1.One year warranty for printer, 3 year warranty for board,not including express cost.life- long online free tech support.
2.Instant online support service.
3.One to one professional technical free training.
4.For printer ink, the more you order, the cheaper the price !
5.Welcome to visit our Company or Factory at any time.
