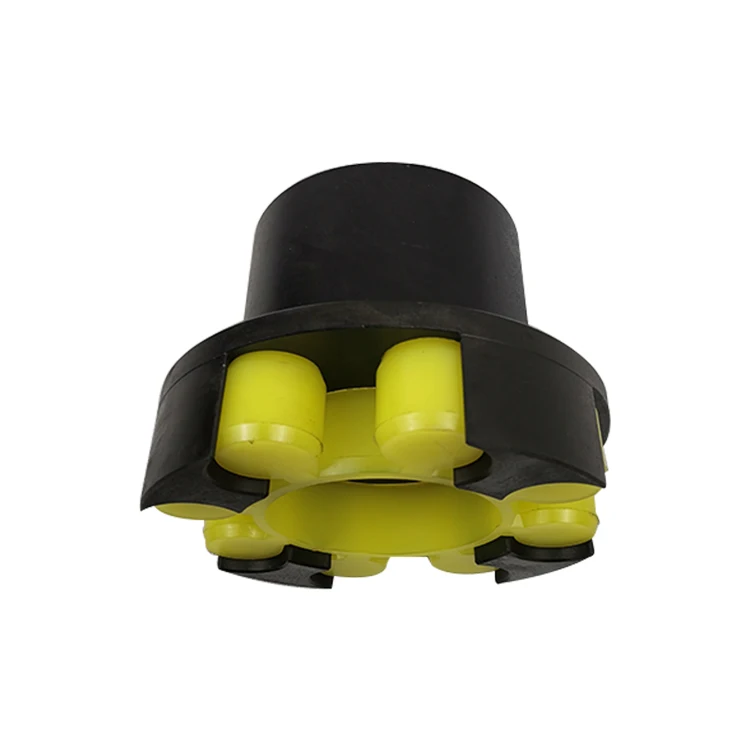

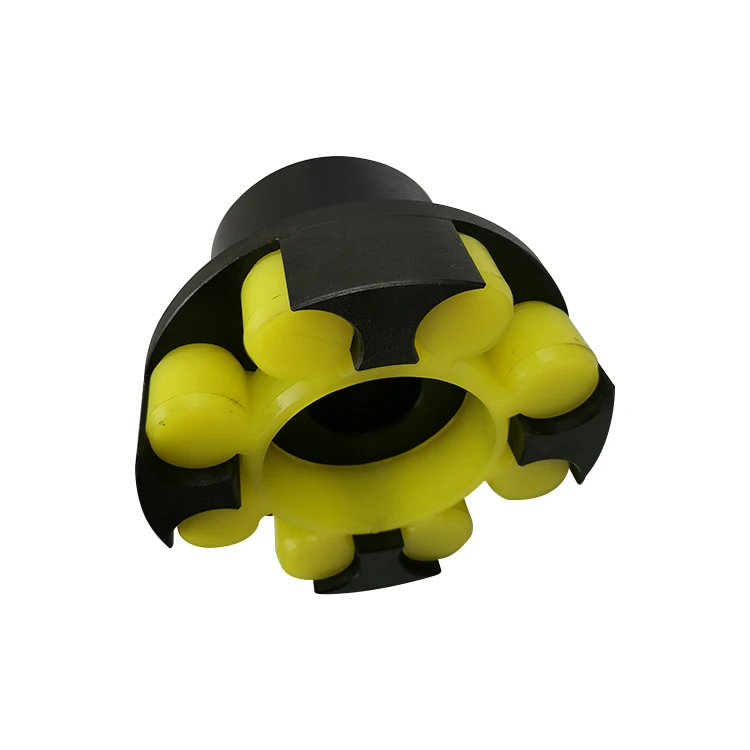

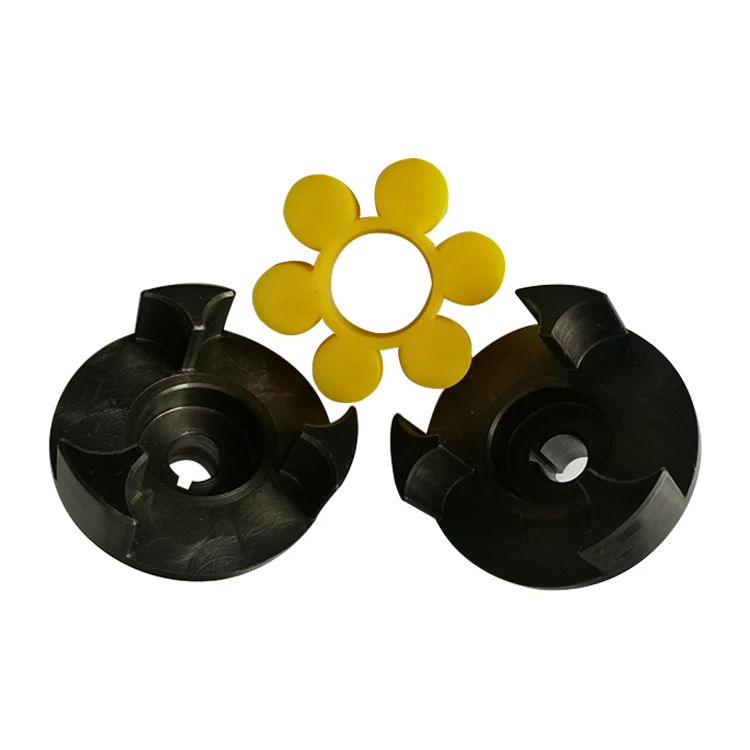

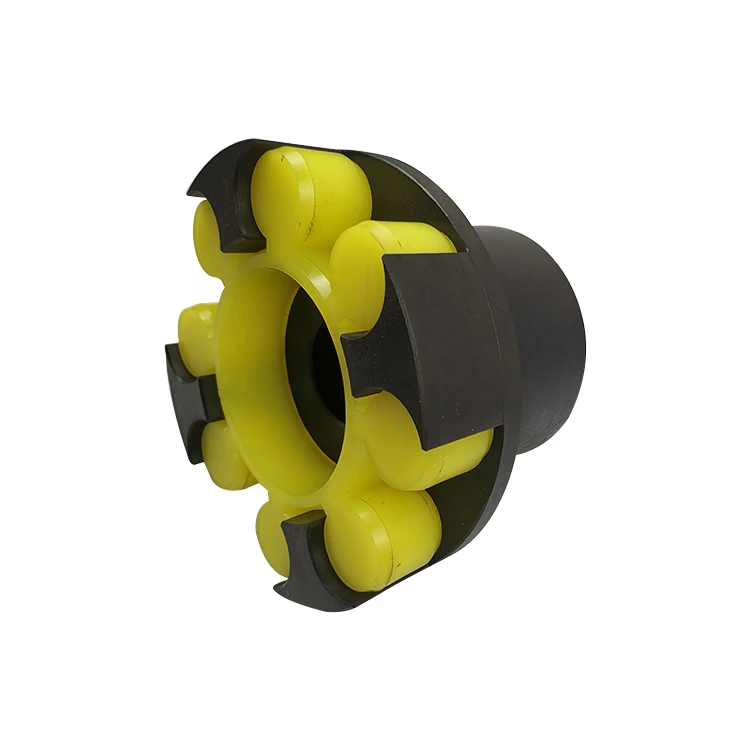

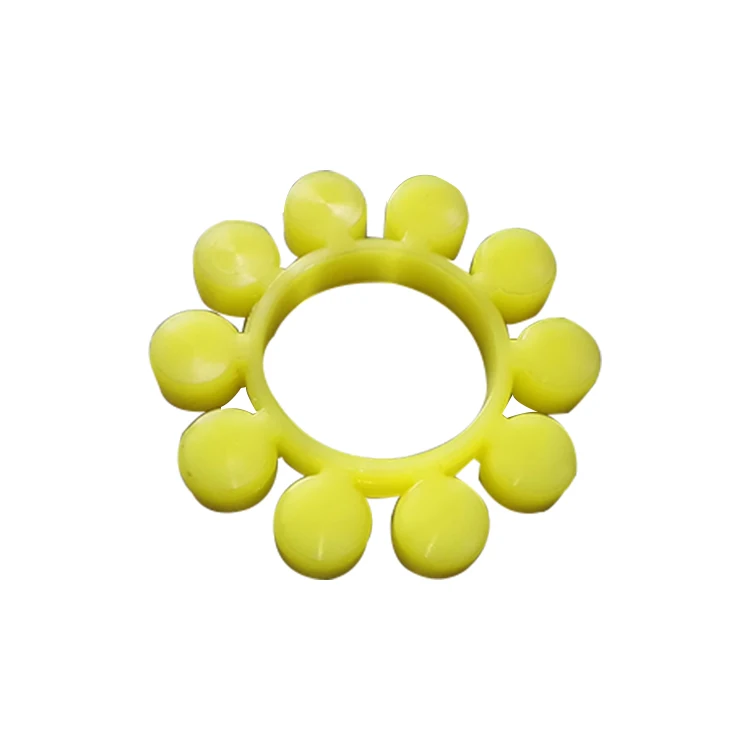

High torque transmission efficiency drive shaft jaw flexible coupling for reducer gearbox
High torque transmission efficiency drive shaft jaw flexible coupling for reducer gearbox
High torque transmission efficiency drive shaft jaw flexible coupling for reducer gearbox
High torque transmission efficiency drive shaft jaw flexible coupling for reducer gearbox
High torque transmission efficiency drive shaft jaw flexible coupling for reducer gearbox
High torque transmission efficiency drive shaft jaw flexible coupling for reducer gearbox
High torque transmission efficiency drive shaft jaw flexible coupling for reducer gearbox

High torque transmission efficiency drive shaft jaw flexible coupling for reducer gearbox

Share on (62552062212):


Price:

Quantity:


Product Overview

Description





Product Description




Specification




Model
Rated Torque
Tn
Allowable Rotation Speed
Bore Diameter
d1 , d2 , dz
Bore Length
L, L1
Weight

N.m
r/min
mm
mm
kg
LM50
28
15000
10-24
22-38
1.00
LM70
112
11000
12-38
27-60
2.50
LM85
160
9000
16-38
30-60
3.42
LM105
355
7250
18-42
30-84
5.15
LM125
450
6000
20-55
38-84
10.1
LM145
710
5250
25-65
44-107
13.1
LM170
1250
4500
30-85
60-132
21.2
LM200
2000
3750
35-95
60-142
33.0
LM230
3150
3250
40-95
84-142
45.5
LM260
5000
3000
45-125
84-172
75.2
LM300
7100
2500
60-140
108-172
99.2
LM360
12500
2150
60-150
107-212
148.1
LM400
14000
1900
80-160
132-242
197.5


Technical Agreement


1. Application to: (e.g. conveyor, crusher, compressor, etc.)

2. Driving end related parameters:
Motor power(KW):
Motor rotation speed(rpm):
Reducer speed ratio:


For cylindrical shaft, please provide:
Shaft end gap length B(mm): Center height H(mm):
High speed shaft:
Driving end: shaft diameter d1(mm) , shaft length L1(mm) , key groove width b(mm) , key groove depth t(mm) ;
Driven end: shaft diameter d2(mm) , shaft length L2(mm) , key groove width b(mm) , key groove depth t(mm) ;
Low speed shaft:
Driving end: shaft diameter d1(mm) , shaft length L1(mm) , key groove width b(mm) , key groove depth t(mm) ;
Driven end: shaft diameter d2(mm) , shaft length L2(mm) , key groove width b(mm) , key groove depth t(mm) ;

Notice:
1. If you do not provide B or H, it is defaulted to enough space for installation based on parameters in catalog.

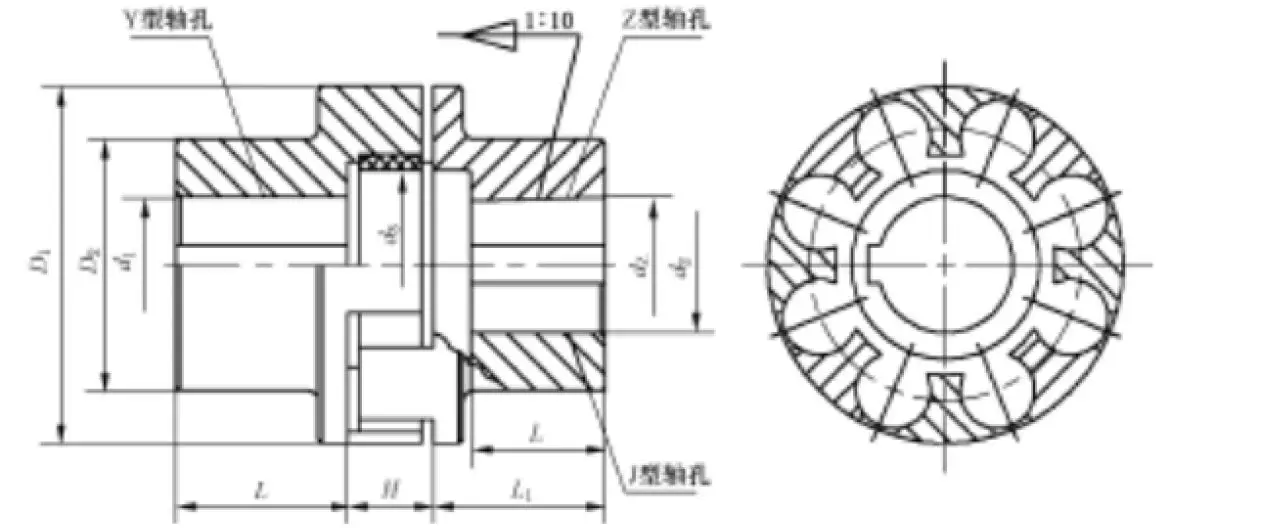

2. If your requirement is different from this drawing, please provide your technical drawing.


Packing & Delivery






All Baska packing cases along with pallet are made of fumigation-free composite material for export.

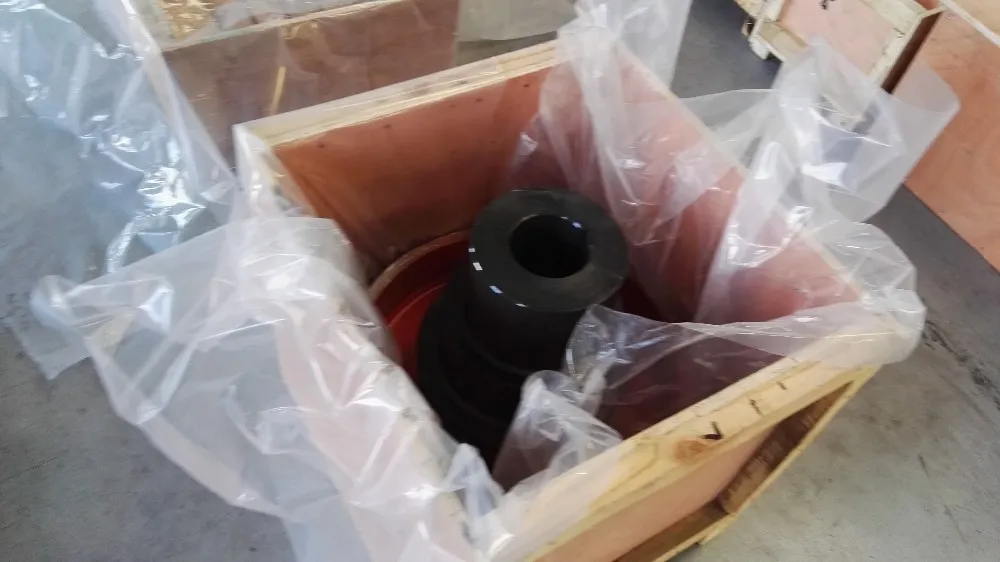

Product is packaged with plastic cloth before being put in a case
