PE UD UHMWPE Fabric for Vest Insert and Hard Plate
- Category: >>>
- Supplier: Beijing Tongyizhong New Material Technology Corporation
Share on (62552177538):
Product Overview
Description
Our Company
Beijing Tongyizhong New Material Technology Corporation
Beijing Tongyizhong New Material Technology Corporation (BJTYZ) is a National High-tech Enterprise specialising in R&D, production and sales of Ultra High Moledular Weight Polyethylene (UHMWPE) fiber and its composites including PE UD fabric, hard PE Plate, helmet and soft vest etc. BJTYZ, which is subordinated to Stete Development & Investment Corporation (SDIC), was established in 1999 with a resigstered capital of 80 mililion RMB, Through 20 years' fast development, BJTYZ has become world-famous as a high-performance fiber supplier, and builds up its reputation for solutions.
Certifications
As a leading enterprise in UHMWPE fiber, BJTYZ has its own complete intellectual property rights for key technologies. It has filed 60 patent applications, among which, 40 inventive patents have been authorized. BJTYZ also took charge of drafting a first Chinese Industrial Standard for UHMWPE fiber. BJTYZ has formed strict production management and inspection & test system, and has got ISO 9001 – 2008 Quality Management System Certificate, GJB9001B-2009 National Quality Management System Certificate and OHSAS 18001:2007 Occupational Health and Management System Certificate.
Product Description

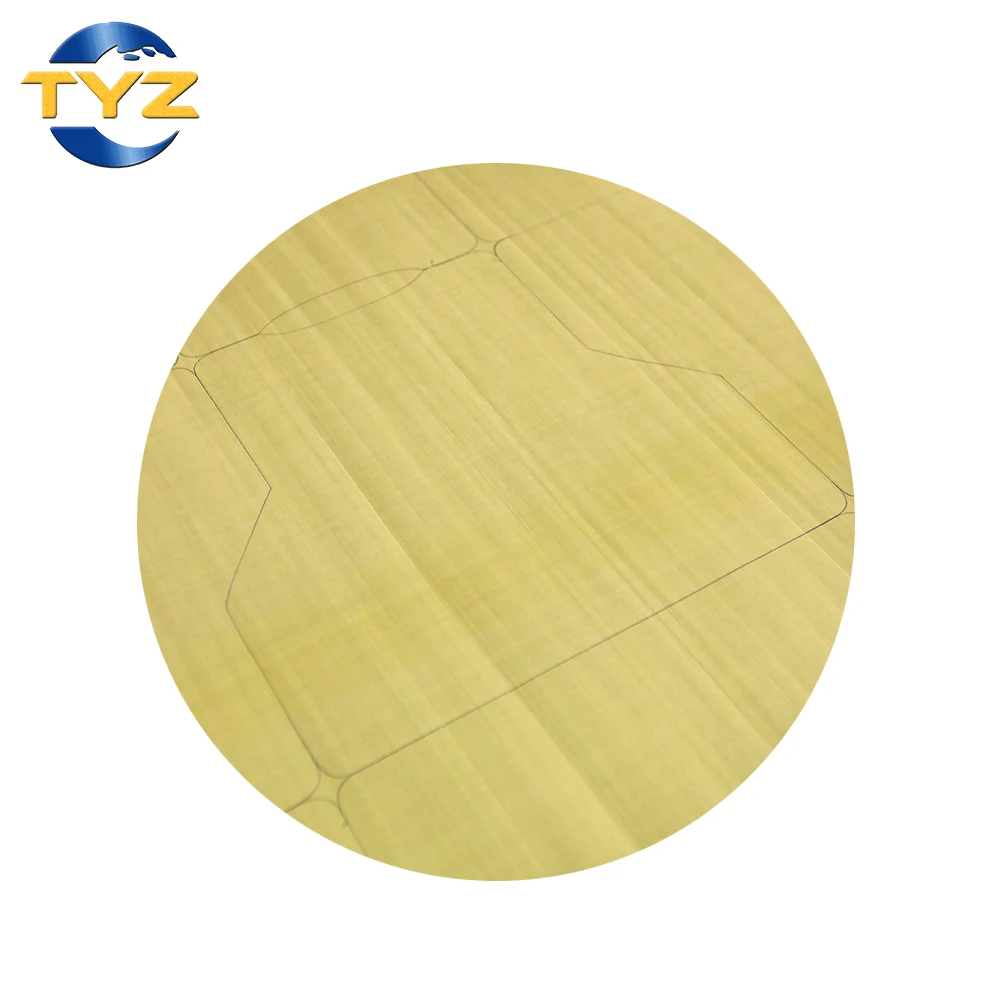

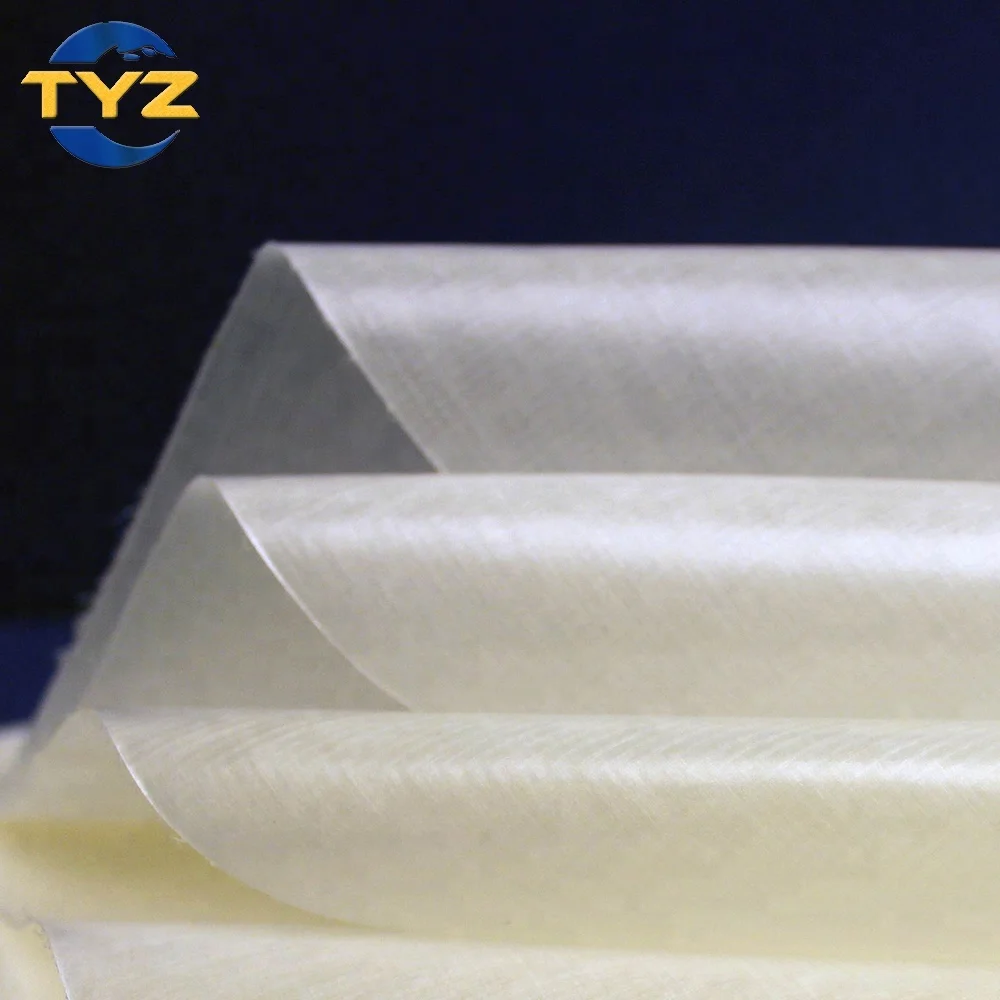

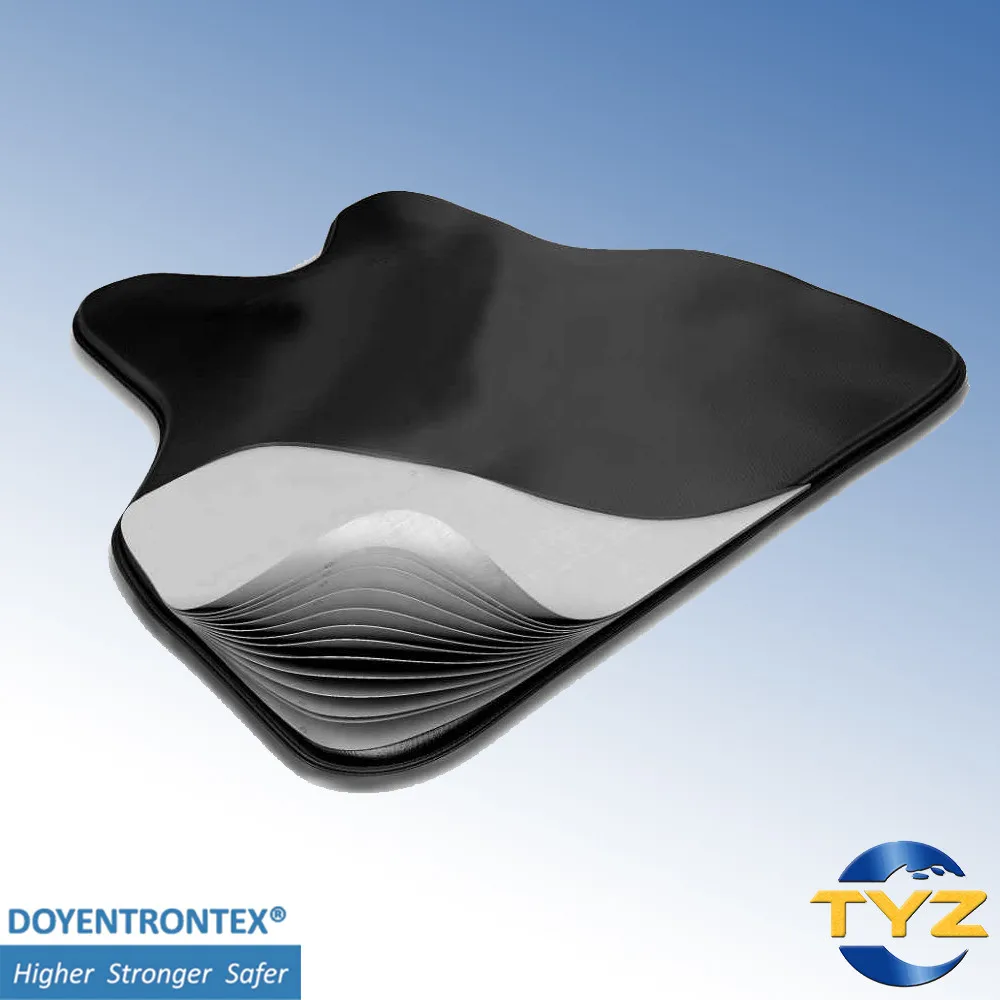

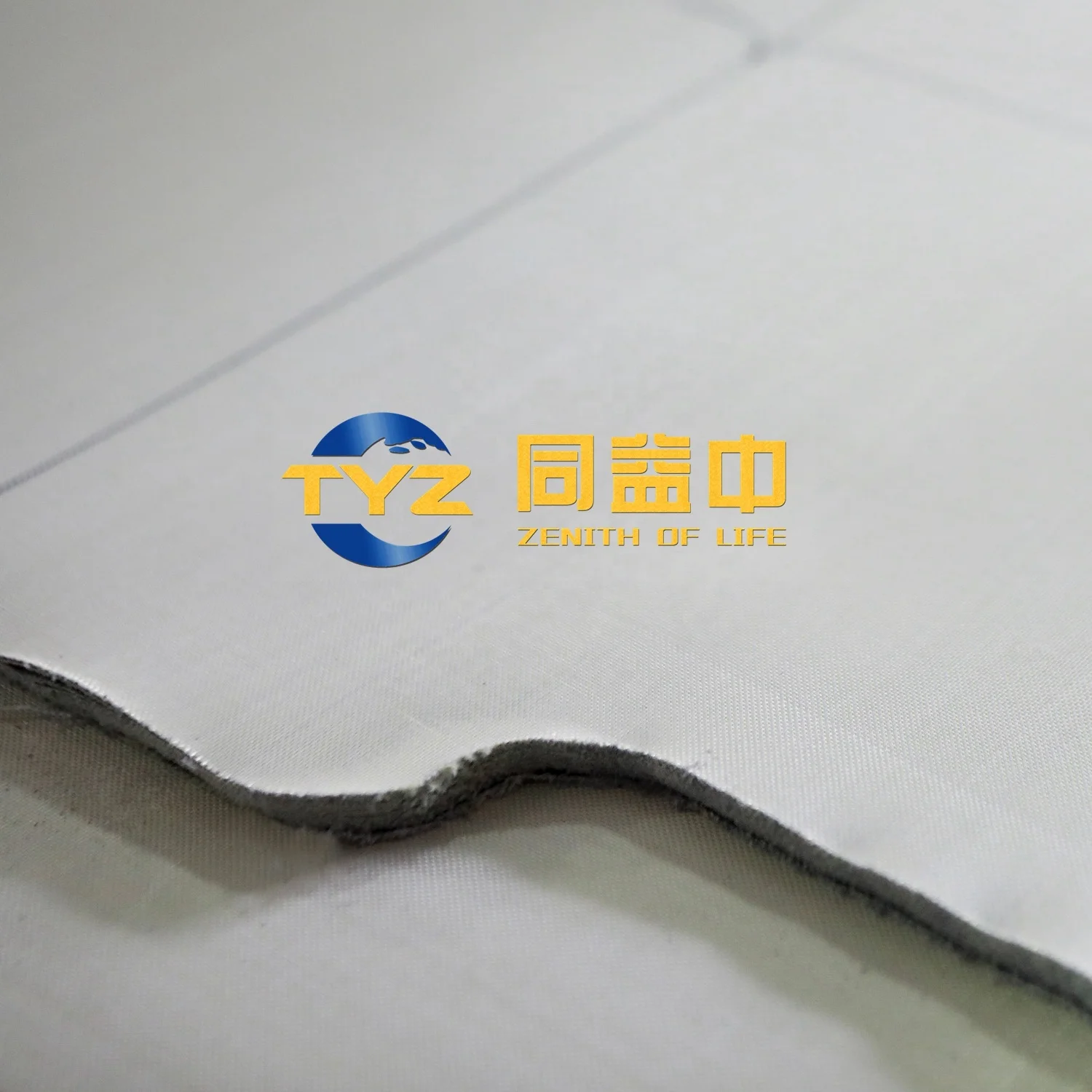

DOYENTRONTEX® UD sheet is a unidirectional construction in which the yarns are not woven but lie parallel to each other. DOYENTRONTEX® UD can be divided into soft sheet and hard sheet. The soft sheet is used for light soft vest, and the hard sheet is used for plates, helmets, shields and so on. Using DOYENTRONTEX® UD the minimum weight is needed for protection at different level, and it is not affected by water or sunlight and needs no special protection.
STYLE | MATERIAL | AREAL DENSITY | THICKNESS | WIDTH | PERFORMANCE | ||
WB-532 | UHMWPE | 130±8 g/m2 | 0.16±0.02 mm | 1.2 m | 9mm .44 | 36 layers 49 layers | |
WB-674M | UHMWPE | 160±8 g/m2 | 0.21±0.02 mm | 1.2 m | 9mm .44 | 26 layers 34 layers | |
WB-674L | UHMWPE | 160±8 g/m2 | 0.21±0.02 mm | 1.2 m | 9mm .44 | 22 layers 29 layers | |
FT-532 | ARAMID | 225±8 g/m2 | 0.16±0.02 mm | 1.2 m | 9mm .44 | 25 layers 29 layers | |
HA-782 | UHMWPE | 120±8 g/m2 | 0.15±0.02 mm | 1.2 m | Laminate into Helmet&Plate | ||
Production Process
Packing & Delivery

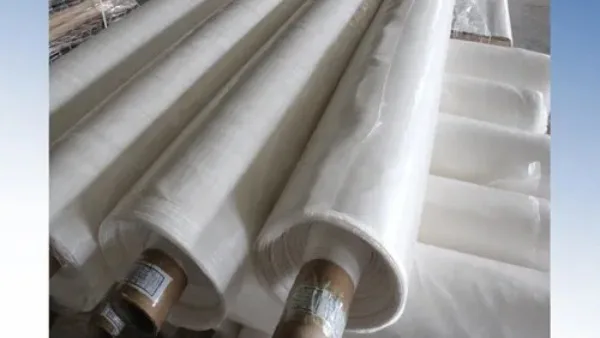

SIZE | DESCRIPTION |
Model WB-532 | Width: abt. 1.2 m Length: abt. 110 m N.W.: abt. 18 kg/roll |
Model WB-674 | Width: abt. 1.2 m Length: abt. 110 m N.W.: abt. 21 kg/roll |
Model HA-782 | Width: abt. 1.2 m Length: abt. 210 m N.W.: abt. 31 kg/roll |
Carton Size for 2 rolls | 0.44×0.24×1.31 m G.W.: abt. 40 - 65 kg/carton |
Carton Size for 1 rolls | 0.28×0.28×1.32 m G.W.: abt. 22 - 35 kg/carton |
- Port of loading:
Beijing, Tianjin and Shanghai port.
- Transportation:
By sea, air, Express including TNT, FedEx, DHL, UPS, etc.
- Forwarder:
We could accept your forwarder to arrange the delivery.
While if needed, we could recommend forwarder to you.
Related Products

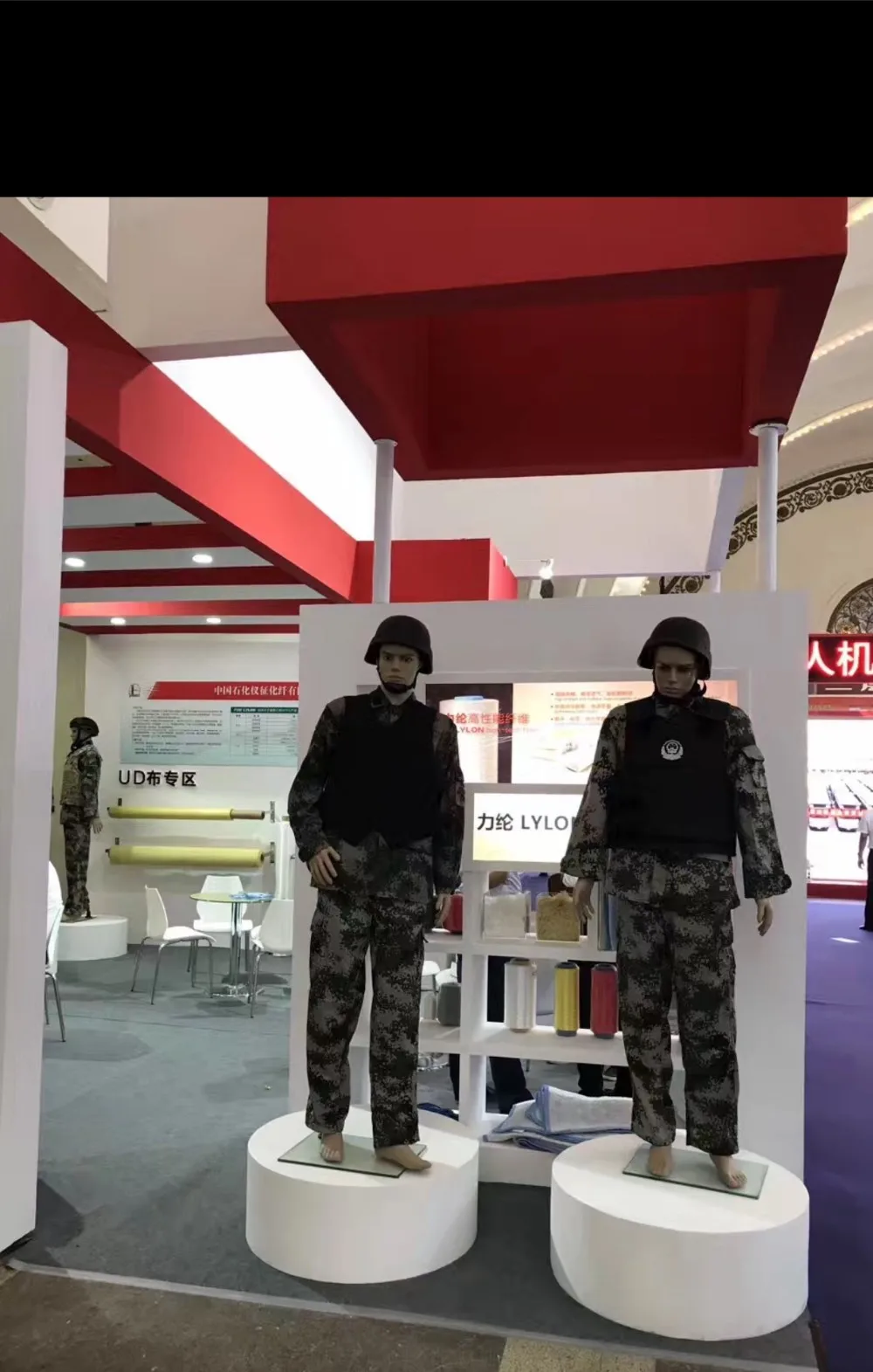

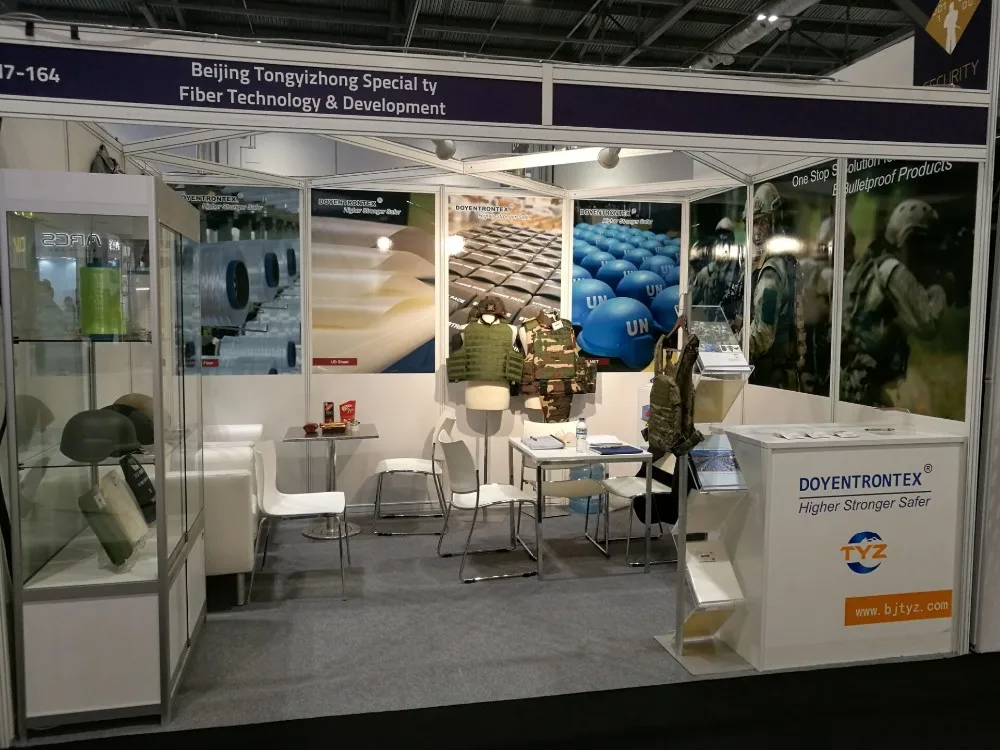

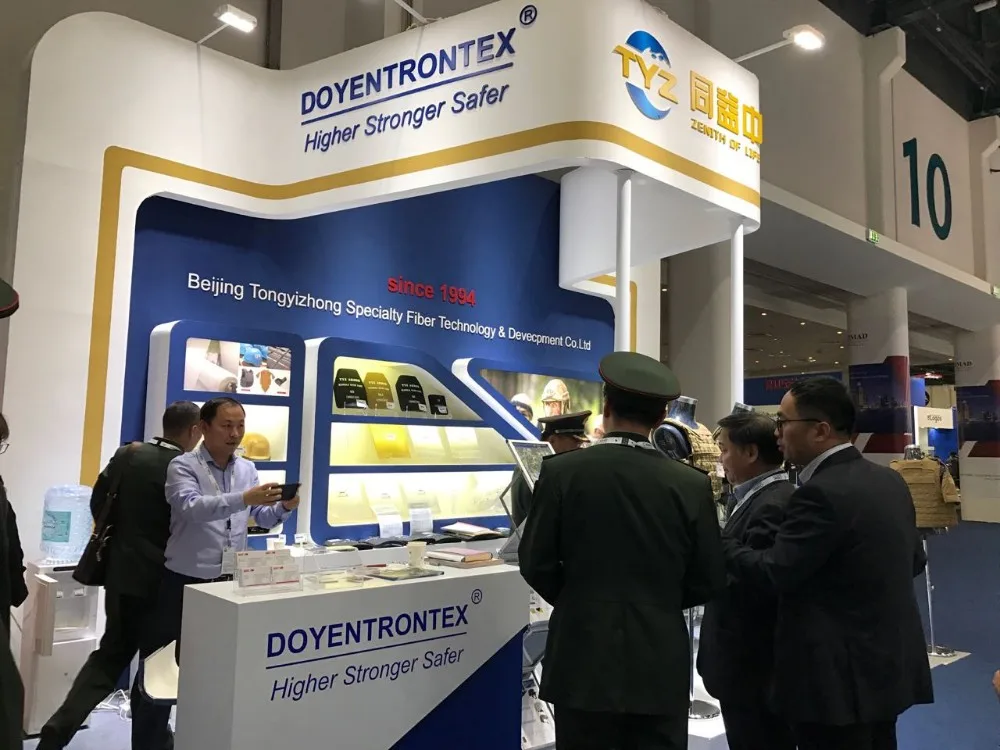

Exhibition
FAQ
1. Q: Are you a manufacturer or trade company?
A: We are a manufacturer of UHMWPE fiber and composite products.
2. Q: What port can we choose?
A: Beijing, Tianjin and Shanghai port.
3. Q: What payment term can we choose?
A: T/T in advance, L/C, Western Union.
4. Q: What is the MOQ of your product?
A: The MOQ would be 1 piece for general products.
Also we could provide customized products such as required colors, etc. The MOQ would be 100 pcs.
