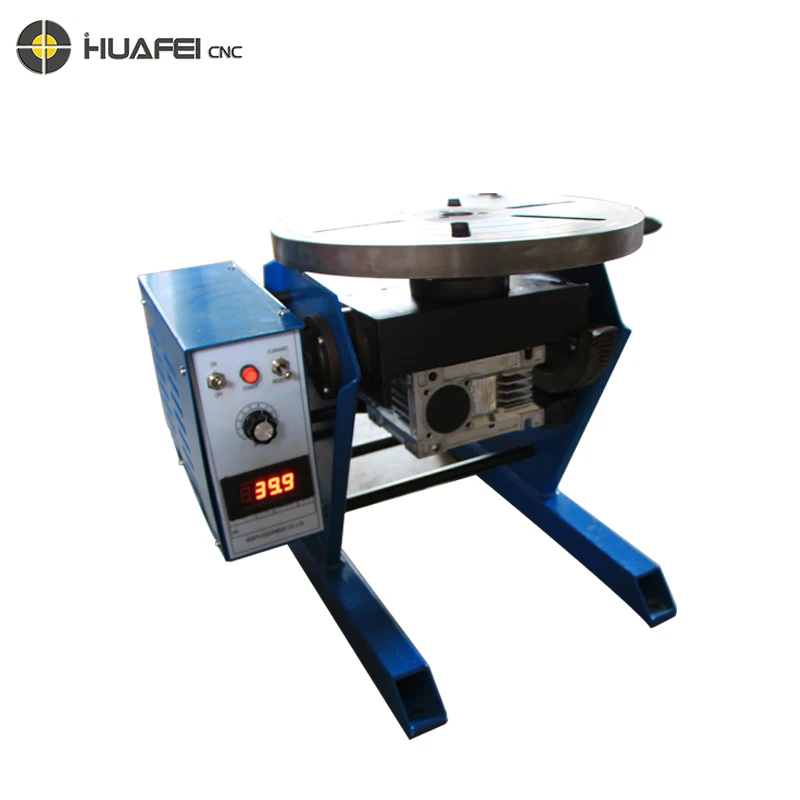

50kg 100kg small welding positioner machine
Products Description
small welding positioner

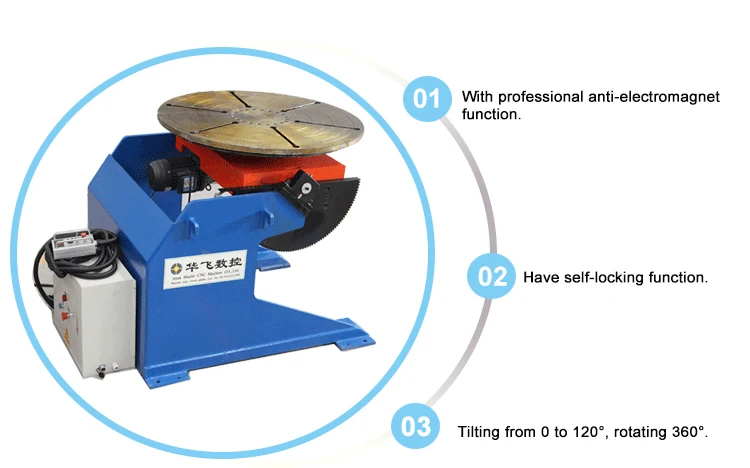

2.This positioned is designed with professional anti-electromagnet to avoid high frequency interference.
3.Equipping with welding head frame, adjusting unit , guide rail and pneumatic tip can realize automatic welding.

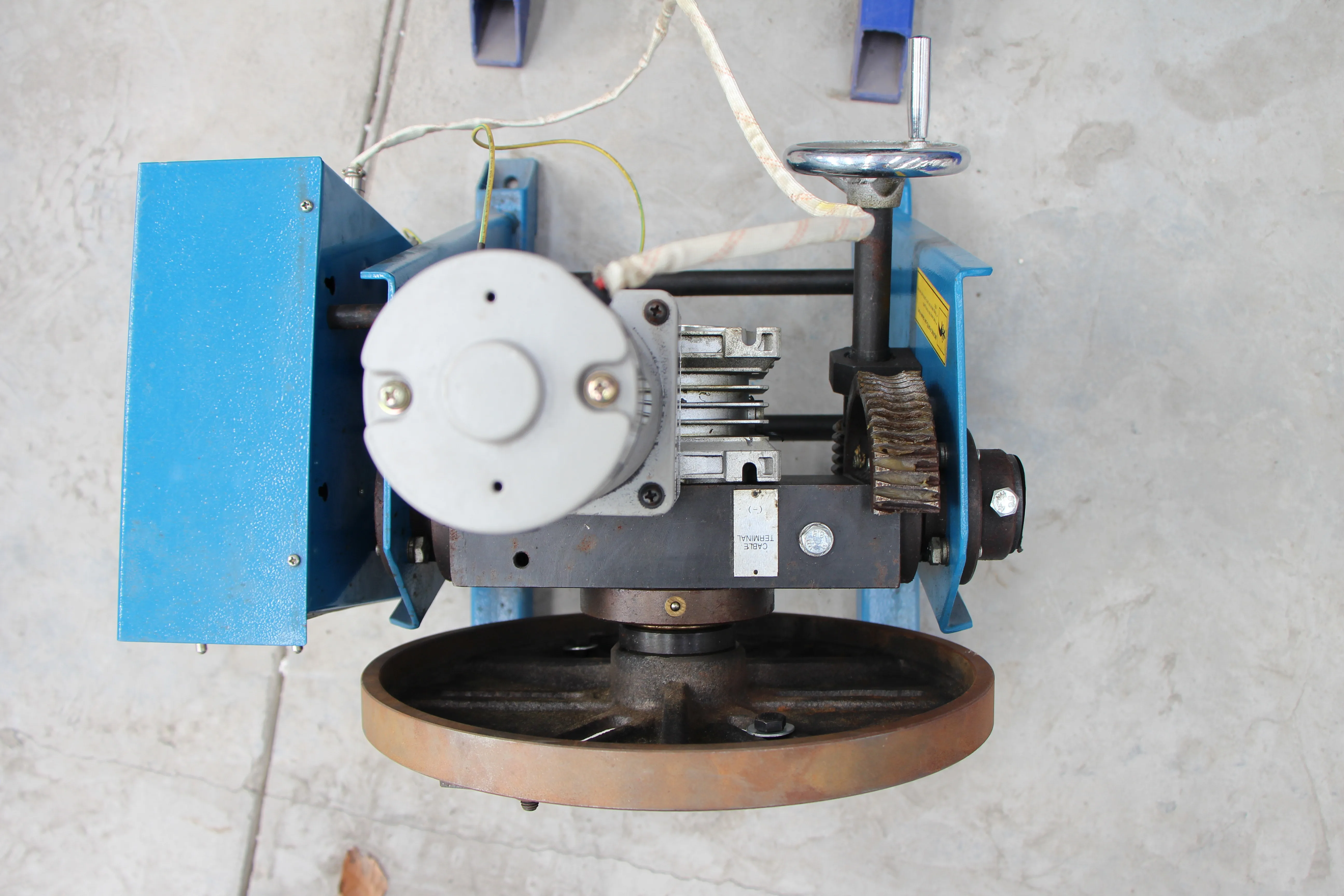

Small-block positioner uses DC motor drive, stepless adjusting speed can be achieved. The controller uses computer control can be realized with welding machine linkage. This product uses a professional anti-electromagnetic interference design, avoid high-frequency interference during welding. Power system using worm reversing mechanism, with self-locking feature. Table rollover angle 0 ~ 90 °, can realize stepless rotating. According to user needs can be configured with welding torch bracket, regulatory agencies, guides and pneumatic top. Can be realized on the workpiece automated welding.
Product Paramenters
Model | BW1-01 | BW1-05 | BW1-1 | BW1-3 | BW1-5 | ||
Loading | 10/5 | 50/25 | 100/50 | 300/150 | 500 | ||
Rotating speed | 2～20 | 1～7/15 | 0.27～15 | 0.2～2.5 | 0.05～0.5 | ||
Turning speed | manual | manual | manual | manual | 0.5 | ||
Turning angle | 0～90 | 0～90 | 0～90 | 0～90 | 0～90 | ||
Work table diameter | 180 | 315 | 345 | 450 | 650 | ||
Work table height | 215 | 375 | 415 | 500 | 675 | ||
workpiece eccentricity (mm) | eccentricity | -- | -- | -- | 150 | 300 | |
Centroidal distance | -- | -- | -- | -- | 300 | ||
Rotating power | 10 | 80 | 120 | 200 | 300 | ||
Turning power | -- | -- | -- | -- | 300 | ||
Overall Dimension | L(mm) | 370 | 430 | 500 | 500 | 650 | |
W(mm) | 270 | 430 | 470 | 520 | 800 | ||
H(mm) | 215 | 375 | 415 | 500 | 675 | ||

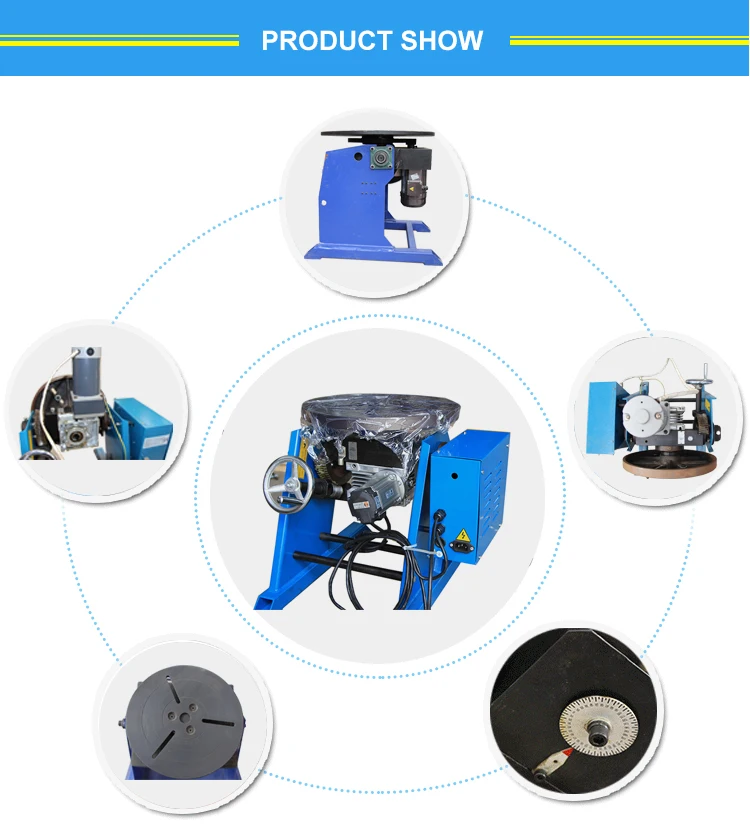

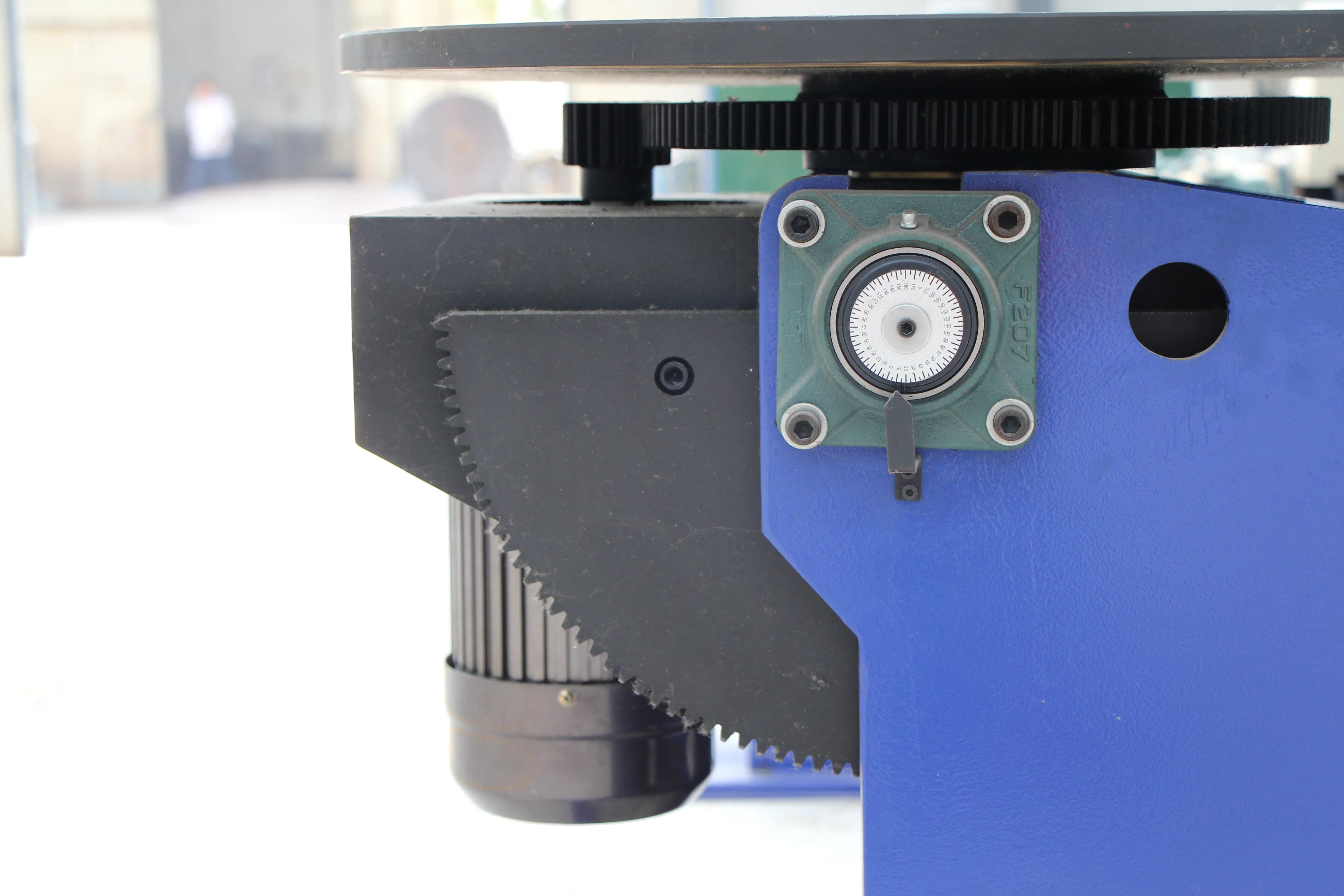

Machine structure Finishing workbench: It is not easy to be damaged by welding spatter and has long service life. The frame is welded by plate and profile, which has sufficient mechanical strength and ensures long-term use without deformation. The slewing mechanism and the turning mechanism are mounted on the frame through the bearing housing. | ||

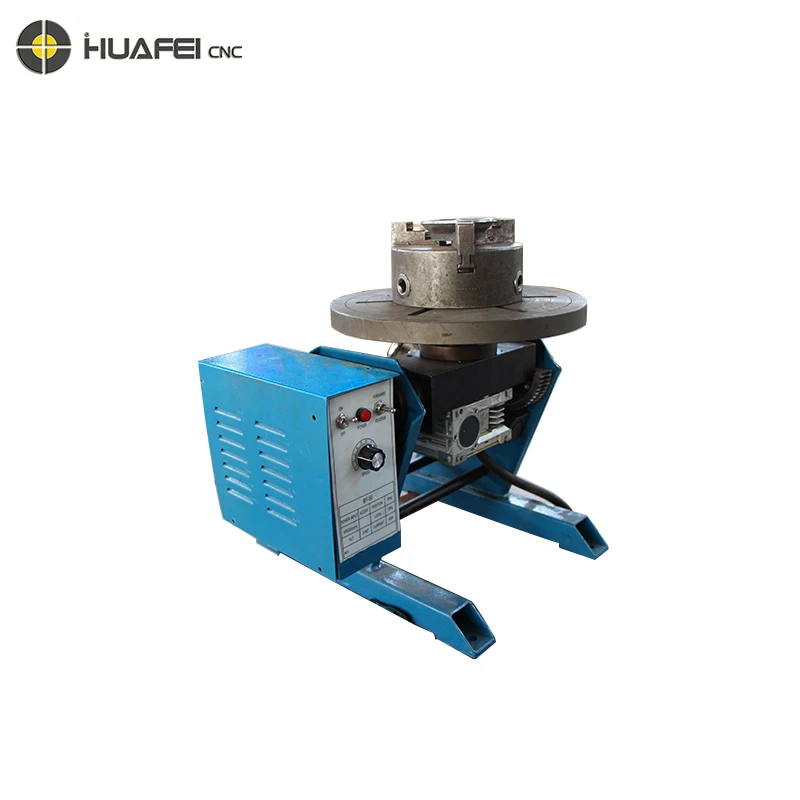

Countertop The working face plate adopts double-layer surface or full-plate finishing design. It has the characteristics of reasonable structure, good rigidity and long service life. It is more convenient for the workpiece to be fixed with T-shaped groove. The chuck can be configured according to customer requirements. | ||
Angle dial The clear and obvious angle of the disc allows the user to more easily grasp the angle of the workpiece flipping, making the operation more accurate and reliable. | ||

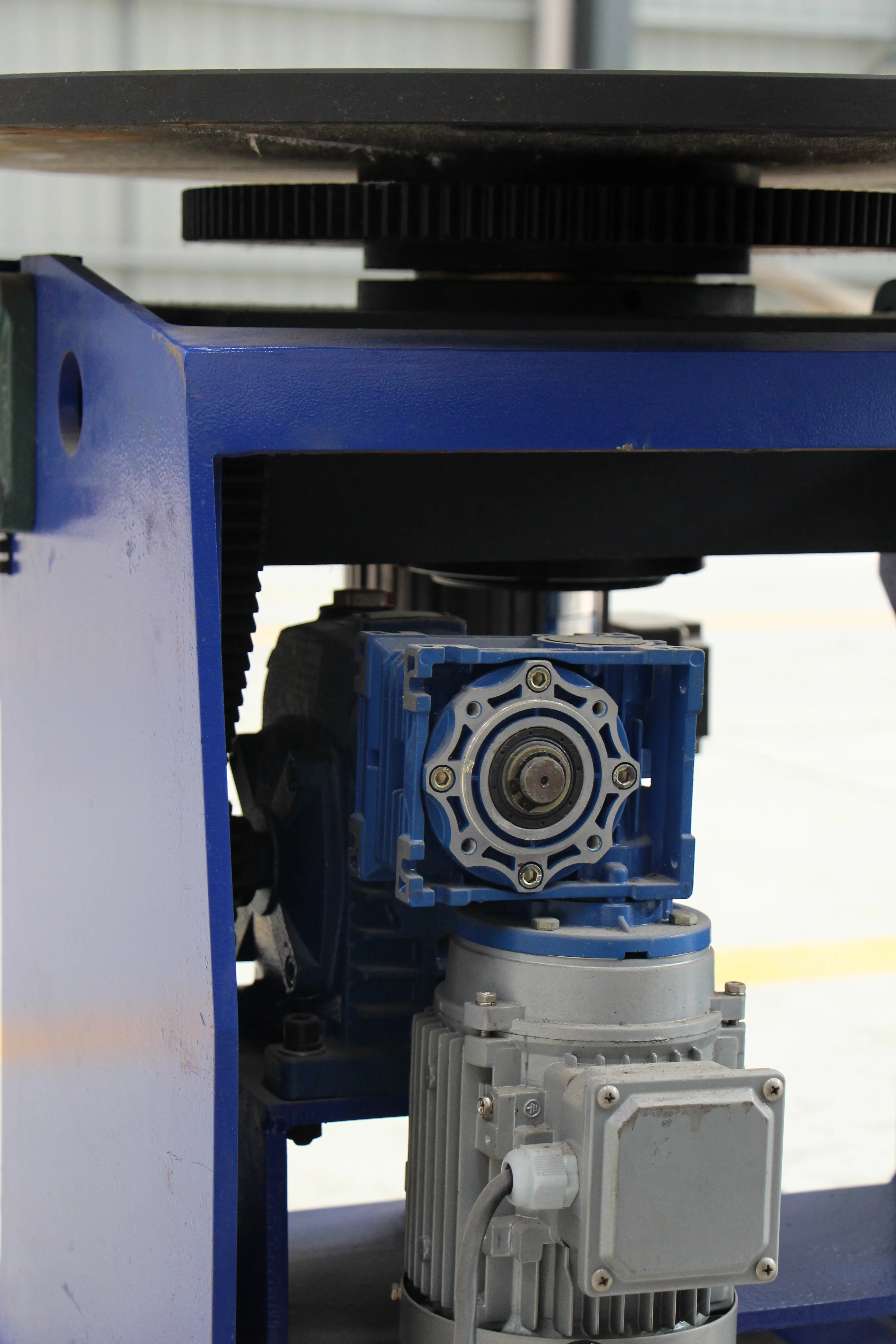

Swing motor The use of high-quality motors from well-known domestic manufacturers can achieve stepless frequency control | ||
Flip motor Domestic well-known brand motor, high control precision, high reliability, long service life, etc. | ||
If you need help, please Contact Us and tell me your needs. We can find the right machine for you.
Related Products
1.welding manipulator
Welding positioner and welding manipulator can be used for pipe flange welding and grinding disc roller surfacing.
2.L type positioner
When your workpiece is very irregular, you need to flip it easily and you need to rotate it when you need it
3.Slewing platform
Optional when you only need the workpiece to turn
Company Profile
Since established, Jinan Huafei CnC Machine Co.,Ltd. has focused on introducing and cultivating high-tech talents and takes it as development strategy. at present, many professionals have been brought together who specialize in researching and developing of uncoiling and leveling machines, CnC welding and cutting equipments. technical strength is always cherished as core competitiveness of our company.
With constant efforts of all staffs, our products have been sold well in domestic market and exported to many countries in the world, including Australia, Indonesia, India, Burma, Iran, Spain, Brasil, Peru, Russia, Azerbaijan, KZ, uZ, Sri Lanka, etc. During establishing the national brand of Huafei, we always hold the responsibility of culture communication between china and the world.
With constant efforts of all staffs, our products have been sold well in domestic market and exported to many countries in the world, including Australia, Indonesia, India, Burma, Iran, Spain, Brasil, Peru, Russia, Azerbaijan, KZ, uZ, Sri Lanka, etc. During establishing the national brand of Huafei, we always hold the responsibility of culture communication between china and the world.
Product packaging
FAQ
1.Does your company accept customized offer, we have special need.
HUAFEI CNC is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.
2.What certificate the machine in your company get?
We’ve passed the ISO9001 Quality System Approval and CE Certification.
3.Does your company accept CIF price?
CIF price includes shipping cost of cnc machine which needs to quote according to the different destination port and various in different months. Please contact us when you have such need.
CIF price also includes marine premium which is 2‰ of 1.1*total amount.
4.What’s your methods of transportation?
For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation. Exported cnc machine is all be packed by wooden case which can be fixed into a 40 HQ.
5.If the machine is out-of-warranty, how to charge the cost of accessories?
For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.
6.Does MC have maintenance manual and operation manual?
Each cnc machine leaving the factory will be along with related series or model the English instructions including maintenance manual and operation manual. Attached documentations may also include cnc controller instruction, parts instruction you bought(like rotaty table, oil cooler)
