Product Overview
Description
Products Description

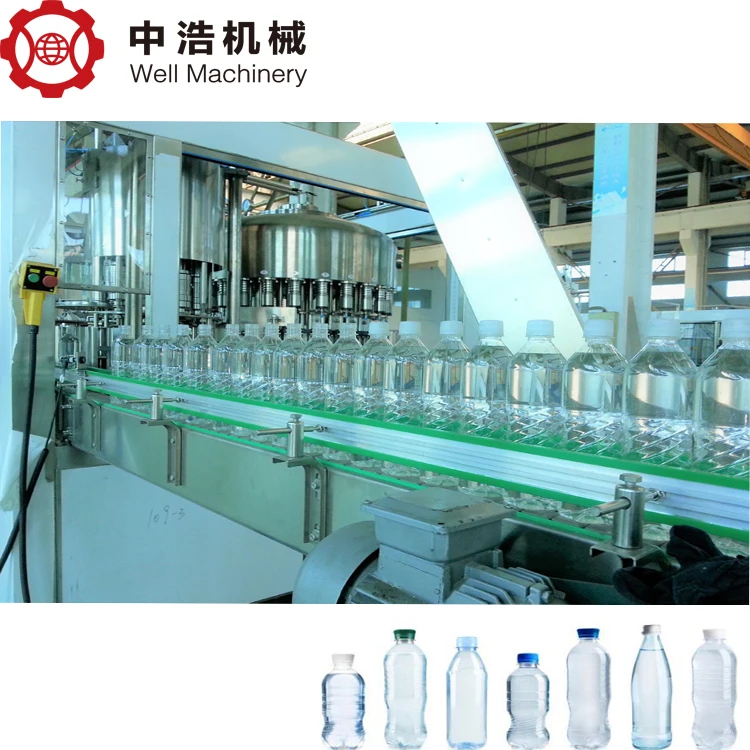

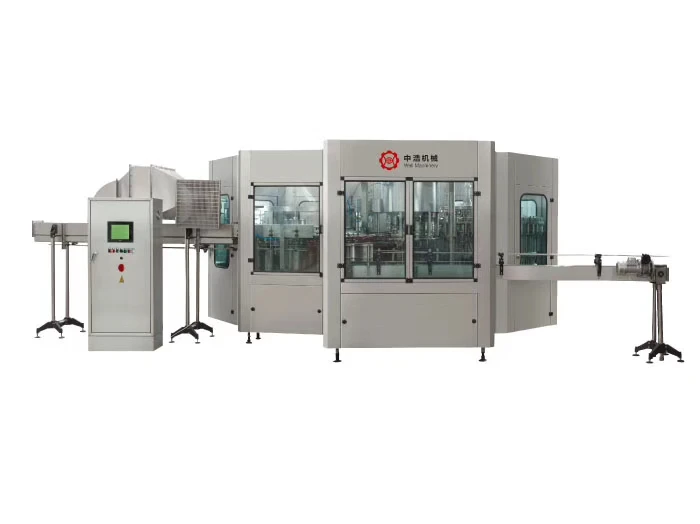

PET Water Filling Line
First to decide it is for mineral water or pure water.
A complete PET bottle filling line will cover following main machines:
1. Water Treatment System- UF/RO
2. Bottle Blow Molding System with Air Compressor Unit
3. Filling-Labeling-Packing System.

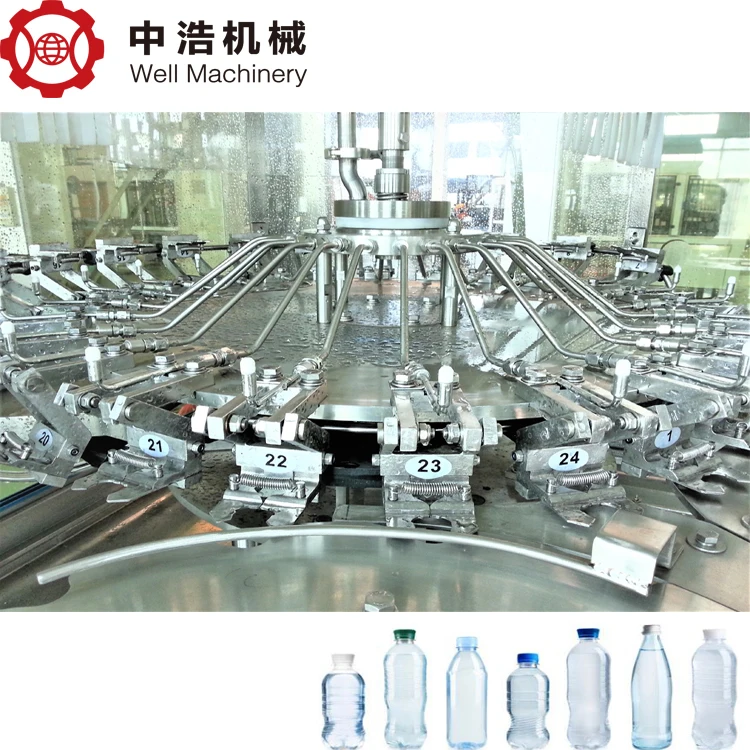

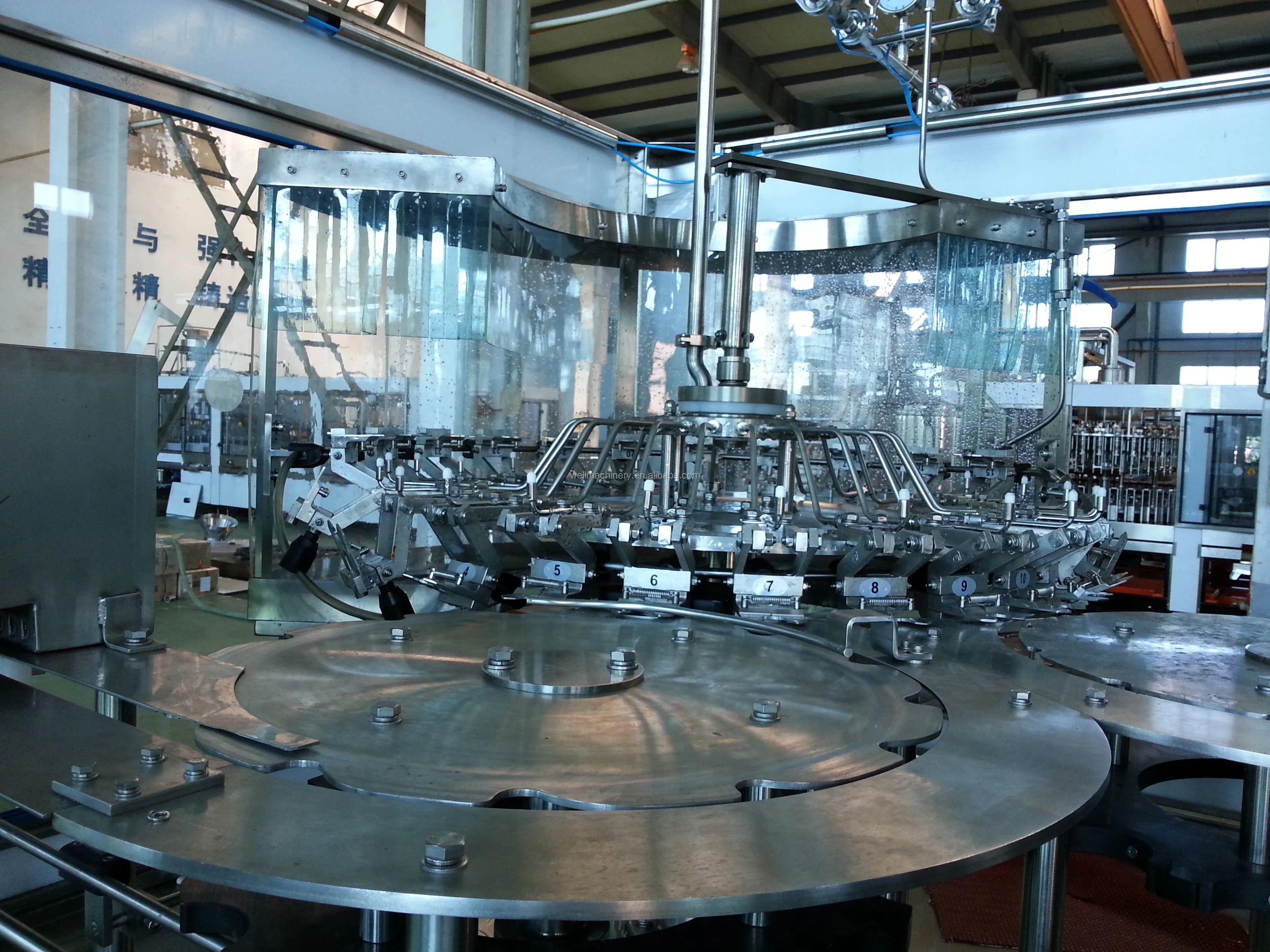

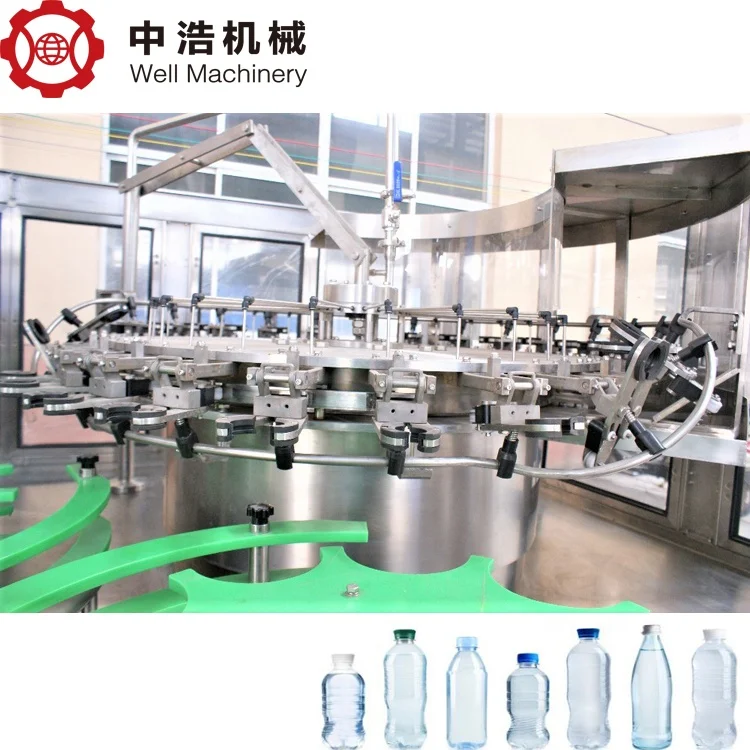

Washing Unit
<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump

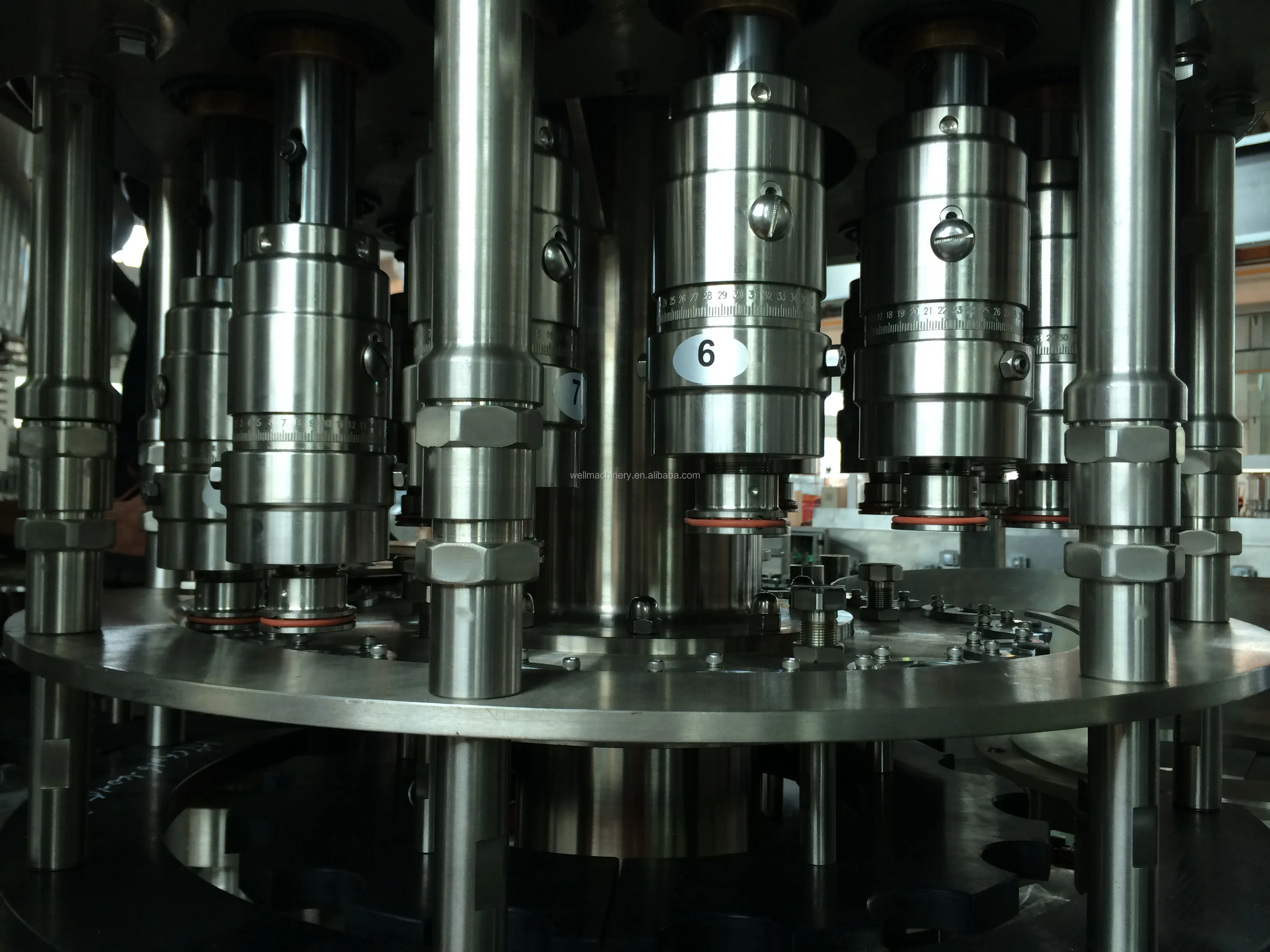

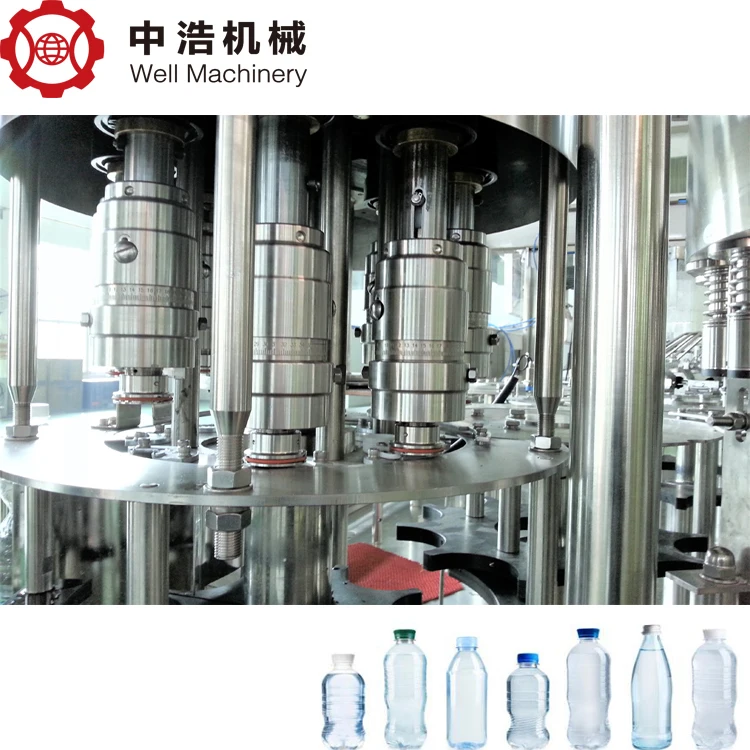

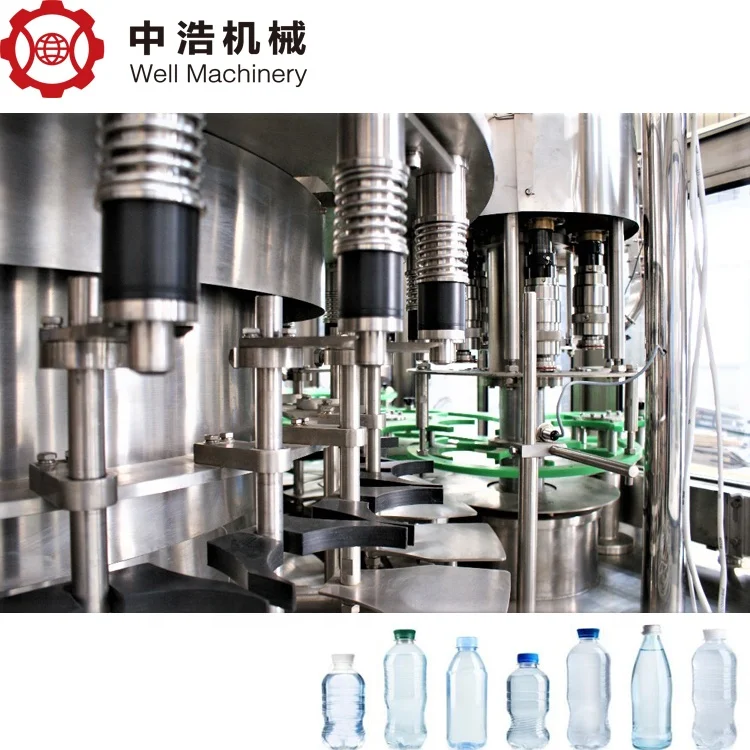

Filling Unit
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
Capping Unit
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
Want to know more message , contact us with out hesitate ! Inquiry us now !
Model | CGF12-12-4 | CGF16-16-5 | CGF24-24-6 | CGF32-32-8 | CGF40-40-10 | ||||
Capacity 0.5L/bottle/h | 3000-4000 | 6000-8000 | 8000-12000 | 12000-15000 | 18000-20000 | ||||
Suitable bottle | PET Circular or square | ||||||||
Bottle diameter | 50-115 mm | ||||||||
Bottle height | 160-320 mm | ||||||||
Compressed air pressure | 0.3-0.7 Mpa | ||||||||
Washing mdeium | Aseptic water | ||||||||
Washing water's pressure | >0.06Mpa | ||||||||
Total power | 4.4 | 4.4 | 4.4 | 5.2 | 6.2 | ||||
Weight | 3200 | 4000 | 4500 | 6500 | 7500 | ||||
Auxiliary Equipment

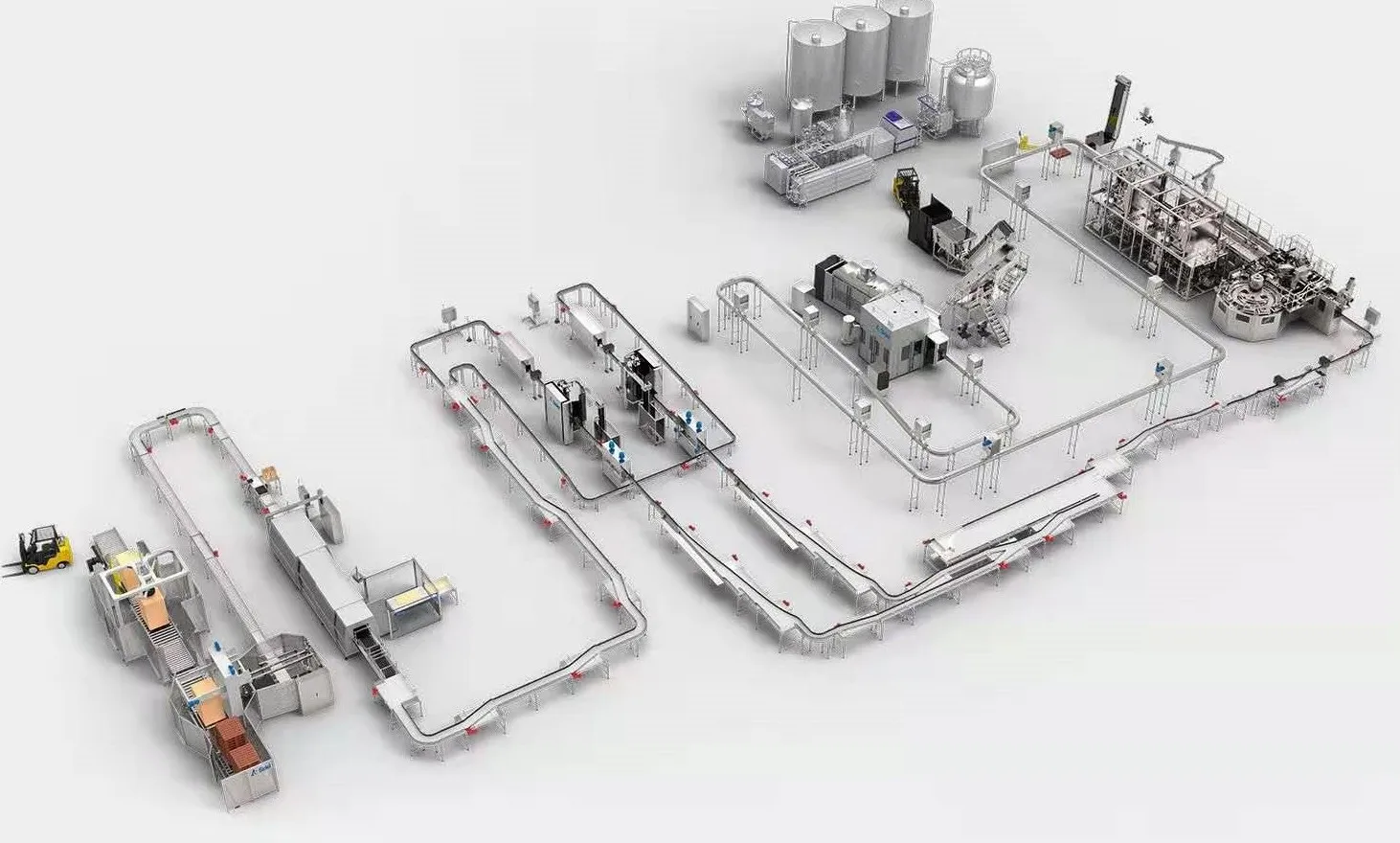

Layout- Pet Water Filling Line
RO Water Treatment System
•Stainless steel high pressure film shell
•All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
•Online type pressure auto self-protection device

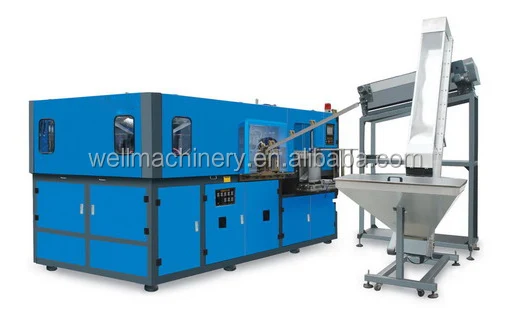

Blow Molding System.
Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

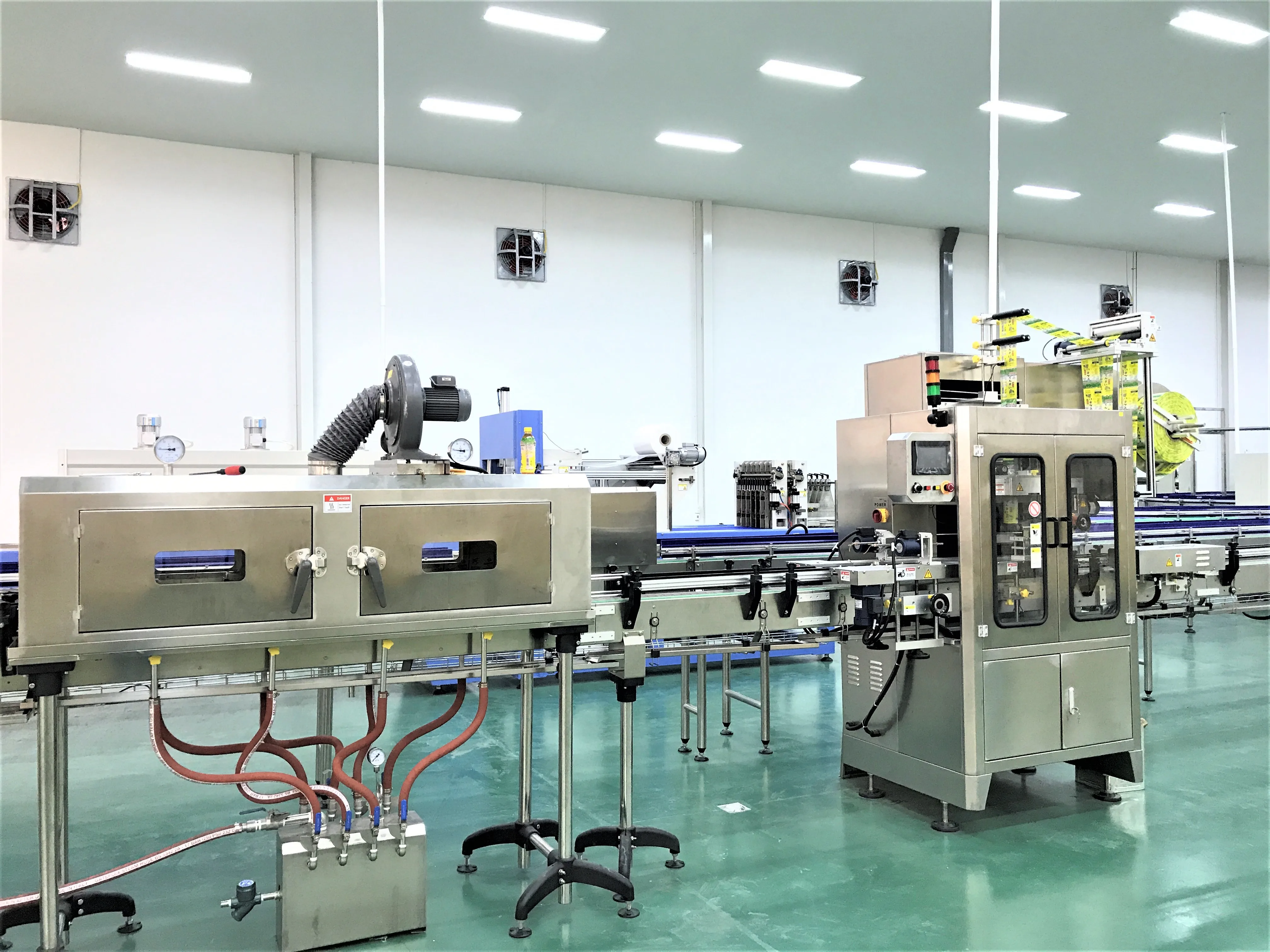

It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is,
four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels
smoothly, stably and rapidly.
four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels
smoothly, stably and rapidly.

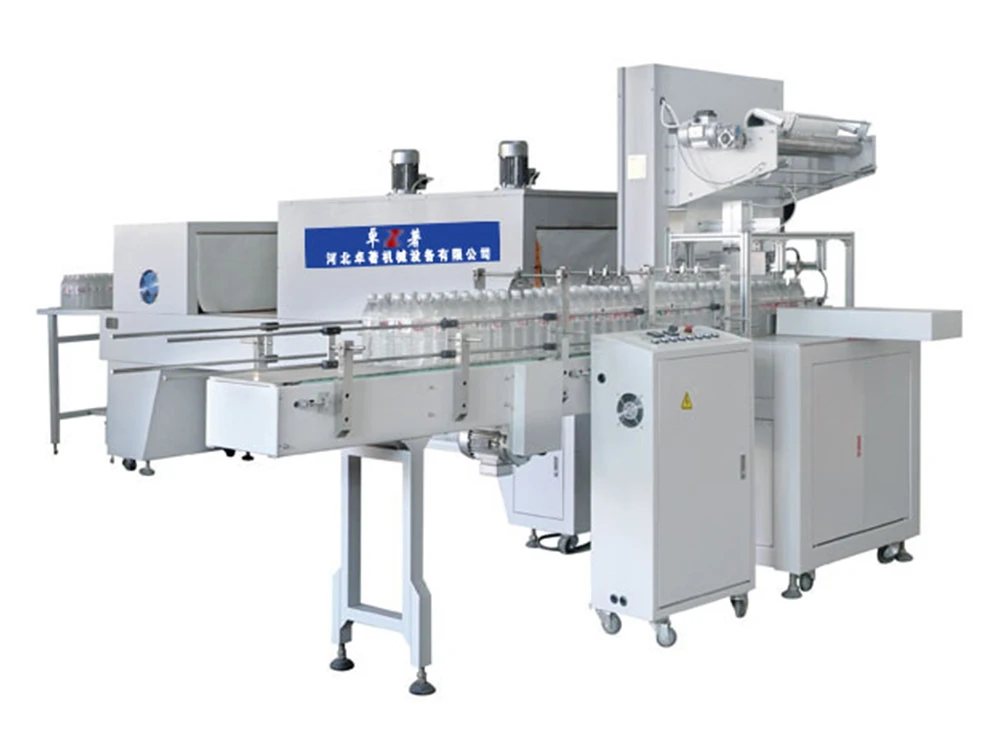

It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.
Want to know more message , contact us with out hesitate ! Inquiry us now !
Certifications
Company Profile
Well Machinery
<1> Standardized workshop of total 12,000 square meters.
<2>With a more than 30 professionals team to design and develop, is a key professional enterprise, which integrates development,research, design, manufacture, technology service and marketing.
<3>Well Machinery followsISO9001:2001; CE Certificate , SGS , COC , TUV
international quality management system.
international quality management system.
<4>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline,and pneumatic, electrical and mechnical stability.
<5>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
<6>Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
Want to know more message , contact us with out hesitate ! Inquiry us now !
Well Service
What Well Machinery can do for you?
Before Sales
1.Answer your any questions on us with in 24 hours.
2.Supply all information about your requirement.
3.Machines video for reference.
4.Welcome to visit my factory.
After Sales
1.Update production progress each week.
2.Sending machine's pictures on production.
3.Sending machine's testing video.
4.Engineers arranged to install machines.
5.Spare part provided.
Want to know more message , contact us with out hesitate ! Inquiry us now !
Technical support
Our technicians can provide professional technical level to support your project
Machine layout
We will confirm the machine layout according to your factory.
Sample Project.
We can provide a sample project for you to visit
Product packaging
Packing & Delivery.
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
FAQ
Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Our sales people you can get video of our reference running machine
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Our sales people you can get video of our reference running machine
Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!
Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
