Hot Sale Textile Machinery Automatic Cotton Bale Plucker From China
Product Description

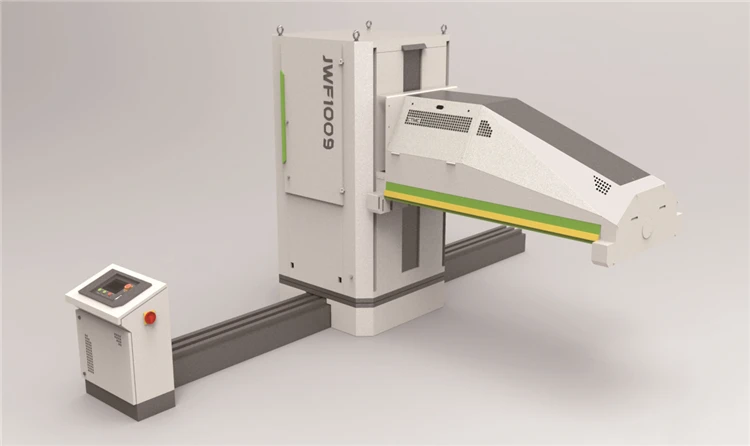

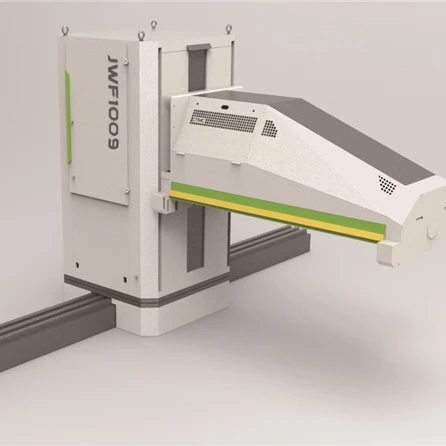

JWF1009 series bale plucker, as the first process of the blowing-carding line, is applicable to process various kinds of cotton, chemical fiber and viscose fiber in length less than 76mm. The plucker arm,equipped with two beaters, goes up and down and can revolve 180° . The plucker arm moved back and forth to pluck the material bales. The material plucked is sucked into the next process by the air current through the transport duct.
MAIN FEATURES
The plucker arm have balance device, to ensure more stable & safely during go up and dowm.
Auto stop function when bales fall.
Bales can be paled in both sides. The machine can pluck 1 to 3 groups of bales in diffierent height and density, meeting the demands of various kinds of yarn at the same time.
Tower and revolve 180°.
It is designed with two plucking rollers and two detecting rollers.
There are 16 plucking knives and 96 tips on JWF1009-170, and 22 plucking knives and 132 tips on JWF1009. While the plucking roller revolves, it makes even distributed plucking line. The position of the knife tips and flaps can be adjusted to meet various requirements.
It is controlled by the micro-computer, realizing automatic plucking.
SPECIFICATIONS
| Working width (mm) | 2300 |
| Production (kg/h) | 1500 |
| Blade number (PSC) | 22 |

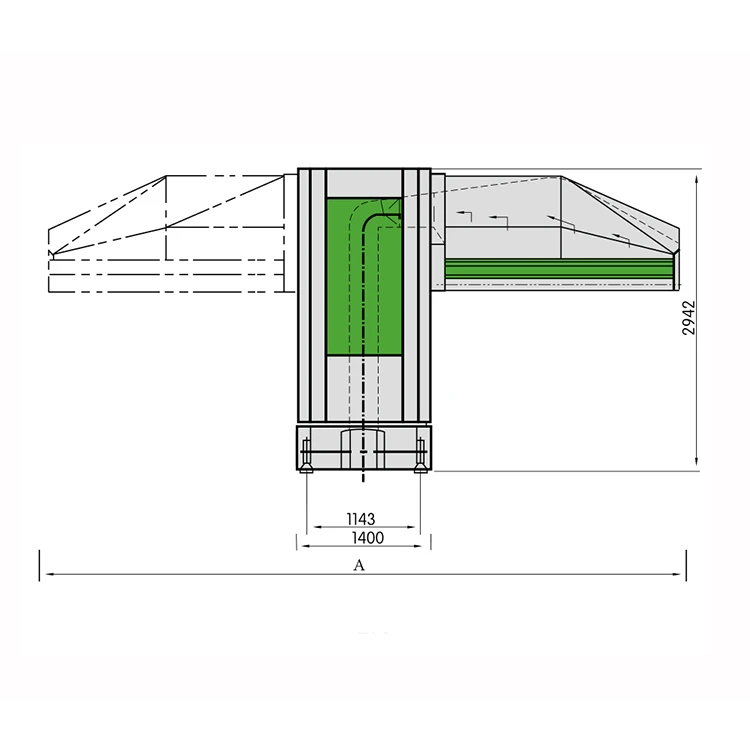

| A (mm) | 6362 |
| Milling depth (mm) | 0.1~20 (adjustable) |

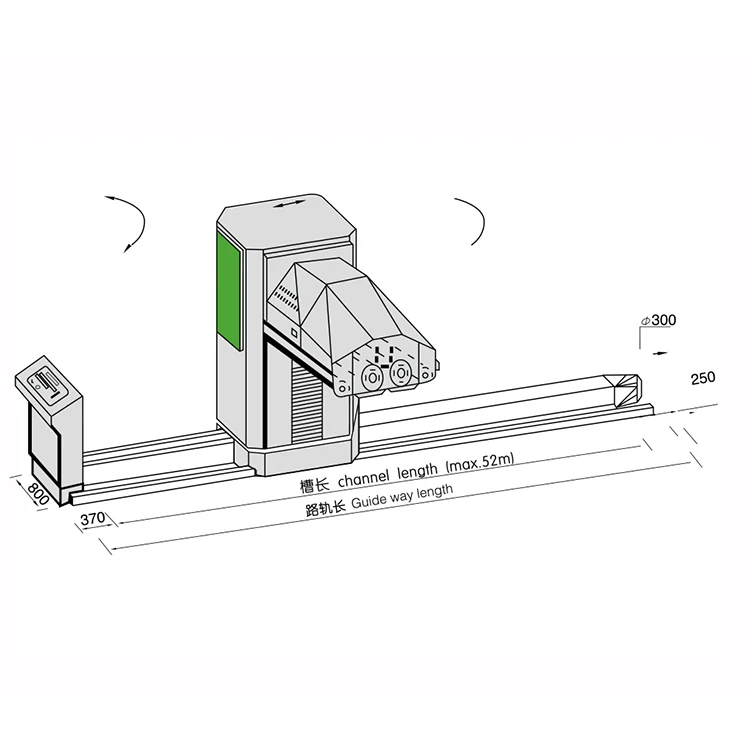

| Basic length of machine (mm) | 20400 |
| maximum length 52000 | |
| Beater speed (r/min) | Control by pulley or inverter |
| Total power (kW) | 7.5 |
| Net weight (kg) | 7000 |
