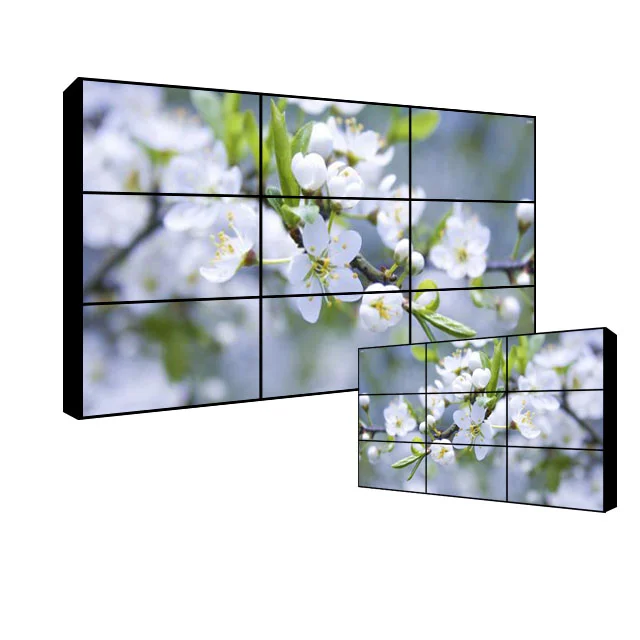

Samsung High Quality 55 inch 1920*1080 DID LCD Panel for Video Wall LTI550HN11
- Category: >>>
- Supplier: Shenzhen Ibr Electronics Co. Ltd.
Share on (62552239770):
Product Overview
Description
Product Description
Brand | SAMSUNG | Model | LTI550HN11 | ||
Screen Size | 55 inch | Screen Type | LCM, a-Si TFT-LCD | ||
Pixel Number | 1920(RGB)×1080 [FHD] 47PPI | Arrangement | RGB Vertical Stripe | ||
Active Area(mm) | 1209.6 × 680.4 (H×V) | Outline(mm) | 1213.5 × 684.3 × 67.7 (H×V×D) | ||
Bezel Area(mm) | 1209.8 × 680.6 (H×V) | Luminance | 500 cd/m² (Typ.) | ||
Contrast Ratio | 4000 : 1 (Typ.) (TM) | Good View at | Symmetry | ||
Response Time | 8 (Typ.)(G to G) ms | Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | ||
Work Mode | SVA, Normally Black, Transmissive | Color Depth | 16.7M 100% sRGB | ||
Backlight | WLED , 50K hours , With LED Driver | Refresh Rate | 60Hz | ||
Splicing Seam | 3.9 mm (active to active seam) | Touch Panel | Without | ||
Signal Type | LVDS (2 ch, 8-bit) , Connector 51 pins | Voltage Supply | 12.0V (Typ.) | ||
Max. Ratings | Storage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 50 °C | ||||
