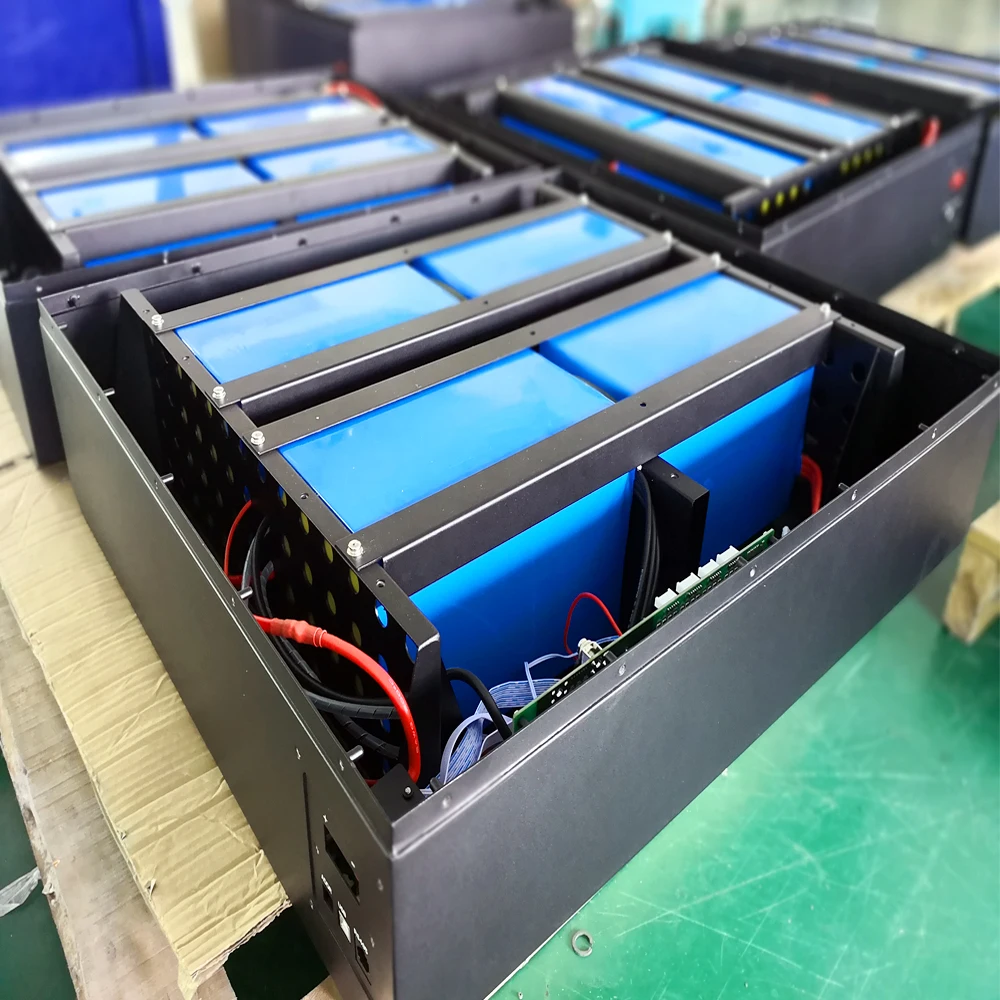

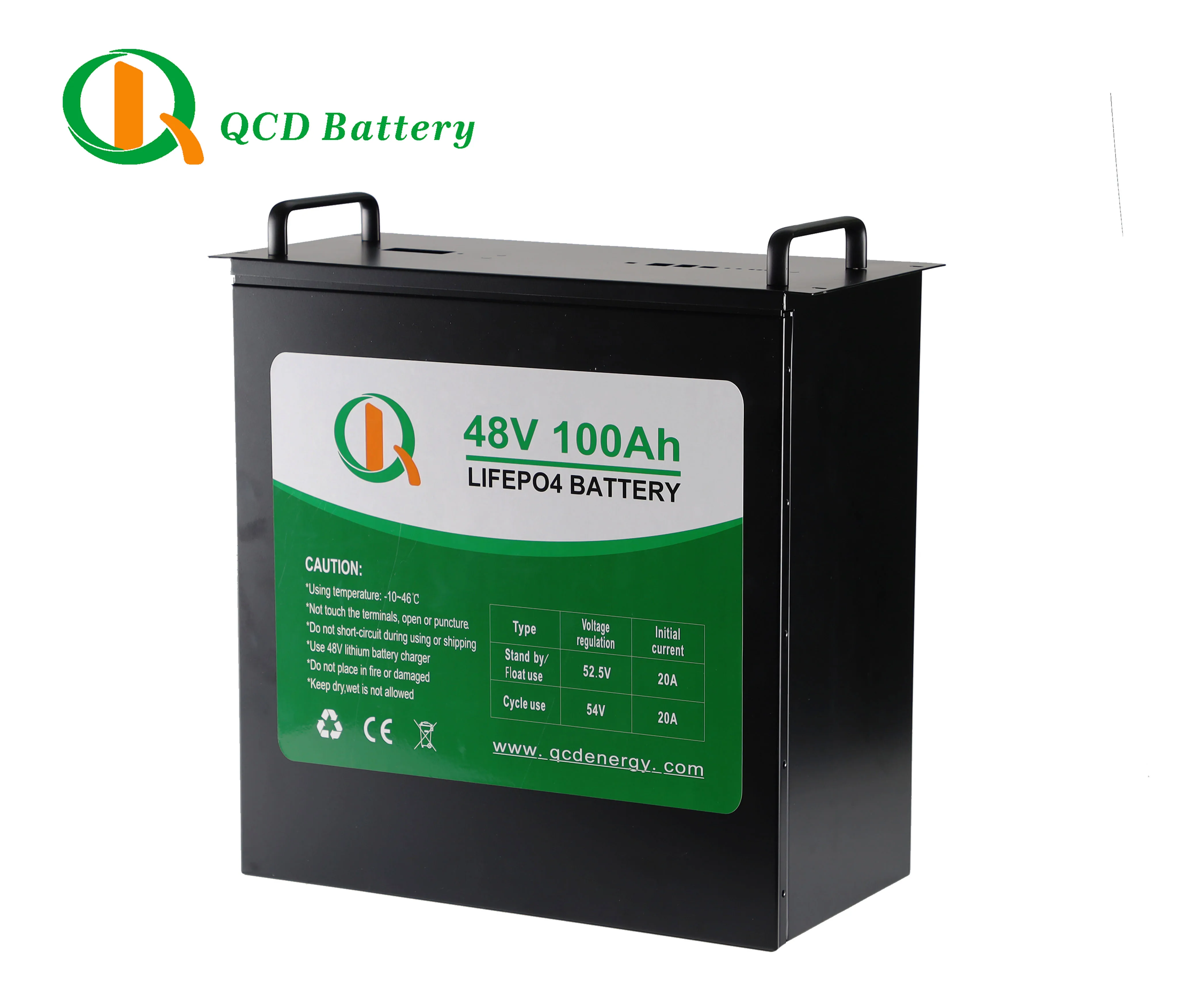

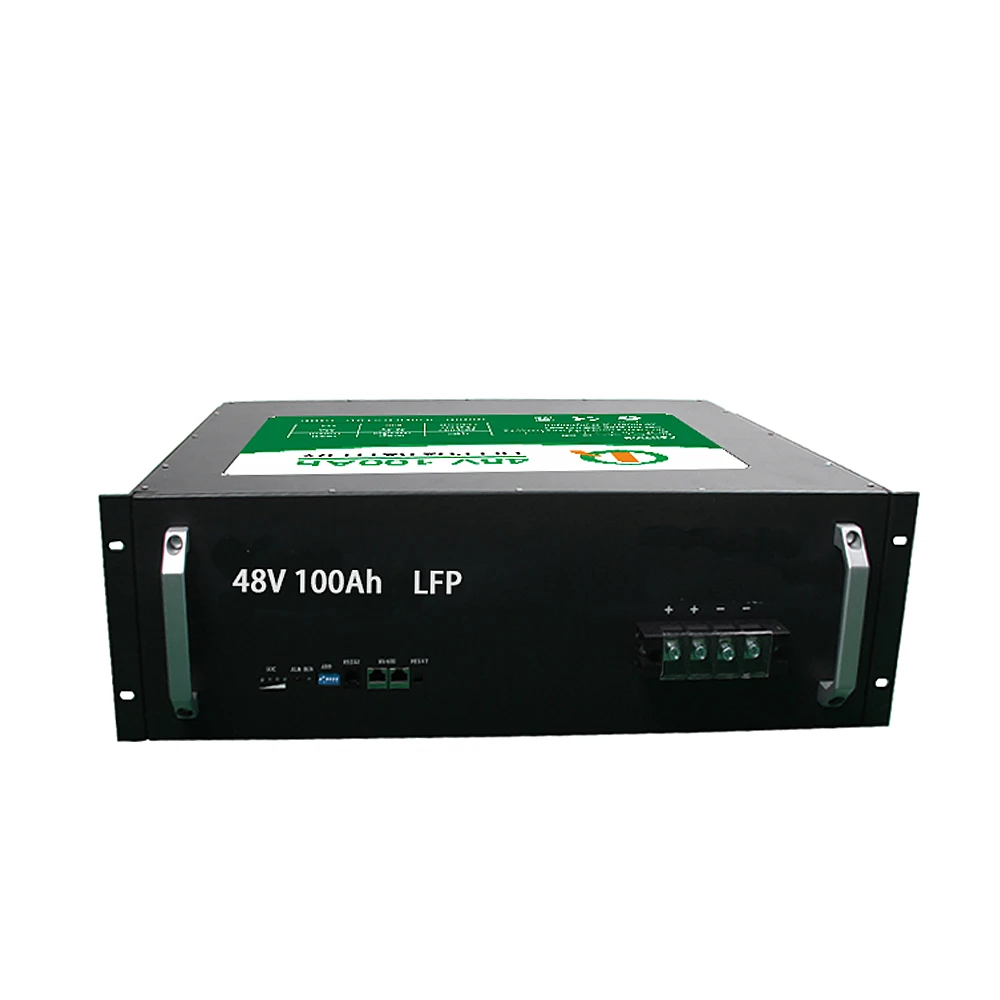

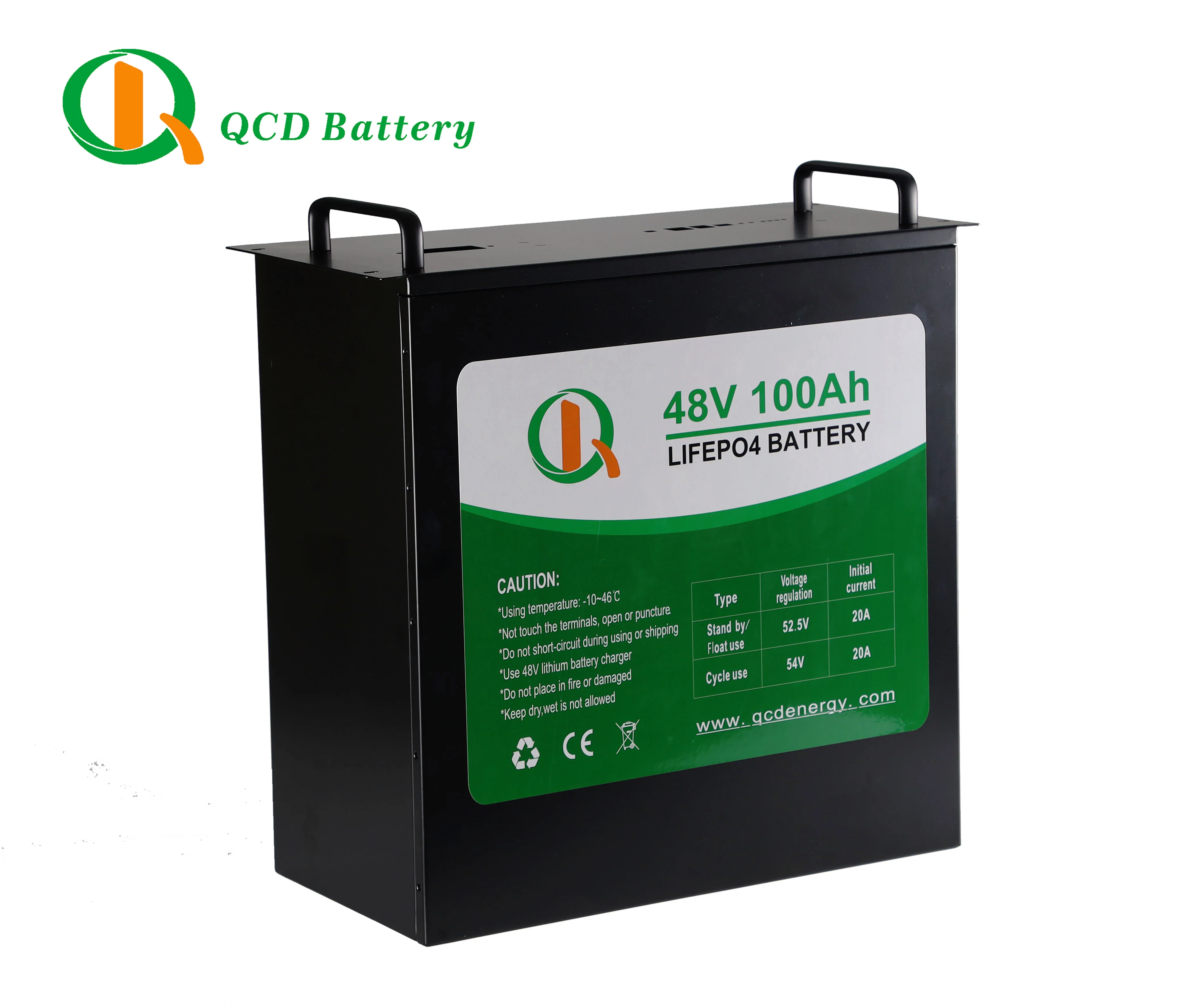

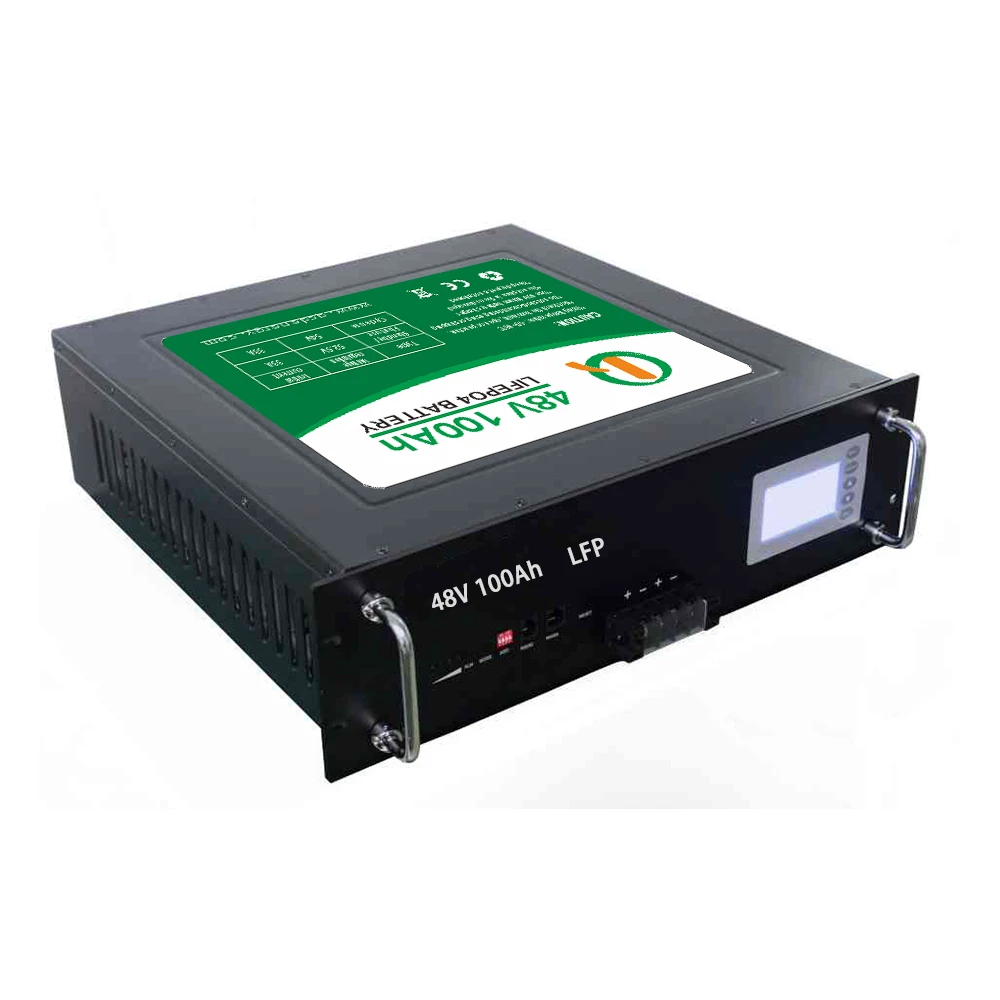

48v 100ah lifepo4 battery for Telecom UPS Solar Energy Storage

Product Overview

Description

48V 100Ah lifepo4 battery for Telecom /UPS/Solar Energy Storage



Features:
1.Built-in automatic protection for over-charge,over-discharge and over-temperature conditions
2.Maintenance free
3.Internal cell balancing
4.Communication of monitored data via Battery Management System (BMS)
5.Thousands of cycles,100% DOD,under normal conditions
6.Can be charged using most standard lead-acid chargers (set for AGM/GEL cells)
7.Flame retardant plastics



Application :
1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices, Telecom base Station
6. Small medical equipment and portable equipment



Specifications :



Volt	48V(51.2)
Capacity	100Ah (0.2C to 40V at 25℃)
Watt	4800Wh-5120Wh
Internal resistance(AC0	≤150mΩ
Cycle life	>2000 cycles @0.2C 80%DOD
Discharge	<3%
Charging volt	54.75±0.2V
Charging type	0.2C to 54.75V, then54.75V,charge current to 0.02C (CC/CV)
Charging current	20A
Peak charging current	50A
Charging cut-off volt	56.4V±0.2V
Constant current	50.0A
Peak constant current	100A
Discharge cut-off current	40V
Connection model	LF3270     15(16)S 1P
Case	metal
Dimension(mm)	W442(482)*D500* H223.mm  ±2(5U)
Weight (lbs./kg.)	48.0kg
Terminal	75A through terminal M6
Communication protocol (Optional)	RS485*2/RS232/Dry contact*2
Extend (Optional)	MAX String*15  LED Power display
