extendable type c Wide voltage 2AV hd lcd driver board with usb and VGA for EDP display
- Category: >>>
- Supplier: Shenzhen Wu He Tian Cheng Technology Co. Ltd.
Share on (62552546940):
Product Overview
Description

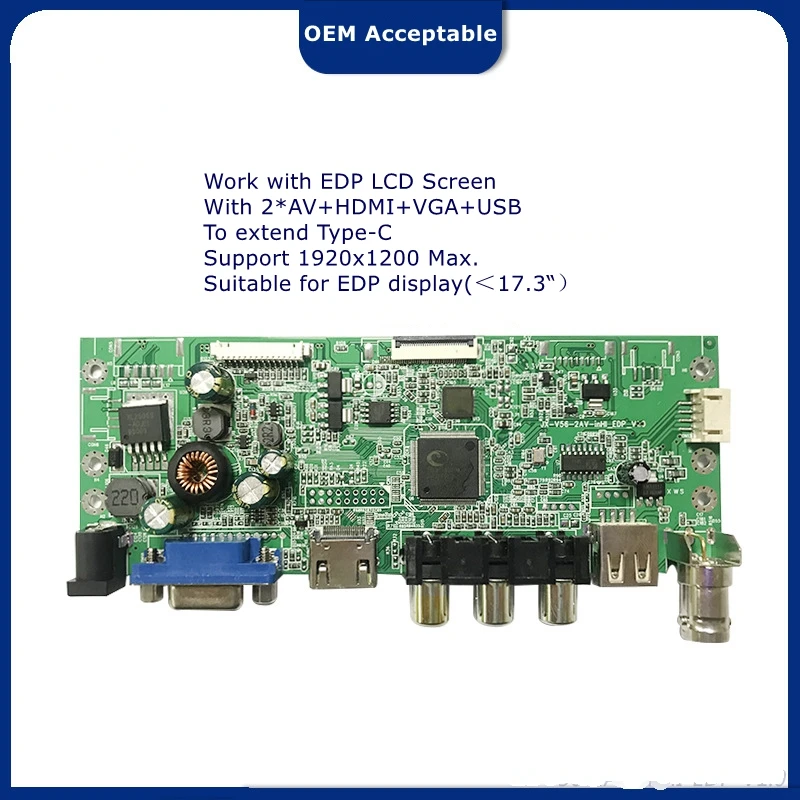

extendable type c Wide voltage 2AV hd lcd driver board with usb and VGA for EDP display
Product Description

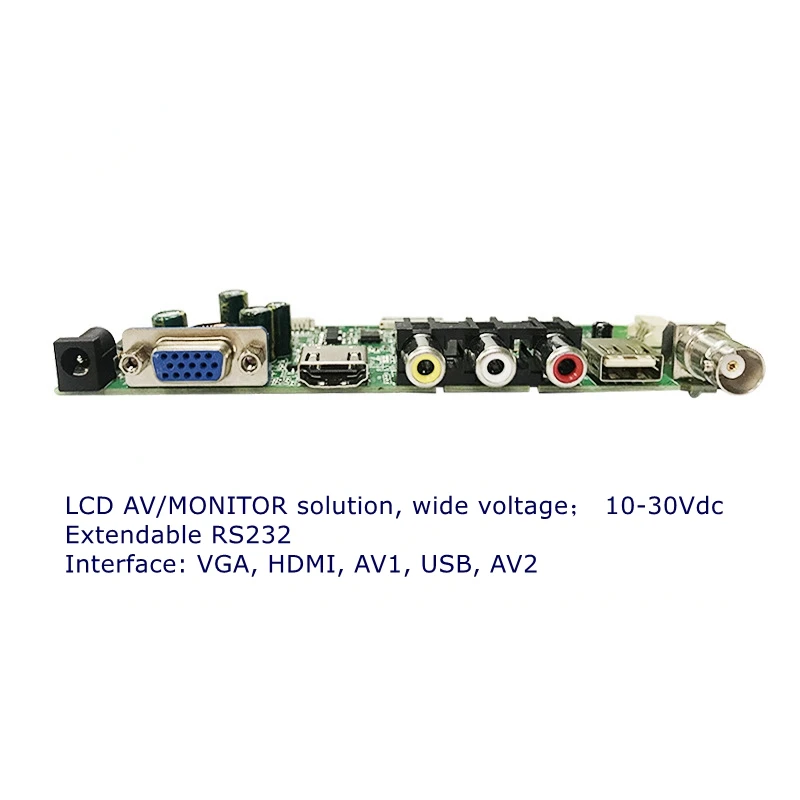

●This product is positioned as a mid / high-end LCD AV / MONITOR solution. It uses MSTAR single-chip TV processing IC. It has the characteristics of good picture quality, multiple functions, rich interfaces, and mature system. It supports full color / sound system, mainly for 17.3 "and below The size of the EDP screen design.
● Wide voltage input range 10-30Vdc.
● Type-C function can be extended. Support multiple mobile phones and computers.
● CVBS signal supports PAL, NTSC, SECAM automatic identification.
● Full 3D Interlace video decoding, digital noise reduction, (V56 is 3D video decoding, USB function support) built-in sound processing, volume, mute, treble, bass, balance function;
● Support multimedia playback.
● Wide voltage input range 10-30Vdc.
● Type-C function can be extended. Support multiple mobile phones and computers.
● CVBS signal supports PAL, NTSC, SECAM automatic identification.
● Full 3D Interlace video decoding, digital noise reduction, (V56 is 3D video decoding, USB function support) built-in sound processing, volume, mute, treble, bass, balance function;
● Support multimedia playback.
● RS232 can be expanded, and also has a variety of peripheral control functions. For example: automatic photometric adjustment, audio control switch, etc.
● Analog audio power amplifier: maximum output power 2X3W (4 ohms).

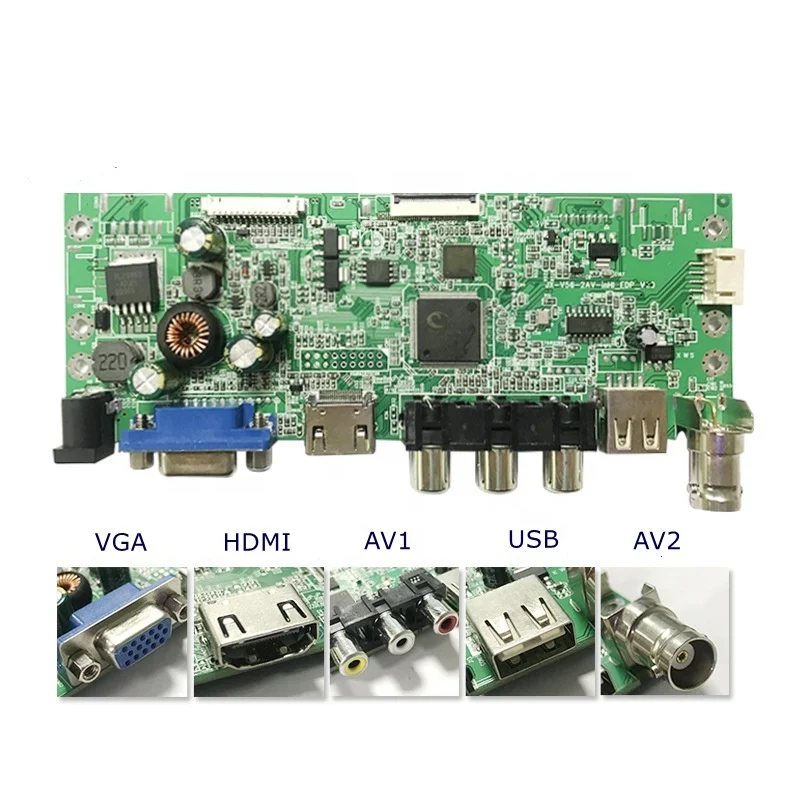

● Input signal: AvinX2, VGAx1, HDMI (1.4), USB
● Support screen resolution 1920 * 1200, 1920 * 1080, 1366 * 768 signal output.
● Support headphone output function, rich built-in interface expansion, multi-national OSD menu language.
● Analog audio power amplifier: maximum output power 2X3W (4 ohms).
● Input signal: AvinX2, VGAx1, HDMI (1.4), USB
● Support screen resolution 1920 * 1200, 1920 * 1080, 1366 * 768 signal output.
● Support headphone output function, rich built-in interface expansion, multi-national OSD menu language.
extendable type c Wide voltage 2AV hd lcd driver board with usb and VGA for EDP display

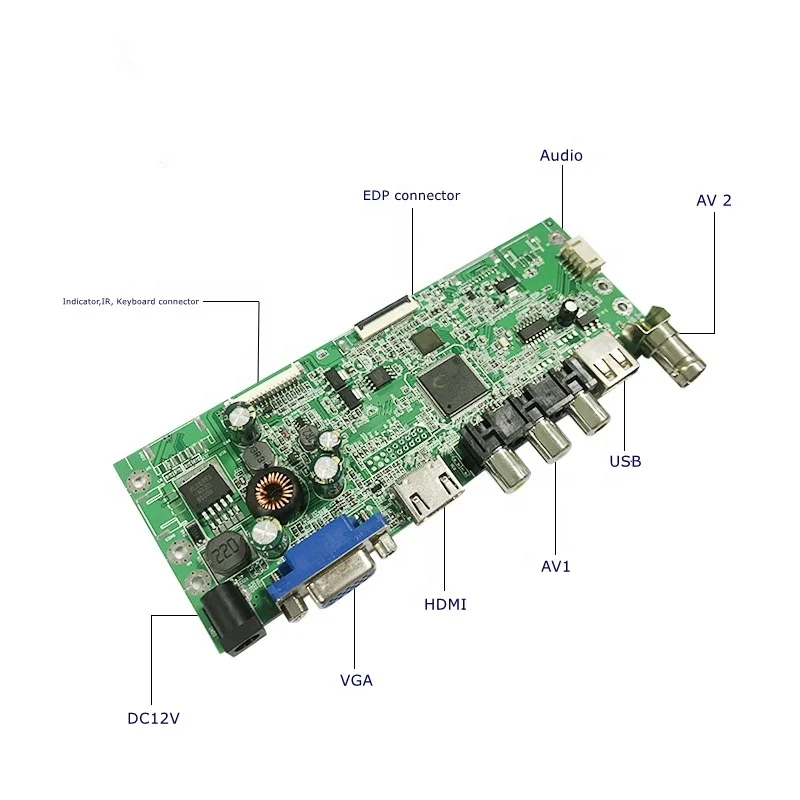

Connection port
extendable type c Wide voltage 2AV hd lcd driver board with usb and VGA for EDP display
Related Products
LCD Display Driver Board | |||||||
Type C driver board | HDMI+type C+2USB | 4K V by one | 2 mini HDMI + Type C | More... | |||
Portable Screen driver board | Support 4K VR glass, 3D printer, camera, MIPI display | ||||||
4K display driver board | 4K V by 1, HDMI, EDP | ||||||
Monitor driver board | AV+VAG+USB+HDMI, 4K V BY one, Type C | ||||||
LVDS display driver board | AV+VAG+USB+HDMI+BNC, for different size display with LVDS interface | ||||||
MIPI display driver board | |||||||
EDP display driver board | |||||||
TTL display driver board | |||||||
AV board | AV+VAG+USB+HDMI, 4K V BY one, Type C | ||||||
Signal transfer board | LVDS for MIPI signal | MIPI transfer board | Type C to HDMI | ||||
TV board | HDMI, VGA, AV, TV | ||||||
Our Company
With years of export experience along with excellent quality, advanced services and competitive prices, WHTC has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, WHTC has won numerous customers' trust and support.
Certifications
Packing & Delivery
Packing
Standard export carton packing.
Delivery
Shipped in 3 working days after payment
FAQ
1. Are you a manufacturer or a trader?
Answer: We are manufacturer producing LCD products over 8 years.
2. What's the total area and number of FTE's employed by WHTC?
Answer: Total area of production site is around 40,000m2; Over 600 personnel in various LCD/LCM Divisions.
3. What's the MOQ?
Answer: For standard model,no strict limits;For customized model,MOQ depends on LCD size
4. What's the lead time of your LCD product?
Answer: For standard models, we always have stock or 3~5weeks;5~6 for customized model
5. What's the payment term?
Answer: Normally, we accept T/T in advance, better payment term is negotible depend on customers' credit.
6. What's the price term?
Answer: Normally, we make EXW shenzhen, other pice term is negotiable.
7. How can I get more information about Fomike and their product?
Answer: You can ask on trademanager, leave message or send an email to get more information.
