CALIBRATION RANGE 0 40 KG/CM2 gauge pressure transmitter DIE CAST ALUMINIUM WITH EPOXY RESIN COAT
- Category: >>>
- Supplier: Shanghai Rocksensor Automation Co. Ltd.
Share on (62552563864):
Product Overview
Description
Product Description
.

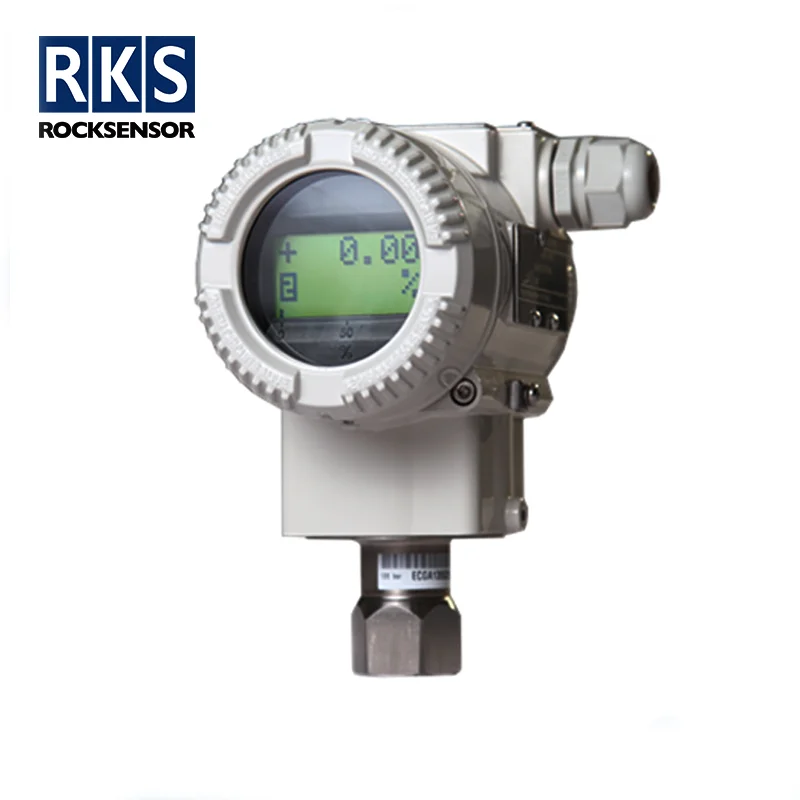

RP1002/3-B/C Pressure Transmitter
Brief Introduction:
The differential pressure transmitter RP1001-B/C is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. RP1001- B/C outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.
Specifications:
RP1002/3-B/C Pressure Transmitter
| Measurement Type | Gauge/Absolute pressure ,Flow |
| Output | 4-20mA |
| Reference Accuracy | 0.05%/0.075%/0.1% |
| Long Term Stability | ±0.1% ×Span /3 years |
| Measuring Temperature | -45 to 65°C |
| Rangedown | 100:1 |
Measuring | range |
| Gauge RP1002
| |
| B | 0-200Pa~6kPa(0-20~600 mmH2O)/(0-2~60mbar) |
| C | 0-4kPa~40kPa(0-400~4000 mH2O)/(0-40~400mbar) |
| D | 0-2.5kPa~250kPa(0-0.25~25 mH2O)/ (0-25~2500mbar) |
| F | 0-30kPa~3MPa(0-3~300mH2O)/(0-0.3~30bar) |
| G | 0-0.1MPa~10MPa(0-1~100bar) |
| H | 0-0.21MPa~21MPa(0-10~1000mH2O)/(0-1~100bar) |
| I | 0-0.4MPa~40MPa/(0-4~400bar) |
| Absolute RP1003
| |
| L | 0-4kPa~40kPa(0-400~4000 mH2O)/(0-40~400mbar) |
| M | 0-2.5kPa~250kPa(0-0.25~25 mH2O)/ (0-25~2500mbar) |
| O | 0-30kPa~3MPa(0-3~300mH2O)/(0-0.3~30bar) |

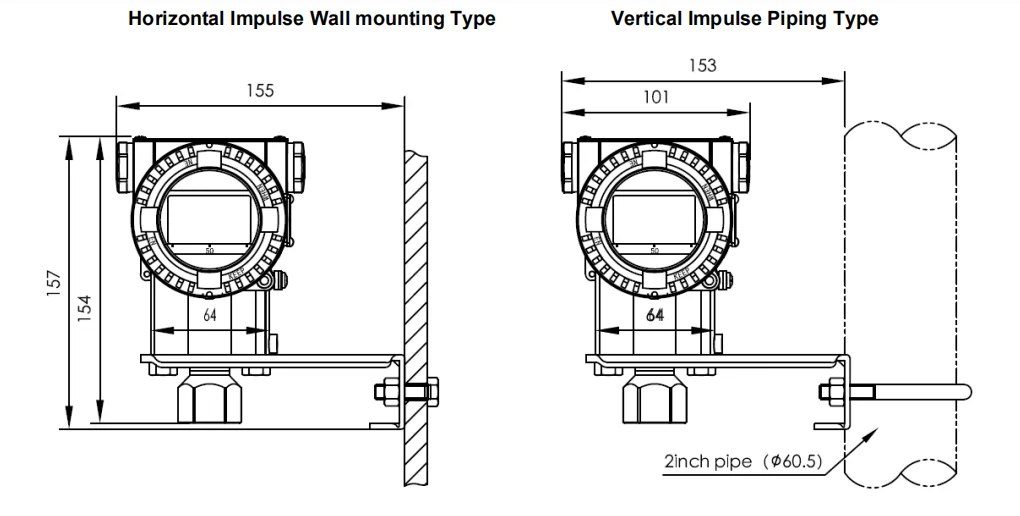

Drawings:

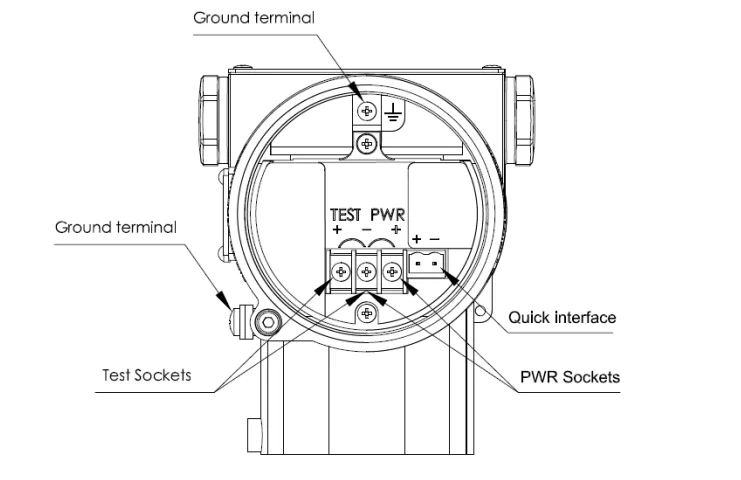

Wiring:
Production details:

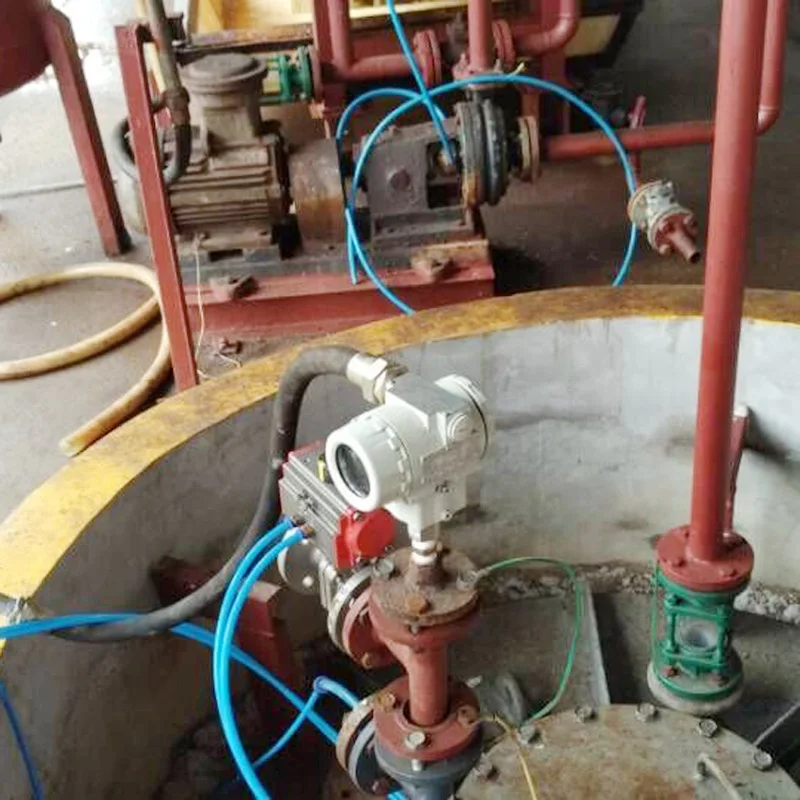

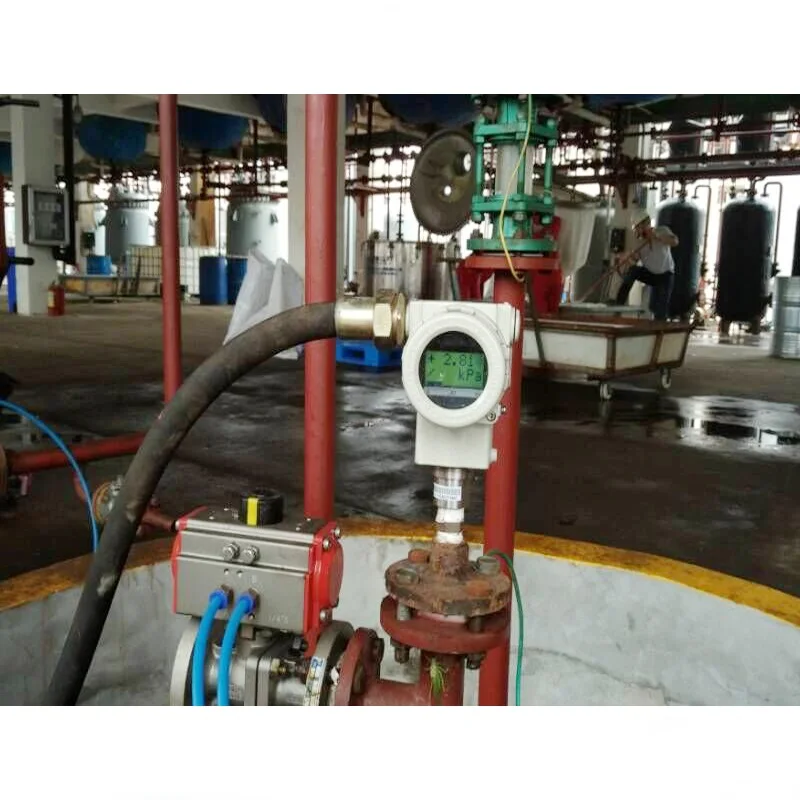

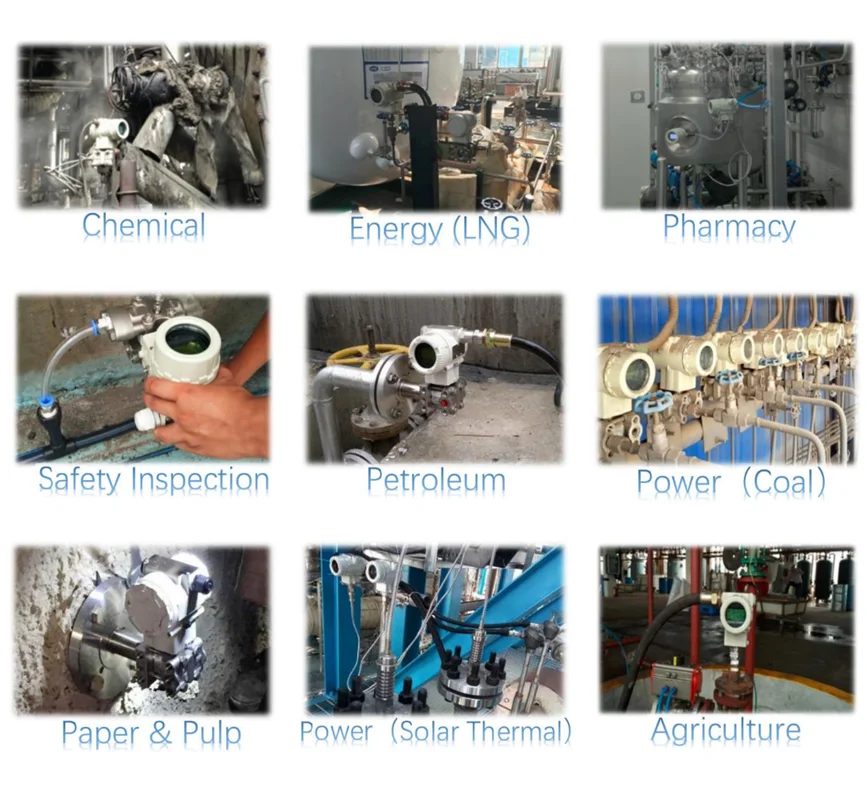

Applications:

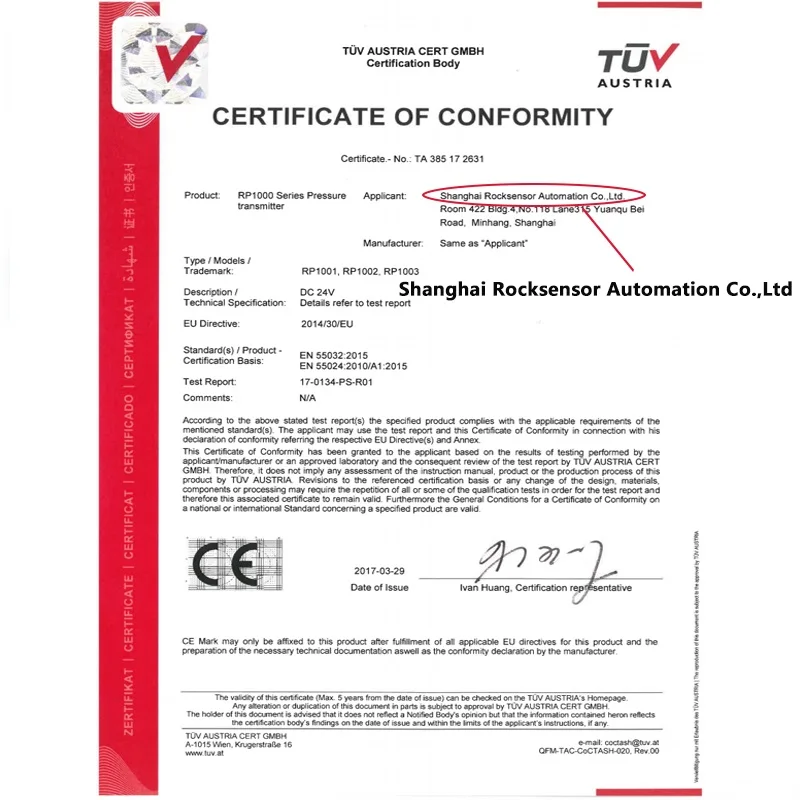

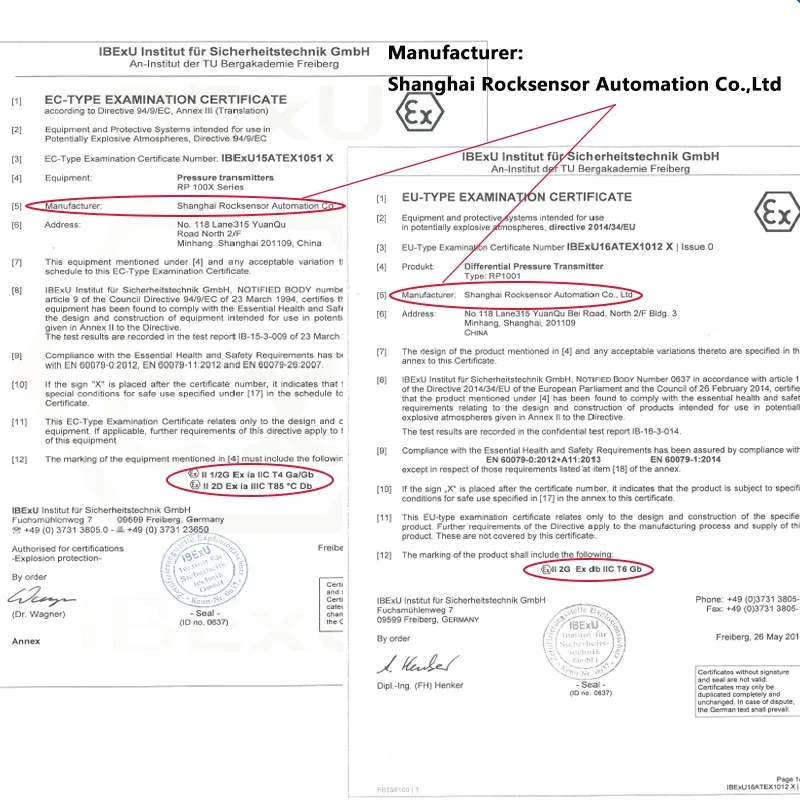

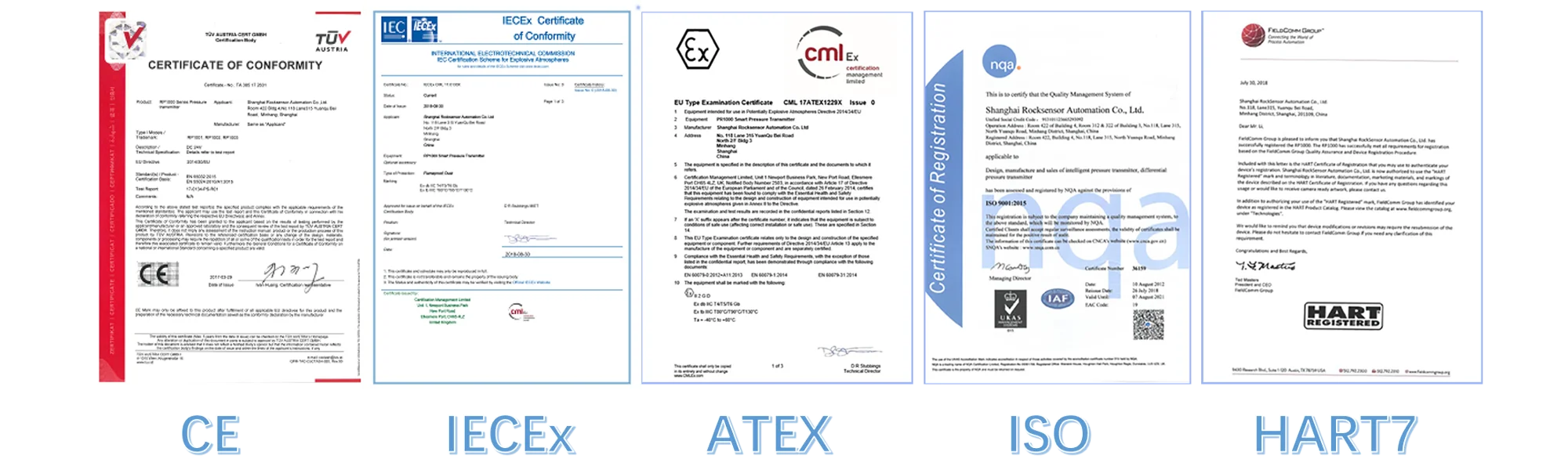

Certificates:
Why choose us ?
Production Line:
EXhibition & Training & Service:
