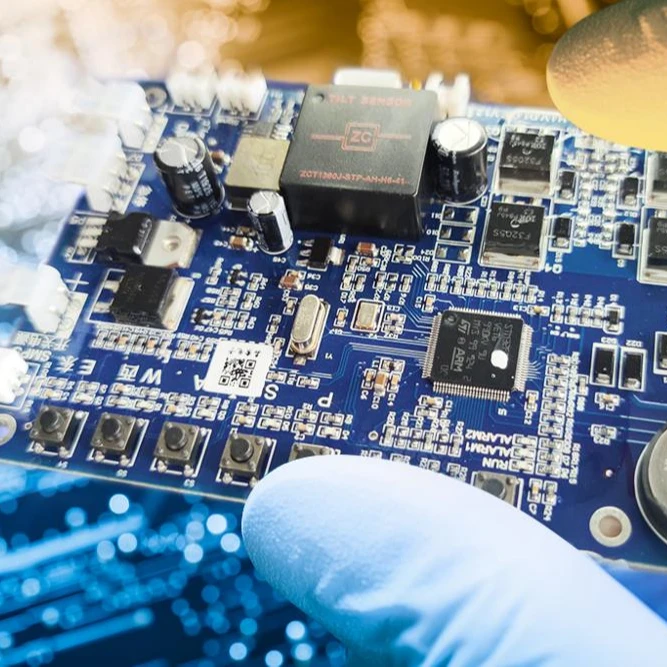

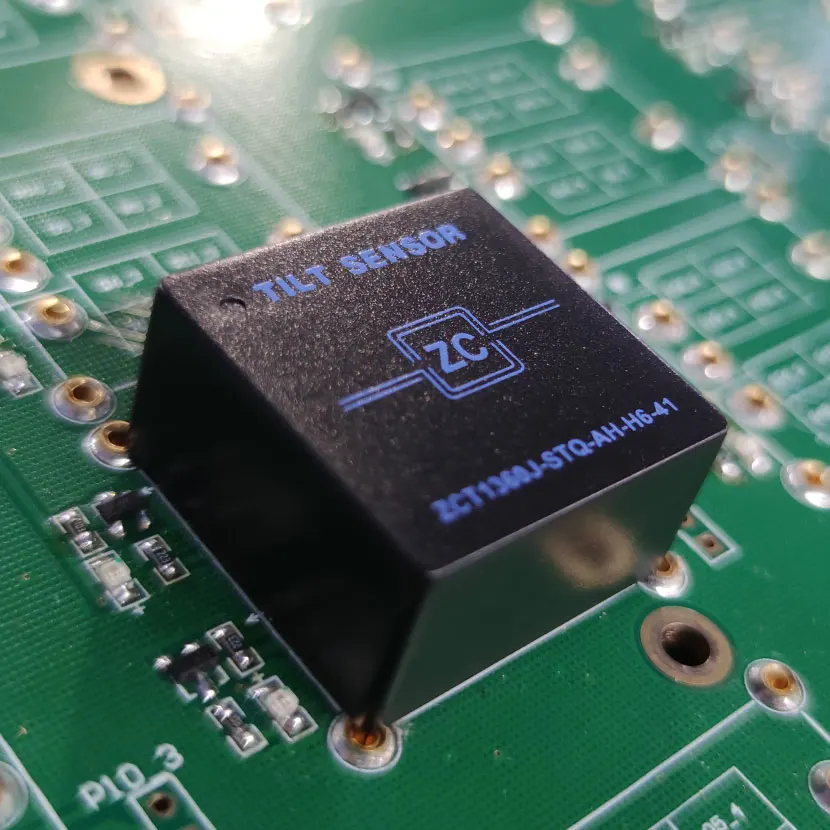

PCB-mount inclinometer tilt sensor for solar tracker
What is Features of solar tracker tilt senosr (ZCT1360J-STx-AH-H6-41)?

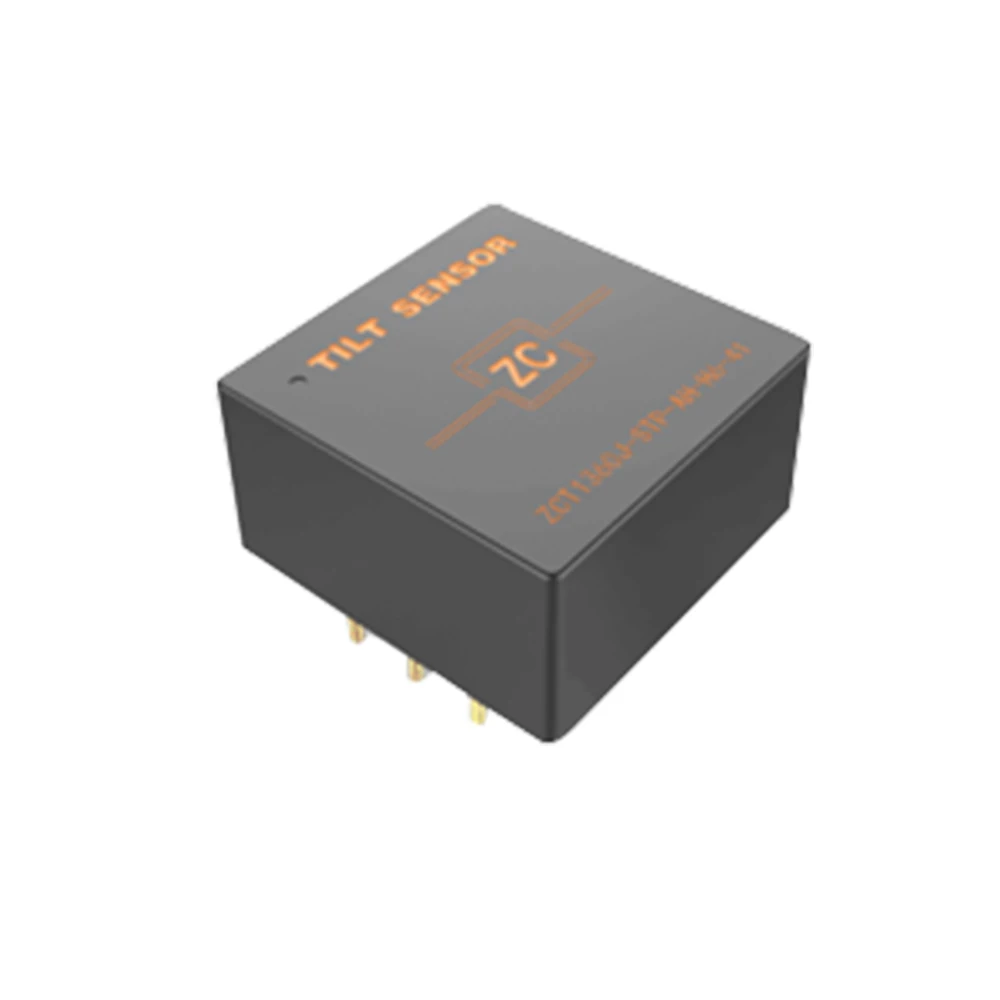

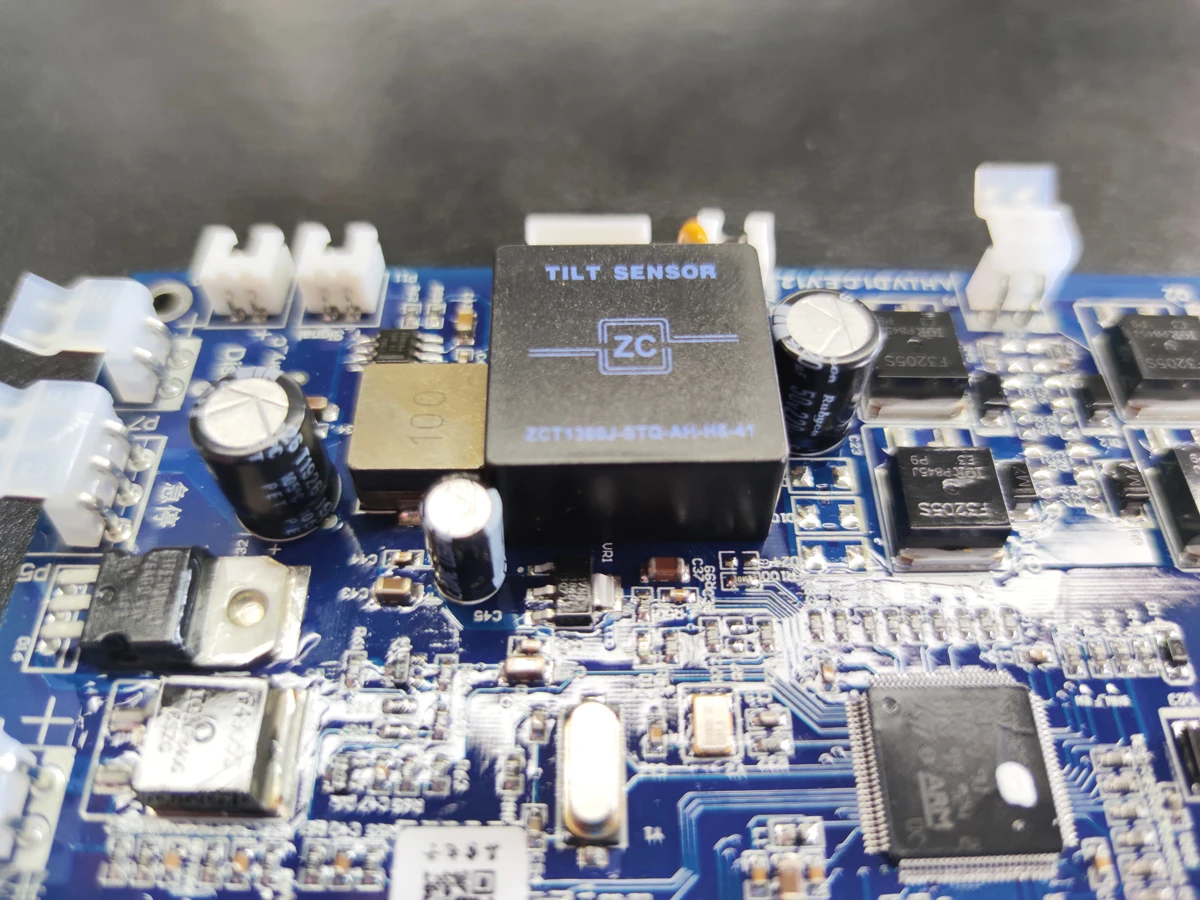

ZCT1360J-STX-AH-H6-41 is a single-axis inclinometer sensor developed and produced by Shanghai Zhichuan Electronic Technology Co., Ltd. The maximum measurement angle range is single-axis 360 °, accuracy 0.3 °, TTL output.
What is Specifications of solar tracker tilt senosr (ZCT1360J-STx-AH-H6-41)?
Main Specification
Electrical parameters:
Item
Condition
MIN
TYPE
MAX
UNIT
Power Source Voltage
ZCT1360J-STP-AH-H6-41
3.1
3.3
3.5
VDC
ZCT1360J-STQ-AH-H6-41
4.8
5.0
5.2
VDC
Static working current
No load, horizontal,Vcc=3.3V
8
13
18
mA
No load, horizontal,Vcc=5.0V
10
15
20
mA
Note: The TTL output high level of the sensor is consistent with the power supply voltage.
Performance parameters:
Item
Testing Condition
MIN
TYPE
MAX
UNIT

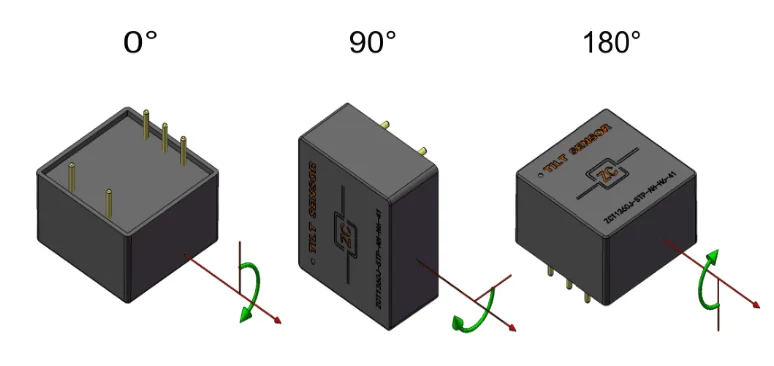

Measurement Range
Single Axis
0
360
°
Resolution(1
0.1
°
Accuracy
RMS
±0.3
°
Zero deviation
±3
°
Zero point temperature drift
-40~+85℃
±0.003
±0.006
°/ ℃
0.4
°
Response time(2
No filtering
0.1
s
Power-on startup time
1
s
Range of working temperature
-40
+85
℃

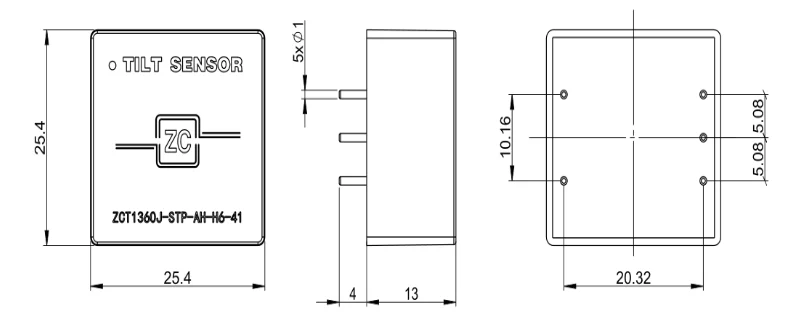

Product size:(unit:mm)

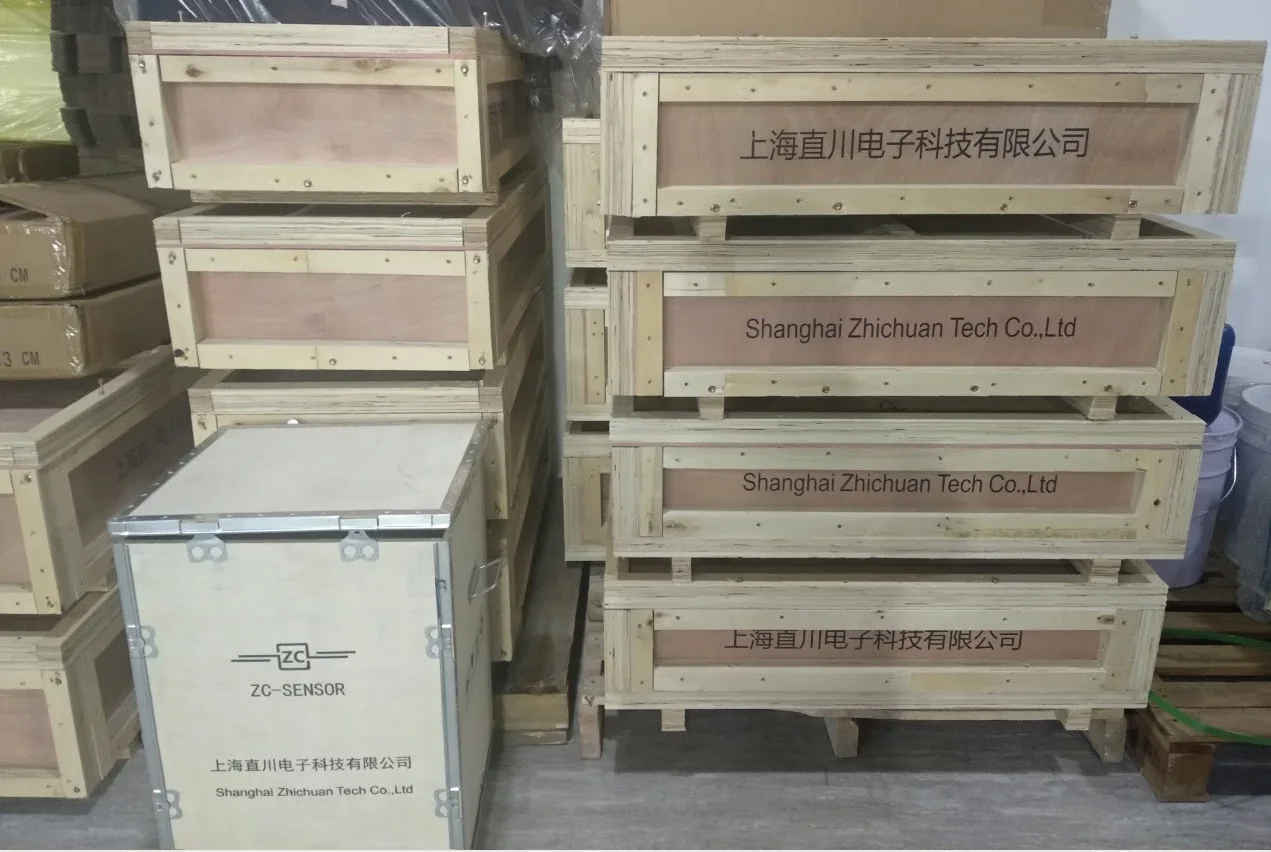

What is Packing Information of solar tracker tilt senosr (ZCT1360J-STx-AH-H6-41)?
