YUMO LS-D-D27L40 Couplings Flexible Shaft Encoder Coupling
US $28.50-$30.00

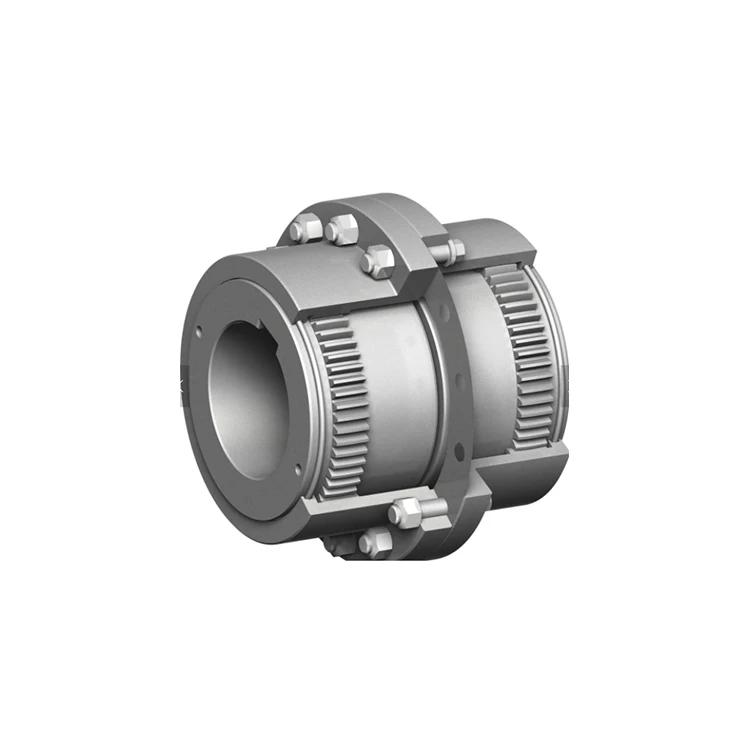

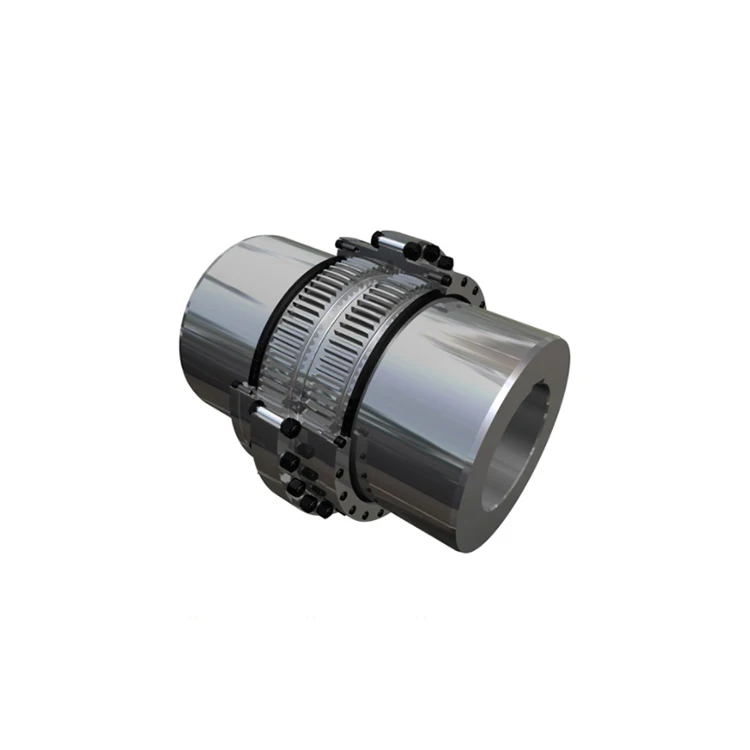

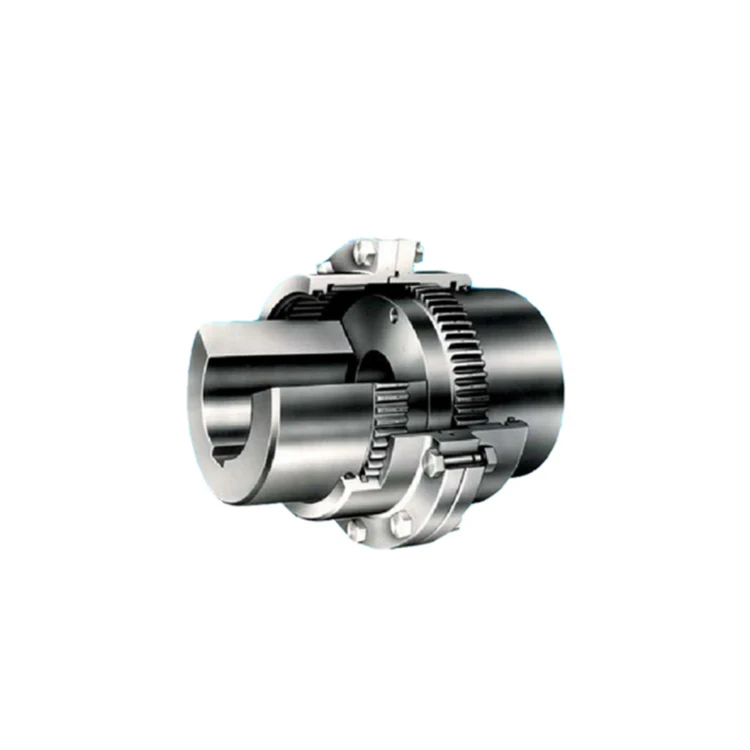

Mechanical industry CL type drum shaped gear coupling
- Category: Shaft Couplings >>>
- Supplier: Foshan Houzhe Transmission Equipment Co. Ltd.
Share on (62552748260):
Product Overview
Description
Product Display
Place of Origin | Foshan China |
Material | 35CrMo alloy steel, 304/316 stainless steel |
Brand Name | HZCD or customized |
Standard or Nonstandard | Standard or customized both accept |
Structure | gear |
Flexible or Rigid | flexible |
Product name | drum gear coupling |
Drum gear couplings brief introduction
Drum gear couplings are flexible couplings with axes compensation capabilities between the radial, axial, and angular.Compared with CL straight gear couplings, they have a compact structure, a small turning radius, and more Large capacity, high transmission efficiency, low noise and long maintenance cycle.
GICL, GICCL series drum gear coupling, especially suitable for low-speed and heavy-duty working conditions, such as metallurgy, mining, lifting and transportation industries, but also suitable for petroleum, chemical, general machinery and other machinery shaft drive
Characteristics of drum gear coupling (compared with straight gear coupling)
1.Strong bearing capacity. If outer diameter of the inner sleeve equals outer diameter of the coupling, the bearing capacity of the drum gear coupling is 15 to 20% higher than that of the straight gear coupling on average ;
2. Large amount of angular displacement compensation.Drum gear couplings can allow larger angular displacements (relative to straight gear couplings), which can improve the interface conditions of the gear, improve the ability of transmit torque, and extend the service life.
3 The drum-shaped gear surface improves the interface conditions of the internal and external gear,, avoids the disadvantages of the straight gear end edge squeezing and stress concentration under the angular displacement condition, improves the gear surface friction conditions and reduces noise , long maintenance intervals;
4. The gear end of the outer gear sleeve is in the shape of a trumpet, which makes dismounting very convenient.
5 Transmission efficiency is as high as 99.7%. Based on the above characteristics, straight gear couplings have been generally replaced by drum gear coupling at home and abroad.
6 Drum gear couplings have the advantages of small size, large transmission torque, strong ability to absorb inaccuracy and excellent durability. They are the most commonly components for two drive shafts in medium and heavy machinery. The drum gear coupling needs to work in a good and sealed state.
2. Large amount of angular displacement compensation.Drum gear couplings can allow larger angular displacements (relative to straight gear couplings), which can improve the interface conditions of the gear, improve the ability of transmit torque, and extend the service life.
3 The drum-shaped gear surface improves the interface conditions of the internal and external gear,, avoids the disadvantages of the straight gear end edge squeezing and stress concentration under the angular displacement condition, improves the gear surface friction conditions and reduces noise , long maintenance intervals;
4. The gear end of the outer gear sleeve is in the shape of a trumpet, which makes dismounting very convenient.
5 Transmission efficiency is as high as 99.7%. Based on the above characteristics, straight gear couplings have been generally replaced by drum gear coupling at home and abroad.
6 Drum gear couplings have the advantages of small size, large transmission torque, strong ability to absorb inaccuracy and excellent durability. They are the most commonly components for two drive shafts in medium and heavy machinery. The drum gear coupling needs to work in a good and sealed state.

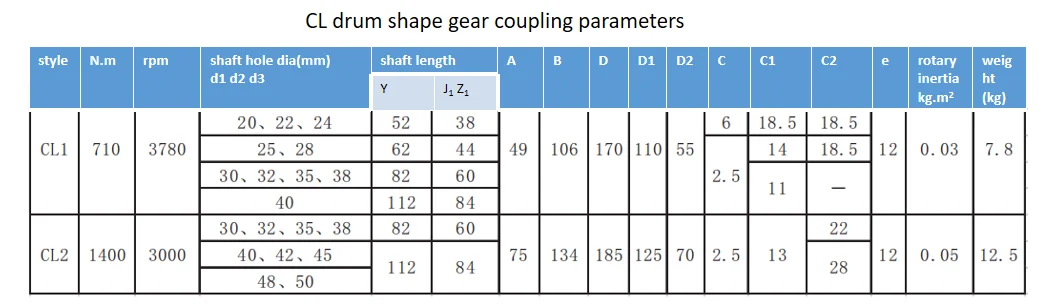

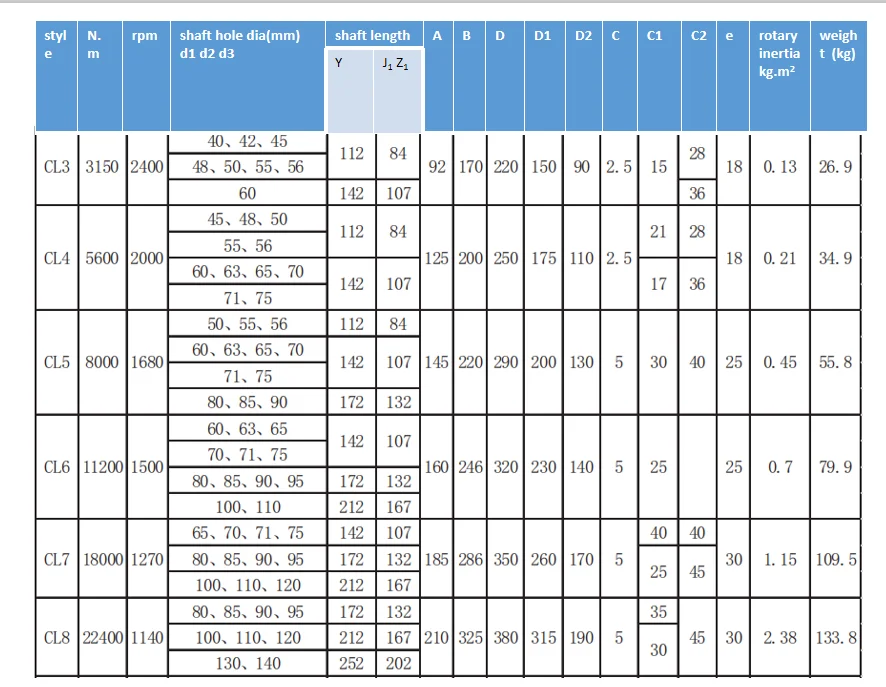

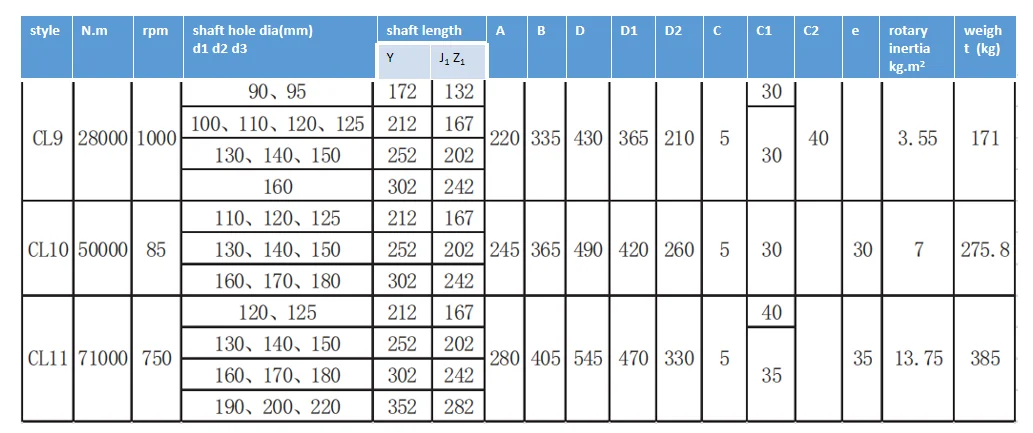

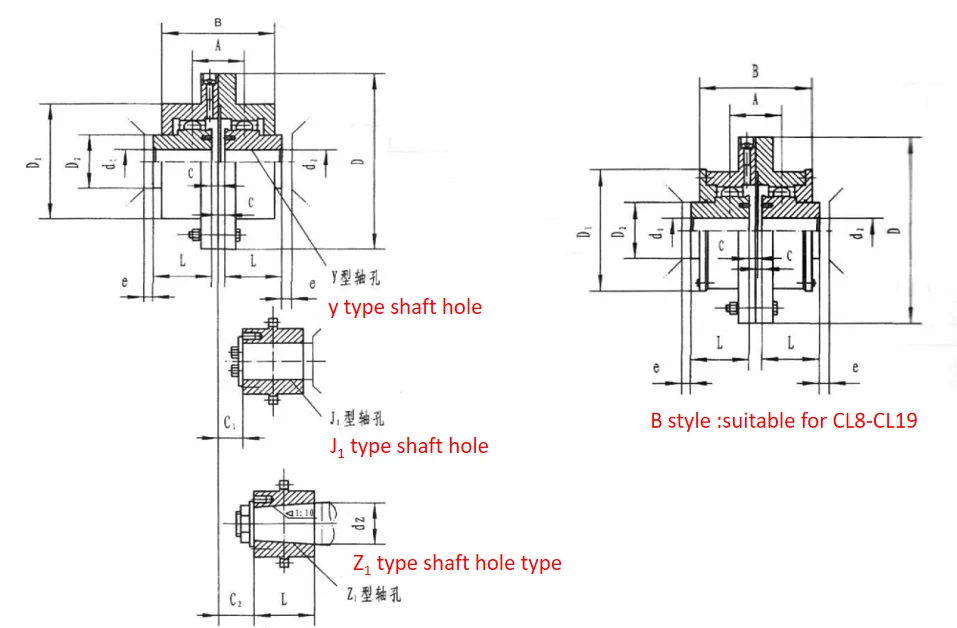

Product Parameters
Related Products
Company Information
Houzhe Transmission Equipment Co., Ltd.
Located in Foshan City, Guangdong Province. It is one of the earliest domestic manufacturers of small universal couplings。
We have a professional technical team and professional production equipment.At present, due to the outbreak of the epidemic, we are invited by the Foshan Municipal Government toproduce mask machines and contribute our effort to against the epidemic.In fact, as early as 2003 during the SARS period, we had produced mask machines to support the “hometown of non-woven fabrics” in Xiantao, Hubei,so we have professional R & D and stable production capabilities in the production of mask machines.After nearly 50 days of efforts, about 150 mask machines have been delivered to domestic mask factories.We are currently producing fully automatic planar mask machine 1 to 1 and 1 to 2, the research and development of N95 mask machine is ongoing, it is expected to be put into production within 15 days.
Our 1-to-2 mask machine is up to 120 tablets per minute, with good stability and long fatigue resistance. It is the first choice for major mask manufacturers in China
We have a professional technical team and professional production equipment.At present, due to the outbreak of the epidemic, we are invited by the Foshan Municipal Government toproduce mask machines and contribute our effort to against the epidemic.In fact, as early as 2003 during the SARS period, we had produced mask machines to support the “hometown of non-woven fabrics” in Xiantao, Hubei,so we have professional R & D and stable production capabilities in the production of mask machines.After nearly 50 days of efforts, about 150 mask machines have been delivered to domestic mask factories.We are currently producing fully automatic planar mask machine 1 to 1 and 1 to 2, the research and development of N95 mask machine is ongoing, it is expected to be put into production within 15 days.
Our 1-to-2 mask machine is up to 120 tablets per minute, with good stability and long fatigue resistance. It is the first choice for major mask manufacturers in China
Certifications

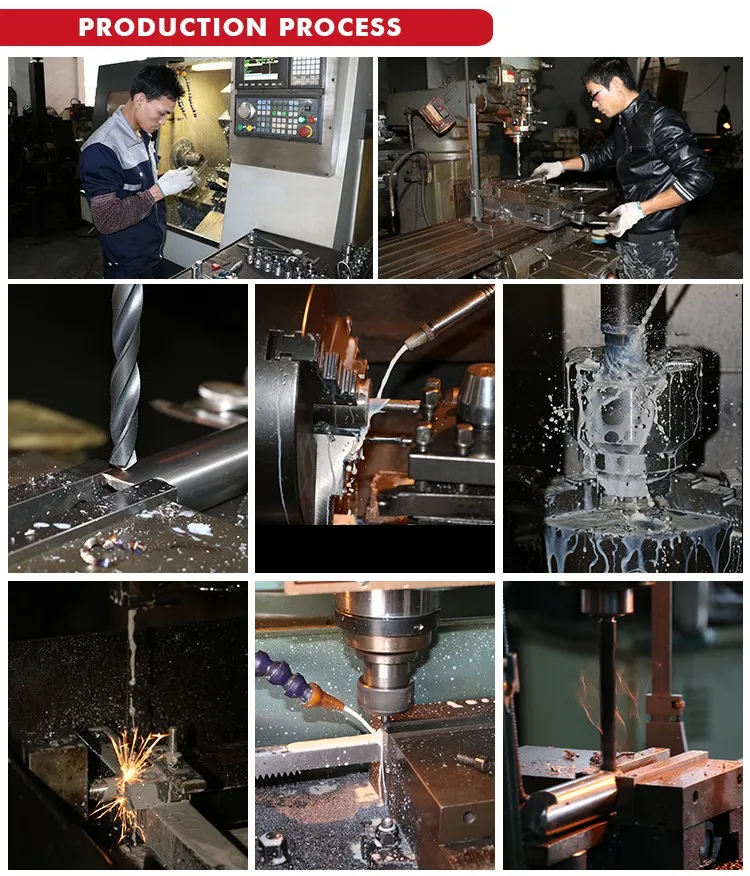

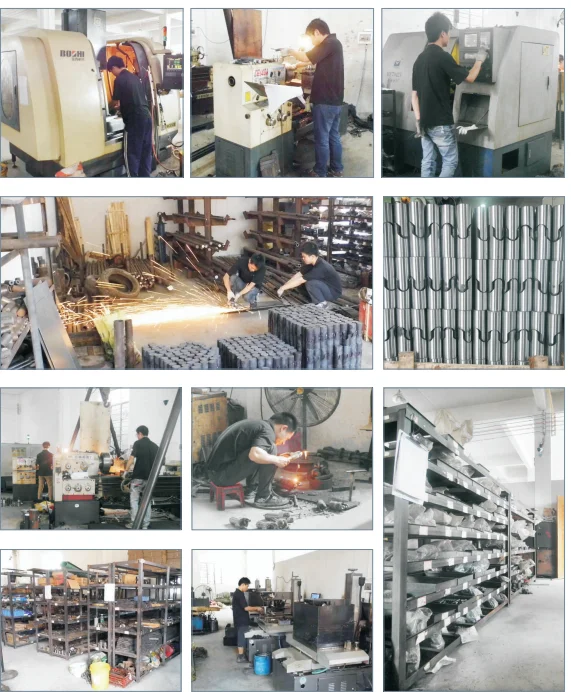

Production Picture
Packaging pictures.
Customer Access
FAQ
1.How long I can get the feedback after we sent the inquiry for Universal Joint ?
We will reply you within 12 hour in working day.
2.What is your leading time for Universal Joint ?
Usually 7-10 days for Universal Joint
For productions in stock, only need 1-2 days
3.What is your payment term for Universal Joint ?
Payment:TT/Paypal/Western Union/Escrow.
Trade Assurance is warmly welcomed.
4.What is your shipping terms for Universal Joint ?
Shipping way:DHL/UPS/EMS/FEDEX ETC
We will help you check the most safe, economic,fast shipping method.
5.Can I get a sample for Universal Joint ?
Yes, you can get a sample for Universal Joint .
If we have sample in stock, You need pay sample fee and shipping cost
If we need produce sample. You need pay sample fee and shipping cost, but the sample fee can be refund after you place order.
6.What if we want to custom need to file?
Yes,you need to provide the related product design drawing or product model.
We will reply you within 12 hour in working day.
2.What is your leading time for Universal Joint ?
Usually 7-10 days for Universal Joint
For productions in stock, only need 1-2 days
3.What is your payment term for Universal Joint ?
Payment:TT/Paypal/Western Union/Escrow.
Trade Assurance is warmly welcomed.
4.What is your shipping terms for Universal Joint ?
Shipping way:DHL/UPS/EMS/FEDEX ETC
We will help you check the most safe, economic,fast shipping method.
5.Can I get a sample for Universal Joint ?
Yes, you can get a sample for Universal Joint .
If we have sample in stock, You need pay sample fee and shipping cost
If we need produce sample. You need pay sample fee and shipping cost, but the sample fee can be refund after you place order.
6.What if we want to custom need to file?
Yes,you need to provide the related product design drawing or product model.
