AE8500,1250nm to 1650nm wavelength range optical spectrum analyzer
Product Overview

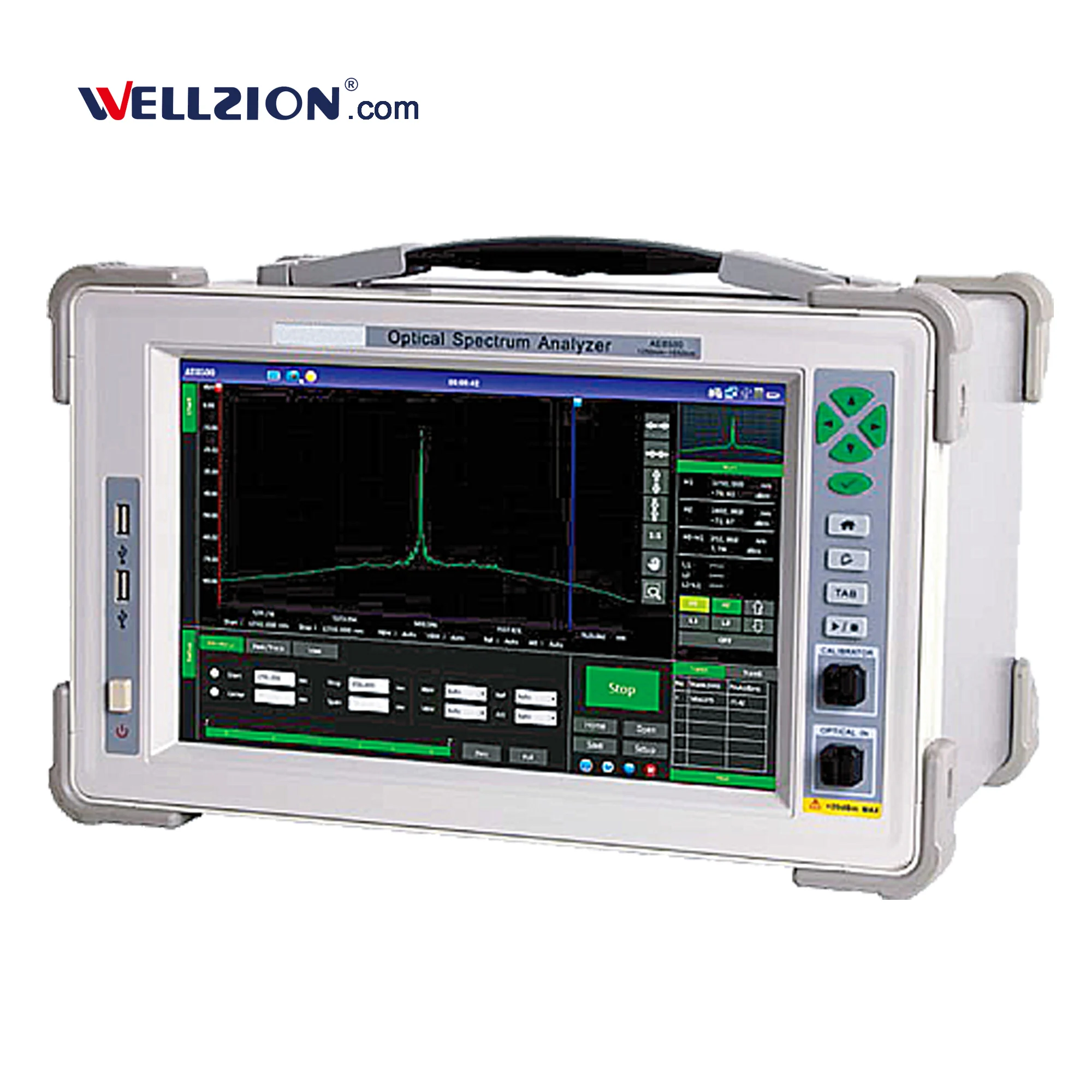

As the demand for bandwidth continues to soar, with higher-thanever smartphone and streaming video usage, cable operators must face the challenge of deploying fiber deeper into the network. And because efficiency, speed, accuracy, and reliability metrics are key for workforce productivity, communications service providers (CSP) need a high-performance, efficient, yet affordable test instrument for installing future networks such as FTTx, RFoG and RF PON. AE8500 is a highprecision, high-resolution spectrometer with a wavelength range of 1250 ~ 1650nm. Users can test optical signals with excellent accuracy, and the 12.1" LCD touchscreen and concise UI design make the AE8500 easy to master. It also provides customizable CWDM/DWDM testing, in-band OSNR, light source, EDFA, fiber probe, auto testing, and more. The AE8500 meets the optical spectrum analysis requirements for several years to come - at superior cost-performance.
Function & Benefits
Measures optical power input of +20dBm~-70dBm, over a wavelength range of 1250~1650nm
OSNR dynamic range exceeds 35dB
12.1 inch touchscreen optimized for ease of use
Test spectral properties of various types of laser sources
Test transmission characteristics of optical devices
Measure the full range of communication wavelengths and spectrum channels
Complete user data interface supports LAN connection, USB, SD card, GPIB, and more
View all DWDM channel characteristics at 50GHz/100GHz intervals
Specifications
OSA Technical Parameters
Wavelength range
1250nm~1650nm
Wavelength uncertainty
±0.05nm
Resolution bandwidth
0.06nm
Wavelength repeatability
±0.01nm
PDL @ 1550nm
±0.1dB
Power uncertainty
±0.5nm
Power repeatability
±0.1nm
Power input range
-70~+20dBm; max power 23dBm
OSNR / ORL
>35dB / >45dB (APC)
Dynamic range
>-36dB @ ±0.2nm; >-45dB @ ±0.4nm
Data Storage & Display
Display
12.1 inch 1280x800 TFT LCD touch screen
Storage & Interface
2x Type-A USB 2.0 ports USB power supply, DC5V ± 0.05V @ 500mA 1x RJ45 LAN port, 10M/100M 6GB hard drive, add lx 16GB SD card included
