Zhangjiagang reliable supplier 5 Gallon bottle pure drinking mineral water filling / bottling machine complete line price
- Category: >>>
- Supplier: Zhangjiagang Reliable Machinery Co. Ltd.
Share on (62552870923):
Product Overview
Description
Product Overview

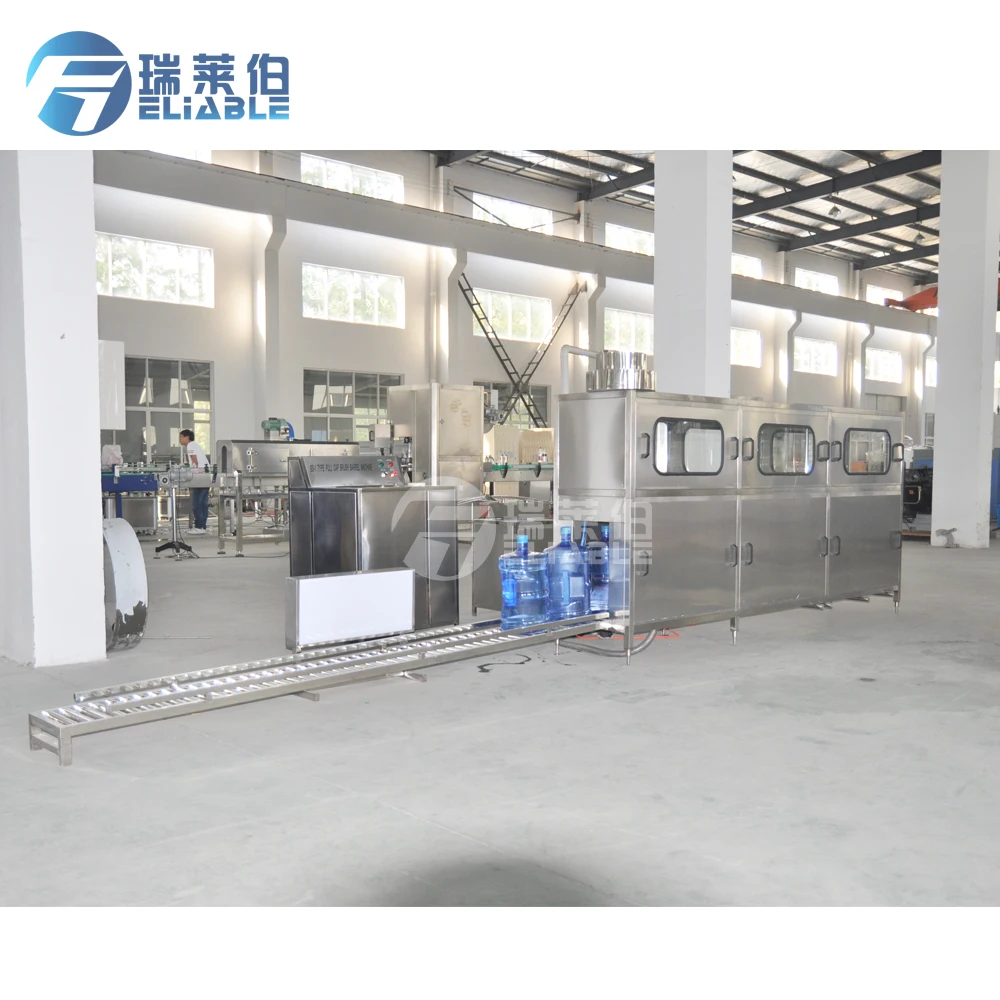

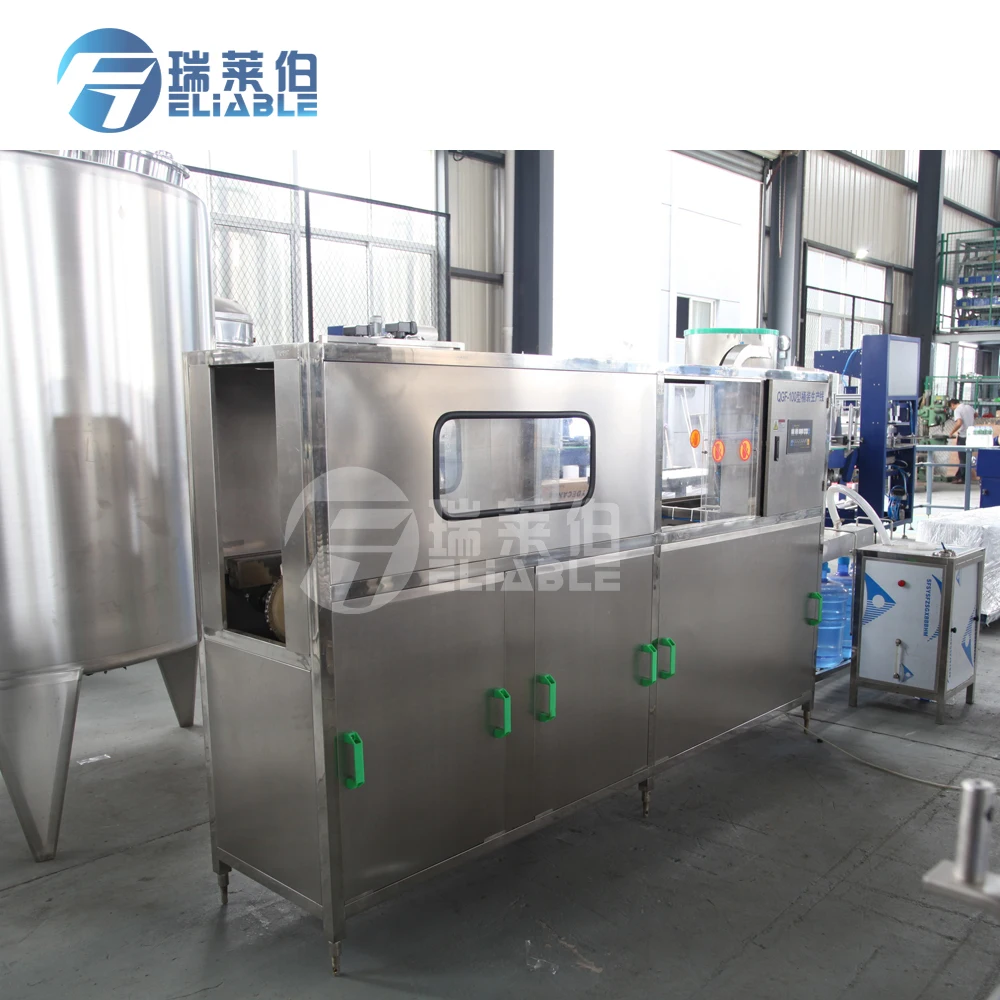

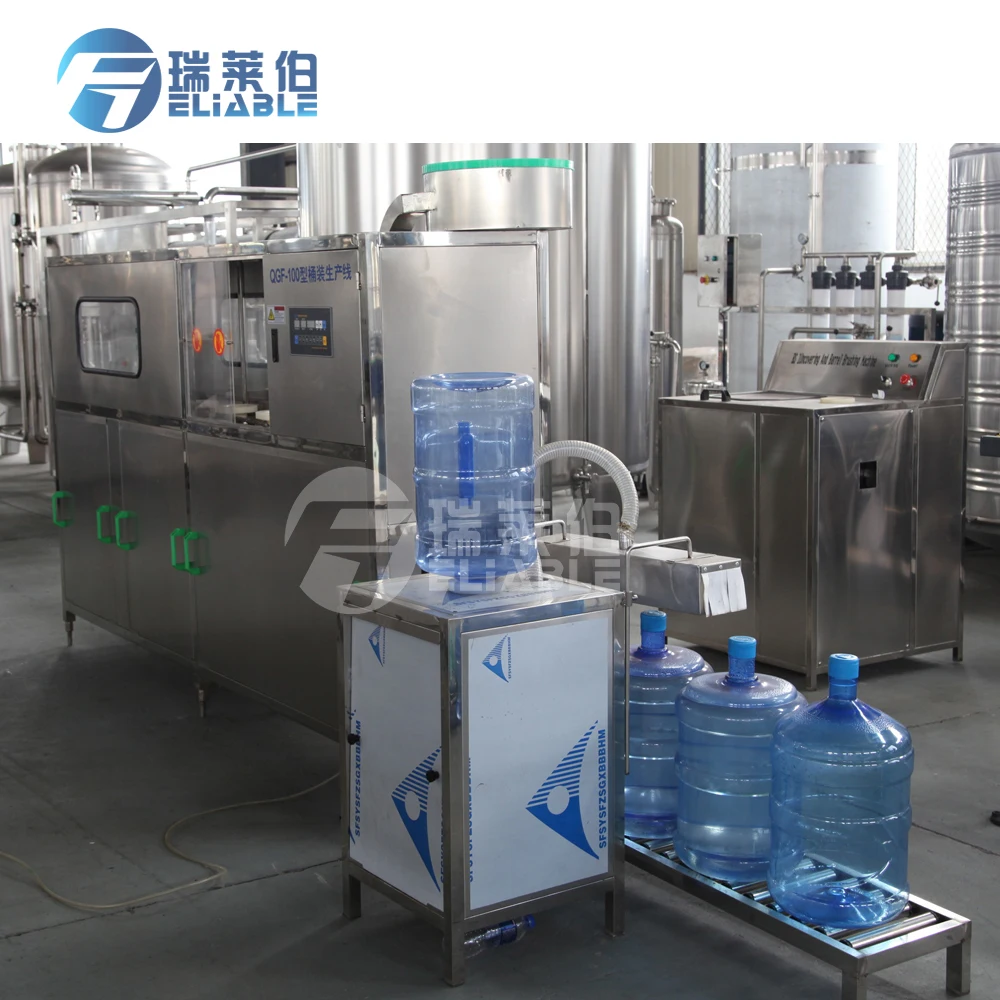

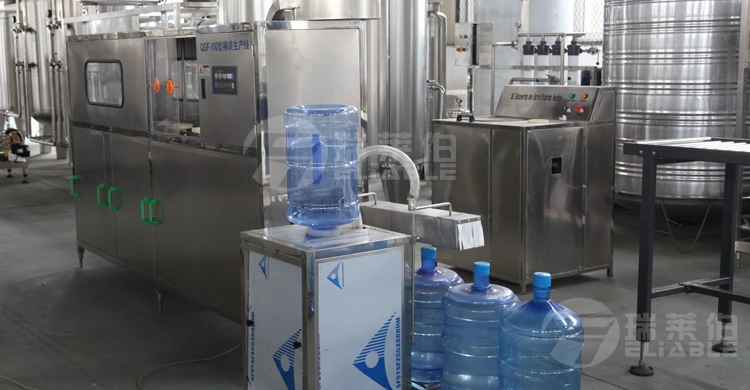

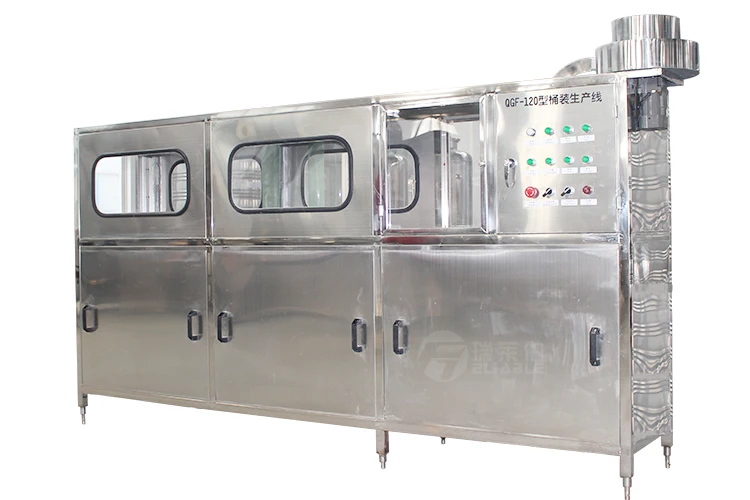

QGF-100 5 Gallon Washing Filling Capping Machine
The filling line special for 3- & 5-gallons barreled drinking water, with different types. It integrates bottle washing, filling and capping into one unit. In order to achieve the purpose of washing and sterilizing. The washing machine uses multi-washing liquid spray and thimerosal spray. This thimerosal can be used circularly. The capping machine can cap barrel automatically. This line equips with water spraying device in order to ensure those caps sterile and clean. It also can automatically carry out barrel washing, sterilizing, filling, capping counting and products discharging. The production capacity for QGF 100 model is 60-100 barrels per hour.
Product Description

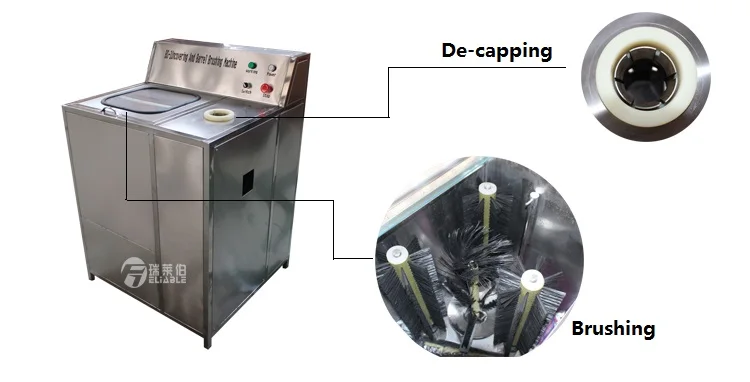

De-capper
This part is designed for 3 & 5 gallon barrel in water production line. It is used to pull out the cap of recycling bottle before rinsing.

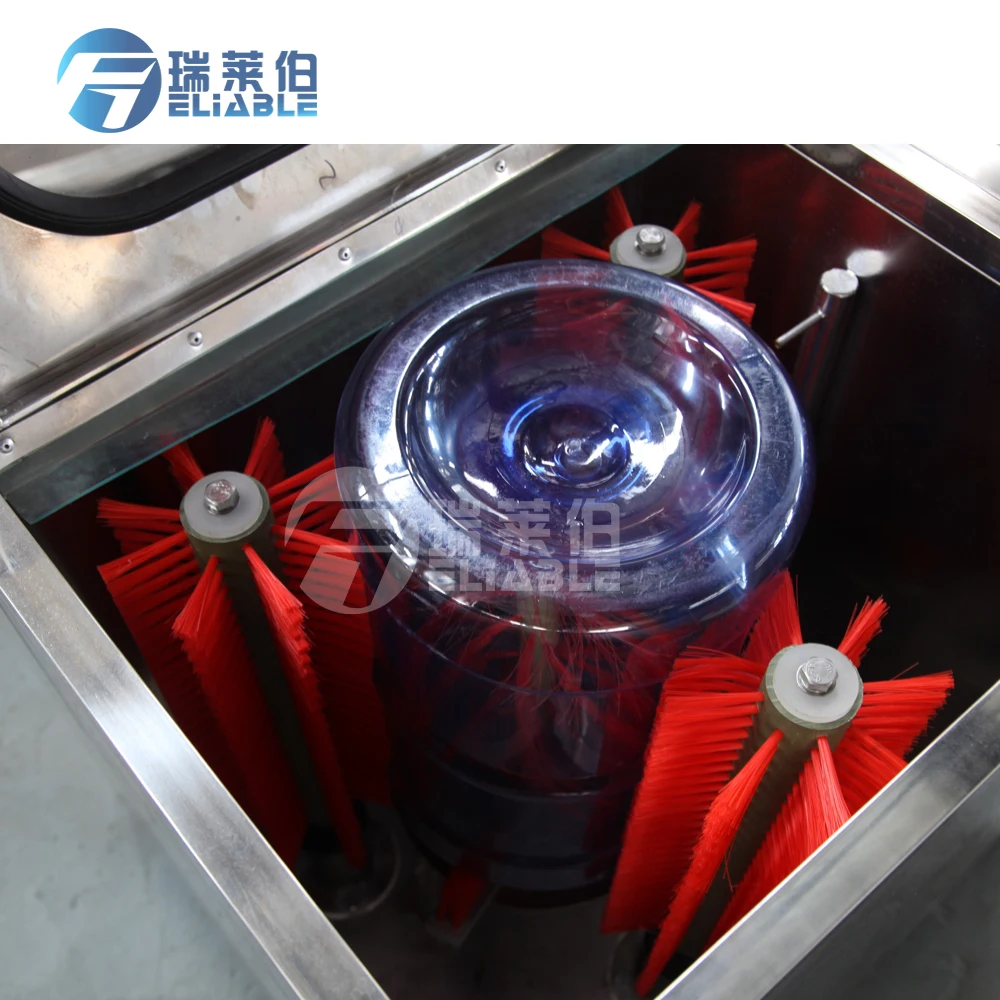

External brusher
Only the 3& 5gallon barrels need external brusher machine used for all-around cleaning the outside of the bottle. This process significantly improves cleaning efficiency.
Automatic Up-loader
Automatically push the prepared empty bottle into the filling machine and put the bottle into the holder inside the washer station.
Washing part
In our isolated washing machine, the barrel will be cleaned by multiple liquid. From alkali water to disinfecting water, then to the pure water. In order to make sure every barrel can be cleaned completely.
Filling part
The barrel water drink filling machine works reliably and efficiently based on the compact structure and highly automatic technology.
Capping part
In our capping machine, there is pure water spraying device, to sterilize the caps, avoid any pollution to the beverage.
Technical Parameters
Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
Filling heads | 1 | 2 | 3 | 4 | 6 | 12 |
Volume (Gallon) | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 |
Barrel size(mm) | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
Capacity (BPH) | 60-100 | 250-300 | 400-450 | 600-800 | 800-900 | 1000-1200 |
Gas pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
Gas consumption (m³/min) | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
Motor power(kw) | 1.38 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
Related Voltage(V) | 380v/HZ | 380v/HZ | 380v/HZ | 380v/HZ | 380v/HZ | 380v/HZ |
Weight(kg) | 680 | 1500 | 2100 | 3000 | 3500 | 4500 |
Related Parts
Our Advantages
1.Fully automatic rinsing, filling and capping.
2.Highly intelligence with digital indicator and touch screen.
3.High quality. The quality of both equipment and electrical parts reaches the international advanced level.
4.High speed and high efficiency. This drinking water filling machine is running with high speed, high accuracy and high stability.
5.No pollution. Food grade 304 stainless steel is used and this machine is enclosed and can do self-cleaning. The contact time is shortened between material and the outside, avoid the second time pollution. There is no noise pollution either. 6.Low cost in terms of energy-saving and low failure rate.
7.Completely safe. The application of alarm devices for bottle jam, bottle shortage, bottle damage, cap shortage,
overloading in several places ensure the safety of its production. 8.Easy operation and easy maintenance. This machine can also connect air conveyor by applying a linker.
Our Service
Reliable pre-sale service
1. Supply all information you required and send you video of the running machine.
2. Welcome to come to visit our factory, see the detail of machines.
3. Well-trained & experienced staff are to answer all your inquiries in English and Chinese.
Reliable customized service
1. Design the machines according your requirements (material, voltage, filling type, various bottles, specially designed device and so on).
2. Reliable Professional suggestion, as you know, our company is among the best in the beverage machinery industry and our engineer has experience for many years.
3. Design layout for you and offer you advice about machine orientation or based on the factory area you have.
Reliable after-sale service
1. Deliver the machine and provide the B/L on time to make sure you can get the machine quickly. Also send operating manual and instruction.
2. If you need, our professional engineer team will go to your factory to install the machine and train your employee until they can operate the machine well.
3. Regular after-sales calling to remind customers to add the lubricating oil and maintain machine.
4. Service office in Dubai and other countries and will also visit customers' factories to check the machines.
5. Machines from Reliable Machinery have one-year warranty for free and totally five years life-long technical support.
6. 24 hours for engineer response.
Why Choose Reliable
FAQ
1.Q:Are you a Manufacture or trading company?
A:We are a factory, professional water treatment equipment manufacturer and small bottle water production line with 10 years experience. Factory Our Company covers total area of 45000㎡. There have been more than 80 countries use our products.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Fuhai Community, No.3 Lefu Road, Leyu Town, Zhangjiagang City, Jiangsu Province, Chin, about 2 hours away from Shanghai Pudong Airport. We will pick you up in the nearest station. All our clients, from home or abroad, are warmly welcome to visit us !
3.Q:How long is the warranty of your equipment?
A:2 years warranty after receipt check upon delivery. And we will comprehensively provide you all kinds of technical support services in after-sale !
4.Q:What is the features of our company?
A: We provide turnkey project for customers, including pre-sale and after-sale service; complete production line equipment supply;bottle design; layout programs provide; or provide auxiliary materials purchasing agent supplier information; equipment overseas installation and commissioning; operator training; etc.
A:We are a factory, professional water treatment equipment manufacturer and small bottle water production line with 10 years experience. Factory Our Company covers total area of 45000㎡. There have been more than 80 countries use our products.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Fuhai Community, No.3 Lefu Road, Leyu Town, Zhangjiagang City, Jiangsu Province, Chin, about 2 hours away from Shanghai Pudong Airport. We will pick you up in the nearest station. All our clients, from home or abroad, are warmly welcome to visit us !
3.Q:How long is the warranty of your equipment?
A:2 years warranty after receipt check upon delivery. And we will comprehensively provide you all kinds of technical support services in after-sale !
4.Q:What is the features of our company?
A: We provide turnkey project for customers, including pre-sale and after-sale service; complete production line equipment supply;bottle design; layout programs provide; or provide auxiliary materials purchasing agent supplier information; equipment overseas installation and commissioning; operator training; etc.
