20ft Integrated CNG refilling station all in one solution for CNG refilling
- Category: >>>
- Supplier: Tianjin Sinogas Repower Energy Co. Ltd.
Share on (62552897097):
Product Overview
Description
CNG Mobile Refilling Station, MRU, is a new designed integrated gas refilling station, with hydraulic piston compressors, which is highly efficient, mobile, low energy consumption, oilless lubricating, low noise, easy deployment.
This MRU station is skid mounted design in 20ft or 40ft container, complete mobile, with optional gas storage package, optional CNG dispensers.
The MRU station work with CNG transportation container, enable it do gas refilling as a daughter station in existing gasoline or LPG station, or in satellite gas station.
Products Description
1. Flow capacity range from 600-4000Nm3/h, e.g. for a 2000Nm3/h MRU with two dispensers, to refilling 4 units CNG bus or NGV vehicle at same time.
2. Customized design as per customer project requirements, optional gas generator integrated design, optional gas storage package 600Nm3-5500Nm3 (40ft MRU), optional high speed CNG dispenser quantity (2-4 dispeners).
3. Explosive-proof PLC and power supply cabinet; Alarm system to monitor all station parameters, with automatically leakage detection, water level, oil level alarm function.
Specification
Model No. | ZXRY-1000-II | |
Medium | Compressed natural gas | |
Driving method | Hydraulic drive pistons | |
Lubrication method | Oil-free lubrication | |
Oil content in natural gas | PPM | Close to 0(after compressing) |
Average flow rate | Nm3/h | 2000Nm3/h |
Inlet gas pressure | Bar | 30-250bar |
Max outlet pressure | Bar | 250bar |
Inlet gas temperature | ℃ | ≤45℃ |
Motor speed | R/min | 1480 |
Stroke | mm | 420 |
Compression stage | 2 stages | |
Cooling method | Cooling liquid & mix recirculating air cooling | |
Cooling medium | Ethylene glycol coolant | |
Power of main motor | KW | 45 |
Rated voltage | 380V/50HZ or customized | |
Overall dimension | mm | 6058x2438x2900 |
Water volume of cascade | 0.74m3@250bar |
Dispenser specfication
Model | JQD-B30B(3MSW) | ||
Type | Three lines dual hoses | ||
Technical Parameter | Medium | CNG | |
Accuracy | ±1.0% | ||
Flow rate range | 1-30kg/min | ||
Working pressure | 250bar | ||
Compressive strength | 375bar | ||
Ambient temperature | -40～50℃ | ||
Ex-proof grade | Exibdme II AT4,CE,ATEX | ||
Power supply | 220V-15%～+10%, 50 Hz ± 1Hz | ||
Measuring unit | Kg or Nm3 | ||
Minimum reading value | 0.01 | ||
Single count range | 0～9999.99 | ||
Single count range | 0～9999.99 | ||
Accumulated count range | 0～99999999.99 | ||
Rated power | 200W | ||
Remarks | Mass flow meter | E+H | |
Nozzle type | NGV1, NGV2, Φ12 probe is optional. | ||
IC card & Bill printer | Optional | ||
Details Images

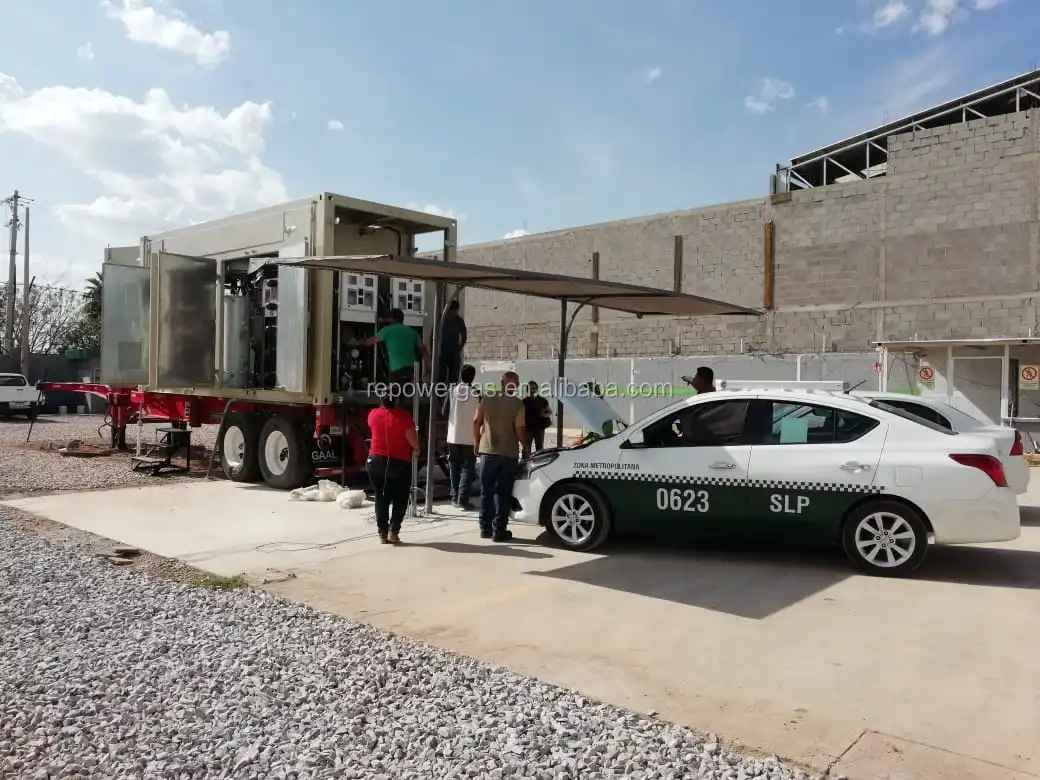

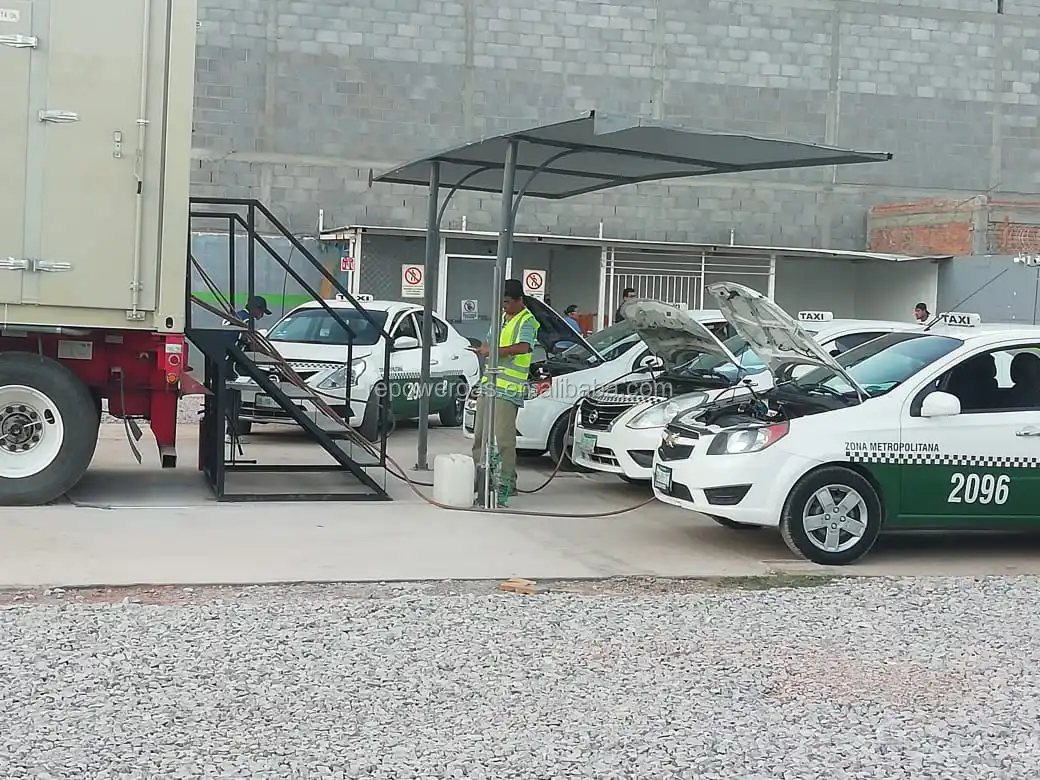

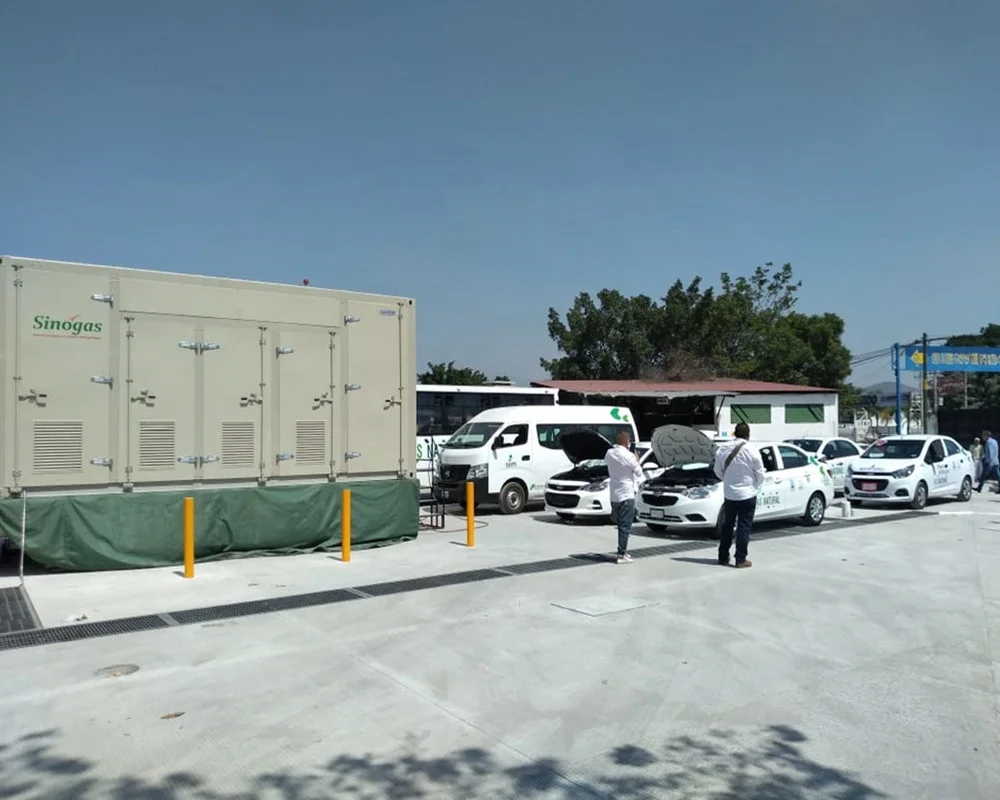

Project images

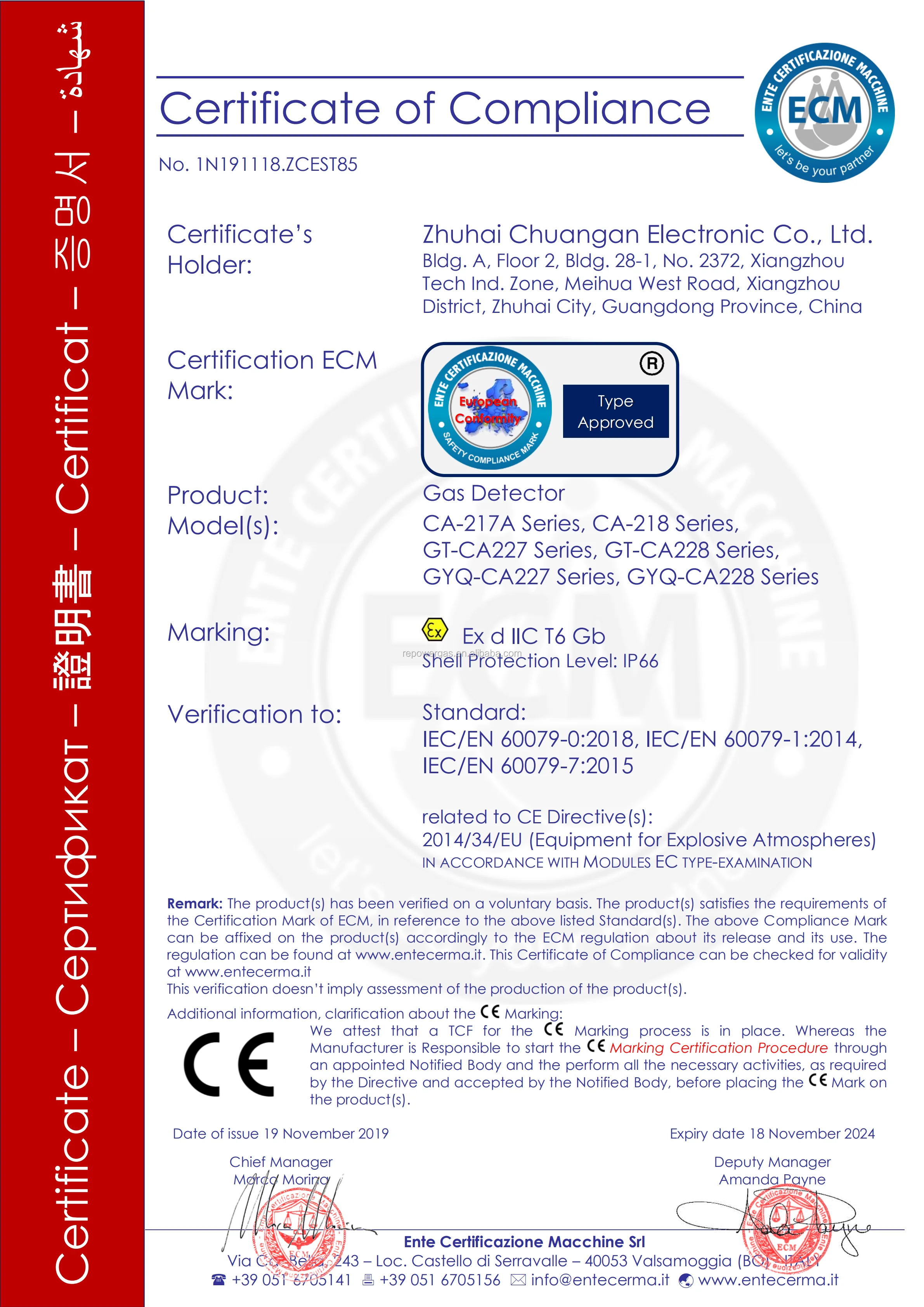

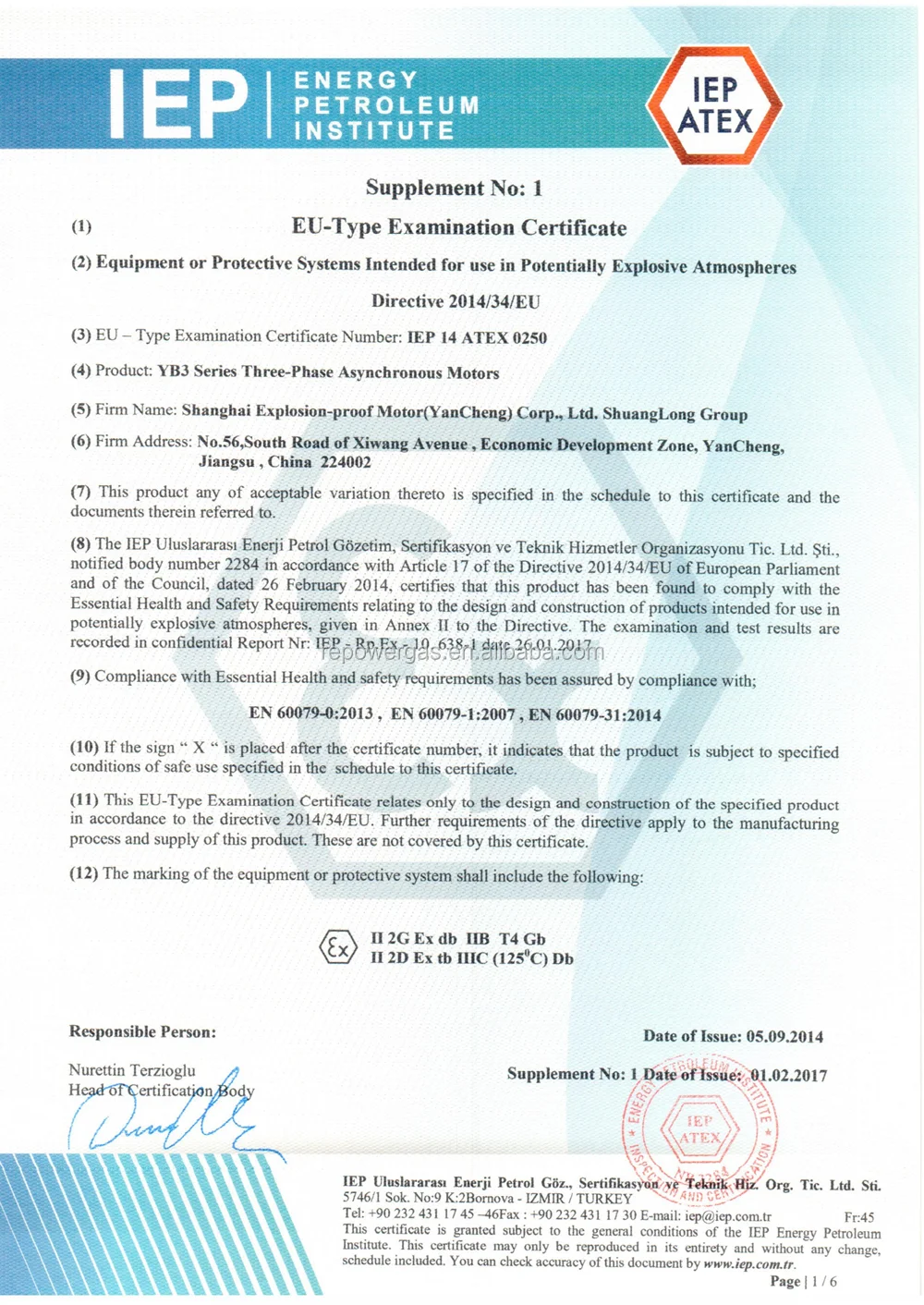

Certifications
