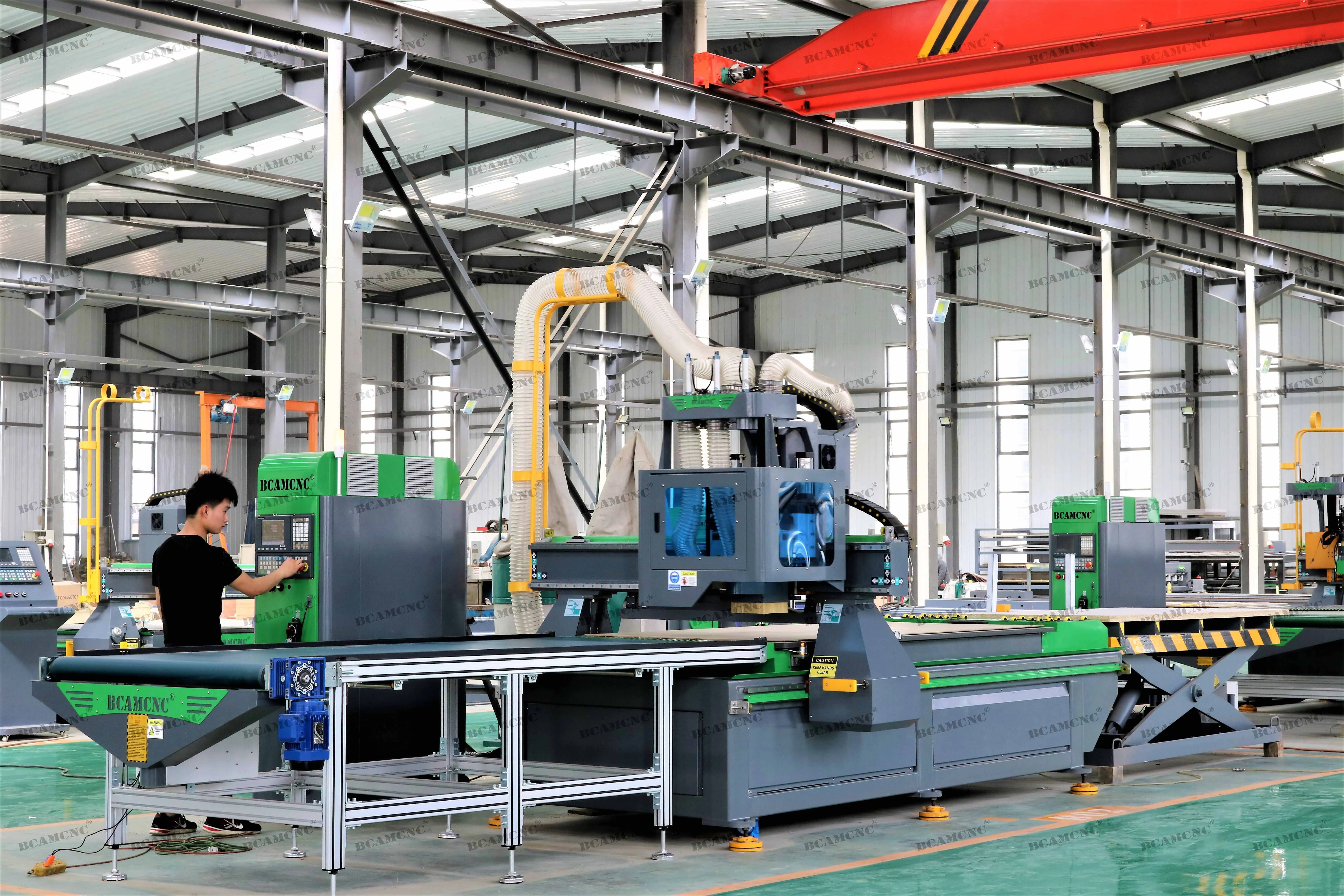

1325 drilling bank cnc router machine automatic loader and unloader for woodworking cabinet
- Category: >>>
- Supplier: Jinan Bcamcnc Machinery Co. Ltd.
Share on (62553093993):
Product Overview
Description

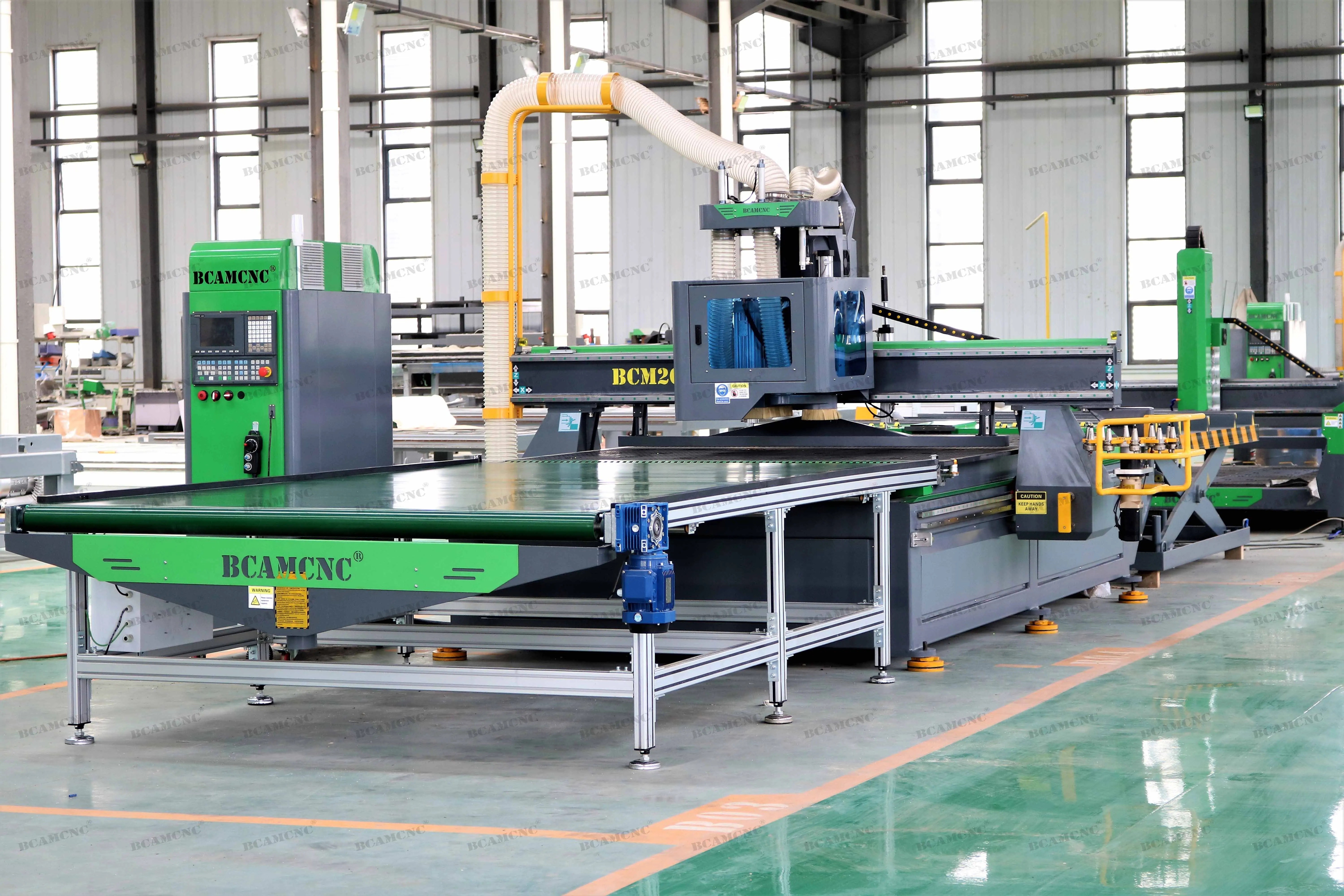

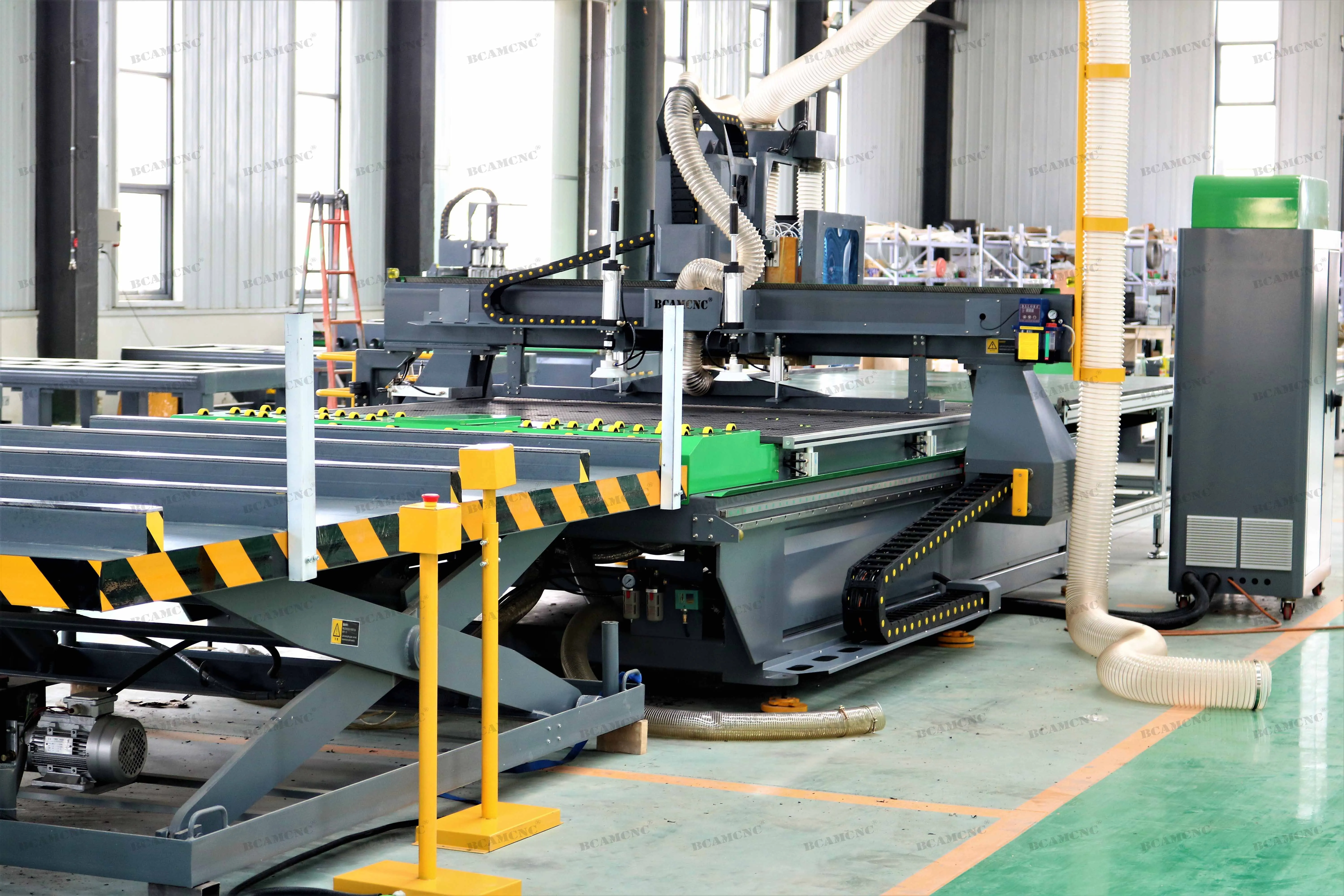

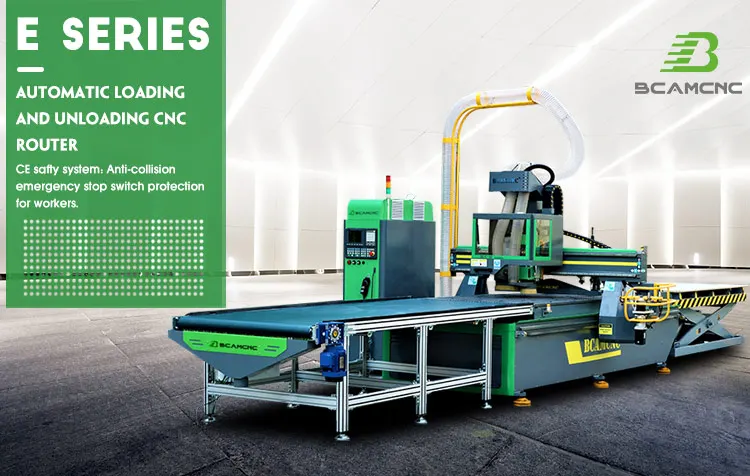

The E series has an automatic loading panel lift system, an automatic advance unloading conveyer table, The E series is extremely fast and allows the operator to simply stand at the end of the unload table and remove cut parts as they unload from the machine. The machined parts are pushed onto an automatic advancing conveyer table which senses the panels to be removed. Once the parts at the end of the conveyer are removed by the operator the conveyer will automatically advance the next cut parts to the end of the table and wait for the operator to remove them. An optional printer is available to label parts for tracking throughout the customer’s factory.
Technical parameter
No. | Item | Specifications |
1 | X,Y,Z Working Area | 1300*2500*200mm|4*8ft |
2 | Optional Working Area | 1500*3000mm|2000*3000mm |
3 | Spindle Power | 9.5kw Italy HSD air cooling spindle |
4 | X,Y,Z Traveling Positioning Accuracy | 0.03/2000mm |
5 | Table Surface | Vacuum table+Intergrated T-solt table clamping System |
6 | X,Y,Z Rail and Trasmission | X Y axis gear transmission, Z axis TaiwanTBI Ball Screw |
7 | Command Language | G Code |
8 | Max. Working Speed | 90m/min |
9 | Spindle Speed | 6000-24000RPM |
10 | Working Voltage | AC380v/50HZ/3 phase (220V) |
11 | Software Compatibility | VCarve/VCarve Pro/ArtCAM/UCANCAM,etc. |
12 | Running Environment | Temperature: -20℃~45℃ Relative Humidity: 5%~75% |
Machine Specification:
● Italian HSD 9.5KW(12HP) Electrospindle with 12-position Automatic Tool Changer(ISO30)
● Vacuum table+T-solt
● Taiwan Syntec Controller
● Japan Yaskawa servo motor and drivers system
● Delta brand VFD-B variable frenquency drive
● Active protection safety system
● Helical rack and pinion drivers on X and Y axis, Z axis Taiwan TBI ball screw transmission
● 25mm Heavy-duty Hiwin HG Series linear bearing
● 10 Position Automatic Tool Changer
● Tool Cone Holder-for east bit changing
● Solid State limit switches
● Air-tech pro Dust-free extraction hood
● 3 Years Warranty

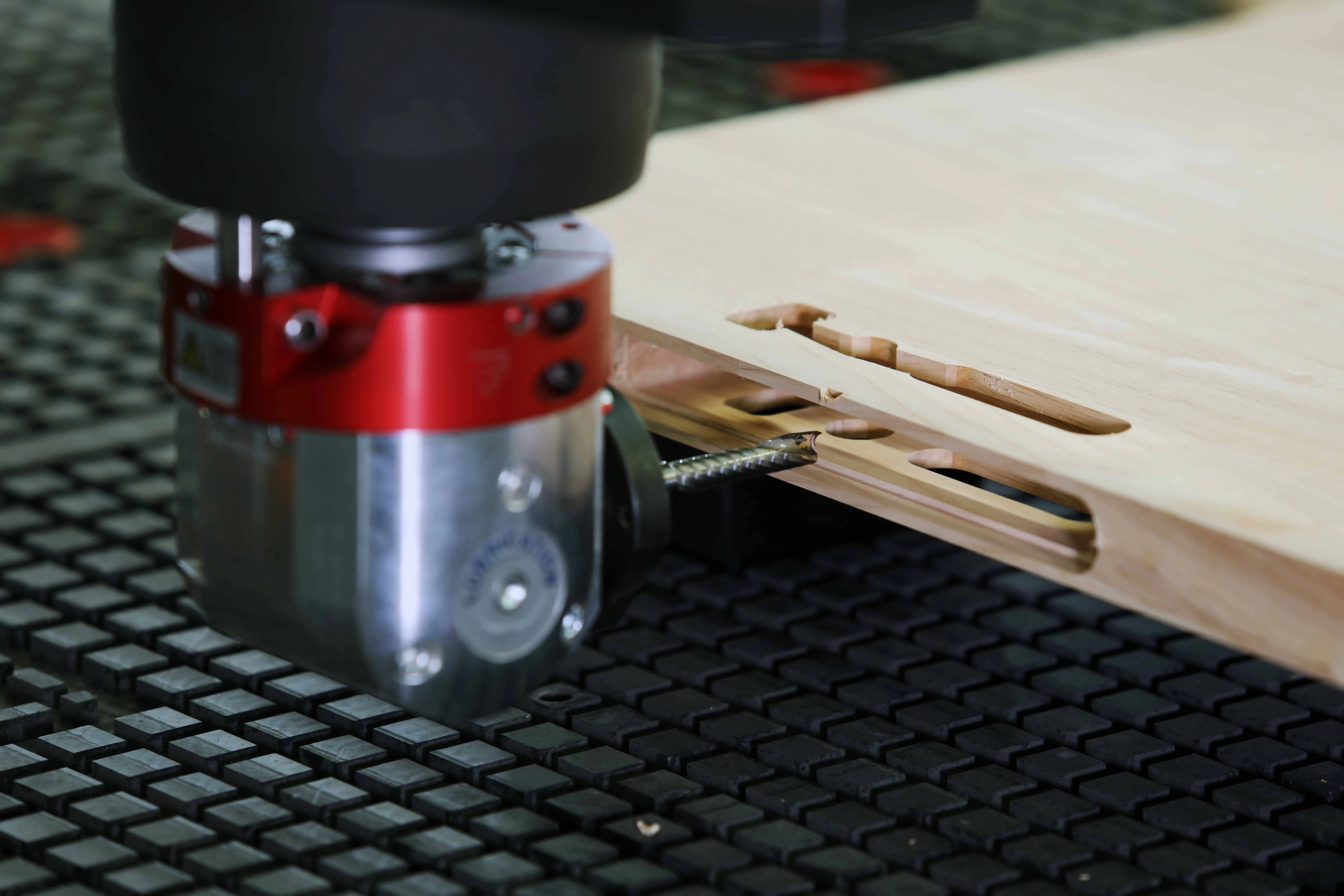

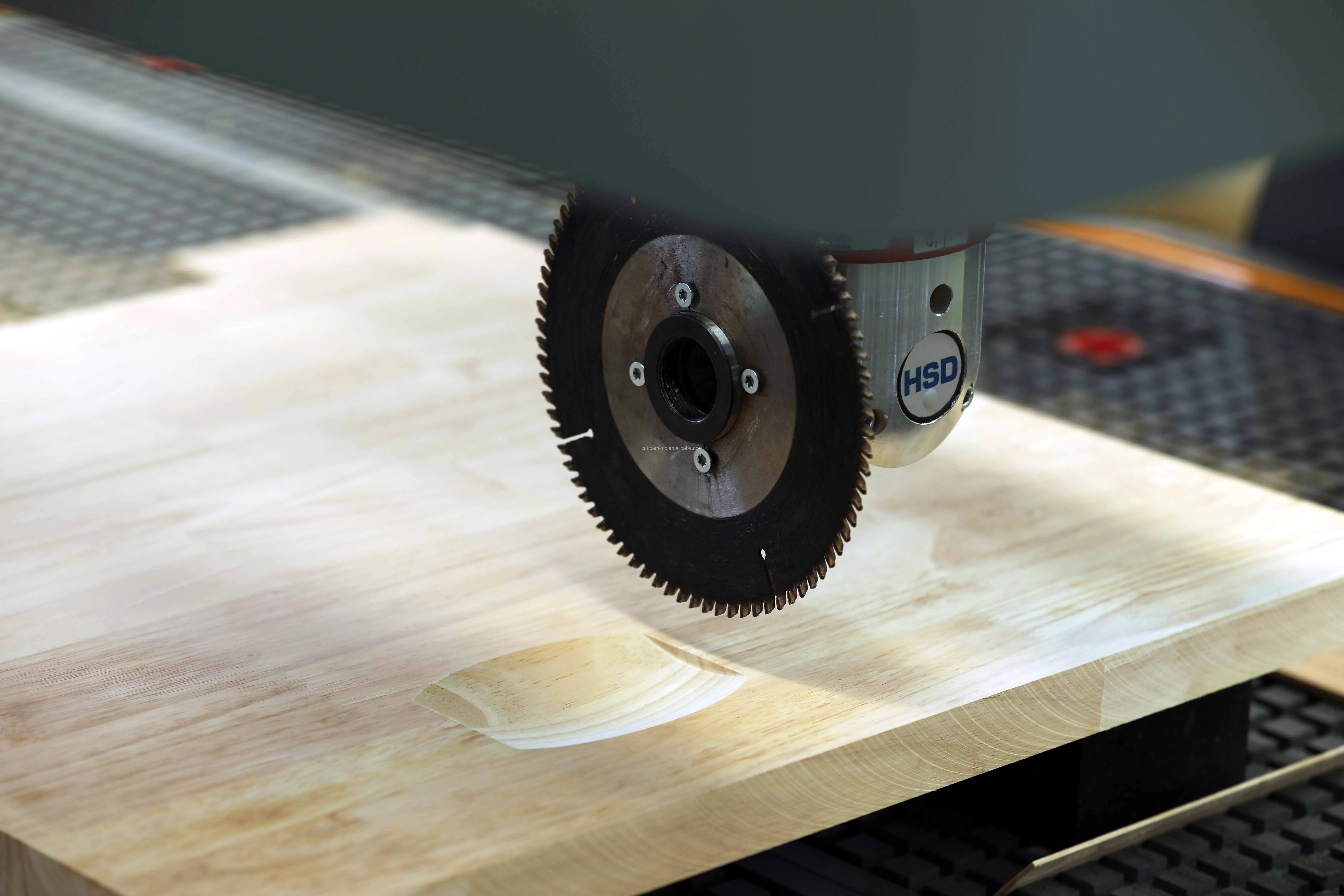

Samples
Application industry
Advertising industry: Acrylic, two-color board, PVC, ABS board, aluminum board, two-color portrait, three-dimensional advertising, various standard equipment, badges, coordinate plates, copper, fonts, fonts, various signs, trademarks, etc.
Woodworking industry: musical instrument manufacturing, wooden crafts, solid wood furniture, office furniture, custom furniture, MDF paint-free doors, cabinets, etc.
Decoration industry: art models, murals, screens, reliefs, decoration processing, wave boards, electrical countertops, sporting goods and other wooden products.
Woodworking industry: musical instrument manufacturing, wooden crafts, solid wood furniture, office furniture, custom furniture, MDF paint-free doors, cabinets, etc.
Decoration industry: art models, murals, screens, reliefs, decoration processing, wave boards, electrical countertops, sporting goods and other wooden products.
After-sales service Photos
Service:
Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
Software is on update for free whole life.
Our engineer could support you technology to your country if necessary.
Our engineer could service on weekend even on vacation.
Our engineer could train you in our factory for free.
Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
English manual and CD video for machine using and maintaining will send to you with the machine.
36 months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.
Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
Software is on update for free whole life.
Our engineer could support you technology to your country if necessary.
Our engineer could service on weekend even on vacation.
Our engineer could train you in our factory for free.
Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
English manual and CD video for machine using and maintaining will send to you with the machine.
333
Recommend Products
Q: How to install and run the machine?
A: Our technicians have installed the machine before shipment. For the installation of some small parts, we will randomize the device together Send detailed training videos and user manuals. 95% of customers can learn by themselves.
Q: What should I do if the machine fails?
A: If you encounter such problems, please contact us as soon as possible, and do not try to repair the machine by yourself or others. We will be in 24 hours Respond as soon as possible within this time and solve it for you.
Q: Are you a factory or a trading company?
A: We are a factory with rich experience. Or directly make an appointment with the customer for a video factory inspection. Send factory inspection video to customers Watch
Q: What is your minimum order quantity?
Answer: We do not have a minimum order quantity. Whether it is 1 set of orders or 100 sets of orders, we will be happy to provide you with support hold.
Q: Delivery time of CNC router machine?
Standard size and configuration CNC router machine delivery time is 15 days, 4 axis and 5 axis series machine delivery time is 30 days.
A: Our technicians have installed the machine before shipment. For the installation of some small parts, we will randomize the device together Send detailed training videos and user manuals. 95% of customers can learn by themselves.
Q: What should I do if the machine fails?
A: If you encounter such problems, please contact us as soon as possible, and do not try to repair the machine by yourself or others. We will be in 24 hours Respond as soon as possible within this time and solve it for you.
Q: Are you a factory or a trading company?
A: We are a factory with rich experience. Or directly make an appointment with the customer for a video factory inspection. Send factory inspection video to customers Watch
Q: What is your minimum order quantity?
Answer: We do not have a minimum order quantity. Whether it is 1 set of orders or 100 sets of orders, we will be happy to provide you with support hold.
Q: Delivery time of CNC router machine?
Standard size and configuration CNC router machine delivery time is 15 days, 4 axis and 5 axis series machine delivery time is 30 days.
