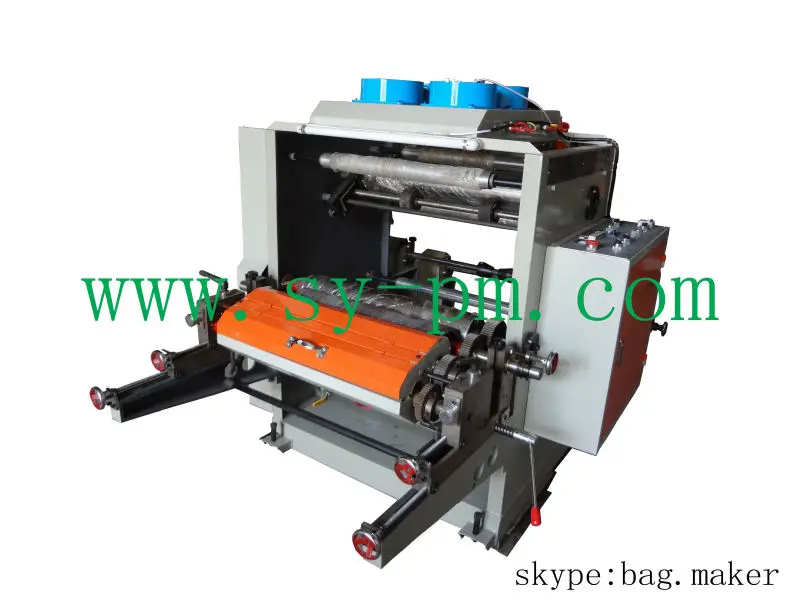

Label color printing machinery of sanyuan brand for sale

Product Overview

Description

Label color printing machinery of sanyuan brand  for sale



Usage:
This machine is suitable for printing such packing materials as polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.



Characteristics:
1. Easy operation, flexible starting, accurate colour register.
2. Meter counter can set printing quantity according to the requirements. Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
4. The printing ink is spread by the knurled cylinder with even ink colour.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. Imported frequency control of motor speed adjust different printing speeds.
8. There are inching/stopping buttons on plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.



machine model	YT11000
printing color	1
printing length	200-1000mm
printing plate lifting system	manual
mechanical speed	60m/min
printing speed	5-50m/min
anilox cylinder	metal
register precision	±0.5mm
rewinder / unwinder diameter	450mm
master motor	1.5KW
electrical heater	6.5kw
blower of heater	400W
inking motor	0.37KW
master frequency inverter	1.5KW
weight	1000kg
total power	11kw
